bent control arm bracket

Thread Tools

Search this Thread

Old Jan 16, 2012 | 09:36 PM
  #1
jacob.'s Avatar
Thread Starter
Junior Member

Joined: Oct 2011
Posts: 77
Likes: 0
Year: 1992
Model: Cherokee
Default bent control arm bracket

so went down to the local mud flats for the first snow fall to do some wheeling , any ways slide into v notch (didnt see cuz of the snow )and bent my control arm bracket on the chassis ,it pushed the axle to the left about and inch or two , and one of the brackets ripped away from the from the frame rail a bit ,im guessing i should take it to a frame shop...any ideas
Reply
Old Jan 16, 2012 | 09:42 PM
  #2
reddonkey's Avatar
Junior Member

Joined: Nov 2011
Posts: 45
Likes: 0
From: Tulsa OK
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

That sucks. I don't have a lot of advice for this. You will have to reinforce the frame and then rebuild the trac bar mount. Picts may help.
Reply
Old Jan 16, 2012 | 09:44 PM
  #3
Gatchmo5710's Avatar
CF Veteran

Joined: Apr 2010
Posts: 2,209
Likes: 3
From: st.george utah
Year: 1996
Model: Cherokee
Engine: l6 4.0
Default

Give us more info on lift and specs.
Can u weld?? Or have access to a friend that can?
Reply
Old Jan 16, 2012 | 10:03 PM
  #4
jacob.'s Avatar
Thread Starter
Junior Member

Joined: Oct 2011
Posts: 77
Likes: 0
Year: 1992
Model: Cherokee
Default

Originally Posted by Gatchmo5710
Give us more info on lift and specs.
Can u weld?? Or have access to a friend that can?
ok the jeep is a 92
it has a 4 inch lift on 33 now i got it like this and it seems to be one the cheaper way unfortunately ,stock control arms and has these brackets that fit inside the brackets to change the angle and lower the control arm .i can weld not that good though but i have a freind that works at a metal fab shop

will add pics tomorrow when i though it on the lift at school
Reply
Old Jan 17, 2012 | 09:49 PM
  #5
jacob.'s Avatar
Thread Starter
Junior Member

Joined: Oct 2011
Posts: 77
Likes: 0
Year: 1992
Model: Cherokee
Default

ok got some pics ,didnt get to put it on the lift today ,they were full.so the pics arent that great will get better ones .Name:  P1011006.jpg
Views: 594
Size:  46.3 KB

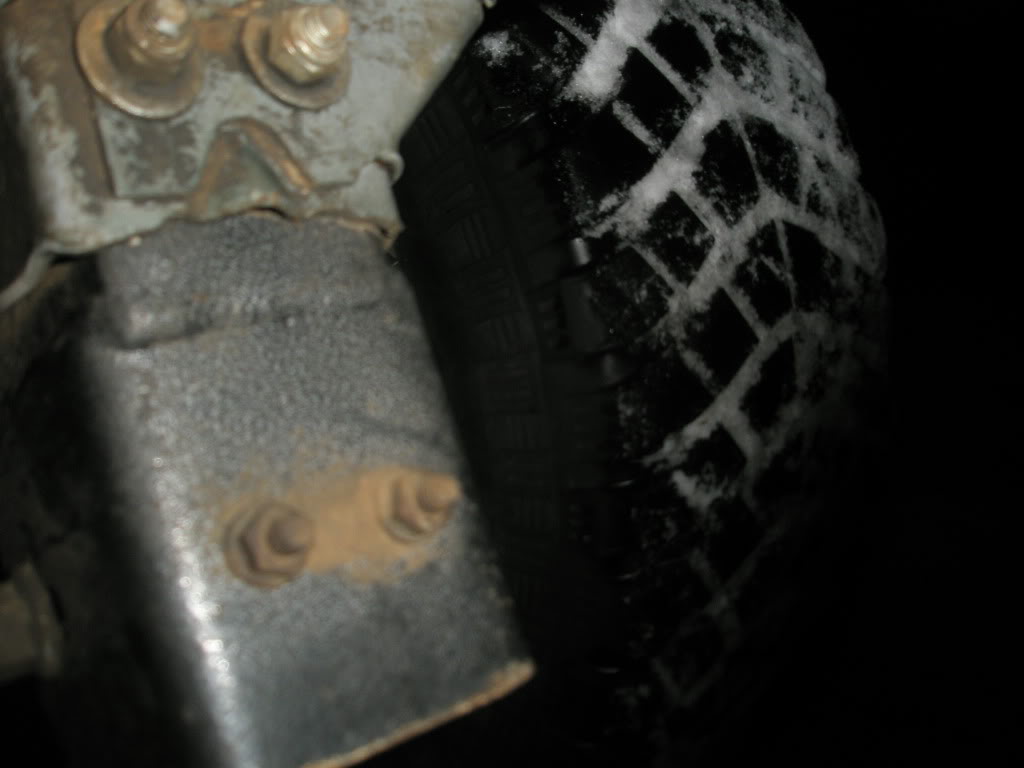

Name:  P1011005.jpg
Views: 504
Size:  55.7 KB

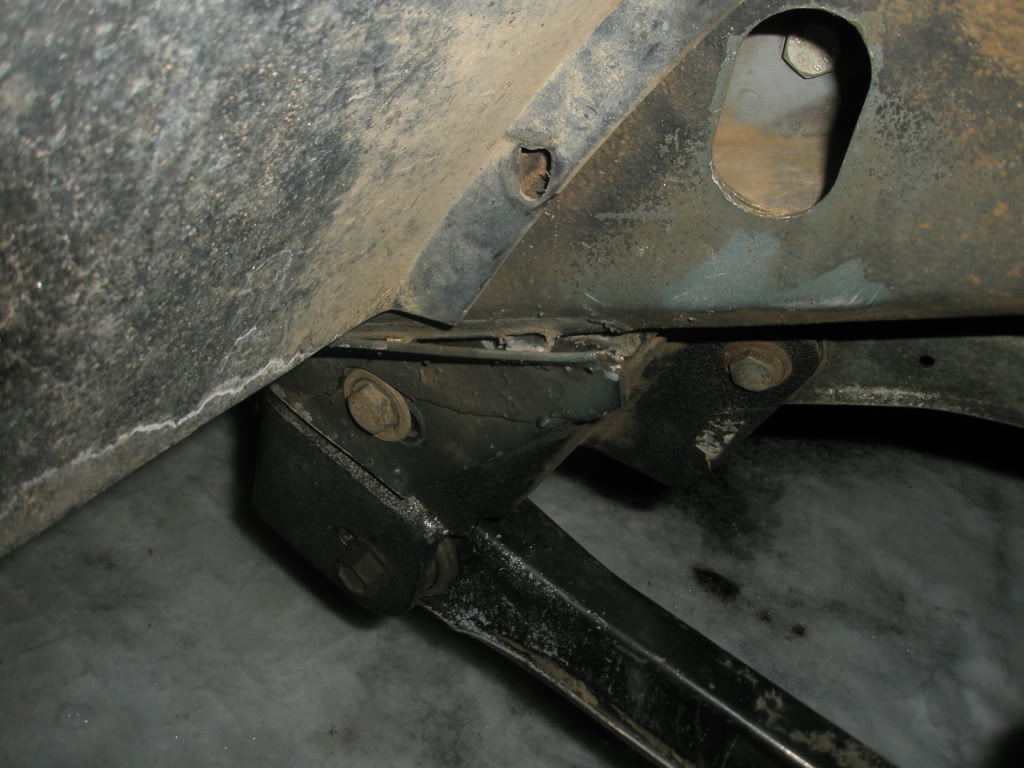

Name:  P1011001.jpg
Views: 596
Size:  111.8 KB

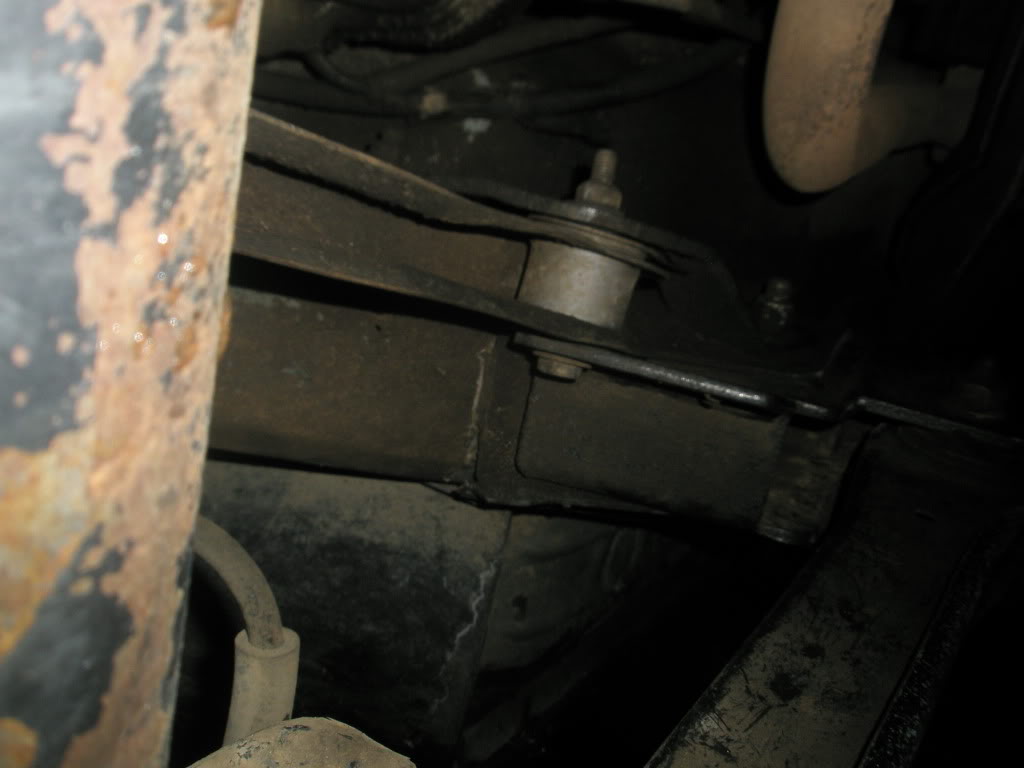

Name:  P1011000.jpg
Views: 590
Size:  55.1 KB

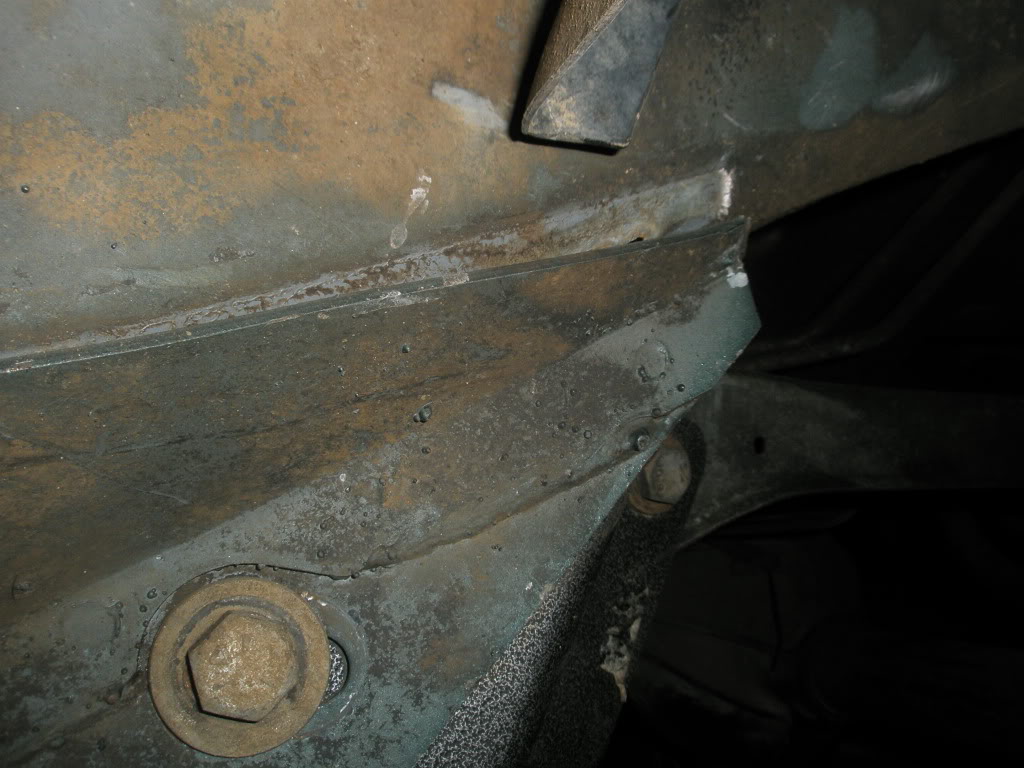

Name:  P1010999.jpg
Views: 666
Size:  115.2 KB
Name:  P1010998.jpg
Views: 764
Size:  116.1 KB
Reply
Old Jan 17, 2012 | 09:52 PM
  #6
SeriousOffroad's Avatar
CF Veteran

Joined: Apr 2008
Posts: 13,952
Likes: 17
Model: Cherokee
Default

*sniff, sniff*

I smell an upgrade......
Reply
Old Jan 17, 2012 | 09:56 PM
  #7
Sideways99's Avatar
CF Veteran

Joined: Dec 2010
Posts: 1,240
Likes: 0
From: Rocket Country MI
Year: 1999
Model: Cherokee
Engine: 4.0
Default

you are missing a bracket on the back there.
look at rough country ca drop brackets
Reply
Old Jan 17, 2012 | 10:07 PM
  #8
Bossokee's Avatar
Senior Member

Joined: Jan 2011
Posts: 645
Likes: 1
From: Dalton, MA
Year: 1998
Model: Cherokee
Engine: 4.0 H.O. 180K miles
Default

Looks like a poorly designed drop bracket that put too much leverage on the area that broke (stock bracket). Weld that **** up and put some kind of gusset/truss behind it for more strength
Reply
Old Jan 17, 2012 | 10:23 PM
  #9
Gatchmo5710's Avatar
CF Veteran

Joined: Apr 2010
Posts: 2,209
Likes: 3
From: st.george utah
Year: 1996
Model: Cherokee
Engine: l6 4.0
Default

Originally Posted by SeriousOffroad
*sniff, sniff*

I smell an upgrade......

go to this guys website and buy his long arms. problems solved and you got a huge upgrade.
Reply
Old Jan 17, 2012 | 10:56 PM
  #10
jacob.'s Avatar
Thread Starter
Junior Member

Joined: Oct 2011
Posts: 77
Likes: 0
Year: 1992
Model: Cherokee
Default

Originally Posted by Bossokee
Looks like a poorly designed drop bracket that put too much leverage on the area that broke (stock bracket). Weld that **** up and put some kind of gusset/truss behind it for more strength
yeah thats what im going to have to do
Reply
Old Jan 17, 2012 | 10:57 PM
  #11
jacob.'s Avatar
Thread Starter
Junior Member

Joined: Oct 2011
Posts: 77
Likes: 0
Year: 1992
Model: Cherokee
Default

Originally Posted by Gatchmo5710
go to this guys website and buy his long arms. problems solved and you got a huge upgrade.
i wish i dont have the money for that right now maybe once im done school ....
Reply
Old Jan 18, 2012 | 08:08 PM
  #12
jacob.'s Avatar
Thread Starter
Junior Member

Joined: Oct 2011
Posts: 77
Likes: 0
Year: 1992
Model: Cherokee
Default

what do u guys think the chances of the frame being tweaked ?
Reply
Old Jan 18, 2012 | 08:30 PM
  #13
RenegadeT's Avatar
Seasoned Member

Joined: Apr 2011
Posts: 328
Likes: 1
From: GSO NC
Model: Cherokee
Engine: 4.0L HO
Default

Originally Posted by jacob.
what do u guys think the chances of the frame being tweaked ?
maybe, but with LA's or welding the factory bracket back, it should be fine. For a budget fix, can you get rid of the drop brackets?
Reply
Old Jan 18, 2012 | 10:20 PM
  #14
jacob.'s Avatar
Thread Starter
Junior Member

Joined: Oct 2011
Posts: 77
Likes: 0
Year: 1992
Model: Cherokee
Default

Originally Posted by RenegadeT
maybe, but with LA's or welding the factory bracket back, it should be fine. For a budget fix, can you get rid of the drop brackets?
yeah i could but i would need to get adjustable control arms right
Reply
Old Mar 2, 2012 | 12:09 AM
  #15
jacob.'s Avatar
Thread Starter
Junior Member

Joined: Oct 2011
Posts: 77
Likes: 0
Year: 1992
Model: Cherokee
Default

so after a few weeks i got the mount fixed ,tried the port o power but it didnt cut it ,had to use my buddys frame /dent puller ,it did the trick.installed a adjustable track bar .got rid of those ****ty drop brackets and got adjustable control arm arms .time to go wheeling
Reply
