Belt Tension on a Renix
Hey dudes,
When tightening my belt, the bottom bracket that the tensioner bolt threads through is so tight it's just about at the edge. When I check the tension with my Krikit gauge, it is showing about just shy of 120 lbs. Has anyone experienced this before? I could tighten this up to 160 before if I wanted to(which is way way too tight but I am using that example for illustration) and the bracket wouldn't be nearly as far down as it is now on the track.
I am wondering if maybe I am missing a sequence or something?
Hope I explained this clearly enough lol
Anyway, thanks in advance
When tightening my belt, the bottom bracket that the tensioner bolt threads through is so tight it's just about at the edge. When I check the tension with my Krikit gauge, it is showing about just shy of 120 lbs. Has anyone experienced this before? I could tighten this up to 160 before if I wanted to(which is way way too tight but I am using that example for illustration) and the bracket wouldn't be nearly as far down as it is now on the track.
I am wondering if maybe I am missing a sequence or something?
Hope I explained this clearly enough lol
Anyway, thanks in advance
#2
CF Veteran
Join Date: Mar 2010
Location: Georgia
Posts: 1,438
Likes: 0
Received 7 Likes
on
7 Posts
Year: 99 94
Model: Cherokee (XJ)
Engine: I6
Easy thing to do would be to buy a shorter belt. http://autorepair.about.com/library/...s/42163954.gif Newer Cherokees have an idler between water pump and power steering instead of using power steering pump to provide tension.
Last edited by MonacaYankee; 08-19-2015 at 06:25 PM.
#3

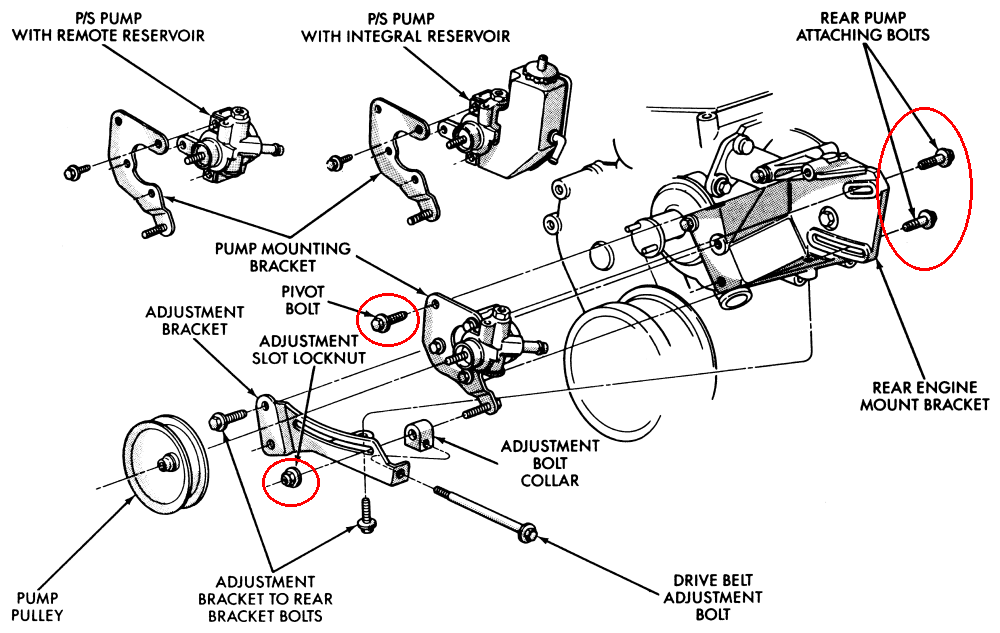

Renix shouldn't be that much different from my 91. The trick is to make the power steering reservoir pivot to tighten the belt. There are 4 bolts which needs to loosen. The top bolt holding the reservoir (pivot point), two bolts in the back of the bracket and one bolt below where the adjusting bolt/collar goes through. See picture. Bolts are in red. Not my photo.
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Renix shouldn't be that much different from my 91. The trick is to make the power steering reservoir pivot to tighten the belt. There are 4 bolts which needs to loosen. The top bolt holding the reservoir (pivot point), two bolts in the back of the bracket and one bolt below where the adjusting bolt/collar goes through. See picture. Bolts are in red. Not my photo.
