Bastard pack dummy question
#1
Member
Thread Starter
Join Date: May 2009
Posts: 173
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Bastard pack dummy question
I have looked and can't find the answer to this question...maybe one of you guys will know the answer. I am going to the JY tomorrow to pull some Dakota leafs to build my bastard pack this weekend. What size bolts are on the Dakota leafs? Just need to know that I am taking the right tools. Also what size are the nuts on the U-bolts?
I will make sure to post pics once I get done with them, I know how much you guys love those dirty pics! haha Thanks in advance.
I will make sure to post pics once I get done with them, I know how much you guys love those dirty pics! haha Thanks in advance.
#3
Member
Thread Starter
Join Date: May 2009
Posts: 173
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
That is what I am hoping for but just in case wanted to make sure I had everything. Any tips/suggestions on building the pack? I have read several threads on this forum that have been very helpful so far.
#4
Seasoned Member
Join Date: Sep 2008
Posts: 329
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Have you checked craigslist?
I saved myself a heck of a lot of work by getting a pair of S-10 leaf packs on craigslist for $25.
I placed a wanted ad, with what I was looking for, and willing to pay $25...voila!
A guy had a stock pair in his garage, left over from lowering his truck, and needed $25.
Driving 20 miles is a lot easier than pulling leaf packs in a J/Y...
I'm still working on assembling my bastard pack..last week I cut the eye ends off of the S-10 main leaves with a die grinder with a metal cut-off wheel. Big fun, LOTS of sparks!
WEAR EYE PROTECTION.
Also, S-10's and Dakotas use center pins (bolts) that are a larger size than the XJ, so you will need to drill out the center pin holes of the XJ leaves to the larger size.
You will also need to get new center pins and longer u-bolts, because they stretch/distort with use and are unsafe to re-use....besides, I've never found any of either that didn't strip out when disassembling them.
New spring clamps are in order, too. Check Rusty's website for these parts.
Check out orangeAMC's writeup/build thread, it's helpful.
Hope this helps!
I saved myself a heck of a lot of work by getting a pair of S-10 leaf packs on craigslist for $25.
I placed a wanted ad, with what I was looking for, and willing to pay $25...voila!
A guy had a stock pair in his garage, left over from lowering his truck, and needed $25.
Driving 20 miles is a lot easier than pulling leaf packs in a J/Y...
I'm still working on assembling my bastard pack..last week I cut the eye ends off of the S-10 main leaves with a die grinder with a metal cut-off wheel. Big fun, LOTS of sparks!
WEAR EYE PROTECTION.
Also, S-10's and Dakotas use center pins (bolts) that are a larger size than the XJ, so you will need to drill out the center pin holes of the XJ leaves to the larger size.
You will also need to get new center pins and longer u-bolts, because they stretch/distort with use and are unsafe to re-use....besides, I've never found any of either that didn't strip out when disassembling them.
New spring clamps are in order, too. Check Rusty's website for these parts.
Check out orangeAMC's writeup/build thread, it's helpful.
Hope this helps!
#5
Seasoned Member
Join Date: Sep 2008
Posts: 329
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
#6
Senior Member
Join Date: Sep 2008
Location: Ga
Posts: 885
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 inline 6
#7
Member
Thread Starter
Join Date: May 2009
Posts: 173
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
okay guys, I just got back from the JY with some new toys! The first thin I saw when I walked into the yard was a first gen 4wd S10 with a suspension list on it. I started to pull the leafs out of it since they would have given a nice lift but they were about rusted through. The search continues!
I ended up running across some Dakotas that had decent springs on them but they all still had the rear axles on them.
The search continues...until I found a 1997 2wd 4 door S10 blazer with less than 100k miles! It had never had a ball or reciever on it so it had apparently never towed anything and the springs were in excellent shape. I almost felt bad pulling parts off of such a nice truck. Until I saw while it was in the yard...the fire that burnt the drivers door and front seat, looked like it started at the fuse block under the dash. Back to the springs!
I pulled them and got em home, fixing to go start cutting em up. I dont think I will have time to put them on this weekend. Looks like they will have to wait until next weekend.

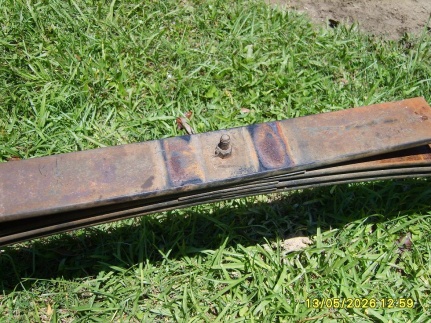

Enjoy the pics!
I ended up running across some Dakotas that had decent springs on them but they all still had the rear axles on them.
The search continues...until I found a 1997 2wd 4 door S10 blazer with less than 100k miles! It had never had a ball or reciever on it so it had apparently never towed anything and the springs were in excellent shape. I almost felt bad pulling parts off of such a nice truck. Until I saw while it was in the yard...the fire that burnt the drivers door and front seat, looked like it started at the fuse block under the dash. Back to the springs!
I pulled them and got em home, fixing to go start cutting em up. I dont think I will have time to put them on this weekend. Looks like they will have to wait until next weekend.
Enjoy the pics!
Last edited by firstxj; 05-30-2009 at 01:30 PM.
