Backspacing....
03-17-2009, 12:41 AM
#1
Senior Member
Thread Starter
Join Date: Oct 2008
Location: Orlando FL.
Posts: 544
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 242 6cyl
Backspacing....
Ok im about to order some Cragar V-5 wheels in black and was wondering what backspacing i should get......I'd like to have the tires stick out a little more to give it a better look i already took the flares off but would like it to stick out a little bit more then it does......If anybody has some pics they could post they would be great as well......
03-17-2009, 01:45 AM
#2
Seasoned Member
Join Date: Dec 2008
Location: Port Coquitlam, BC, Canada
Posts: 404
Likes: 0
Received 0 Likes
on
0 Posts
Year: Sold my 1991 to go to school for 2 years.
Model: Cherokee
Engine: 4.0L
Ok im about to order some Cragar V-5 wheels in black and was wondering what backspacing i should get......I'd like to have the tires stick out a little more to give it a better look i already took the flares off but would like it to stick out a little bit more then it does......If anybody has some pics they could post they would be great as well......
03-17-2009, 03:10 AM
#3
Senior Member
Thread Starter
Join Date: Oct 2008
Location: Orlando FL.
Posts: 544
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 242 6cyl
Thats what i was going for.......
Anybody know off hand what the stock backspacing is?!?!?!
Thanks......
Anybody know off hand what the stock backspacing is?!?!?!
Thanks......
03-17-2009, 08:47 AM
#4
CF Veteran
stock is 5-5.5 backspacing on a 7 inch rim. depending on which stock rims you have.
if you want them to stick out a bit, get some 15x8 with 3.75 backspacing.
if you want them to stick out a bit, get some 15x8 with 3.75 backspacing.
03-17-2009, 09:43 AM
#6
CF Veteran
Join Date: Nov 2008
Location: Oak Harbor, WA.
Posts: 6,989
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1987
Model: Cherokee
Engine: 4.0 liter RENIX I-6, DIY Cold Air Intake, 2.5 FM Exhaust, 3 Core Radiator
Teal, we just put Cragar Soft 8s 15x8 (4 INCH BACK SPACING) and Maxxis 33x12.50x15 Bighorns on my son's 87 XJ with the RC 6.5" lift. The tires have perfect spacing on the inside and they just stick out about a 1/2 to 1 inch past the stock flares and it looks mean as HELL!!!
Trending Topics
03-17-2009, 02:01 PM
#8
Senior Member
Thread Starter
Join Date: Oct 2008
Location: Orlando FL.
Posts: 544
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 242 6cyl
Teal, we just put Cragar Soft 8s 15x8 (4 INCH BACK SPACING) and Maxxis 33x12.50x15 Bighorns on my son's 87 XJ with the RC 6.5" lift. The tires have perfect spacing on the inside and they just stick out about a 1/2 to 1 inch past the stock flares and it looks mean as HELL!!!
Thank you sir i should be ordering these wheels next week......
04-14-2009, 11:07 AM
#11
CF Veteran
Join Date: Mar 2009
Location: Westfield, MA
Posts: 2,287
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999.
Model: Cherokee
Engine: 4.0, I6
im also wondering this question. i have stock rims on my cherokee now. its a 96 the stock rims are Jeep Wheel ALY1512 Silver Machined. im looking to get new ones. would 4.25 back spacing rub at all? or would they fit fine? im putting them on 235 75 15 mud tires. thanks
04-14-2009, 12:08 PM
#12

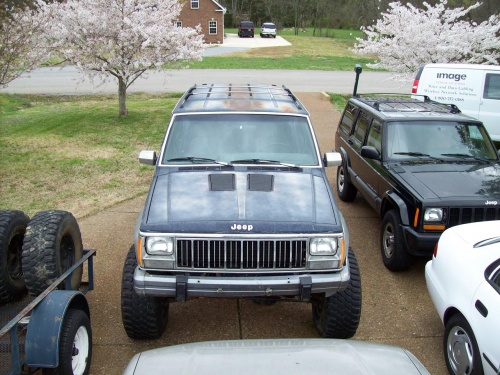

15x10 rims with 3.75 BS
33x12.50x15 tires
6.5 lift with the stock flares still on. Rubs the lower front edge of the flare when turning, but that is getting cut off anyway.
33x12.50x15 tires
6.5 lift with the stock flares still on. Rubs the lower front edge of the flare when turning, but that is getting cut off anyway.
04-14-2009, 01:13 PM
#13
CF Veteran
Join Date: Nov 2008
Location: Oak Harbor, WA.
Posts: 6,989
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1987
Model: Cherokee
Engine: 4.0 liter RENIX I-6, DIY Cold Air Intake, 2.5 FM Exhaust, 3 Core Radiator
235s will fit fine and not rub on a rim with 4.25" backspacing. A OEM Jeep rim has around 5.5" backspacing and a 235 fits them fine without rubbing.
04-14-2009, 01:23 PM
#15
CF Veteran
Join Date: Nov 2008
Location: Oak Harbor, WA.
Posts: 6,989
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1987
Model: Cherokee
Engine: 4.0 liter RENIX I-6, DIY Cold Air Intake, 2.5 FM Exhaust, 3 Core Radiator
That is correct. The lower the backspacing and also if it's a wider rim. For instance:
1.) A 15x10" rim with 4.25" backspacing will stick out more than a 15x8" rim with 4.25" backspacing.
2.) Also, a 15x8" rim with 4.25 backspacing will stick out more than a 15x8" rim with 5.5" backspacing.
1.) A 15x10" rim with 4.25" backspacing will stick out more than a 15x8" rim with 4.25" backspacing.
2.) Also, a 15x8" rim with 4.25 backspacing will stick out more than a 15x8" rim with 5.5" backspacing.
