alining jeep

Thread Tools

Search this Thread

Old 01-22-2013, 02:10 PM
  #1
Seasoned Member
Thread Starter

monstercherokee's Avatar

Join Date: Sep 2011
Location: segoville tx
Posts: 474
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 6 cylinder
Default alining jeep
I want my steering wheel straight what's the best way to do it at home?
monstercherokee is offline
Reply Like
Old 01-22-2013, 02:11 PM
  #2
CF Veteran

ZINGGG's Avatar

Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Likes: 0
Received 2 Likes on 1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Default
http://go.jeep-xj.info/HowtoAlignment.htm
ZINGGG is offline
Reply Like
Old 01-22-2013, 02:12 PM
  #3
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default
Loosen the adjustment sleeve on the drag link and turn it till your steering wheel matches the tires.
Xj88 is offline
Reply Like
Old 01-22-2013, 02:12 PM
  #4
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default
If the jeep is actually out of alignment then do a toe alignment first...then adjust the drag link...
Xj88 is offline
Reply Like
Old 01-23-2013, 03:54 AM
  #5
Seasoned Member
Thread Starter

monstercherokee's Avatar

Join Date: Sep 2011
Location: segoville tx
Posts: 474
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 6 cylinder
Default
Now top of both tires stick out still lost.
monstercherokee is offline
Reply Like
Old 01-23-2013, 04:14 AM
  #6
Senior Member

Mendax13's Avatar

Join Date: Jul 2011
Location: New Cumberland, PA
Posts: 516
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default

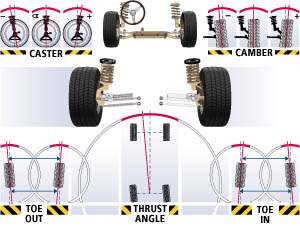

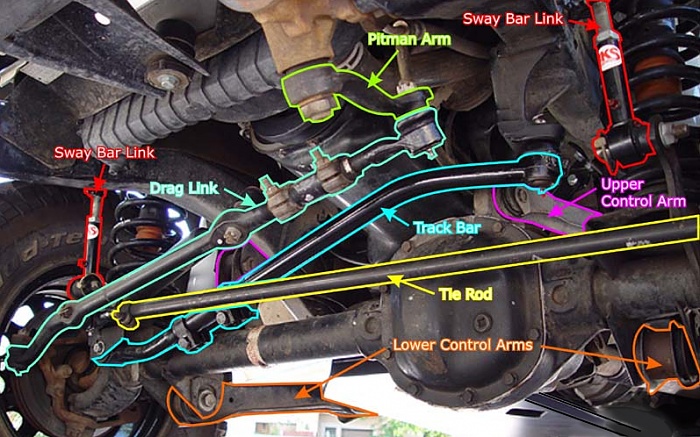

alining jeep-cherokee-front-components.jpg

Name: alignment.jpg Views: 159 Size: 26.3 KB

drag link is whats gonna adjust the steering wheel in relation to the wheels.
tie rod will adjust the toe. see pictures above to clarify hope this helps
Mendax13 is offline
Reply Like
Old 01-23-2013, 05:45 AM
  #7
Seasoned Member
Thread Starter

monstercherokee's Avatar

Join Date: Sep 2011
Location: segoville tx
Posts: 474
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 6 cylinder
Default
I have postive camber
monstercherokee is offline
Reply Like

Trending Topics

Old 01-23-2013, 05:47 AM
  #8
Senior Member

Mendax13's Avatar

Join Date: Jul 2011
Location: New Cumberland, PA
Posts: 516
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default
camber isnt something easily adjusted on our cherokees... someone else may come along with better info. i think they make offsetting ball joints or something. how high are you lifted?
Mendax13 is offline
Reply Like
Old 01-23-2013, 05:48 AM
  #9
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34° 25' 35.67", -81° 21' 12.04"
Posts: 15,016
Received 9 Likes on 7 Posts
Year: 1993
Engine: 4.0
Default
Originally Posted by monstercherokee
I have postive camber
Then you either have a bent axle or some seriously bad caster and horrible toe.

Take the thing to an alignment shop if you have no clue what you're doing.

I line mine up with a tape measure and my eyes.
Lowrange2 is offline
Reply Like
Old 01-23-2013, 06:00 AM
  #10
Senior Member

Mendax13's Avatar

Join Date: Jul 2011
Location: New Cumberland, PA
Posts: 516
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default
Originally Posted by lowrange2
Then you either have a bent axle or some seriously bad caster and horrible toe.

Take the thing to an alignment shop if you have no clue what you're doing.

I line mine up with a tape measure and my eyes.
x2 on this.
Mendax13 is offline
Reply Like
Old 01-23-2013, 06:08 AM
  #11
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default
Just take it to an allignment shop. Like already stated if you have positive camber that bad then you got bigger problems then alignment
Xj88 is offline
Reply Like
Old 01-23-2013, 09:48 AM
  #12
Seasoned Member
Thread Starter

monstercherokee's Avatar

Join Date: Sep 2011
Location: segoville tx
Posts: 474
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 6 cylinder
Default
Originally Posted by Mendax13
camber isnt something easily adjusted on our cherokees... someone else may come along with better info. i think they make offsetting ball joints or something. how high are you lifted?
4.5
monstercherokee is offline
Reply Like
Old 01-23-2013, 09:58 AM
  #13
Seasoned Member
Thread Starter

monstercherokee's Avatar

Join Date: Sep 2011
Location: segoville tx
Posts: 474
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 6 cylinder
Default

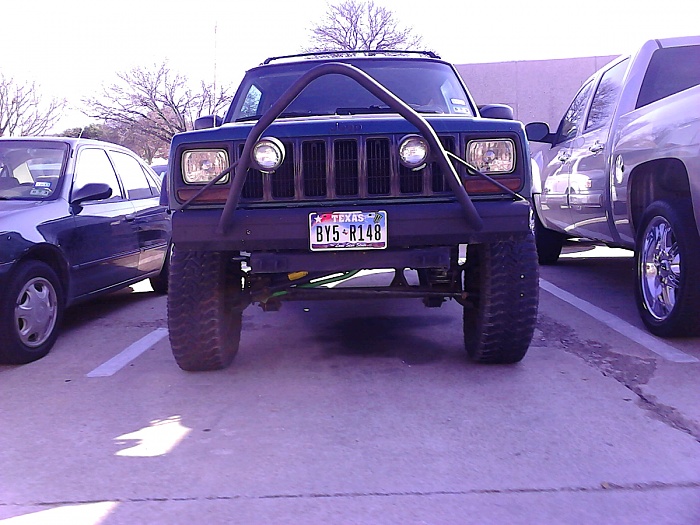

alining jeep-forumrunner_20130123_095829.jpg
monstercherokee is offline
Reply Like
Old 01-23-2013, 10:00 AM
  #14
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default
Your toe adjustments look off.
Xj88 is offline
Reply Like
Old 01-23-2013, 11:04 AM
  #15
Seasoned Member
Thread Starter

monstercherokee's Avatar

Join Date: Sep 2011
Location: segoville tx
Posts: 474
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 6 cylinder
Default
Also the camber
monstercherokee is offline
Reply Like
