ac recharge
My ac blows but it's not cold just Luke warm I tried buying stuff at Autozone to recharge the system but they sold some crap idk
What all do I need to recharge my ac?
Thx
What all do I need to recharge my ac?
Thx
#2
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
For an '89? That rolled out of the factory with R12. Unless it's been retrofitted to R134, you can't buy the correct refrigerant at Autozone. You can only get R12 recharged at an authorized shop, or get the EPA cert yourself and buy it on Ebay..
Has it been retrofitted? And exactly what did you add?
Oh, if you want to get your own EPA cert, its 609 that you need, test available here:
http://www.epatest.com/609/openbook/#
Has it been retrofitted? And exactly what did you add?
Oh, if you want to get your own EPA cert, its 609 that you need, test available here:
http://www.epatest.com/609/openbook/#
Last edited by Radi; 08-07-2012 at 12:19 AM.
#4
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
If it's still the original R12 (you can tell by the service fittings if nothing else), you have to either take it to an approved shop, or get the EPA cert so you can buy it yourself. R12 isn't available to the general public anymore.
#6
Member
Join Date: Jun 2011
Location: Portersville, Pennsylvania
Posts: 242
Likes: 0
Received 1 Like
on
1 Post
Year: 1997 & 1998
Model: Cherokee
Engine: 4.0

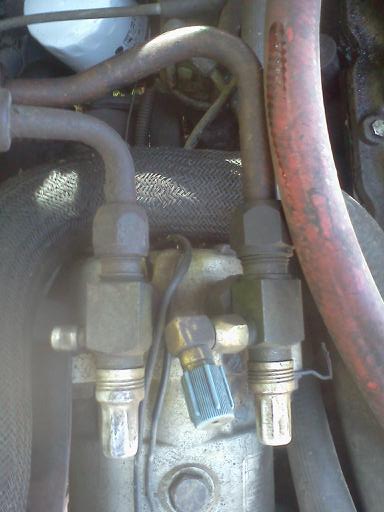

The main way to tell if it's an original R-12 system or if it's been converted is to look at the service ports. R-12 systems have a threaded valve and the 134A ones, the quick connect as shown in the previous post picture. R-12 was used up to 1996.
You were told correctly that if it's still an R-12 system that you cannot buy the refrigerant in this country thanks to the EPA, unless you find some cans still around at a swap meet. Expect to pay a premium price for it if you do. You will also need to find an obsolete R-12 recharge kit to do the job. They're not so easy to find.
You can convert the system to R-12 pretty easily. We, and other parts retailers, still sell conversion kits which consist of adapters to change the service ports to quick connects. The system needs then to be purged of R-12 and then refilled with 134A. The two refrigerants are not compatable together. It is a good idea to change the orifice tube and maybe the dryer, but not completely essential. It is technically illegal to just vent the old refrigerant into the air and you are supposed to have the refrigerant vacuumed out and this means going to a professional. So, I just can't say to do it, but most DIYers do just that (vent it out). Be careful not to breathe any of the freon in. It will hurt your lungs pretty badly. You also need to make sure that you replace the PAG oil that internally lubricates the system during a full recharge. Some of the replacement 134A cans have oil mixed, but most do not. Ask the parts guy which do and which do not. It is sold separately.
Most importantly, you must be careful not to overcharge the system which means using a recharging hose that contains a gauge. Two things happen when the system is overcharged. One is that the system shuts down via a switch that senses pressure and protects the compressor. Second is that you risk blowing O-rings and seals by having too much pressure in the system. On the average, you want to keep it below 50 pounds on the low side. Too little pressure and it won't cool. Too much and it won't work.
Please don't blame the products when you obviously don't know what the real reason for the issue is. Our a/c products are good, no worse than anyone elses. I don't mean to be insulting, but this is something very annoying and happens too frequently to us in the auto parts industry.
You were told correctly that if it's still an R-12 system that you cannot buy the refrigerant in this country thanks to the EPA, unless you find some cans still around at a swap meet. Expect to pay a premium price for it if you do. You will also need to find an obsolete R-12 recharge kit to do the job. They're not so easy to find.
You can convert the system to R-12 pretty easily. We, and other parts retailers, still sell conversion kits which consist of adapters to change the service ports to quick connects. The system needs then to be purged of R-12 and then refilled with 134A. The two refrigerants are not compatable together. It is a good idea to change the orifice tube and maybe the dryer, but not completely essential. It is technically illegal to just vent the old refrigerant into the air and you are supposed to have the refrigerant vacuumed out and this means going to a professional. So, I just can't say to do it, but most DIYers do just that (vent it out). Be careful not to breathe any of the freon in. It will hurt your lungs pretty badly. You also need to make sure that you replace the PAG oil that internally lubricates the system during a full recharge. Some of the replacement 134A cans have oil mixed, but most do not. Ask the parts guy which do and which do not. It is sold separately.
Most importantly, you must be careful not to overcharge the system which means using a recharging hose that contains a gauge. Two things happen when the system is overcharged. One is that the system shuts down via a switch that senses pressure and protects the compressor. Second is that you risk blowing O-rings and seals by having too much pressure in the system. On the average, you want to keep it below 50 pounds on the low side. Too little pressure and it won't cool. Too much and it won't work.
Please don't blame the products when you obviously don't know what the real reason for the issue is. Our a/c products are good, no worse than anyone elses. I don't mean to be insulting, but this is something very annoying and happens too frequently to us in the auto parts industry.
Trending Topics
#8
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
..........Please don't blame the products when you obviously don't know what the real reason for the issue is. Our a/c products are good, no worse than anyone elses. I don't mean to be insulting, but this is something very annoying and happens too frequently to us in the auto parts industry.
We overhauled our a/c using numerous parts from AutoZone 4 years ago.........a/c still blows coooooooold.
Last edited by djb383; 06-28-2014 at 08:39 PM.
#9
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
I'm guessing that the blue in the middle is the low since it's different from the other two. (other than that I don't have a clue)
MAN! At first I thought SteveO was back from 2012!
MAN! At first I thought SteveO was back from 2012!
#10
Seasoned Member
I tried charging mine but it seems to be leaking out of the compressor... the compressor runs and it starts to blow cold air but you can hear hissing near the compressor and it just lets all the refrigerant out.
guess im lucky to have a 96, i didnt realize they changed to R134a that year.
guess im lucky to have a 96, i didnt realize they changed to R134a that year.
#12
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
I put propane in mine. I had oil left in one of those cans, so I put it in the line that I hooked to the propane tank so it would blow in. It blows cold...I'm not sure it it's "up to snuff" though. I guess its common in Europe.
They add Mercaptin to propane to give it a smell so you know if it's leaking. Mercaptin is the same molecule rotting meat gives off, so if you ever see flies around your propane tank or lines you have a leak. I know nothing about fixing a leaky compressor!
They add Mercaptin to propane to give it a smell so you know if it's leaking. Mercaptin is the same molecule rotting meat gives off, so if you ever see flies around your propane tank or lines you have a leak. I know nothing about fixing a leaky compressor!
#13
Newbie
Join Date: May 2014
Location: Spokane, WA
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0L 6 cyl
Anybody ever change a A/C compressor out?...Just got back from the garage..said my compressor seal is bad ...need a new compressor..plus new lines..wouldn't be a bad idea for a reservoir also...added up to about 750 bucks!....Could use some instruction here..as I really don't want to spend that kind of money...Any help would be greatly appreciated...Thanks in advance...
Jay in Spokane...
Jay in Spokane...
#14
Senior Member
Join Date: May 2012
Location: Fayetteville, NC
Posts: 651
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
don't take it to a dealership! I don't know what to say about google reviews. Find an educated mechanic who works out of his house, so if he messes up you can go back....whenever you want.
#15
Junior Member
Join Date: Jun 2014
Location: Georgia
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L
Gusjdj
If you aren't familiar with working on a/c systems save yourself the headache and pay to get it done. You need a set of manifold gauges, and a vacuum pump just for starters. The cost of those tools alone will surprize you. So my advice to you is unless you have a friend that already has those things, just pay the money and make sure they warranty thier parts and labor.
If you aren't familiar with working on a/c systems save yourself the headache and pay to get it done. You need a set of manifold gauges, and a vacuum pump just for starters. The cost of those tools alone will surprize you. So my advice to you is unless you have a friend that already has those things, just pay the money and make sure they warranty thier parts and labor.
