AC cycles constantly
I have a 2001 Cherokee, the the AC pump constantly cycles on and off when the AC is not in use. Why does it do this?
I drove a 98 for almost 9 years that did the same annoying thing.
I searched on the topic but didn't find anything.
Thanks
I drove a 98 for almost 9 years that did the same annoying thing.
I searched on the topic but didn't find anything.
Thanks
#2
CF Veteran
Join Date: Jan 2015
Location: Southern Maryland
Posts: 1,381
Likes: 0
Received 1 Like
on
1 Post
Year: 1991
Model: Cherokee
Engine: 1999 4.0L
Defrost setting cycles the compressor. AC acts like a dehumidifier of sorts, basically the evaporator core in the dashboard will draw moisture from the surrounding air, which helps evac moisture off the windshield
#3
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO

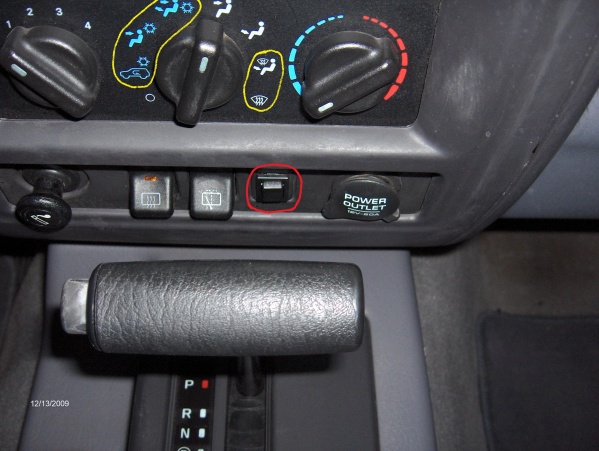

The vent selector has 7 positions....5 of those 7 positions engage the compressor. The 5 vent positions circled in yellow below engage the compressor, the 2 positions not circled do not engage the compressor. Most all vehicles with a dial type HVAC vent selector are like this. Very functional, not complicated at all. No need to use the 2 positions furthest to the right unless the windshield fogs up on the inside or ices up on the outside. Inside is called defog and outside is called defrost. The defrost position will also require turning the temp selector **** to the heat (red) position.
Rapid compressor cycling can also mean the system is low on refrigerant.
Rapid compressor cycling can also mean the system is low on refrigerant.
Last edited by djb383; 01-15-2015 at 09:56 PM.
#4
Newbie
Thread Starter
Join Date: Feb 2010
Location: Pacific North West
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 & 2001
Model: Cherokee
Engine: 4.0
Thanks.
My AC is not working.
I don't plan to have it serviced until summer, If I pull the power connection to the AC clutch I won't cause damage to a relay or something else will I?
Thanks again,
Gregg
#5
Newbie
Thread Starter
Join Date: Feb 2010
Location: Pacific North West
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 & 2001
Model: Cherokee
Engine: 4.0
The vent selector has 7 positions....5 of those 7 positions engage the compressor. The 5 vent positions circled in yellow below engage the compressor, the 2 positions not circled do not engage the compressor. Most all vehicles with a dial type HVAC vent selector are like this. Very functional, not complicated at all. No need to use the 2 positions furthest to the right unless the windshield fogs up on the inside or ices up on the outside. Inside is called defog and outside is called defrost. The defrost position will also require turning the temp selector **** to the heat (red) position.
Rapid compressor cycling can also mean the system is low on refrigerant.
Rapid compressor cycling can also mean the system is low on refrigerant.
The clutch on the AC pump makes bunch of racket when cycling so
I want to disconnect it for now.
I just bought an 01 to replace my used up 98 and have repairs that are a priority to the AC.
Thanks,
Gregg
#6
Newbie
Thread Starter
Join Date: Feb 2010
Location: Pacific North West
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 & 2001
Model: Cherokee
Engine: 4.0
The vent selector has 7 positions....5 of those 7 positions engage the compressor. The 5 vent positions circled in yellow below engage the compressor, the 2 positions not circled do not engage the compressor. Most all vehicles with a dial type HVAC vent selector are like this. Very functional, not complicated at all. No need to use the 2 positions furthest to the right unless the windshield fogs up on the inside or ices up on the outside. Inside is called defog and outside is called defrost. The defrost position will also require turning the temp selector **** to the heat (red) position.
Rapid compressor cycling can also mean the system is low on refrigerant.
Rapid compressor cycling can also mean the system is low on refrigerant.
Trending Topics
#8
CF Veteran
If the clutch is making a bunch of noise, it could be the reason your AC isn't working. Mine would stop working intermittently, and it was the clutch was worn out. I got a rebuild kit for the clutch and it's been good ever since.
#10
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Someone installed an AC bypass switch. It opens the control wire from the Low Pressure Compressor Cycling Switch on top of the Accumulator. It essentially does the same thing as removing the connector from the Low Pressure switch. In this mode you can use any selection on the Mode Selector without engaging the AC.
#11
Newbie
Thread Starter
Join Date: Feb 2010
Location: Pacific North West
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 & 2001
Model: Cherokee
Engine: 4.0
#13
Member
Join Date: Jul 2010
Location: Easton, PA
Posts: 210
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
My 98 XJ did that till I put R134 in it. The system was 16 years old, and never recharged. One bottle, and all is good. On my 94 XJ, that I just got. The whole system is coming out. The AC delete bracket should be here on Monday at Advanced Auto. $42 for something I really don't use. My son uses the AC on the 98 XJ
#15
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Negative on the a/c bypass and fog light switch. Our XJ is a plain Jane stripped down SE model.....no power anything. The previous owner installed power door lock servos in the doors and liftgate and that switch locks/unlocks the doors/liftgate.
