95 Cherokee AC Leak - Passenger Side
04-01-2012, 08:18 PM
#1
Newbie
Thread Starter
Join Date: Apr 2012
Location: Austin
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
95 Cherokee AC Leak - Passenger Side
Hello -
So I'm having an issue where the AC is soaking the passenger side, and sometimes the drivers side while making turns. I know this has something to do with the condensate drain, but I can't seem to find it. I know that 95's have a different setup than most, as in no hose coming out of the firewall. Any help is greatly appreciated! I live in Texas, so no AC is impossible.
Thanks!
So I'm having an issue where the AC is soaking the passenger side, and sometimes the drivers side while making turns. I know this has something to do with the condensate drain, but I can't seem to find it. I know that 95's have a different setup than most, as in no hose coming out of the firewall. Any help is greatly appreciated! I live in Texas, so no AC is impossible.
Thanks!
04-01-2012, 09:38 PM
#2
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Not even a nipple coming out of the firewall?......seems like there should be. Maybe broken off/dis-lodged on the cab side of the firewall?
04-01-2012, 10:36 PM
#3
Senior Member
Join Date: Mar 2012
Location: Bellevue, WA
Posts: 512
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L
Join the club. My XJ is right now getting this fixed.
Heater and/or A/C drain is one possibility. The second one is the crappy seal on the fire wall, separating the heater blower portions outside and inside the vehicle.

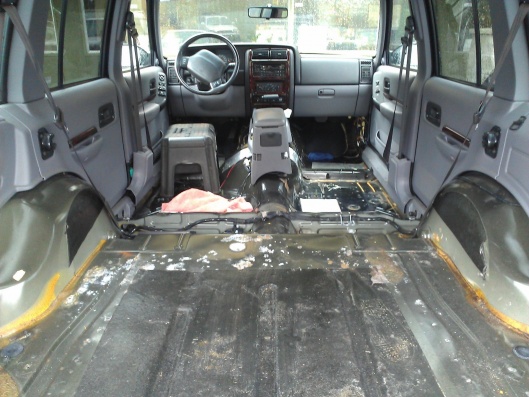

There are a number of articles on the web on fixing this and finding the root cause, in the meantime, enjoy the picture... Mine was discovered quite too late...
Heater and/or A/C drain is one possibility. The second one is the crappy seal on the fire wall, separating the heater blower portions outside and inside the vehicle.
There are a number of articles on the web on fixing this and finding the root cause, in the meantime, enjoy the picture... Mine was discovered quite too late...
04-02-2012, 05:48 PM
#4
Member
Join Date: Jan 2012
Posts: 122
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
I just put my xj back together after finding the leak from the firewall.....little bit of sealant fixed the problem! No more water..... luckily I live in the NW and don't have to worry too much about rust
04-02-2012, 06:26 PM
#5
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Hello -
So I'm having an issue where the AC is soaking the passenger side, and sometimes the drivers side while making turns. I know this has something to do with the condensate drain, but I can't seem to find it. I know that 95's have a different setup than most, as in no hose coming out of the firewall. Any help is greatly appreciated! I live in Texas, so no AC is impossible.
Thanks!
So I'm having an issue where the AC is soaking the passenger side, and sometimes the drivers side while making turns. I know this has something to do with the condensate drain, but I can't seem to find it. I know that 95's have a different setup than most, as in no hose coming out of the firewall. Any help is greatly appreciated! I live in Texas, so no AC is impossible.
Thanks!
Last edited by freegdr; 04-02-2012 at 06:30 PM.
Trending Topics
04-10-2012, 09:40 AM
#8
Newbie
Thread Starter
Join Date: Apr 2012
Location: Austin
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
Fixed -
Hey oldmanina2000xj -
Yep, I fixed it by putting a coat hanger in there (carefully) and moving it around a bit. As soon as I did, water came gushing out of the hole. I attached a vacuum to it and tried to get any debris out of there. Since then, it's been a hot week in Texas, and I've been blasting the AC with no wet floors anymore. Hope this helps!
-Eric
Yep, I fixed it by putting a coat hanger in there (carefully) and moving it around a bit. As soon as I did, water came gushing out of the hole. I attached a vacuum to it and tried to get any debris out of there. Since then, it's been a hot week in Texas, and I've been blasting the AC with no wet floors anymore. Hope this helps!
-Eric
04-10-2012, 09:51 AM
#9
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Hey oldmanina2000xj -
Yep, I fixed it by putting a coat hanger in there (carefully) and moving it around a bit. As soon as I did, water came gushing out of the hole. I attached a vacuum to it and tried to get any debris out of there. Since then, it's been a hot week in Texas, and I've been blasting the AC with no wet floors anymore. Hope this helps!
-Eric
Yep, I fixed it by putting a coat hanger in there (carefully) and moving it around a bit. As soon as I did, water came gushing out of the hole. I attached a vacuum to it and tried to get any debris out of there. Since then, it's been a hot week in Texas, and I've been blasting the AC with no wet floors anymore. Hope this helps!
-Eric
