89 cherokee rear-end ?is it?
12-02-2008, 12:53 PM
#1
Newbie
Thread Starter
Join Date: Nov 2008
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0 / 242 EFI
89 cherokee rear-end ?is it?
Happy Holidays to All,
Was wondering what the rear-end is in my 89 cherokee w/4.0 EFI
Can ID the Dana 30 up front & what looks a NP231 for the 'T' case but
the outer cover configuration of the of the rear-end looks nothing like a Dana 35 as per my Quadtrac Booklet...so the question is what is it?
Thanks to all in advance for answering this thread!
Was wondering what the rear-end is in my 89 cherokee w/4.0 EFI
Can ID the Dana 30 up front & what looks a NP231 for the 'T' case but
the outer cover configuration of the of the rear-end looks nothing like a Dana 35 as per my Quadtrac Booklet...so the question is what is it?
Thanks to all in advance for answering this thread!
12-02-2008, 01:01 PM
#3
CF Veteran
Join Date: Nov 2008
Posts: 2,003
Likes: 0
Received 4 Likes
on
3 Posts
Year: 1987
Model: Cherokee
Engine: 4.0

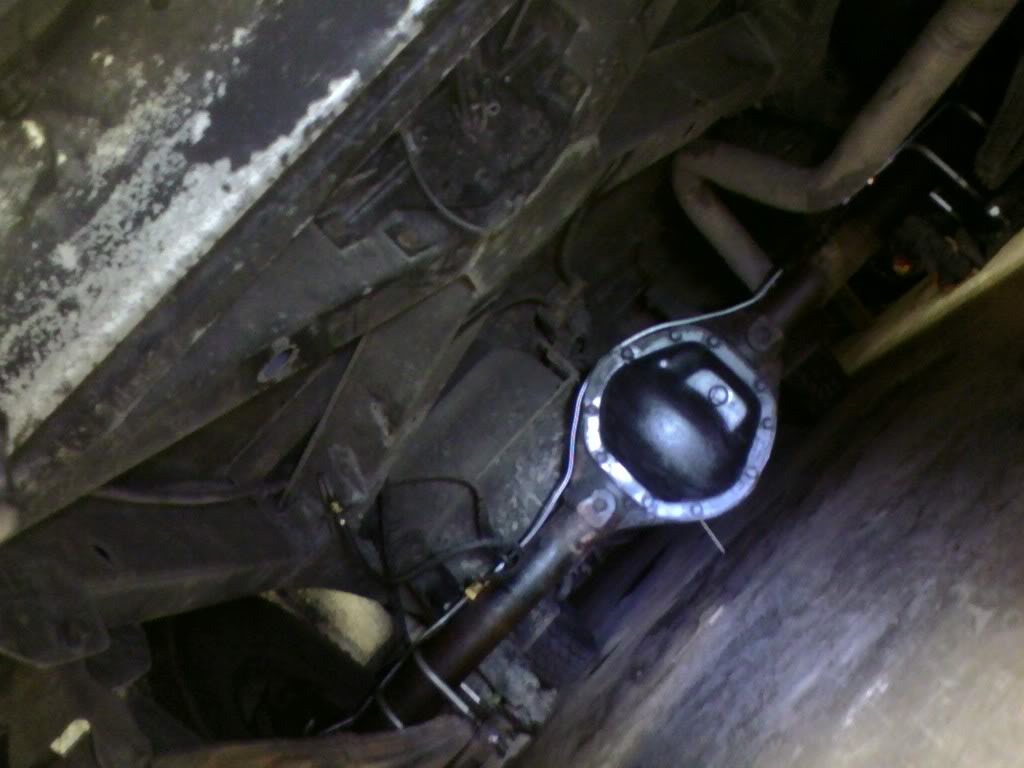

is it diamond shaped?
like so?
if so, it's a dana 44 and one of the few installed in an 89 xj (the factory was using overstock by then)
there's no other stock options
like so?
if so, it's a dana 44 and one of the few installed in an 89 xj (the factory was using overstock by then)
there's no other stock options
12-02-2008, 01:05 PM
#4
::CF Administrator::
Join Date: May 2008
Location: Okc area
Posts: 10,039
Likes: 0
Received 15 Likes
on
11 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 I6
Here's some pics of rear axle covers and such..Look at these and match one to yours..
http://www.4wheelnoffroad.com/axle.html
http://www.4wheelnoffroad.com/axle.html
Trending Topics
12-02-2008, 01:20 PM
#8
CF Veteran
12-02-2008, 01:37 PM
#10
Newbie
Thread Starter
Join Date: Nov 2008
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0 / 242 EFI
89 cherokee rear-end ?is it?
This site & the members are awesome!
Was looking in my Quadtrec Booklet again & took another look at the rear & it looks like a Chrysler 8.25 cause the cover is round & NOT diamond shaped & oddly enough this is an 89.
As for the requested pic I have no camera so is there a link that I can do process-of-elimination & fill you in on th outcome?
Thank you all again...you're all right on the ball!!
Was looking in my Quadtrec Booklet again & took another look at the rear & it looks like a Chrysler 8.25 cause the cover is round & NOT diamond shaped & oddly enough this is an 89.
As for the requested pic I have no camera so is there a link that I can do process-of-elimination & fill you in on th outcome?
Thank you all again...you're all right on the ball!!
12-02-2008, 01:40 PM
#11
CF Veteran
Join Date: Mar 2008
Location: South Side Chicago
Posts: 2,088
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1992, 2- 1998 (All 3, 4 Doors)
Model: Cherokee
Engine: 4.0L in all
Yeah, brainfart. It was started as an option in '91.
Way back when, I figured mine out the lazy way...
I just bought both gaskets.
12-02-2008, 01:45 PM
#12
CF Veteran
Join Date: Nov 2008
Posts: 2,003
Likes: 0
Received 4 Likes
on
3 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
no way it's an 8.25 unless it's been swapped in.
look at the rear diff from underneath...is there a 2" lip at the bottom of it? if so, it's a chrysler 8.25. if not, it's a dana 35, if not, someone did alot of swapping.
look at the rear diff from underneath...is there a 2" lip at the bottom of it? if so, it's a chrysler 8.25. if not, it's a dana 35, if not, someone did alot of swapping.
12-02-2008, 01:52 PM
#13
Newbie
Thread Starter
Join Date: Nov 2008
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0 / 242 EFI
89 cherokee rear-end ?is it?
Just for ha's I went back outside & measured the cover across end-to-end & it's measures 8.25".
Did the D35 ever have a totally cover round?
Did the D35 ever have a totally cover round?
12-02-2008, 01:54 PM
#14
CF Veteran
Join Date: Mar 2008
Location: South Side Chicago
Posts: 2,088
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1992, 2- 1998 (All 3, 4 Doors)
Model: Cherokee
Engine: 4.0L in all
http://www.4wheelnoffroad.com/axle.html
12-02-2008, 02:16 PM
#15
Newbie
Thread Starter
Join Date: Nov 2008
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0 / 242 EFI
89 cherokee rear-end ?is it?
FINALLY RESOLVED!
Thank you BowtieGuy3 for the rears link you supplied & to all else who responded.
This stupid Quadtrac Booklet that I got is showing a D44 where a D35 should be!
You are correct! The D35 cover's configuration is exactally what is in this Cherokee.
And again thank you all for you super-assistance
wolfen-joe
Thank you BowtieGuy3 for the rears link you supplied & to all else who responded.
This stupid Quadtrac Booklet that I got is showing a D44 where a D35 should be!
You are correct! The D35 cover's configuration is exactally what is in this Cherokee.
And again thank you all for you super-assistance
wolfen-joe
