'88 Cherokee Ground question

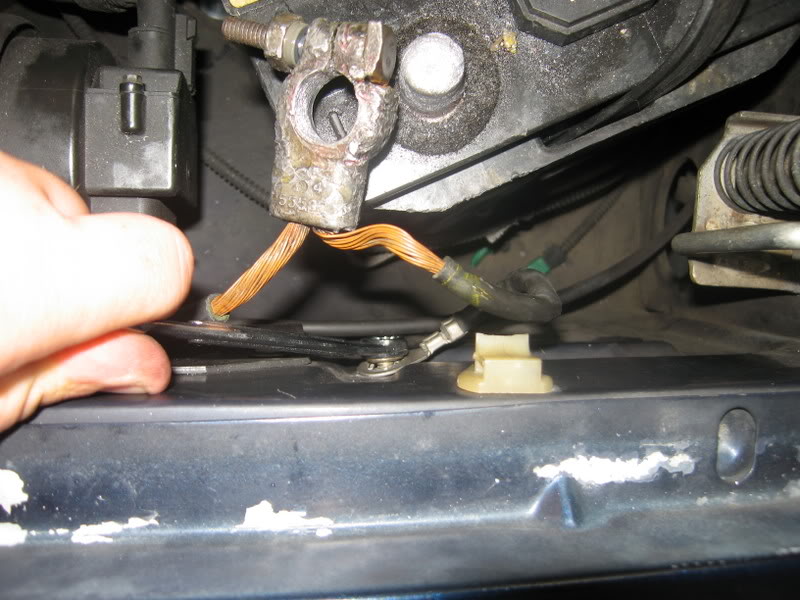

I have an '88 Cherokee Pioneer I6 / Auto / 4x4 but the wiring looks like that of the I4 according to the repair manual as it pertains to the charging system. I only have one ground from the negative side of the battery to the block. The charging schematic for the I6 indicates there are two grounds from the negative side of the battery. Where are the two grounds from the battery supposed to go?
My volt meter reads approximately 11 - 12.5 but my fluke reads 14.0 across the negative / starter relay and block ground / starter relay. Is the volt meter usually accurate?
Other things make me think I am actually putting out 12.5 volts / missing a ground like the power steering whine at idle, slightly dimmed headlights at night and lower volt reading at night with lights on.
I have no problem starting or maintining a charge.... Please help me locate the location of the other ground.
Thanks in advance!
My volt meter reads approximately 11 - 12.5 but my fluke reads 14.0 across the negative / starter relay and block ground / starter relay. Is the volt meter usually accurate?
Other things make me think I am actually putting out 12.5 volts / missing a ground like the power steering whine at idle, slightly dimmed headlights at night and lower volt reading at night with lights on.
I have no problem starting or maintining a charge.... Please help me locate the location of the other ground.
Thanks in advance!
05-17-2011, 07:21 PM
#4
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
i also have some of the issues you state but my grounds there,low volt gauge when ac and lights on but no other issues
05-17-2011, 10:45 PM
#6
Newbie
Thread Starter
Join Date: Apr 2011
Location: Anna, Tx
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
I cleaned the block ground and that helped a little. It was covered in oil, grime and dirt, but now it's shiny and solid. I'll be adding the body ground from the negative terminal tomorrow as well as cleaning the braided strap body ground. It's odd... at all points from the alternator or battery to ground, I get a solid 14.xx reading but the volt meter and other accessories tell a different story. WTF....
05-18-2011, 10:25 AM
#7
Newbie
Thread Starter
Join Date: Apr 2011
Location: Anna, Tx
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
I added the body ground from the battery and the volt meter is a little closer to 13v now. All previous tests show a consistent 14v reading so there's a short or loose ground somewhere on the body. I love electrical gremlins....
Trending Topics
05-18-2011, 06:07 PM
#8
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
did the up grade today it helped alot with everything on ac light and stero charging at 13 volts according to dash gauge got cables from napa did not go with big cables like everybody else went with 4.0 did not want to over load old wiring in renix system very pleased
