3" lift + 1 3/4" BB

Thread Tools

Search this Thread

Old 02-13-2010, 03:49 PM
  #1
Junior Member
Thread Starter

Gcowen91's Avatar

Join Date: Dec 2009
Location: Somerset, Ma
Posts: 82
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 HO
Default 3" lift + 1 3/4" BB

I have a 3" lift in now i want to put a 1 3/4" buget boost will i need new shocks and brake line extensions?or anything else
Old 02-13-2010, 03:55 PM
  #2
Senior Member

dans01classic's Avatar

Join Date: Dec 2009
Location: North Carolina
Posts: 541
Likes: 0
Received 1 Like on 1 Post
Year: 2001
Model: Cherokee
Engine: 4.0 inline 6
Default

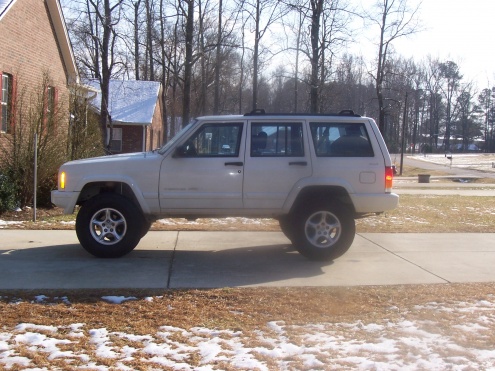

If you are reffering to the rusty's budget boost it is actually a two inch lift. I just added this to my 3 inch add-a-leaf yesterday. I have stock wheels and my tires measure 32 and 1/4 inches tall. this is what it looks like.
Attached Images
Old 02-13-2010, 03:57 PM
  #3
Senior Member

dans01classic's Avatar

Join Date: Dec 2009
Location: North Carolina
Posts: 541
Likes: 0
Received 1 Like on 1 Post
Year: 2001
Model: Cherokee
Engine: 4.0 inline 6
Default

Oh, and if you got the rusty's shocks that came with your 3", then you shouldn't need shocks. I didn't. But you may want to consider front brake line extensions. mine are tight and Im going have to get some.
Old 02-13-2010, 03:57 PM
  #4
Junior Member
Thread Starter

Gcowen91's Avatar

Join Date: Dec 2009
Location: Somerset, Ma
Posts: 82
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 HO
Default

ya i got full leaf did u have to replace shocks and brake lines?
Old 02-13-2010, 04:26 PM
  #5
Senior Member

dans01classic's Avatar

Join Date: Dec 2009
Location: North Carolina
Posts: 541
Likes: 0
Received 1 Like on 1 Post
Year: 2001
Model: Cherokee
Engine: 4.0 inline 6
Default

Originally Posted by Gcowen91
ya i got full leaf did u have to replace shocks and brake lines?
No Im using the rustys shocks that came with my three inch kit. they work fine. But if you do any serious wheeling then you probably will want to cinsider front brake line extensions. And if you do the front you may as well go ahead and do the back. I dont hit too many trails, just the beach. So I shouldn't have to.
Old 02-13-2010, 05:09 PM
  #6
Junior Member
Thread Starter

Gcowen91's Avatar

Join Date: Dec 2009
Location: Somerset, Ma
Posts: 82
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 HO
Default

sounds good i might trim the fenders and put 33s on they should fit.
Old 02-13-2010, 05:53 PM
  #7
Junior Member

beaum's Avatar

Join Date: Mar 2009
Location: Johnsonburg, PA
Posts: 36
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 straight 6 cylinder
Default

The same thing crossed my mind to add to my 3 inch lift but would I need new control arms if my 3 inch kit didnt come with them?
Old 02-13-2010, 06:08 PM
  #8
Member

84wagoneer's Avatar

Join Date: Sep 2009
Location: Medicine Hat, Alberta
Posts: 234
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default

no you wont, but without longer control arms you might not be able to get it fully aligned. also the factory arms limit the axle down travel at 4.5 or 5". if you look at the aftermarket ones, they have a kick in them about 2/3's the way down. thats to clear the shock mount i do believe
Old 02-13-2010, 06:33 PM
  #9
Junior Member

beaum's Avatar

Join Date: Mar 2009
Location: Johnsonburg, PA
Posts: 36
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 straight 6 cylinder
Default

Thanks what do you think about drop brackets?
Old 02-14-2010, 08:26 AM
  #10
CF Veteran

Desert Rat's Avatar

Join Date: Sep 2009
Location: West Valley
Posts: 3,612
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0
Default

Rusty sells a kit for adjusting your brakelines a couple inches for $10, I'm thinking of either going that route or copying their design and making my own. You might want to look into those.
Old 06-21-2010, 10:29 PM
  #11
Seasoned Member

kellan_musseau's Avatar

Join Date: Nov 2009
Posts: 331
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997 2 door
Model: Cherokee
Engine: 4.0
Default

Sorry for bringin up the old thread! But I would like to know some more info as well,

3" Rough Country is what im running, and ordered a 2" Budget boost, Dan, is everything still running ok with your setup? And did your sway bar reach?

I will add control arms, trackbar, brake line extensions and disconnects down the road..but am I able to run the 5" with the way im setup now?
Old 06-22-2010, 01:11 AM
  #12
CF Veteran

CheapCherokee's Avatar

Join Date: Feb 2010
Location: La Habra, CA
Posts: 1,152
Likes: 0
Received 1 Like on 1 Post
Year: 1988
Engine: 4.0 RENIX
Default

Originally Posted by kellan_musseau
Sorry for bringin up the old thread! But I would like to know some more info as well,

3" Rough Country is what im running, and ordered a 2" Budget boost, Dan, is everything still running ok with your setup? And did your sway bar reach?

I will add control arms, trackbar, brake line extensions and disconnects down the road..but am I able to run the 5" with the way im setup now?
ummm im pretty sure stock control arms and the trackbar cant take 5 inches of lift. you will definatly need longer brake lines if you plan on actually getting some articulation. you will need longer swaybar endlinks, so might as well get disconnects. plus you will most likely need an SYE with anything above 3" of lift. and with an SYE comes the need for a new driveshaft, so add that to the list.
Old 06-22-2010, 11:11 AM
  #13
Junior Member

pootie tang's Avatar

Join Date: Apr 2010
Location: Los angeles
Posts: 39
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Dan your jeep looks just like mine!!! it's an 01 classic and i have the 3" plus the 2" BB as well.



All mine has is the RC 3" lift and 2" shackles and 2" spacers, i didn't have to change control arms or trac bar or anything else (i did buy the steering stablizer to help with the bump steer though) BUT i do no trail riding and mine is 2wd so idk if it would be the same for a 4wd
Old 06-22-2010, 12:40 PM
  #14
Seasoned Member

bluedragon436's Avatar

Join Date: May 2010
Location: Wherever the AF sends me!!
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

You can get away with 5" of lift with just doing a TC drop... not a full SYE/DS swap... but if you got the money you might as well do the SYE/DS now... I am going to have to run mine with a TC drop for a while so I can save up for a SYE/DS combo... but that will be part of my Stage II lift build... quite a ways down the road...
Old 06-23-2010, 03:17 AM
  #15
Senior Member

dans01classic's Avatar

Join Date: Dec 2009
Location: North Carolina
Posts: 541
Likes: 0
Received 1 Like on 1 Post
Year: 2001
Model: Cherokee
Engine: 4.0 inline 6
Default

[QUOTE=pootie tang;578770]Dan your jeep looks just like mine!!! it's an 01 classic and i have the 3" plus the 2" BB as well.


Man that looks like one mean jeep. lol. Ive actually gone with a different rim and tire size now so i am currently trimming out my fenders.
