2WD Driveshaft Removal

Thread Tools

Search this Thread

Old 12-22-2012, 10:19 AM
  #1
Newbie
Thread Starter

nick.xj11's Avatar

Join Date: Mar 2012
Location: San Angelo
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Default 2WD Driveshaft Removal

I am trying to remove my driveshaft off a 1999 2wd xj and I took the 4 bolts off but it will barely budge. Any thoughts?

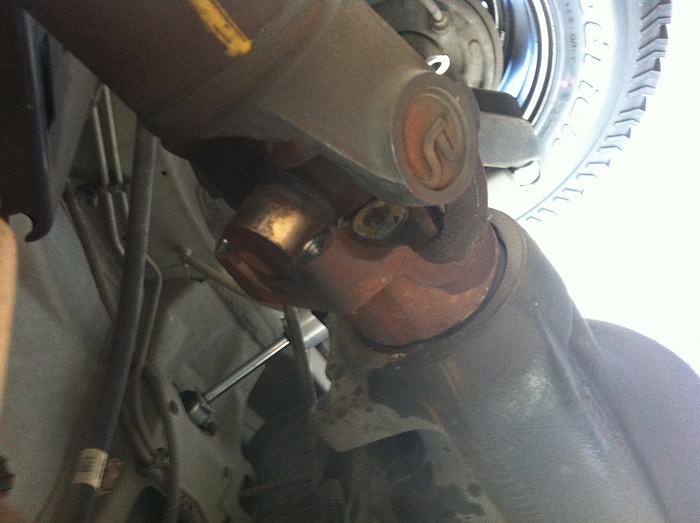

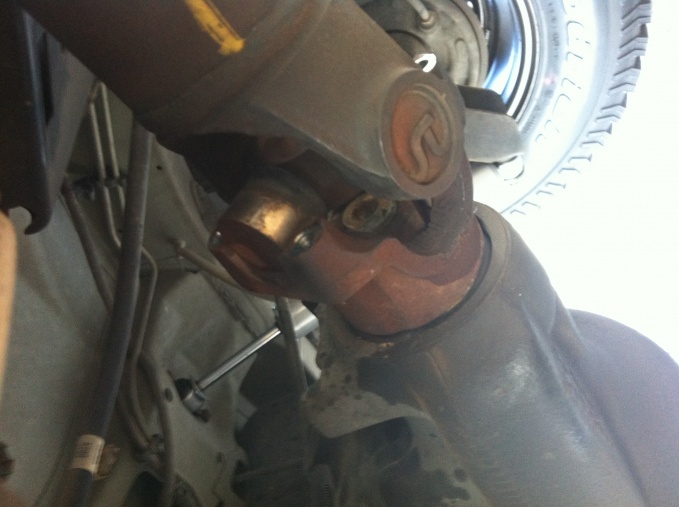

Attached Thumbnails 2WD Driveshaft Removal-photo-2-.jpg
Old 12-22-2012, 10:22 AM
  #2
CF Veteran

belvedere's Avatar

Join Date: Jul 2012
Location: SD
Posts: 1,395
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Are the u-joint caps rusted in place? Maybe get a small prybar in between the u-joint and yoke and see if you can break it loose.
Old 12-22-2012, 10:31 AM
  #3
CF Veteran

jbsjunk's Avatar

Join Date: Oct 2011
Location: Hudsonville, MI
Posts: 1,630
Likes: 0
Received 3 Likes on 2 Posts
Year: 1986
Model: Cherokee
Engine: 5.0
Default

It's just stuck there. They all do it. Block the wheels so it don't roll and pry the joint loose.
Old 12-22-2012, 10:38 AM
  #4
Seasoned Member

Potatowalker's Avatar

Join Date: Oct 2010
Location: Colorado Rocky Mountains
Posts: 486
Likes: 0
Received 2 Likes on 2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Default

probably just rusted caps like they said ^ and a dried out slip yolk is probably making it worse. That's what my 96 was like when I took it apart the first time. I had to stick a big screwdriver up in there behind the u-joint and bang it to pry the thing forward. Careful though, when it lets loose it's probably gonna swing down and attack ya!
Old 12-22-2012, 10:41 AM
  #5
Newbie
Thread Starter

nick.xj11's Avatar

Join Date: Mar 2012
Location: San Angelo
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Default

That worked! My next question is how do i replace the output seal?
Old 12-22-2012, 11:05 AM
  #6
Newbie
Thread Starter

nick.xj11's Avatar

Join Date: Mar 2012
Location: San Angelo
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Default

Is this what I need?

http://www.oreillyauto.com/site/c/de...0071&ppt=C0338
Old 12-22-2012, 11:32 AM
  #7
Member

MountiansRcool's Avatar

Join Date: Nov 2012
Location: SL,UT
Posts: 227
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

to replace the output seal you need a 1, 1/4 inch socket and a fatttty *** breaker bar, i tried replacing my output seal, i ended up giving up when i had a 3 foot cheeter and a floor jack pushing up on the breaker bar it still wouldnt move the nut it would just lift the jeep up, you dont need to replace the output seal unless its leaking really bad
Old 12-22-2012, 11:39 AM
  #8
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes on 22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by nick.xj11
I am trying to remove my driveshaft off a 1999 2wd xj and I took the 4 bolts off but it will barely budge. Any thoughts?
Sure the seals leaking ? Not coming from front of xj blowing back onto diff? just a odservation
