Hello!


I'm having difficulties with my wiring in my Jeep. The story starts when I tried to change the flasher relay, I think I might've pulled the wiring too hard to try to get the relay out and must of done something. All I saw was the instrument panel give off some kind of flicker and then my turn signal wouldn't work at all. I have checked and changes fuses both in the passenger side kick panel as well as under the hood. I also tried getting a new Multi function Switch. My signals still don't work!


I'm not getting power to the Hazards, Turn Signal, Nor Ground connections on the relay. I've tried checking to see if there's a broken wire since I tugged at the relay connection but can't seem to find anything with the amount of wiring I've been able to uncover.


My questions are as follows:


1. How can I fully remove the under dash wiring harness to see exactly where the connection disruption is?

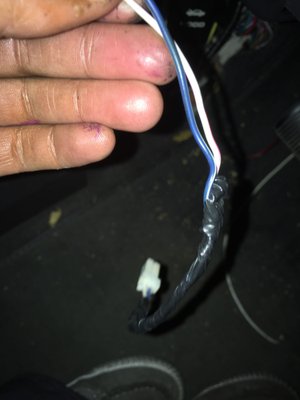

2. There's a particular connector with a white/pinked striped wire and a blue/ white striped wire, I have no idea where it should connect to. Can Someone help?

3. There seems to be a cut ground wire?


Help! Completely lost! My Jeep is 1999 Cherokee XJ with Manual Trans


Here are some photos
