1999 XJ blower fan issues
#1
Member
Thread Starter
Join Date: Apr 2011
Location: Kremmling, CO
Posts: 156
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
1999 XJ blower fan issues
I can get all speeds of the blower fan but now it only comes out my defroster. Been making for some uncomfortable early morning drives to work, at least for 15-20 miles.
Any ideas of what I should look for? It's not the lever slide style, it's the **** style heater panel if that helps.
Any ideas of what I should look for? It's not the lever slide style, it's the **** style heater panel if that helps.
#2
CF Veteran
Join Date: Aug 2011
Location: Blue Springs, MO
Posts: 1,031
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L Laredo
Look for vacuum leaks.. if it doesn't have vacuum, defrost is the 'default position' for your vents. Behind the rotary type vent switch are several vacuum lines to check too.
#3
Member
Thread Starter
Join Date: Apr 2011
Location: Kremmling, CO
Posts: 156
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Are these lines easy to get to? Or are they tucked behind a bunch of stuff? Can they be looked at from inside the Jeep?
#5
CF Veteran
Join Date: Aug 2011
Location: Blue Springs, MO
Posts: 1,031
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L Laredo
The blower motor resistor is what gives you different fan speeds.. if it's burnt up, the fan motor defaults to high speed; that is, it would blow on highest position, but not on 1,2 etc. That shouldn't be your problem.
I'd check behind the controls (yes, inside the jeep) I'm not familiar with xjs but you can search for a 'how to' article here on the forum, or google it.
I'd check behind the controls (yes, inside the jeep) I'm not familiar with xjs but you can search for a 'how to' article here on the forum, or google it.
#6
Member
Join Date: May 2010
Location: Gads Hill, Ontario
Posts: 116
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
If you get all speeds from the blower fan, the resistor is OK, no need to do anything with it.
Vacuum hoses are in behind, yes a bit of a nuisance to get to. I think the problem is more likely under the hood. Do you have cruise control, does it work? (it runs from vacuum also).
Not sure about '99, but in earlier models there's a vacuum storage bottle just inside the front bumper (right hand side). It's black, rounded ends, about the size of a thermos bottle. Check the vacuum line to it too.
I suspect you'll find a rubber fitting rotted off, or a plastic hose pulled out of a fitting somewhere.
Vacuum hoses are in behind, yes a bit of a nuisance to get to. I think the problem is more likely under the hood. Do you have cruise control, does it work? (it runs from vacuum also).
Not sure about '99, but in earlier models there's a vacuum storage bottle just inside the front bumper (right hand side). It's black, rounded ends, about the size of a thermos bottle. Check the vacuum line to it too.
I suspect you'll find a rubber fitting rotted off, or a plastic hose pulled out of a fitting somewhere.
Trending Topics
#8
Member
Thread Starter
Join Date: Apr 2011
Location: Kremmling, CO
Posts: 156
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
There is a bottle on the front bumper and the hose was disconnected. Now all of my blower vents work.
Now, that raises another question if you don't mind.
My blower seems to switch vent locations whenever it wants. One minute it'll be coming from the dash, then it'll switch to the defroster, then to the floor, then dash again. There isn't a pattern, it just does it.
Now, that raises another question if you don't mind.
My blower seems to switch vent locations whenever it wants. One minute it'll be coming from the dash, then it'll switch to the defroster, then to the floor, then dash again. There isn't a pattern, it just does it.
#9
CF Veteran
Join Date: Aug 2011
Location: Blue Springs, MO
Posts: 1,031
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L Laredo
It still sounds like a vacuum issue to me. Now you have the vacuum available to the controls behind the ****, but if they are cracked, leaking or unhooked, it will keep defaulting to defrost. It might look difficult to remove the control panel, but look closely and you should find a couple of screws to remove.
Again, my only experience is on Grand Cherokee Laredo models (a '93 and an '02) but that was where I found the problem on those. Hope this helps
Again, my only experience is on Grand Cherokee Laredo models (a '93 and an '02) but that was where I found the problem on those. Hope this helps
#10
Member
Join Date: May 2010
Location: Gads Hill, Ontario
Posts: 116
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
^^ X2. You still have a vacuum leak.
I bet it switches to defrost when you step harder on the gas, like when you are going up a hill.
Why was the hose to the vacuum bottle "disconnected"? Did it fall off because the rubber fitting is old and crappy and split? If so, there are probably other connections in the same state.
I bet it switches to defrost when you step harder on the gas, like when you are going up a hill.
Why was the hose to the vacuum bottle "disconnected"? Did it fall off because the rubber fitting is old and crappy and split? If so, there are probably other connections in the same state.
#11
Member
Thread Starter
Join Date: Apr 2011
Location: Kremmling, CO
Posts: 156
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
^^ X2. You still have a vacuum leak.
I bet it switches to defrost when you step harder on the gas, like when you are going up a hill.
Why was the hose to the vacuum bottle "disconnected"? Did it fall off because the rubber fitting is old and crappy and split? If so, there are probably other connections in the same state.
I bet it switches to defrost when you step harder on the gas, like when you are going up a hill.
Why was the hose to the vacuum bottle "disconnected"? Did it fall off because the rubber fitting is old and crappy and split? If so, there are probably other connections in the same state.
I plan on checking behind the panel today when it warms up.
#12
CF Veteran

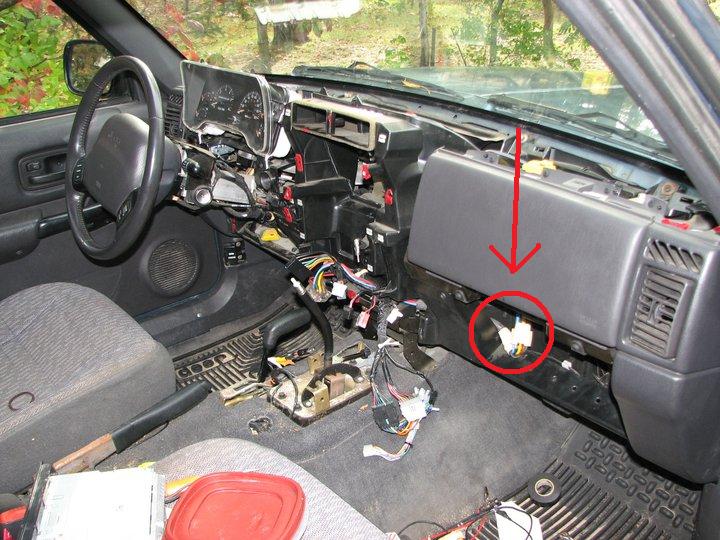

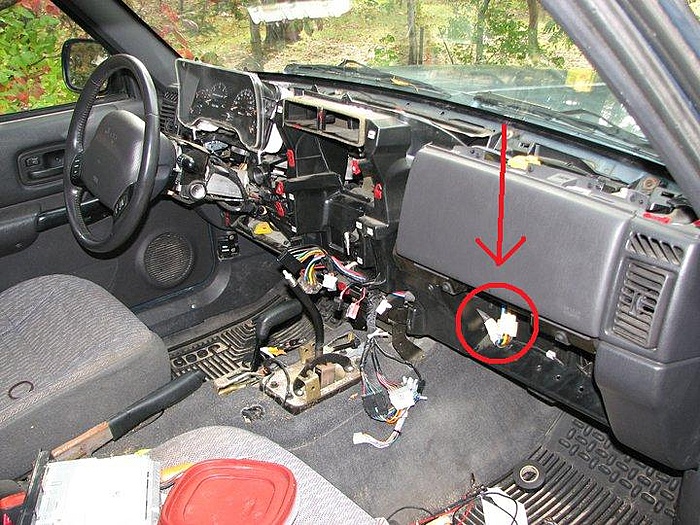

'99 XJ here, circled/arrow pointing to the vacuum line connections. You do not need to remove everything I did, just the glovebox assembly I believe. It's gonna be hard to tell without a vacuum tester (like 60 bucks-ish) however unless they are visibly cracked/cut/damaged they are most likely fine. Other issues can be the actual switch, because it's connected directly to the vacuum lines.
Last edited by Dan91; 12-10-2011 at 09:48 AM.
#13
CF Veteran
Join Date: Jul 2010
Location: 802
Posts: 4,930
Likes: 0
Received 3 Likes
on
3 Posts
Year: 99
Model: Cherokee
Engine: 4.0
Haha, dan91, glad you have a pic. As for op, I'd agree and say that there is a vac leak still. The issue may be up close to firewall where the grommets for vac lines are. This seems a common spot for corrosion and wear. But pull the glove box out (3 screws on the bottom of it) and you will have a pretty good view of the lines. They are all colors of the rainbow, btw..
#14
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
There is a bottle on the front bumper and the hose was disconnected. Now all of my blower vents work.
Now, that raises another question if you don't mind.
My blower seems to switch vent locations whenever it wants. One minute it'll be coming from the dash, then it'll switch to the defroster, then to the floor, then dash again. There isn't a pattern, it just does it.
Now, that raises another question if you don't mind.
My blower seems to switch vent locations whenever it wants. One minute it'll be coming from the dash, then it'll switch to the defroster, then to the floor, then dash again. There isn't a pattern, it just does it.
Last edited by freegdr; 12-10-2011 at 10:54 AM.
#15
Member
Thread Starter
Join Date: Apr 2011
Location: Kremmling, CO
Posts: 156
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
