1994 XJ lower trans line, plastic clip question
#1
Junior Member
Thread Starter
1994 XJ lower trans line, plastic clip question
was just changing out the radiator in a 94 xj, popped the lower line, did the job, went to re assemble and the black shim inside the pressure hose was gone

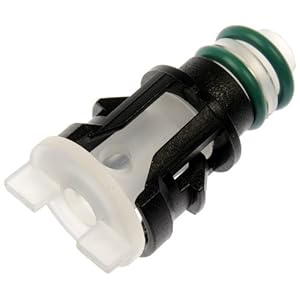

do these come in dorman 800-750?
that number appears to be the plastic clip and my two o rings but i don't see the little black part that was in front of the two o rings which i lost. the dorman picture also appears to have a slightly different design with that black snout sticking toward the green o rings. i think all the piece does is stabilize the line?
and the OE plastic. in front of this was the part i lost which sat between what's pictured and the green o rings
do these come in dorman 800-750?
that number appears to be the plastic clip and my two o rings but i don't see the little black part that was in front of the two o rings which i lost. the dorman picture also appears to have a slightly different design with that black snout sticking toward the green o rings. i think all the piece does is stabilize the line?
and the OE plastic. in front of this was the part i lost which sat between what's pictured and the green o rings
Last edited by racebum; 05-22-2013 at 10:43 PM.
#3
Junior Member
Thread Starter
figured this out. the dorman and new mopar part are a different design ever so slightly compared to OEM. the dorman part is a direct fit, no leaks no problems. you just have to use a pick tool to remove both viton seals inside the hose and that plastic separator ring.
if any of you have leaks at this juncture it's probably the green o rings inside and this part will get you fixed up
if any of you have leaks at this juncture it's probably the green o rings inside and this part will get you fixed up
