XJ Shackle Relocation Brackets - Liquid Iron Industries
Liquid Iron Industries is proud to announce that the long awaited shackle relocation bracket system is now in stock and ready to ship! These have been through a rigorous R&D phase with substantial testing both on and off road.
The shackle angle on Jeep Cherokees suffers greatly after lift springs are installed. These 100% bolt in shackle relocation brackets move the shackle pivot bolt down and forward to cure the issue. Depending on the adjustment hole used, 0-2" of additional lift can be achieved. Users note significant increases in offroad ability, flex, and ride characteristics. They are made right here in the USA from domestic A-36 plate steel and CNC laser cut and jig welded for accuracy.
Kit Includes:
Order here:
http://www.liquidironindustries.com/...roductid=18231
Use Coupon Code "XJ10" for 10% off LII XJ components for Cherokee Forum Users!
The shackle angle on Jeep Cherokees suffers greatly after lift springs are installed. These 100% bolt in shackle relocation brackets move the shackle pivot bolt down and forward to cure the issue. Depending on the adjustment hole used, 0-2" of additional lift can be achieved. Users note significant increases in offroad ability, flex, and ride characteristics. They are made right here in the USA from domestic A-36 plate steel and CNC laser cut and jig welded for accuracy.
Kit Includes:

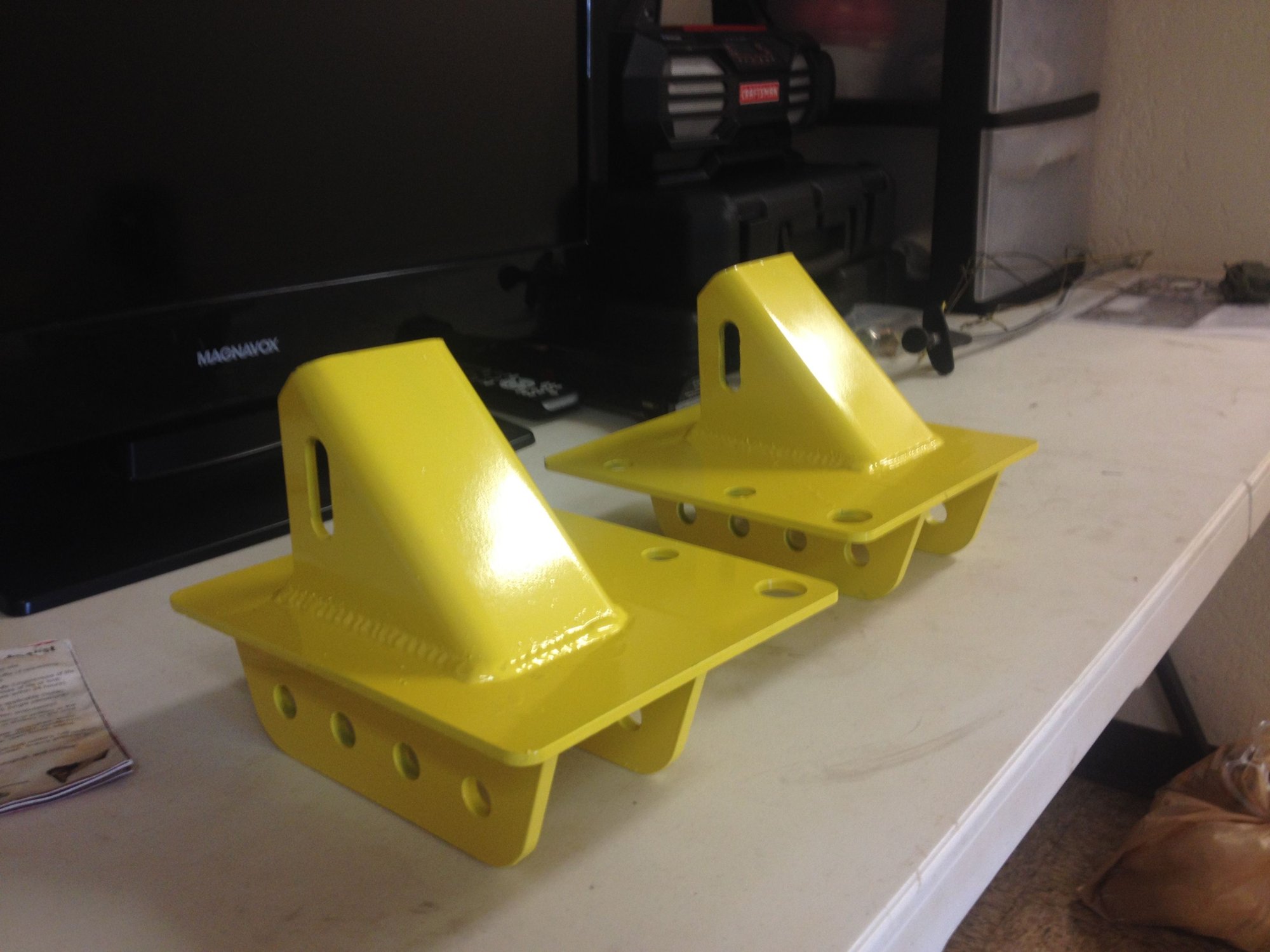

- Left Shackle Relocation Bracket
- Right Shackle Relocation Bracket
- XJ-SR Hardware Kit
- LII Sticker
Order here:
http://www.liquidironindustries.com/...roductid=18231
Use Coupon Code "XJ10" for 10% off LII XJ components for Cherokee Forum Users!
#5
Seasoned Member
Join Date: Dec 2009
Location: Colorado Springs, CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L

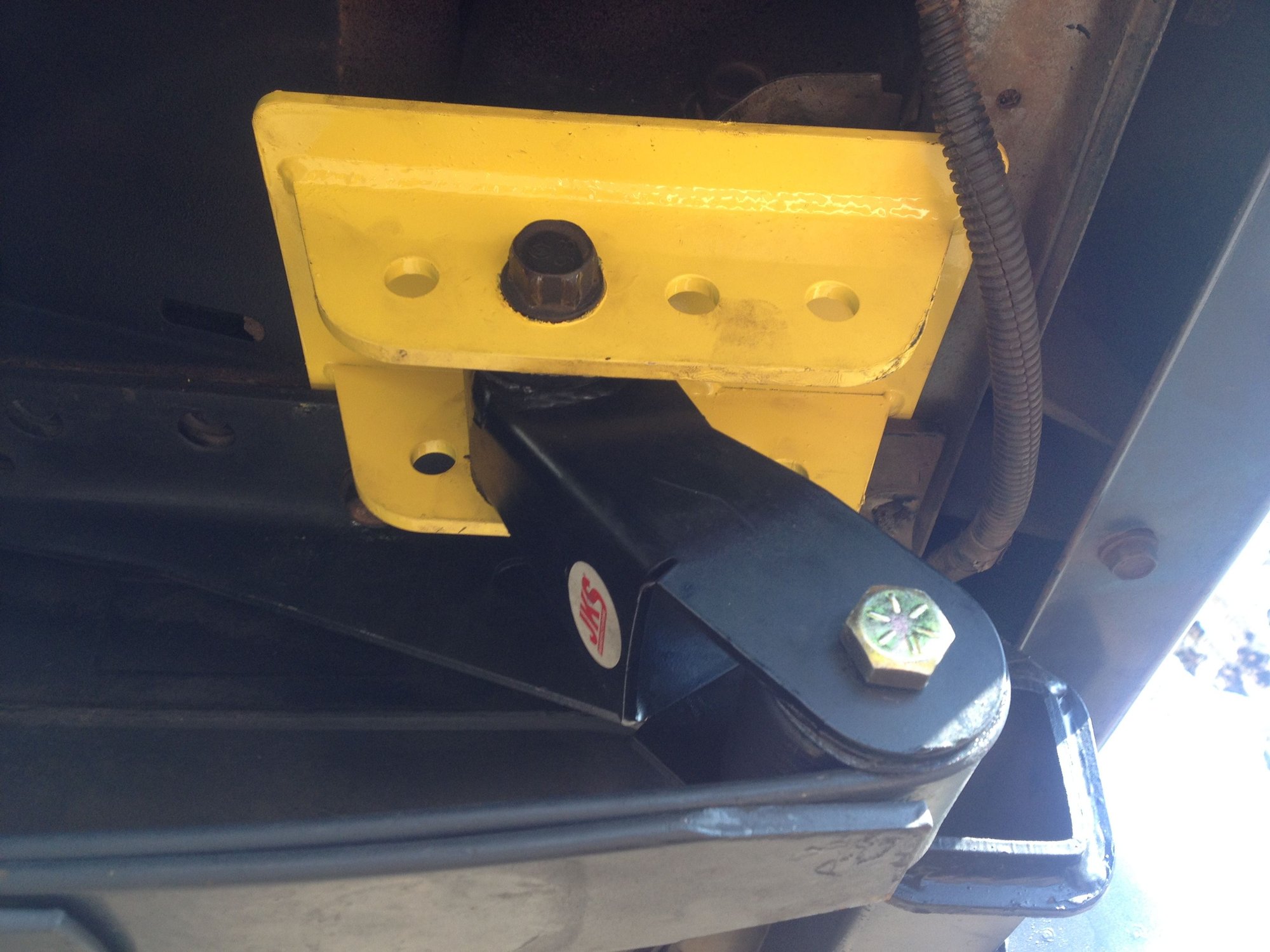

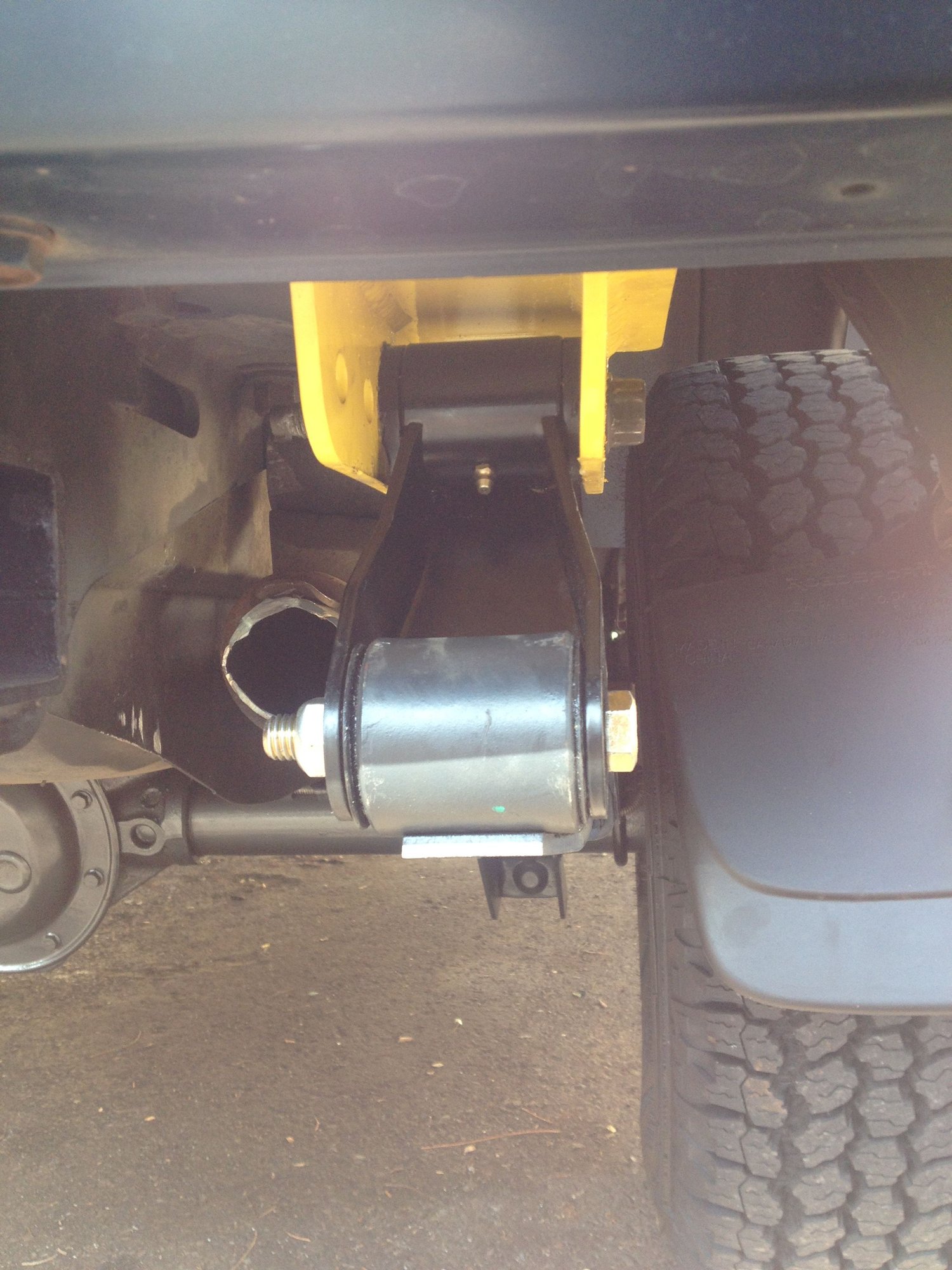

Worked great on my rig (after I cut my exhaust tip off to clear it) with OME leaf packs and JKS Boomerang shackles.
#7
CF Veteran
Join Date: Feb 2011
Location: Long Beach, Ca
Posts: 3,500
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 I6
I'm running these with stock shackles, though my shackle angle is now more desirable, I'm going to have to trim the brackets so I get full articulation of the shackle without making contact with the bracket. Since the new brackets already added a half inch or more lift to the rear, going to a longer shackle isn't an option because I don't want any more lift.
Last edited by askingxforxit; 05-09-2016 at 01:05 PM.
Trending Topics
#8
Junior Member
Join Date: Feb 2010
Location: central cali
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0l
is anybody running these with a factory two setup I'm curious if the tow package gets in the way or if they can work together? if you are running these with a tow package could you post some pictures so I could see how they work together I want to get a set of these but still maintain my factory tow setup.
#9
CF Veteran
I got these dialed in with 2" lift shackles. NO trimming needed and i can compress them all the way till i hit my rear bump stops.
