These are pretty straightforward and simple, all it takes is a quick look and you understand what you need to do and more importantly, what you need to order!
We start you with 48" of 1.5" x .25" wall DOM tubing, then we make you choose between an axle Centered or Offset Bracket, and finally you decide if it will mount on the frame Inside or Outside. The Brackets give you 5 choices of mounting height.
It comes with a set of our 7/8" x 3/4" 4130 Heat & Cryo treated Heims with Stainless Misalignment and Hex Head weld bungs. The Hex Head bungs give you very fine adjustment easily. We also include the Grade 8 bolts in the correct length so you don't have to spend your day searching for them.

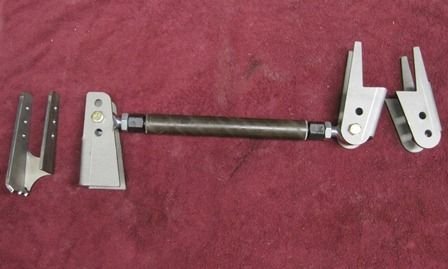

Here is a pic with both bracket choices so you get an idea of how it goes together...
Last edited by Dan Fredrickson; 04-14-2016 at 12:35 PM.
02-12-2016, 11:32 AM
panhard kit
