alpine.adrenaline August 2, 2010

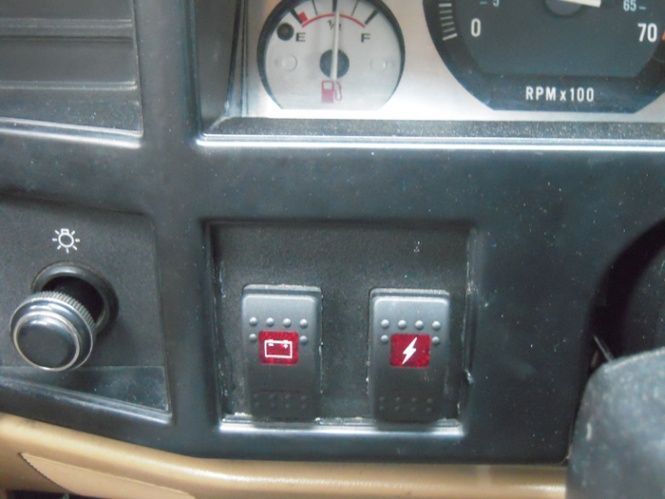

Left switch is to charge the secondary battery, right switch is to use it. When the key is out and ignition off, the right switch can be used to power the accessories without using any power from the main (starting) battery. Everything is done with relays or solenoids, so all the power isn't running through these switches...
