Default Wire resistances

Was checking some splices I soldered to make sure connections were good and found this.

http://hyperphysics.phy-astr.gsu.edu...es/wirega.html
Waynerd is offline
Old 10-28-2016, 10:16 PM
  #2
CF Veteran
Thread Starter

Waynerd's Avatar

Join Date: Jan 2015
Location: North canaan Connecticut
Posts: 1,287
Year: 01, 99, 98, 98,98
Model: Cherokee
Engine: 4.0
Default

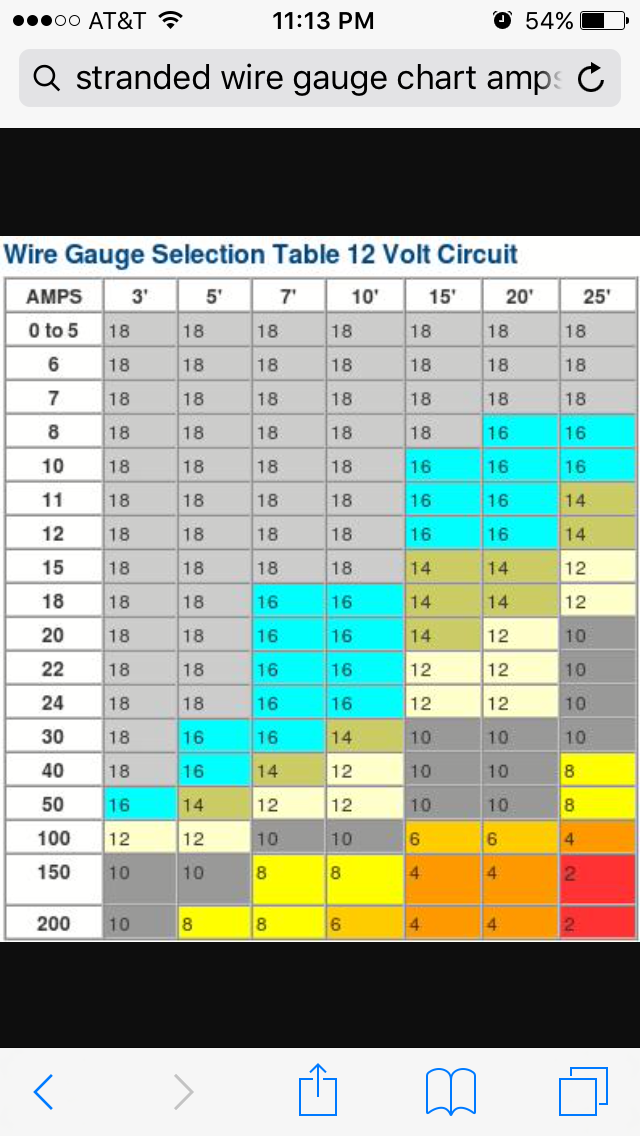

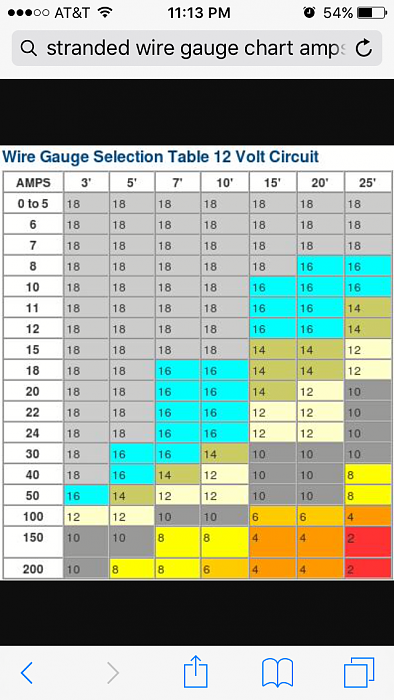

And I know the chart says solid wire. I looked at some with stranded wire and they were the same or close. Here's some more useful info for wiring.
Attached Thumbnails Wire resistances-image.png
Waynerd is offline
Old 10-29-2016, 11:11 AM
  #3
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Nice chart, thanks for posting!


On a side note if your not certain of the exact draw always error to the larger size you will never go wrong with a larger wire.
Fred/N0AZZ is offline
Old 11-01-2016, 09:21 PM
  #4
Junior Member

Join Date: Jun 2012
Posts: 81
Model: Cherokee
Default

What you posted is called an "ampacity chart" for 12 volts. The biggest problem with using a random one is that you have no idea what voltage loss percentage or temperature the person who made the chart used to arrive at the result. Kind of a crapshoot with most of them.

As wire temperature increases, so does the resistance, meaning it will carry fewer amps before meltdown. It also translates to higher voltage loss at the receiving end of the cable.
machinisttx is offline
Old 11-05-2016, 09:37 PM
  #5
CF Veteran
Thread Starter

Waynerd's Avatar

Join Date: Jan 2015
Location: North canaan Connecticut
Posts: 1,287
Year: 01, 99, 98, 98,98
Model: Cherokee
Engine: 4.0
Default

Originally Posted by machinisttx View Post
What you posted is called an "ampacity chart" for 12 volts. The biggest problem with using a random one is that you have no idea what voltage loss percentage or temperature the person who made the chart used to arrive at the result. Kind of a crapshoot with most of them.

As wire temperature increases, so does the resistance, meaning it will carry fewer amps before meltdown. It also translates to higher voltage loss at the receiving end of the cable.
I figured it was an average at like room temp or something. Just a base to go by under average conditions. Just more reason to go with the larger wire if the smaller gauge is close to the limit.
Waynerd is offline
