Model: Cherokee
Keyless entry receiver help
I apologize in advance as I started a thread on the tech help forum.
I am installing a keyless entry receiver in my 1999 cherokee xj. There is a chip up in the upper console. I downloaded the Pacific service manual.
I do not do a lot of wiring stuff, so I need help in figuring out the harness that was attached to the receiver.
ver.

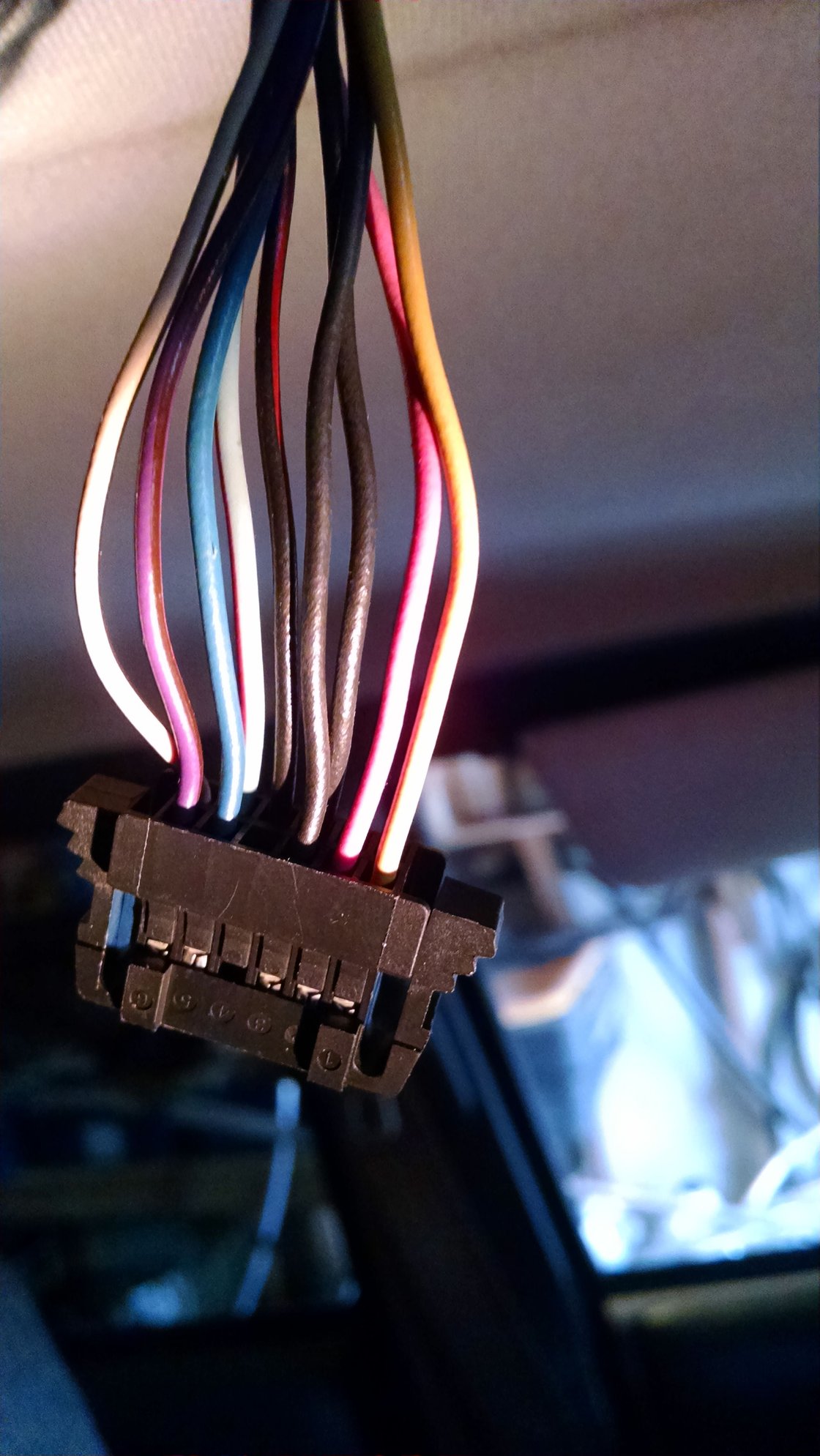

These 2 pics are what I am trying to figure out. On the overhead harness, from left to right, the colors are yellow/black,purple,dark blue,light blue/red stripe,black,black,pink,yellow. There is glare in the pic which makes the colors different that what they are. That is why i put the exact colors in this post above.
I am worried that if i cut the wrong wires, that something may not work.
My plan is to attach just the power, ground, unlock and lock wires.
So if I cut those 4 wires and leave the harness unattached to the old circuit board do you see a problem doing that.
Also, do you know from the info that is here, which wires are unlock and lock? I think that they are dark blue and blue with red stripe.
thanks
I am installing a keyless entry receiver in my 1999 cherokee xj. There is a chip up in the upper console. I downloaded the Pacific service manual.
I do not do a lot of wiring stuff, so I need help in figuring out the harness that was attached to the receiver.
ver.
These 2 pics are what I am trying to figure out. On the overhead harness, from left to right, the colors are yellow/black,purple,dark blue,light blue/red stripe,black,black,pink,yellow. There is glare in the pic which makes the colors different that what they are. That is why i put the exact colors in this post above.
I am worried that if i cut the wrong wires, that something may not work.
My plan is to attach just the power, ground, unlock and lock wires.
So if I cut those 4 wires and leave the harness unattached to the old circuit board do you see a problem doing that.
Also, do you know from the info that is here, which wires are unlock and lock? I think that they are dark blue and blue with red stripe.
thanks
#3
Newbie
Thread Starter
Join Date: Nov 2014
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
As for the schematic, I can not find one that shows the wiring harness that is in the pic.
I would appreciate any help that anyone has on the harness.
