MJ Comanche Tech. Stock & Modified. MJ (86-92)
All discussion regarding the Jeep Comanche, the pickup truck related to the Cherokee platform.

Aftermarket Speedo

Old 03-05-2017, 07:04 PM
  #1
Member
Thread Starter

cherokeexj21's Avatar

Join Date: Dec 2014
Location: Ct
Posts: 165
Year: 2004
Model: Grand Cherokee
Engine: 4.0
Default Aftermarket Speedo

Hi guys Im making my own gauge setup for my MJ and was wondering if anyone here has any experience with aftermarket cable driven speedometers, I know there are a million online but I would like to hear some opinions from you guys first. Thank you!
cherokeexj21 is offline
Old 03-12-2017, 01:21 PM
  #2
Newbie

Join Date: Oct 2014
Posts: 21
Model: Cherokee
Default

If I was you i would just go digital, I'm almost done with my custom gauge cluster im doing for my 87 mj and I used a gauge from summit. I was going to use the factory style electrical sending unit buy I broke the old one off in the trans trying to swap a new on in, BUT summit also sells a universal GPS sending unit it compatible with their gauges. I'm waiting for mine to show up. It'll set you back about $200 but damn if it don't look good! Oh summit sent the wrong color gauge, my tachs spose to be red 😒
nokool is offline
Old 03-13-2017, 07:07 PM
  #3
Member
Thread Starter

cherokeexj21's Avatar

Join Date: Dec 2014
Location: Ct
Posts: 165
Year: 2004
Model: Grand Cherokee
Engine: 4.0
Smile

Originally Posted by nokool View Post
If I was you i would just go digital, I'm almost done with my custom gauge cluster im doing for my 87 mj and I used a gauge from summit. I was going to use the factory style electrical sending unit buy I broke the old one off in the trans trying to swap a new on in, BUT summit also sells a universal GPS sending unit it compatible with their gauges. I'm waiting for mine to show up. It'll set you back about $200 but damn if it don't look good! Oh summit sent the wrong color gauge, my tachs spose to be red ��

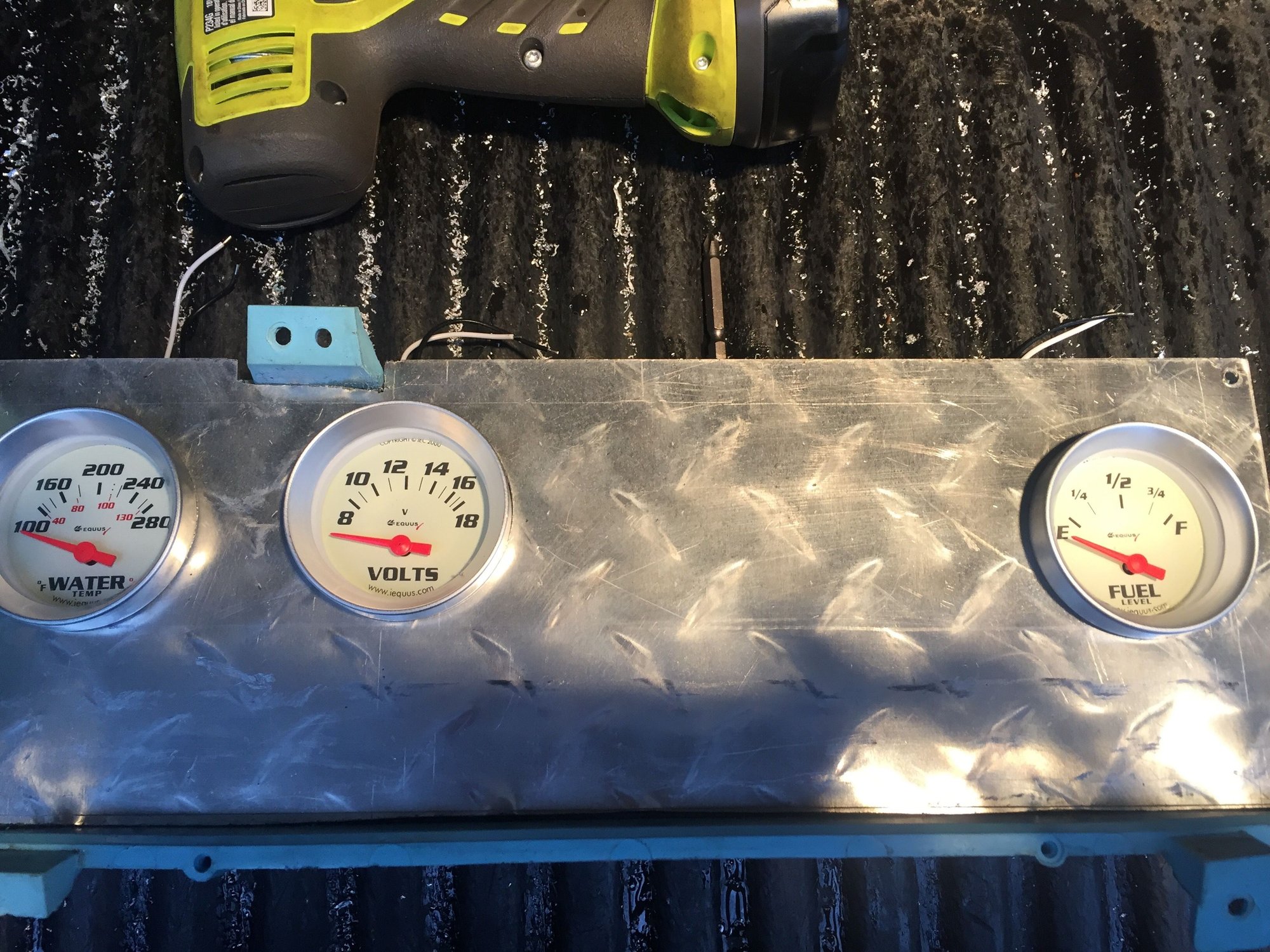

That looks awesome! And the diamond plate is a good touch. I just looked it up and its really cool had no idea that was even around. Thanks for the tip. Definitely looking more into it.
cherokeexj21 is offline
Old 03-14-2017, 05:01 PM
  #4
Great White Jeep

5-Speed's Avatar

Join Date: Dec 2016
Location: SoCal
Posts: 2,750
Year: Jeepless
Model: Cherokee (XJ)
Default

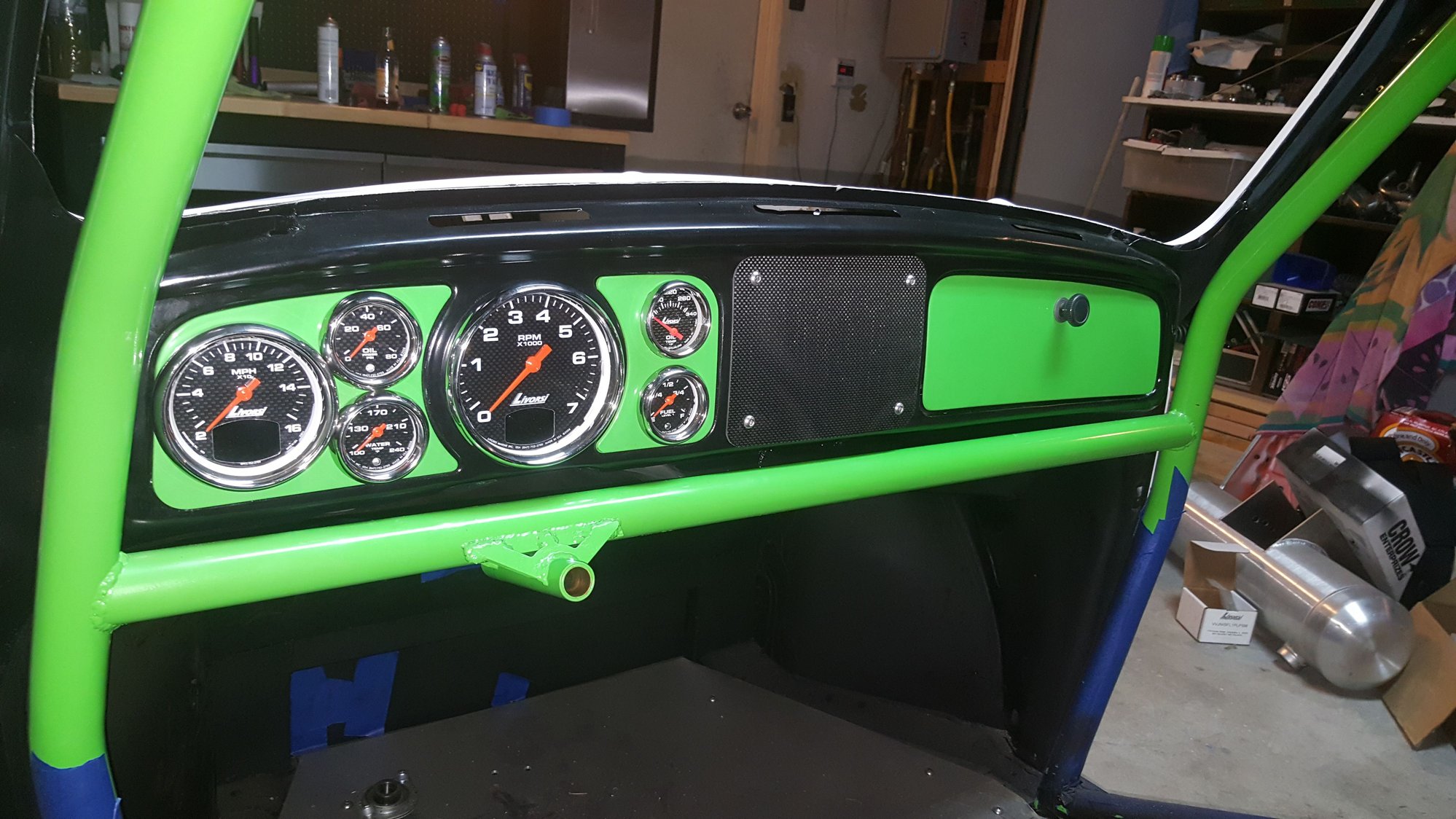

I went the GPS route too. Not cheap and works just ok. The brand is Livorsi. My issues is that the speedo cant keep up with the acceleration. Dont think that would be an issue with a Jeep but when you do 0-60 in 3 seconds, the GPS just cant keep up. Thats even with a 10 pps sender. Most standard gps senders are 3 pps. The other thing I dont like is that cruising below 5 mph (you can see it starts at 20 mph but has a digital display in the middle that reads down to 0), it doesnt pick up much. I would much rather get a conversion box that uses the cable as an input and has a digital output. I have used that in the past with a great outcome.

5-Speed is offline
Old 03-14-2017, 08:16 PM
  #5
Member
Thread Starter

cherokeexj21's Avatar

Join Date: Dec 2014
Location: Ct
Posts: 165
Year: 2004
Model: Grand Cherokee
Engine: 4.0
Default

Originally Posted by 5-Speed View Post
I went the GPS route too. Not cheap and works just ok. The brand is Livorsi. My issues is that the speedo cant keep up with the acceleration. Dont think that would be an issue with a Jeep but when you do 0-60 in 3 seconds, the GPS just cant keep up. Thats even with a 10 pps sender. Most standard gps senders are 3 pps. The other thing I dont like is that cruising below 5 mph (you can see it starts at 20 mph but has a digital display in the middle that reads down to 0), it doesnt pick up much. I would much rather get a conversion box that uses the cable as an input and has a digital output. I have used that in the past with a great outcome.

That looks really cool! I like positions of the gauges, you did a good job. Ive been looking a GPS Speedo gauge the brand is SPR its not the best but it'll do for now.
cherokeexj21 is offline
Old 03-15-2017, 01:50 PM
  #6
Newbie

Join Date: Oct 2014
Posts: 21
Model: Cherokee
Default



Say something about this photo

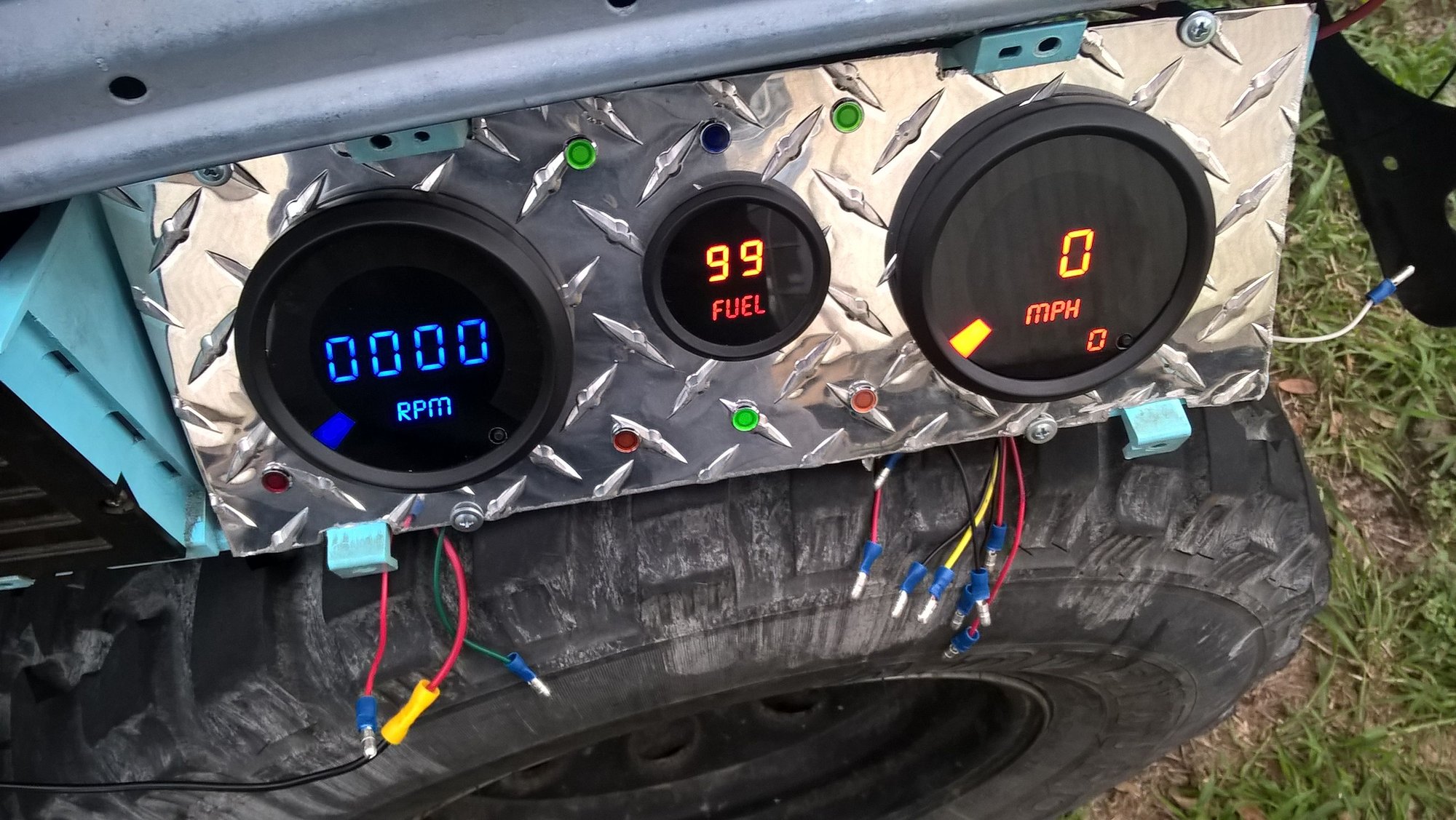

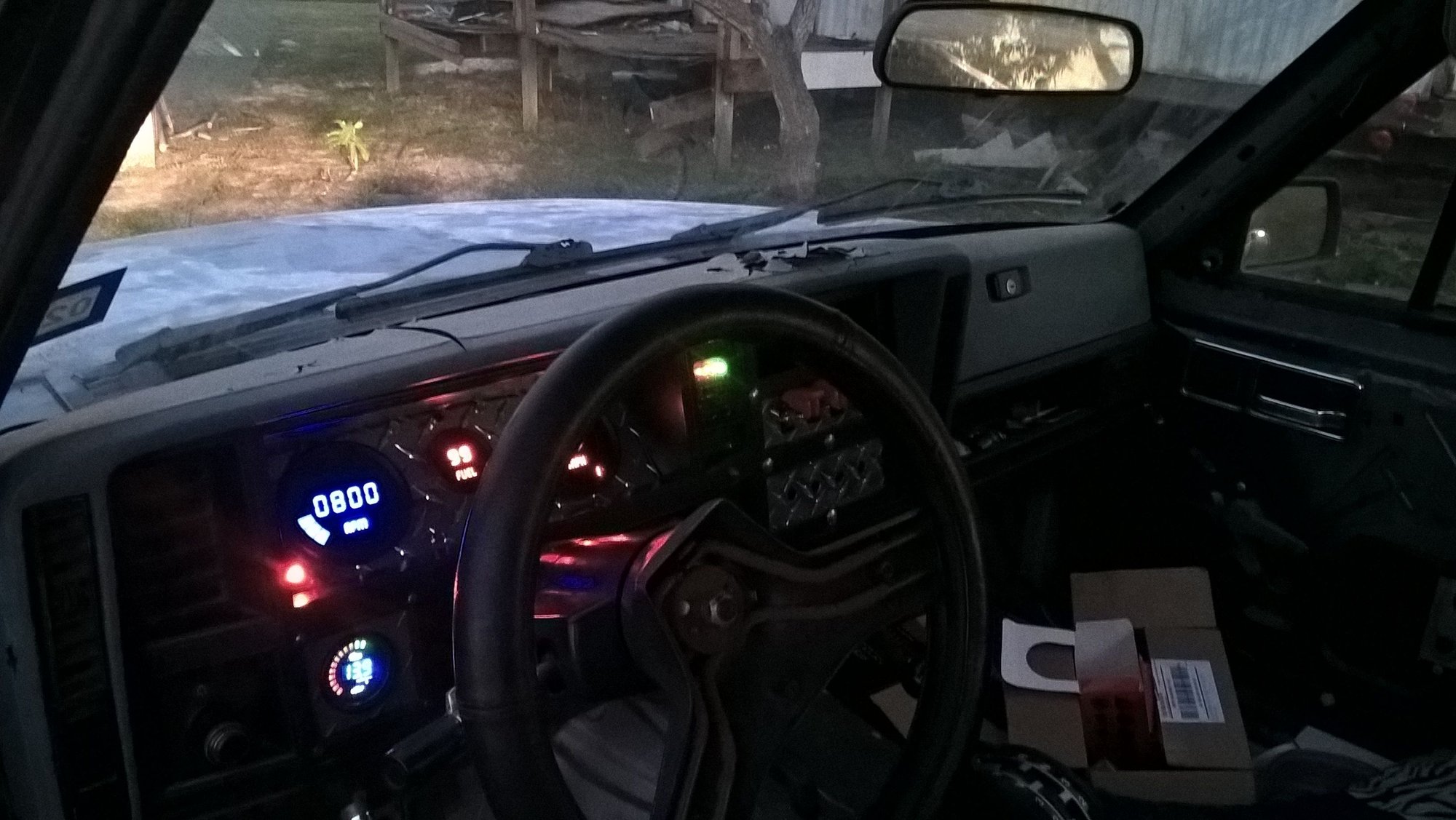

Ya here's mine all put together and I have the same complaint about the GPS. I took it on my first test drive last night and it takes the GPS a few seconds to calculate how fast you are going but still legal and thats all I care about!!
nokool is offline
Old 03-15-2017, 05:26 PM
  #7
Member
Thread Starter

cherokeexj21's Avatar

Join Date: Dec 2014
Location: Ct
Posts: 165
Year: 2004
Model: Grand Cherokee
Engine: 4.0
Default

Originally Posted by nokool View Post


Say something about this photo



Ya here's mine all put together and I have the same complaint about the GPS. I took it on my first test drive last night and it takes the GPS a few seconds to calculate how fast you are going but still legal and thats all I care about!!
Looks Great! What brand speedometer did you go with? And were you able to run the fuel gauge off the factory sending unit?
cherokeexj21 is offline
Old 03-15-2017, 05:29 PM
  #8
Member
Thread Starter

cherokeexj21's Avatar

Join Date: Dec 2014
Location: Ct
Posts: 165
Year: 2004
Model: Grand Cherokee
Engine: 4.0
Default

Im gonna purchase my gauges next week and I have the aluminum plate Im gonna use for it. Pics coming soon (hopefully :cheers)
cherokeexj21 is offline
Old 03-15-2017, 06:12 PM
  #9
Newbie

Join Date: Oct 2014
Posts: 21
Model: Cherokee
Default

Originally Posted by cherokeexj21 View Post
Im gonna purchase my gauges next week and I have the aluminum plate Im gonna use for it. Pics coming soon (hopefully :cheers)
Sweet! Oh has any of yall ever installed an alarm?? I'm trying to find where to jump my flashers signal wire to
nokool is offline
Old 03-17-2017, 02:32 PM
  #10
Newbie

Join Date: Oct 2014
Posts: 21
Model: Cherokee
Default

Originally Posted by cherokeexj21 View Post
Looks Great! What brand speedometer did you go with? And were you able to run the fuel gauge off the factory sending unit?
They are summit gauges, intelltronx brand and the fuel gauge is set for multiple ohm ranged sending units . You just have to know what the range is so you can cut the right wire
nokool is offline
Old 03-19-2017, 07:17 PM
  #11
Member
Thread Starter

cherokeexj21's Avatar

Join Date: Dec 2014
Location: Ct
Posts: 165
Year: 2004
Model: Grand Cherokee
Engine: 4.0
Default

Ordered the gauges today should be here Friday. I ordered the Volt, Coolant Temp and Fuel gauges. The speedo is gonna have to wait another week or so but Im gonna start making a template for everything tomorrow on some cardboard and wood that Im gonna rap in black or gray carpet.
cherokeexj21 is offline
Old 03-21-2017, 02:24 PM
  #12
Great White Jeep

5-Speed's Avatar

Join Date: Dec 2016
Location: SoCal
Posts: 2,750
Year: Jeepless
Model: Cherokee (XJ)
Default

Be sure to post pictures when you are done!
5-Speed is offline
Old 03-27-2017, 09:12 PM
  #13
Member
Thread Starter

cherokeexj21's Avatar

Join Date: Dec 2014
Location: Ct
Posts: 165
Year: 2004
Model: Grand Cherokee
Engine: 4.0
Default

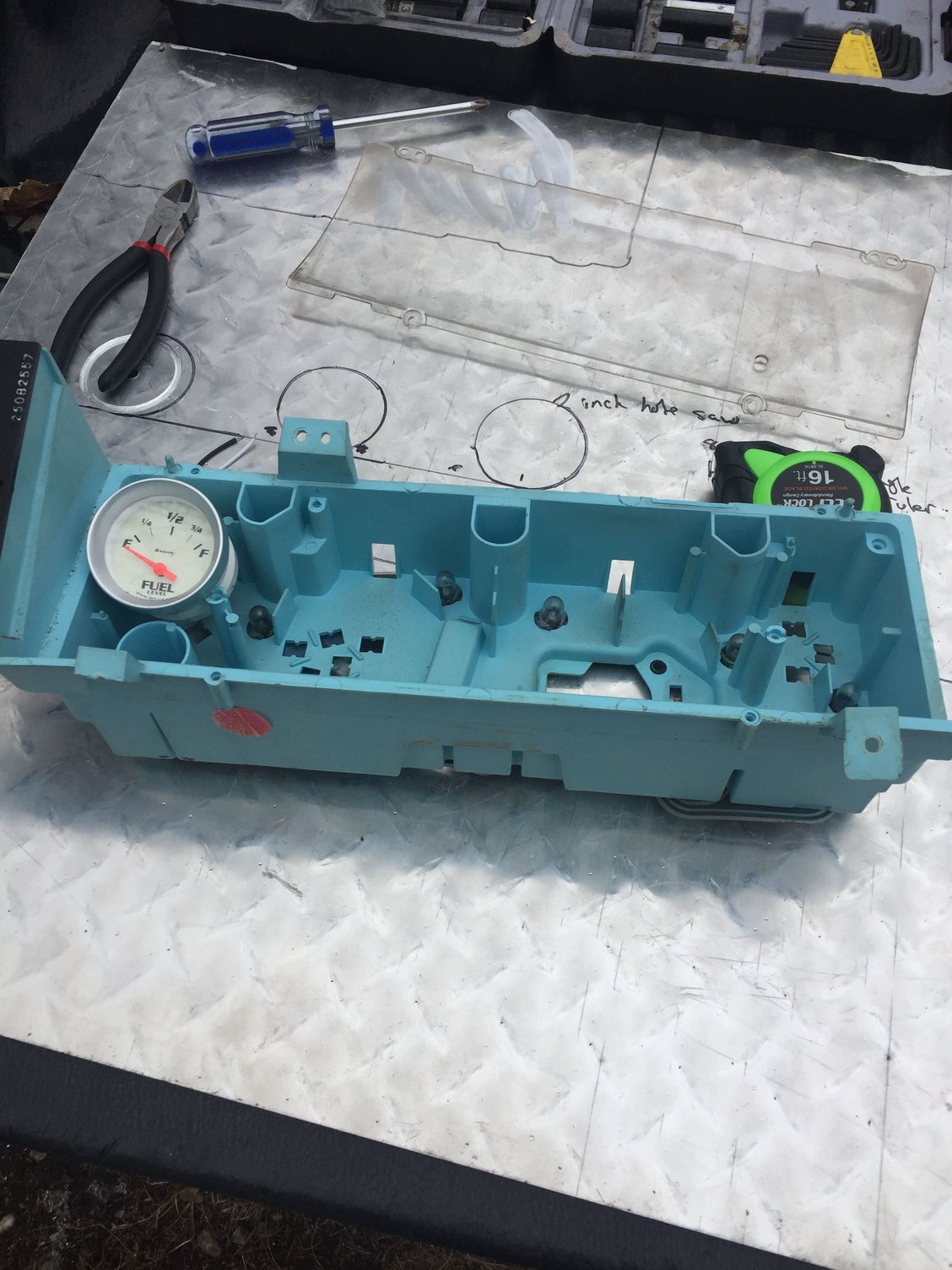

Got it all apart for measuring and cutting with fingers crossed!



Got the gauges in to start wiring.

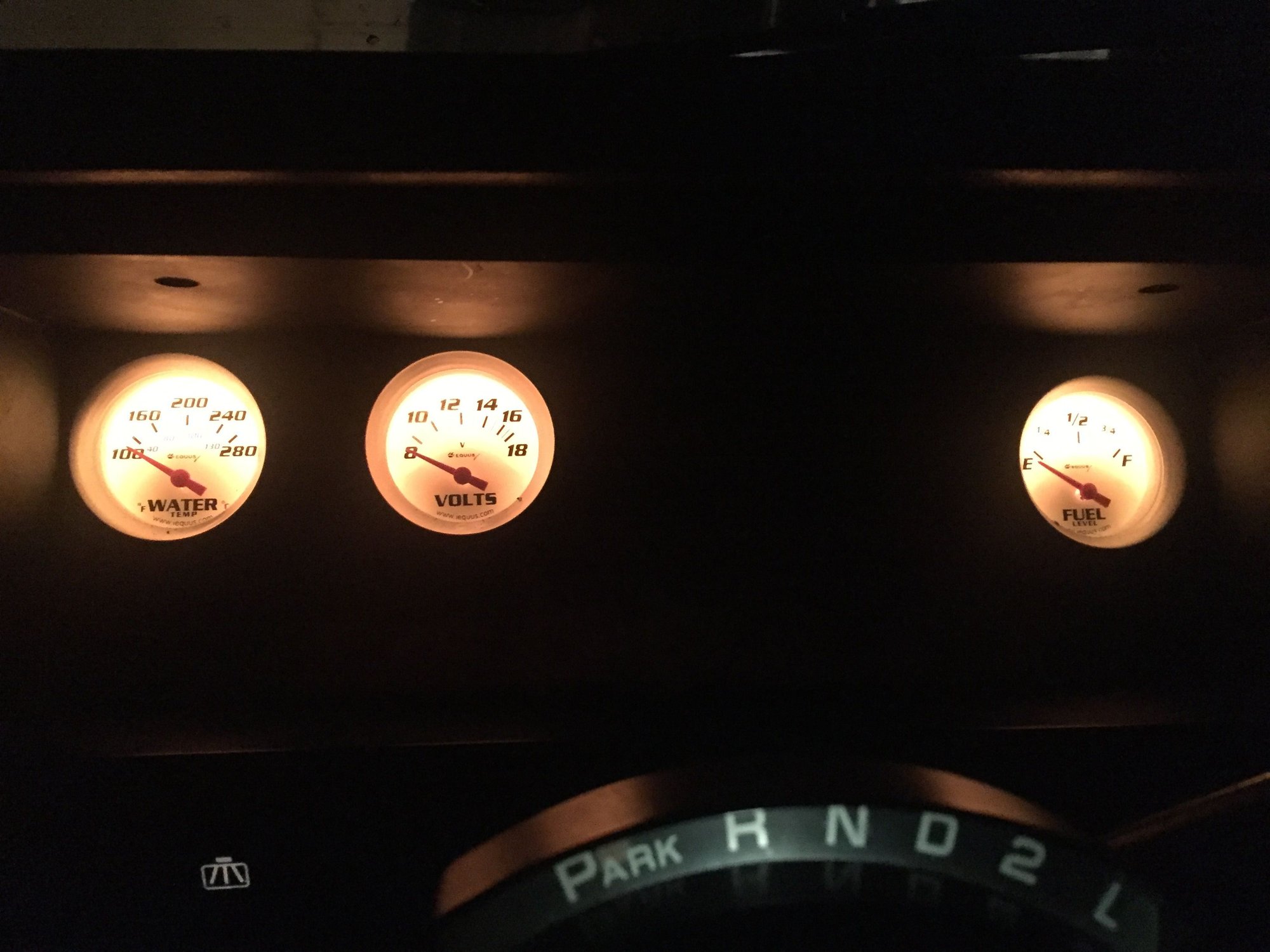

Took me forever to wire everything but this is the gauges at night. Im gonna get the speedo and install that as well hopefully sooner than later.
