2014 Cherokee Limited Replacing Passenger Side Mirror Assembly Need Help!

Reply



Thread Tools Search this Thread
Old 07-12-2017, 12:45 PM   #1
Newbie
Thread Starter

Join Date: Jul 2017
Posts: 6

View cwarren's Photo Album My Photos
Year: 2014
Model: Cherokee
Engine: V6
Talking 2014 Cherokee Limited Replacing Passenger Side Mirror Assembly Need Help!

Need help replacing the passenger side mirror assembly on 2014 Cherokee limited, V6. Can I just remove the trim piece around the window to get to the mounting screws or do I need to remove the entire door panel? Anyone have any diagrams by chance? Thank you advance
Corey

Last edited by cwarren; 07-12-2017 at 01:58 PM.
cwarren is offline   Reply With Quote
Old 07-12-2017, 06:58 PM   #2
Newbie

Join Date: Nov 2016
Posts: 5

View kl latitude2016's Photo Album My Photos
Model: Cherokee
Default

yes you have to take the trim panel off. you will need a 10mm and a phillips screw behind the handle. and then a 7mm in the pull cup and the it is just a series of pins just give it a nice tug and they will come out. then you have to take off the upper trim piece, they are just push pins. If you have any questions just hit me up. I build them.
kl latitude2016 is offline   Reply With Quote
Old 07-12-2017, 07:28 PM   #3
Newbie
Thread Starter

Join Date: Jul 2017
Posts: 6

View cwarren's Photo Album My Photos
Year: 2014
Model: Cherokee
Engine: V6
Default

I assume the window/unlock switch along with the trim around the handle needs to come off as well?

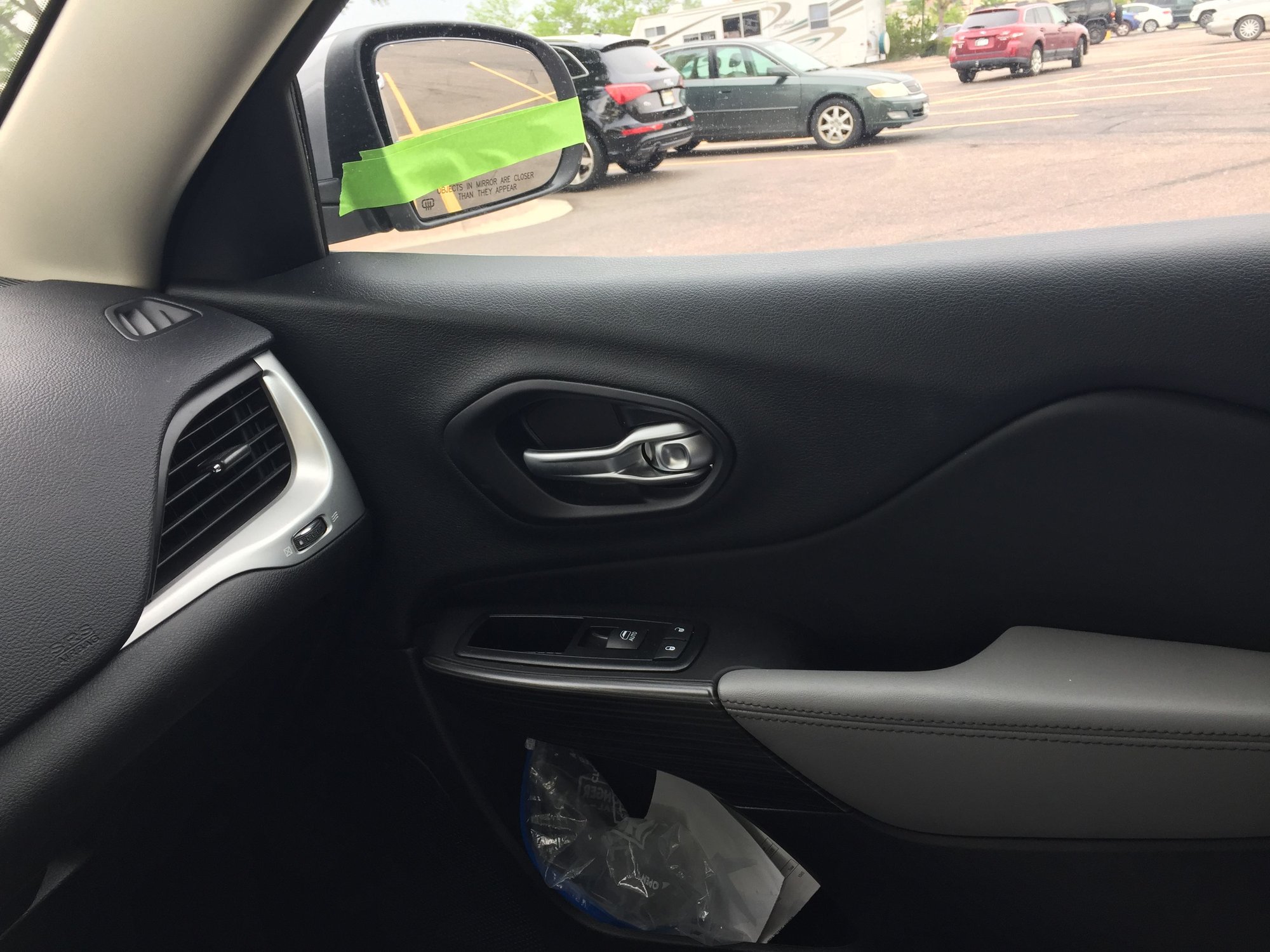

Thanks!!!! COREYSee pic
cwarren is offline   Reply With Quote
Old 07-12-2017, 07:33 PM   #4
Newbie

Join Date: Nov 2016
Posts: 5

View kl latitude2016's Photo Album My Photos
Model: Cherokee
Default

yes the switch just lifts out and the handle just unclips as you take the panel off. sorry I forgot about the switch and handle
kl latitude2016 is offline   Reply With Quote
Old 07-12-2017, 07:36 PM   #5
Newbie
Thread Starter

Join Date: Jul 2017
Posts: 6

View cwarren's Photo Album My Photos
Year: 2014
Model: Cherokee
Engine: V6
Default

kl latitude2016, you just saved me a ton of money! Thanks again!!
cwarren is offline   Reply With Quote
Old 07-16-2017, 11:26 PM   #6
Newbie

Join Date: Nov 2016
Posts: 5

View kl latitude2016's Photo Album My Photos
Model: Cherokee
Default

I was just wondering if you have attempted this repair yet?
kl latitude2016 is offline   Reply With Quote
Old 07-17-2017, 11:23 AM   #7
Newbie
Thread Starter

Join Date: Jul 2017
Posts: 6

View cwarren's Photo Album My Photos
Year: 2014
Model: Cherokee
Engine: V6
Default

Not had a chance, still waiting for the part to come in. I will keep you posted and appreciate the echo back. I will keep you posted.
cwarren is offline   Reply With Quote
