FS[PacNorWest]: Custom Battery Cables - 2 AWG Tefzel ETFE Military Spec.
#1
Seasoned Member
Thread Starter
Join Date: Nov 2016
Location: Idaho
Posts: 304
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1990
Engine: Renix 4.0
Custom Battery & Alternator Cables - 2 AWG Tefzel ETFE Military Spec.
Custom Battery & Alternator Cables - 2 AWG Tefzel ETFE Military Spec.
Two sets are currently available.
$220 shipped to the continental united states. Trade Offers Welcome.

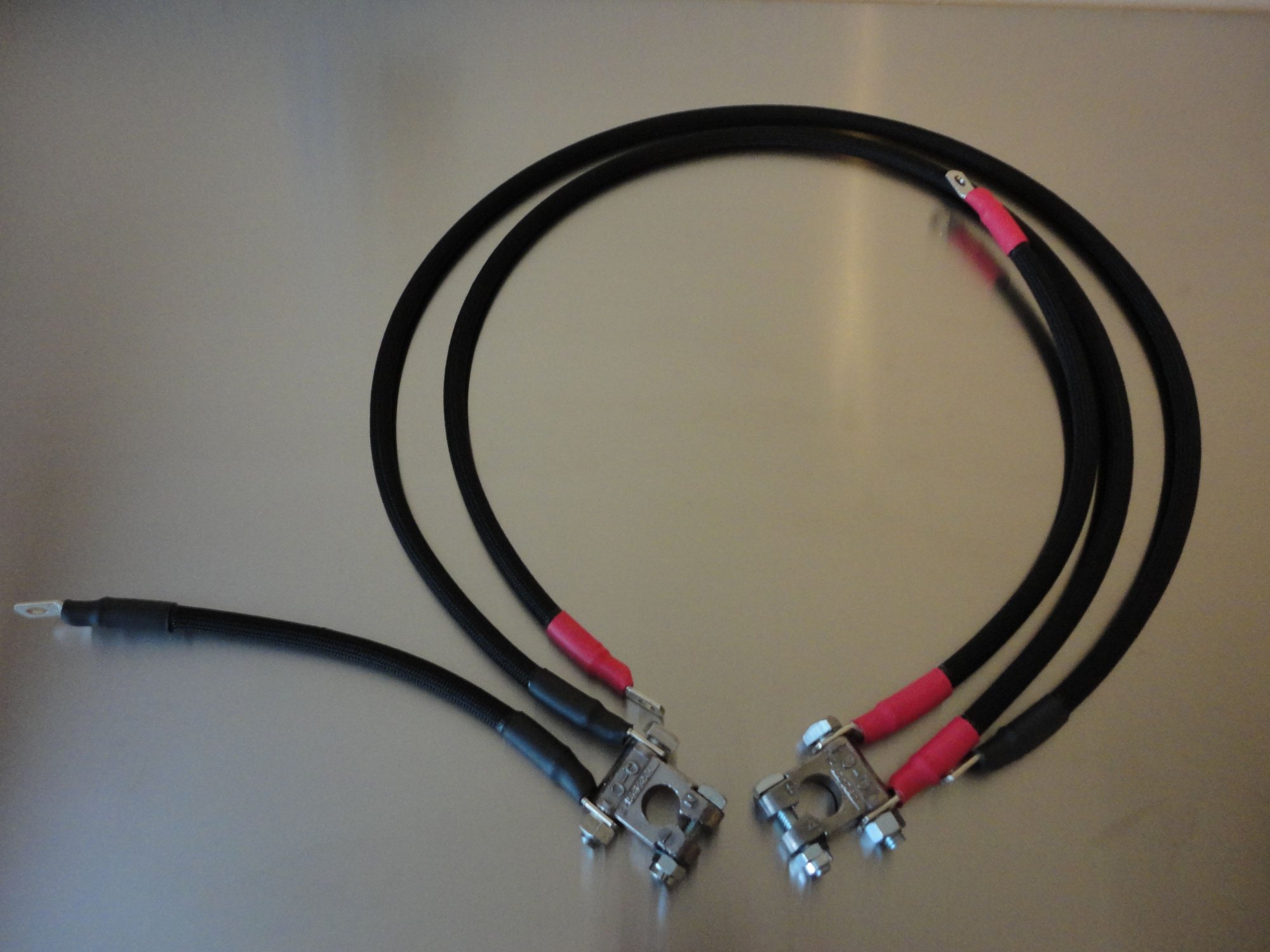

Each set includes:
Positive Mil. Spec. Battery Terminal
Negative Mil. Spec. Battery Terminal

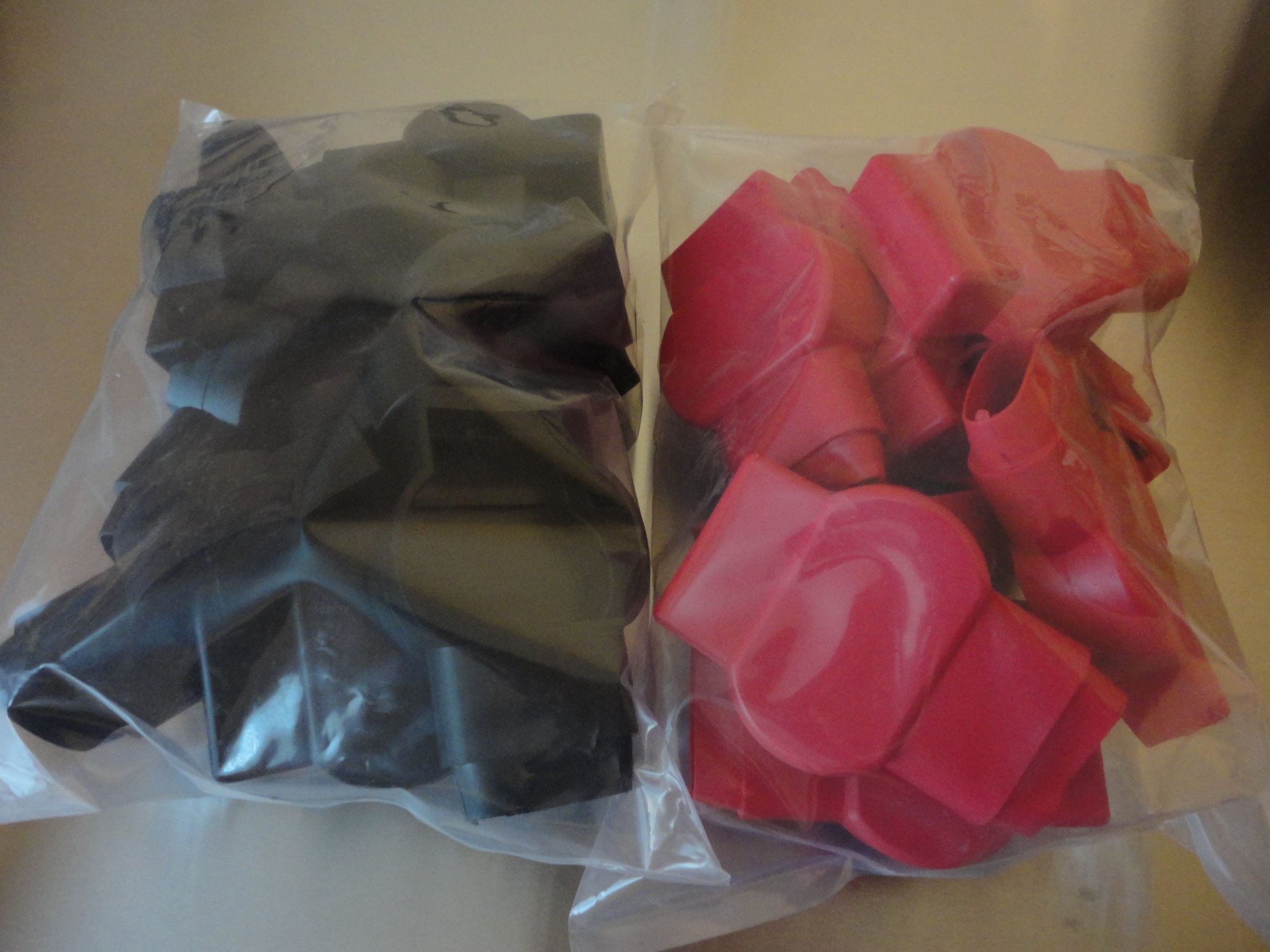

Red Rubber Mil. Spec. Battery Terminal Boot
Black Rubber Mil. Spec. Battery Terminal Boot
Positive 2 AWG Starter Cable
Positive 2 AWG Fuse Block Cable
Positive 2 AWG Alternator Cable (Not Pictured)
- Littelfuse Alternator MEGA Fuse Holder With Fuse
- Red Rubber Starter Terminal Insulator Boot
Negative 2 AWG Block Cable
Negative 2 AWG Fender Cable
2 AWG Firewall Head Ground Strap Cable (Not Pictured)

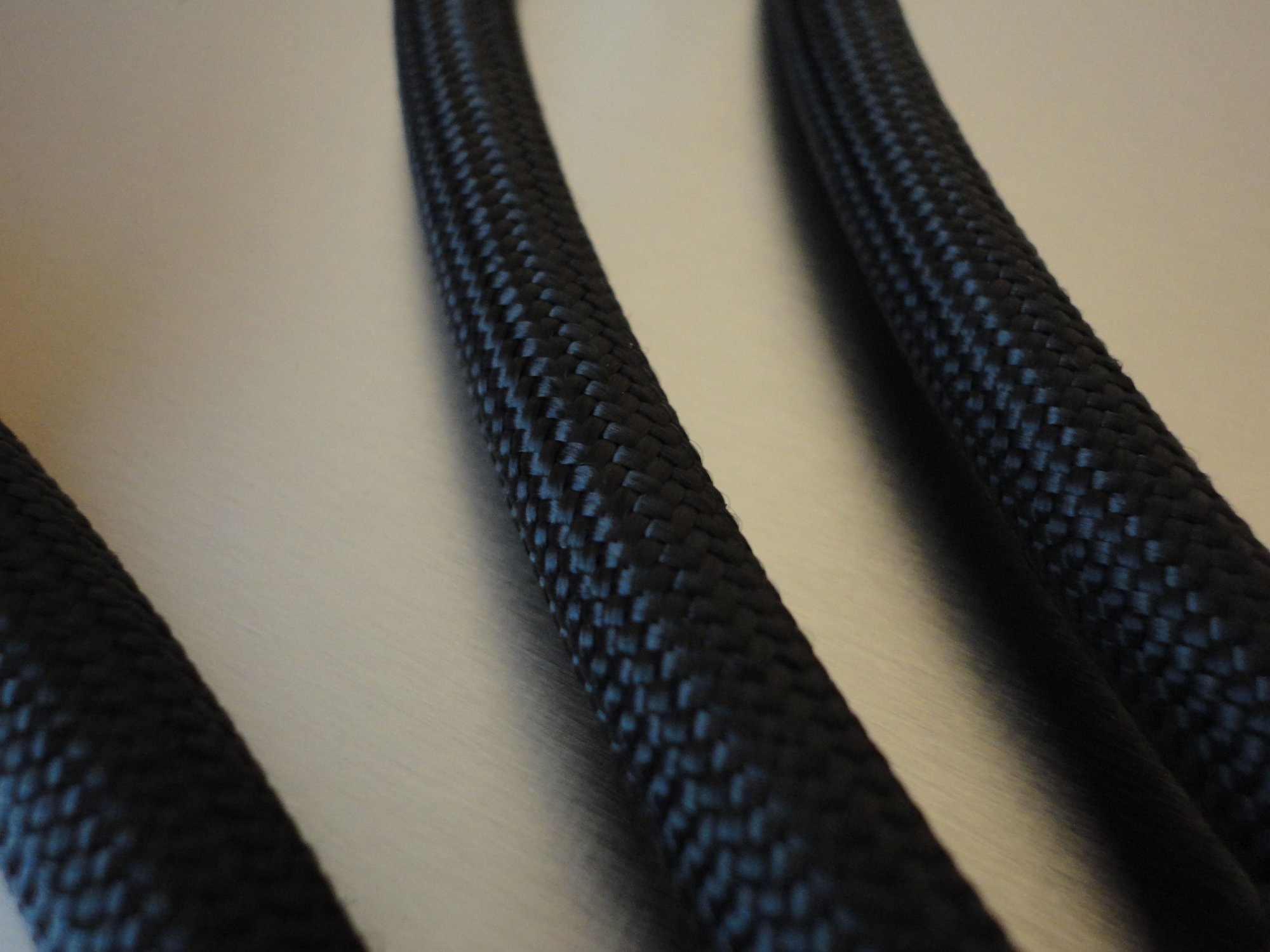

2 AWG Military Spec. Tefzel Battery Cables With Braided Sleeve
- Extruded ETFE (Ethylene Tetrafluoroethylene) Insulation
- Commonly Used In Aerospace Applications
- Temperature Rated -55*C to 150*C
- 665 Strand Tin Plated Copper Wire
- Extremely Resistant To Heat, Abrasion, Corrosion, Fuel, Oil, Solvents, Salt, And UV Rays
- Hex Crimped Tin Plated Copper Marine Grade Windowless Lugs
- Double Wall Military Spec. Adhesive Lined Heat Shrink Tubing
- Littelfuse Bolt Down Side-Stackable Mega Fuse Holder (500A Rated)
- 60A - 350A MEGA Fuse
- Designed For Racing Applications And Extreme Environments
- Ideal For Upgraded Alternators And Winch Systems
- Showroom Quality
- Manufactured In The USA
1 week (minimum) handling time on purchases.
Paypal Only - Please let me know your Jeep Year / Make / Model / Engine as well as your alternator's amperage rating, and any information on custom lengths.
Two sets are currently available.
$220 shipped to the continental united states. Trade Offers Welcome.
Each set includes:
Positive Mil. Spec. Battery Terminal
Negative Mil. Spec. Battery Terminal
Red Rubber Mil. Spec. Battery Terminal Boot
Black Rubber Mil. Spec. Battery Terminal Boot
Positive 2 AWG Starter Cable
Positive 2 AWG Fuse Block Cable
Positive 2 AWG Alternator Cable (Not Pictured)
- Littelfuse Alternator MEGA Fuse Holder With Fuse
- Red Rubber Starter Terminal Insulator Boot
Negative 2 AWG Block Cable
Negative 2 AWG Fender Cable
2 AWG Firewall Head Ground Strap Cable (Not Pictured)
2 AWG Military Spec. Tefzel Battery Cables With Braided Sleeve
- Extruded ETFE (Ethylene Tetrafluoroethylene) Insulation
- Commonly Used In Aerospace Applications
- Temperature Rated -55*C to 150*C
- 665 Strand Tin Plated Copper Wire
- Extremely Resistant To Heat, Abrasion, Corrosion, Fuel, Oil, Solvents, Salt, And UV Rays
- Hex Crimped Tin Plated Copper Marine Grade Windowless Lugs
- Double Wall Military Spec. Adhesive Lined Heat Shrink Tubing
- Littelfuse Bolt Down Side-Stackable Mega Fuse Holder (500A Rated)
- 60A - 350A MEGA Fuse
- Designed For Racing Applications And Extreme Environments
- Ideal For Upgraded Alternators And Winch Systems
- Showroom Quality
- Manufactured In The USA
1 week (minimum) handling time on purchases.
Paypal Only - Please let me know your Jeep Year / Make / Model / Engine as well as your alternator's amperage rating, and any information on custom lengths.
Last edited by craigjacob1; 03-31-2017 at 09:26 PM.
#4
Seasoned Member
Thread Starter
Join Date: Nov 2016
Location: Idaho
Posts: 304
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1990
Engine: Renix 4.0
Last set SOLD
20 updated sets will be available within the next month.
They will be constructed with Raychem M22759/41-2-5D (2 AWG) Wire.
Specifications Include:
2 AWG (600 Strand) Nickel Plated Copper Wire
Dual Layer Cross-Linked ETFE (Tefzel) Insulation
Polymide Braided Sleeve
FEP Heat Shrink Tubing
600v Rated Heavy Duty Tinned Copper Compression Ring Terminals
Military Spec. Battery Terminals
Operating Temperature Range -85*F to 392*F
The new cables are absolutely top of the line, and will be hands down the best on the market. They are only intended for racing applications and the most extreme environments. If you would like details or prices send me a PM.
20 updated sets will be available within the next month.
They will be constructed with Raychem M22759/41-2-5D (2 AWG) Wire.
Specifications Include:
2 AWG (600 Strand) Nickel Plated Copper Wire
Dual Layer Cross-Linked ETFE (Tefzel) Insulation
Polymide Braided Sleeve
FEP Heat Shrink Tubing
600v Rated Heavy Duty Tinned Copper Compression Ring Terminals
Military Spec. Battery Terminals
Operating Temperature Range -85*F to 392*F
The new cables are absolutely top of the line, and will be hands down the best on the market. They are only intended for racing applications and the most extreme environments. If you would like details or prices send me a PM.
