What steering setup do I go with
#1
Newbie
Thread Starter
Join Date: Jun 2012
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
What steering setup do I go with
Ok, I got a 3" lift up front of my 99 xj, and I want to upgrade my steering linkage to a heavy duty one, and go up another inch to 4" of lift up front. Do I need to get a drop pitman arm and adjustable track bar? Im just not sure what setup is best. Thanks for any help I can get.
#2
CF Veteran
Join Date: Jan 2010
Location: Virginia Beach by way of Michigan
Posts: 5,482
Likes: 0
Received 24 Likes
on
24 Posts
I would go IRO's double sheer adjustable trackbar and then either the V8 ZJ steering set up (lower cost) or SeriousOffroad's. Frank's (seriousoffroad) is pretty beast and is on my wishlist. here's the link
A drop pitman arm is not needed.
A drop pitman arm is not needed.
#3
Cherokee Forum Vendor
Join Date: Mar 2011
Location: Lynden, WA
Posts: 1,448
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0

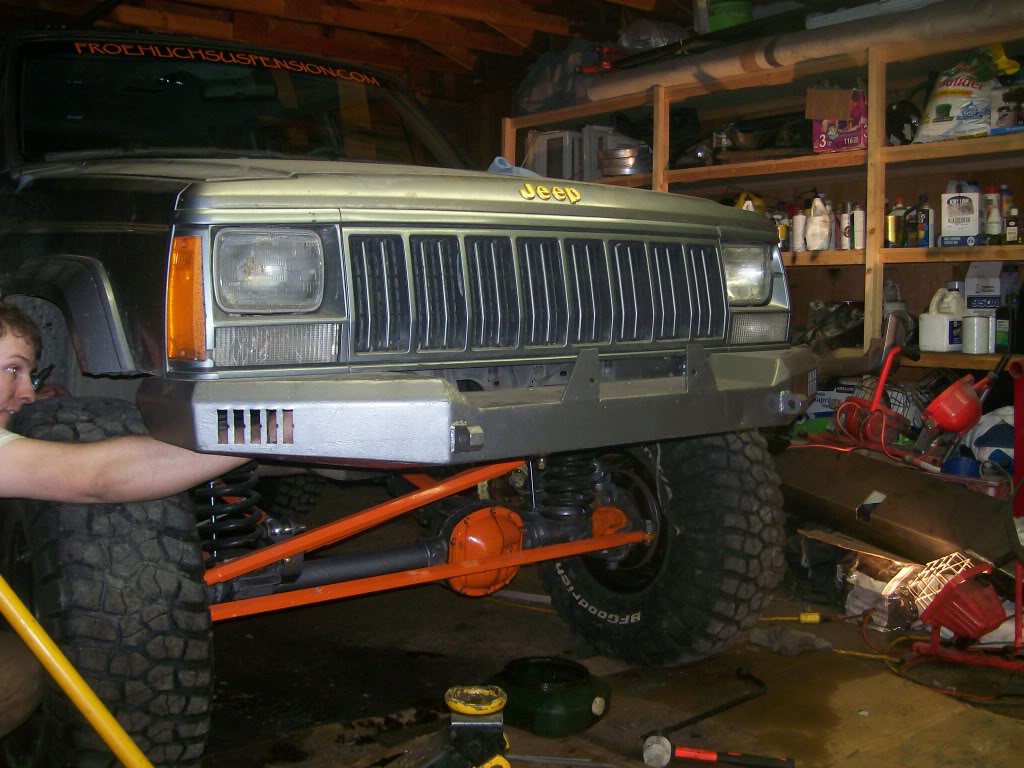

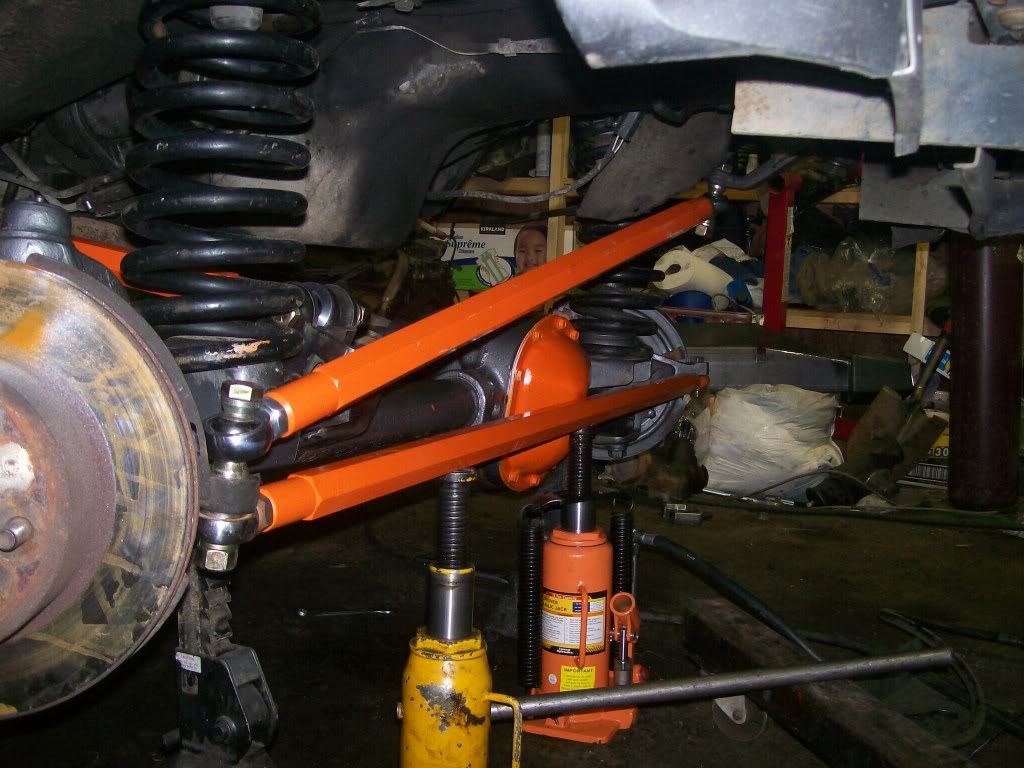

I'd go full crossover steering running heims. Thats what I feel is worth making and selling anyways. 1-1/4" solid hex steel and 7/8s Ruffstuff chromoly heims. Mount it over or under the knuckle, no need for a drop pitman arm and absolutely no chance of developing a dead spot. Combine that with an over the axle track bar and you are set.
Kris
Kris
Trending Topics
#9
Cherokee Forum Vendor
Join Date: Mar 2011
Location: Lynden, WA
Posts: 1,448
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0
It IS crossover. Exactly by definition. Single sheer is not a problem if done right. There are many many rigs running single sheer steering using a stock steering box and knuckles, hydro assist, and even full hydro. When you use 7/8s heims and 5/8s grade 8 bolts it is not an issue.
#10
Cherokee Forum Vendor
Join Date: Mar 2011
Location: Lynden, WA
Posts: 1,448
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0
I sell the steering for 325 plus shipping. Im actually working on my website right now, should be up in a couple days then I will be able to become a vendor on here.
#12
Cherokee Forum Vendor
Join Date: Mar 2011
Location: Lynden, WA
Posts: 1,448
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0
Tie rod, drag link, heims, jam nuts, high misalignment spacers, and all needed hardware.
Like most crossover kits it requires drilling the knuckles and pitman arm out to 5/8s and cutting off and or relocation of your sway bar mounts.
I sell the over the axle track bar, weld on axle mount, bolt on HD frame mount, and all needed hardware for 250. I could probably make a package deal.
Like most crossover kits it requires drilling the knuckles and pitman arm out to 5/8s and cutting off and or relocation of your sway bar mounts.
I sell the over the axle track bar, weld on axle mount, bolt on HD frame mount, and all needed hardware for 250. I could probably make a package deal.
