what backspacing are you running?

Thread Tools

Search this Thread

Old 03-15-2011, 07:52 PM
  #1
Seasoned Member
Thread Starter

98 XJS's Avatar

Join Date: Jan 2011
Location: Las Vegas, NV
Posts: 251
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Default what backspacing are you running?

I'm in the market for some new wheels and tires. I have 31x10.5s now on the stock 15x7s (I think)

I'm hearing I need 4" b/s but just wanted to see what everyone has had luck with. Some wheels are only offered in 3.75 or 4.25, I just want to be safe since I rub the lca's now at full lock.

Before, you say it, yes I could have searched, blah blah blah, but I had a blowout and am pissed and want to start a dialogue, so shoot me
Old 03-15-2011, 07:56 PM
  #2
Registered Users

jmm0122's Avatar

Join Date: Dec 2009
Posts: 2,660
Likes: 0
Received 1 Like on 1 Post
Default

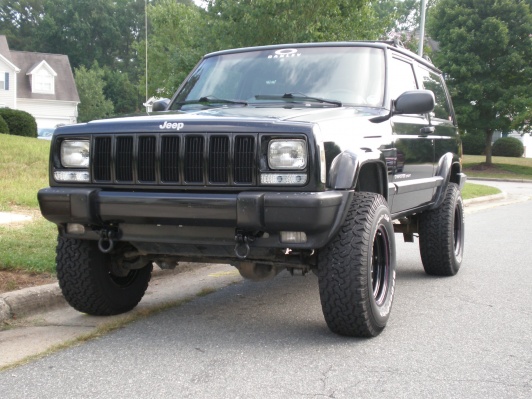

Mine are 15x8's with 4" backspacing.
Attached Thumbnails what backspacing are you running?-p7130289.jpg
Old 03-15-2011, 08:03 PM
  #3
Seasoned Member
Thread Starter

98 XJS's Avatar

Join Date: Jan 2011
Location: Las Vegas, NV
Posts: 251
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by jmm0122
Mine are 15x8's with 4" backspacing.
nice, I had BFG atko's on my last jeep. so no rubbing at all with the 4" I'd assume right?

are those D-window Cragars? can't really tell from pic but I think I see the pinstripe. I had those on my ranger and soft 8s on my last jeep. (although had some clearance issues with the caliper) can't beat the price. I may wind up with your same setup. I'm really liking the Firestone Destination M/Ts though too.
Old 03-15-2011, 08:05 PM
  #4
Seasoned Member
Thread Starter

98 XJS's Avatar

Join Date: Jan 2011
Location: Las Vegas, NV
Posts: 251
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by jmm0122
Mine are 15x8's with 4" backspacing.
how far are you out past the fenders? my setup on my old jeep was like that and rocks and crap always sprayed up onto the body, but I don't mind cause they look great like that, nice rig
Old 03-15-2011, 08:08 PM
  #5
Seasoned Member
Thread Starter

98 XJS's Avatar

Join Date: Jan 2011
Location: Las Vegas, NV
Posts: 251
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by jmm0122
Mine are 15x8's with 4" backspacing.
sorry, one more thing... how did you mount your d-rings on the front? are they welded to something and mounted to the stock hook locations? I was thinking of doing the exact same thing since mine didn't come with hooks and d-rings are better anyway. really like your jeep dude
Old 03-15-2011, 08:54 PM
  #6
CF Veteran

Gorillaxj's Avatar

Join Date: Sep 2010
Location: Salt Lake City, UT
Posts: 4,968
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by jmm0122
99 Jeep XJ, 2 door, 4.0L, 5spd, RE 3.5, 31" BFG A/T, Cragar D-Window
in his sig.

looks like they are tied into the factory tow hook mounts.
Old 03-15-2011, 09:00 PM
  #7
CF Veteran

caged's Avatar

Join Date: Nov 2008
Location: Northern Ontario, Canada
Posts: 7,874
Received 94 Likes on 85 Posts
Year: 1990, 1999, 2000
Model: Cherokee
Engine: 4.0
Default

i'm running 3 inch backspacing, but i'm on a 10 inch rim. (11 inch when you factor in the beadlock).
match that with 13.5 wide tire and i'm almost at full width stance.
Old 03-15-2011, 09:02 PM
  #8
Registered Users

jmm0122's Avatar

Join Date: Dec 2009
Posts: 2,660
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by 98-XJ
nice, I had BFG atko's on my last jeep. so no rubbing at all with the 4" I'd assume right?

are those D-window Cragars? can't really tell from pic but I think I see the pinstripe. I had those on my ranger and soft 8s on my last jeep. (although had some clearance issues with the caliper) can't beat the price. I may wind up with your same setup. I'm really liking the Firestone Destination M/Ts though too.
Yeah they are the D-windows, everyone has the soft 8's so I wanted to switch it up. No rubbing at all other than on the fender flares when going down driveways.

Originally Posted by 98-XJ
how far are you out past the fenders? my setup on my old jeep was like that and rocks and crap always sprayed up onto the body, but I don't mind cause they look great like that, nice rig
They stick out about a inch or inch and a half past the fender flares.
Originally Posted by 98-XJ
sorry, one more thing... how did you mount your d-rings on the front? are they welded to something and mounted to the stock hook locations? I was thinking of doing the exact same thing since mine didn't come with hooks and d-rings are better anyway. really like your jeep dude
I got the d-rings form a company called hi country, which has recently closed its doors. Im not a big fan of actual tow hooks because I know to many people that have horror stories about them.

And thanks it gets the job done, and its always a work in progress.
Here is another picture of the rims, and the women. Haha. I don't take many pictures of the jeep because my camera has been broken for a whole now.

Last edited by jmm0122; 03-15-2011 at 09:07 PM.
Old 03-15-2011, 09:53 PM
  #9
Seasoned Member

9XJSPORT7's Avatar

Join Date: Jan 2009
Location: SEMI
Posts: 282
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Im running 3.65 BS on the my 15x8 DC2's with 31x10.50's
Old 03-15-2011, 09:55 PM
  #10
Senior Member

pickles's Avatar

Join Date: Jun 2010
Posts: 702
Likes: 0
Received 1 Like on 1 Post
Year: 1993
Model: Cherokee
Engine: 4.0
Default

4" backspace is perfect imo
Old 03-15-2011, 10:17 PM
  #11
CF Veteran

Kyle 4x4 4life's Avatar

Join Date: Feb 2011
Location: South Dakota
Posts: 1,838
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
Default

Im running 15x12 wheels with 3.5" backspacing with 31x10.5's and they dont rub at all just had to trim a little of the fender flare(front bottom). All this was done by PO and i know too wide of wheel for the 10.5's they look dumb, looking to get some 12.5's. But as for you if you crawl a lot i wouldn't go much further than 4" maybe 3.75" backspacing cuz mine with 3.5" sit out past the stock flares about 1-2"s and im near positive will rub the flares with some flex haven't got around to testing it out yet but from the looks of it im sure they will.
Old 03-15-2011, 10:22 PM
  #12
Seasoned Member
Thread Starter

98 XJS's Avatar

Join Date: Jan 2011
Location: Las Vegas, NV
Posts: 251
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by Kyle 4x4 4life
Im running 15x12 wheels with 3.5" backspacing with 31x10.5's and they dont rub at all just had to trim a little of the fender flare(front bottom). All this was done by PO and i know too wide of wheel for the 10.5's they look dumb, looking to get some 12.5's. But as for you if you crawl a lot i wouldn't go much further than 4" maybe 3.75" backspacing cuz mine with 3.5" sit out past the stock flares about 1-2"s and im near positive will rub the flares with some flex haven't got around to testing it out yet but from the looks of it im sure they will.
Nope, I don't crawl, but I know what it's like having tires stick out and throw stuff up.

Wonder if I'd be ok with 3.5" and better off? Why does everyone say 4" is perfect? Anyone know what stock wheels have? After my 3" lift I didn't get an adj track bar and so with my axle pushed over on the drivers... that side doesn't rub but the pass does so I'm thinking just about another 3/4" to 1" b/s would be perfect.
Old 03-15-2011, 10:22 PM
  #13
Senior Member

TheDale's Avatar

Join Date: Dec 2010
Location: Rapid City, SD
Posts: 546
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default

I'm running 15x8 rims with 3.75" bs and 33" tires. No rubbing the LCAs at all.
Old 03-15-2011, 10:37 PM
  #14
CF Veteran

Kyle 4x4 4life's Avatar

Join Date: Feb 2011
Location: South Dakota
Posts: 1,838
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
Default

Nope, I don't crawl, but I know what it's like having tires stick out and throw stuff up.

Wonder if I'd be ok with 3.5" and better off? Why does everyone say 4" is perfect? Anyone know what stock wheels have? After my 3" lift I didn't get an adj track bar and so with my axle pushed over on the drivers... that side doesn't rub but the pass does so I'm thinking just about another 3/4" to 1" b/s would be perfect.
Im guessing people say 4" becuase its not extremely wide but gives you a little clearance so the tires dont rub. And the stock BS im pretty sure is right around 5 or 5.5". So if you just want another 1" or so than ya 4" BS would be just right for you. But if you want it wide than 3.5" BS will sure give it a wider stance, as some people including myself like it.
Old 03-16-2011, 01:29 PM
  #15
CF Veteran

Gatchmo5710's Avatar

Join Date: Apr 2010
Location: st.george utah
Posts: 2,209
Likes: 0
Received 3 Likes on 3 Posts
Year: 1996
Model: Cherokee
Engine: l6 4.0
Default

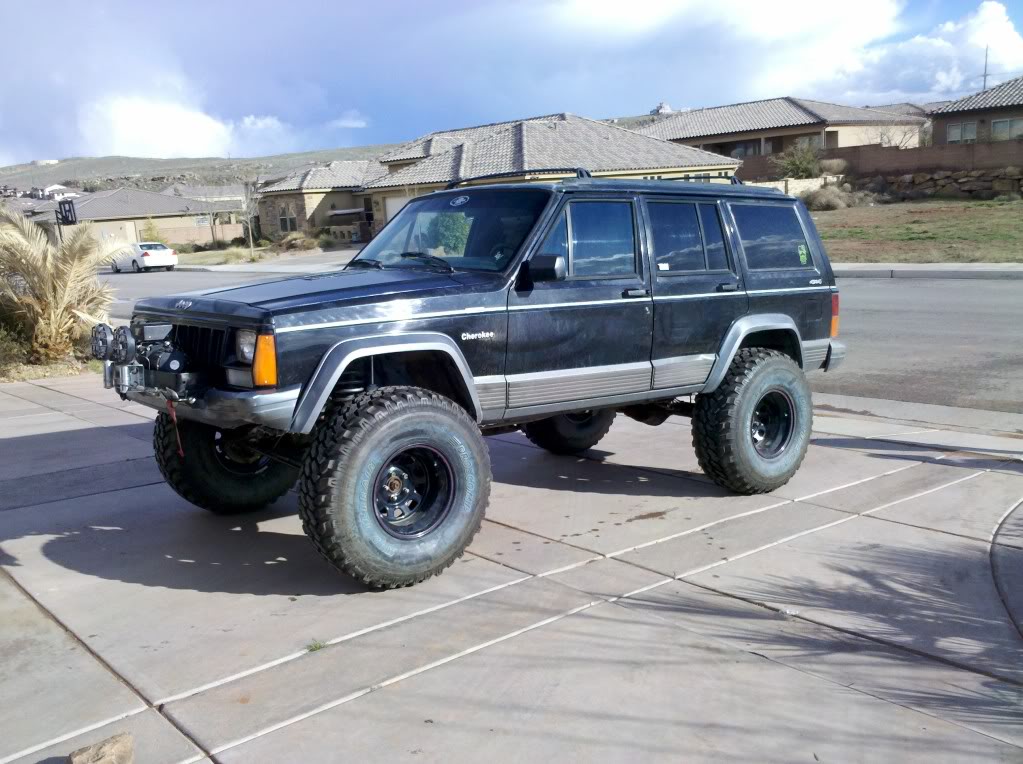

15x10s with 3.75 bs
Name:  IMG_20110307_163116.jpg
Views: 1567
Size:  133.1 KB
