Shock axle mount problem

Thread Tools

Search this Thread

Old 06-02-2011, 11:33 AM
  #1
Seasoned Member
Thread Starter

Coraphix's Avatar

Join Date: Mar 2011
Location: Durango, CO
Posts: 437
Likes: 0
Received 3 Likes on 2 Posts
Year: 1987
Model: Cherokee
Engine: rebuilt straight 6
Default Shock axle mount problem

So i bought my jeep slightly modified from a previous owner. over the past 4 years i have been able to figure out most of the modifications and understand what all is going on with my jeep. But a few months back i blew up my rear shocks and decided i needed to replace them. Although the shocks were the right size as for how the setup was described, the axle mount for the shocks was moved so the new shocks i ordered wouldn't fit.

I know i could measure out the ride height, flex, and compression to figure out what size shock i need. But i plan on lifting my jeep more in the near future anyways.

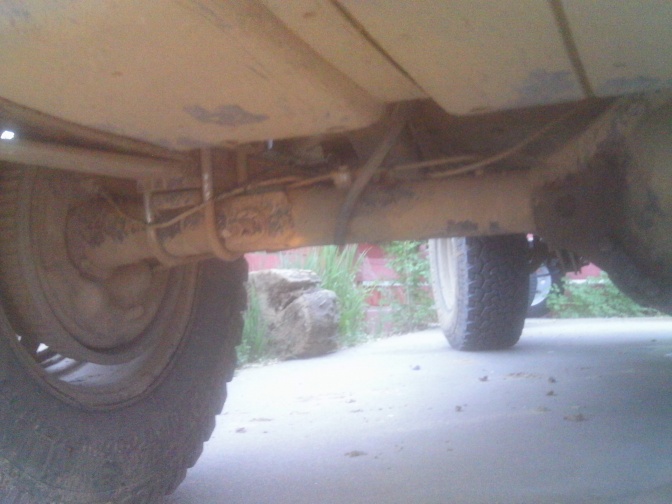

I was wondering what i would have to do in order to get the right shocks because of how my axle mounts have been moved.Shock axle mount problem-imag0061.jpg

there are two lifts i was looking at, would either of these fit without modification or what would i have to do to make them fit. (ie. move axle mount back to stock, get separate shocks...)
any help will be welcomed thank you.
Old 06-02-2011, 11:46 AM
  #2
CF Veteran

Hoooper's Avatar

Join Date: Jun 2010
Location: Hayward, CA
Posts: 1,378
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Default

just get the shocks for a lift 2 or 3" lower than yours...(im thinking 2")
Old 06-02-2011, 11:51 AM
  #3
Seasoned Member
Thread Starter

Coraphix's Avatar

Join Date: Mar 2011
Location: Durango, CO
Posts: 437
Likes: 0
Received 3 Likes on 2 Posts
Year: 1987
Model: Cherokee
Engine: rebuilt straight 6
Default

there is a 4.5in difference between stock mount and mine. plus i have bar pin eliminators which take away another 1.5in. so a 6in total difference.
Old 06-02-2011, 11:57 AM
  #4
CF Veteran

Hoooper's Avatar

Join Date: Jun 2010
Location: Hayward, CA
Posts: 1,378
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Default

Originally Posted by Coraphix
there is a 4.5in difference between stock mount and mine. plus i have bar pin eliminators which take away another 1.5in. so a 6in total difference.
what lift height do you already have?
Old 06-02-2011, 11:58 AM
  #5
Seasoned Member
Thread Starter

Coraphix's Avatar

Join Date: Mar 2011
Location: Durango, CO
Posts: 437
Likes: 0
Received 3 Likes on 2 Posts
Year: 1987
Model: Cherokee
Engine: rebuilt straight 6
Default

Originally Posted by Hoooper
what lift height do you already have?
right now i have a 3.5in lift
Old 06-02-2011, 12:12 PM
  #6
Banned

07Negative's Avatar

Join Date: Oct 2009
Posts: 775
Likes: 0
Received 0 Likes on 0 Posts
Default

Why not measure the shocks you took off?
Old 06-02-2011, 12:29 PM
  #7
Seasoned Member
Thread Starter

Coraphix's Avatar

Join Date: Mar 2011
Location: Durango, CO
Posts: 437
Likes: 0
Received 3 Likes on 2 Posts
Year: 1987
Model: Cherokee
Engine: rebuilt straight 6
Default

i tossed them when i got my new ones in (the ones that dont fit). and i still want to lift it to 4.5in instead of just the 3.5
Old 06-02-2011, 01:03 PM
  #8
CF Veteran

Hoooper's Avatar

Join Date: Jun 2010
Location: Hayward, CA
Posts: 1,378
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Default

Originally Posted by Coraphix
i tossed them when i got my new ones in (the ones that dont fit). and i still want to lift it to 4.5in instead of just the 3.5
Just get stock shocks then I guess. They will end up with about 1" less uptravel than normal shock location and 4.5" lift shocks. You pretty much never max out rear shocks so it shouldn't be an issue
