Measuring driveshaft length and finding the right shaft?!
12-14-2013, 09:25 PM
#1
Member
Thread Starter
Join Date: Jun 2013
Location: Laguna Beach, CA
Posts: 166
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Measuring driveshaft length and finding the right shaft?!
Alright all, just installed my AA SYE. I'm planning on finding a JY DS to slap on the rear, but I'm baffled by the measurements...
The distance from yoke to yoke in the rear is 33-34"
I have 3.5 RE leafs in the back, netting around 4-4.5"
NP231, AW4, C8.25
I thought that measurement appeared too long... I don't think I will be able to use an XJ front DS with that?!
Perhaps a ZJ front DS? Do they use the same 1310 yoke?
Thanks guys
The distance from yoke to yoke in the rear is 33-34"
I have 3.5 RE leafs in the back, netting around 4-4.5"
NP231, AW4, C8.25
I thought that measurement appeared too long... I don't think I will be able to use an XJ front DS with that?!
Perhaps a ZJ front DS? Do they use the same 1310 yoke?
Thanks guys
12-15-2013, 12:21 PM
#3
Member
Join Date: Dec 2012
Location: Santa Cruz, CA
Posts: 176
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
http://naxja.org/forum/showthread.php?t=1004218
This is the same chart I used when I found my shaft. There are some longer options out there, just got to do a little hunting at the junk yards.
Good luck with your search.
This is the same chart I used when I found my shaft. There are some longer options out there, just got to do a little hunting at the junk yards.
Good luck with your search.
12-15-2013, 12:27 PM
#4
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Im sitting on 11 inchs of lift and im running the longest grand Cherokee shaft the factory made 33.5 so some things deff wrong with the way your measureing . measurement from center of u joint to center of u joint...?
12-15-2013, 01:40 PM
#7
CF Veteran
Join Date: Jan 2012
Location: Ramona ca
Posts: 1,130
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
I'm running that sye on a 96 np231 and an ax15 and I'm running the longest stock front shafts from a xj and my splines are showing
Trending Topics
12-15-2013, 08:12 PM
#8
Member
Thread Starter
Join Date: Jun 2013
Location: Laguna Beach, CA
Posts: 166
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
I'm confused then...I went yoke to yoke (like figure A). I promise I'm not this stupid. Going to give it another shot after dinner and a beer or three...lol
12-15-2013, 09:08 PM
#9
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
This is a formatted version of the "chart" in the NAXJA link. (No idea what freegdr posted... broken link)
This chart is the collapsed lengths of stock front drive shafts. You should have +/- 1.5" in most situations. This is how our stock shafts are measured. So take your measurement between yokes, subtract 1.5", and go find a DS that matches the list below.
This chart is the collapsed lengths of stock front drive shafts. You should have +/- 1.5" in most situations. This is how our stock shafts are measured. So take your measurement between yokes, subtract 1.5", and go find a DS that matches the list below.
Code:
Length Model Years Engine Transmission Part Number 33.500" ZJ 96-98 4.0L 42RE w/NP249 52099260 33.000" ZJ 96-98 4.0L 42RE w/NP242 52098707 32.875" ZJ 96 5.2L 44RE w/NP249 52098501 32.870" ZJ 93-95 5.2L 46RH 53008427 *w/o CV 31.250" ZJ 96-98 5.2L 44RE w/NP249 52098379 31.250" ZJ 98 5.9L 46RE w/NP249 52098379 31.250" ZJ 96-97 4.0L 42RE 52098850 30.750" ZJ 96 5.2L 44RE w/NP249 52099246 30.660" XJ 89-01 4.0L AW4 53005542 30.625" ZJ 94-95 5.2L 44RE 52087805 *w/o CV 30.530" ZJ 93 4.0L AW4 52098341 30.500" ZJ 94-95 4.0L 44RE 52098790 *w/o CV 30.000" ZJ 93 4.0L AX-15 52098344/52088090 29.250" XJ 89-01 4.0L AX-15 53005543 28.620" XJ 89-00 4.0L AW4 53005545 *built for Export 28.620" XJ 87-88 4.0L AW4 53005260 *built for Export 27.970" XJ 89-93 2.5L AW4 53005540 27.950" XJ 87-88 2.5L AW4 53003912 27.640" XJ 95-01 2.5TD ? 52098208 *built for Export 27.080" XJ 89-00 4.0L AX-15 53005544 *built for Export 25.310" XJ 89-01 2.5L AX-5 53005541 The A500 was later renamed the 44RE. w/o CV means there is a single-cardan joint at both ends.
12-16-2013, 08:58 PM
#12
Member
Thread Starter
Join Date: Jun 2013
Location: Laguna Beach, CA
Posts: 166
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Bought a couple DS's today at the JY for 100 bucks! One is an XJ front and the other is a little longer, a ZJ shaft. According to the chart above it is not a double-cardan but it really is... part number 52098790. I can send pics to verify...
12-16-2013, 09:19 PM
#14
Member
Thread Starter
Join Date: Jun 2013
Location: Laguna Beach, CA
Posts: 166
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0

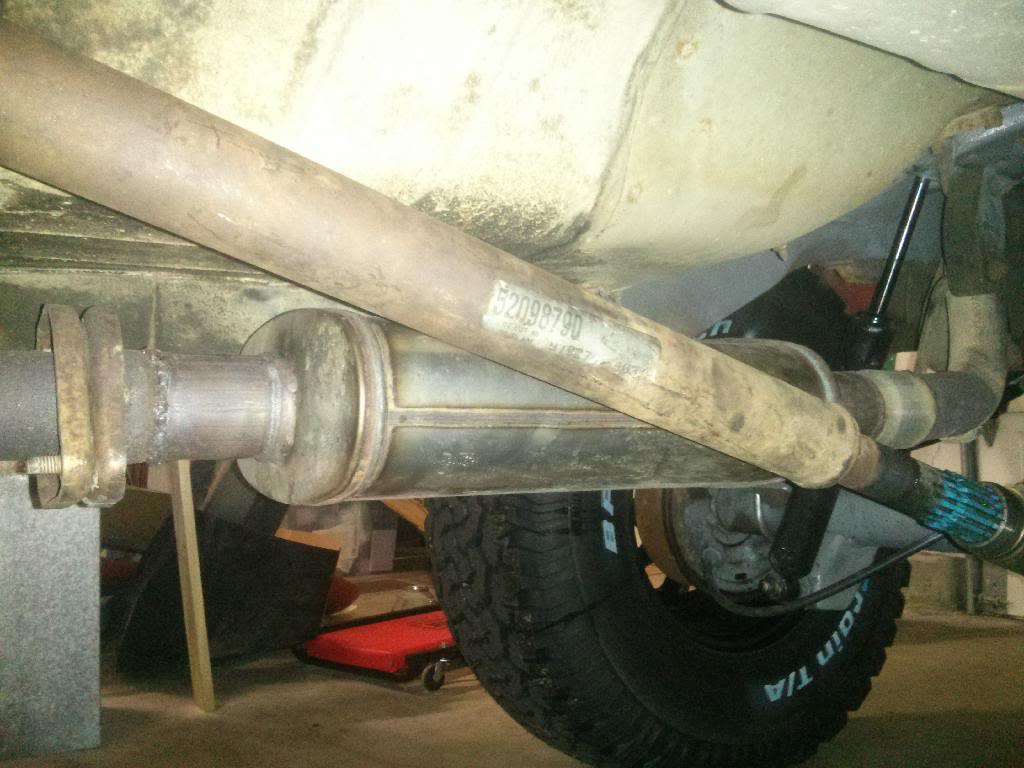

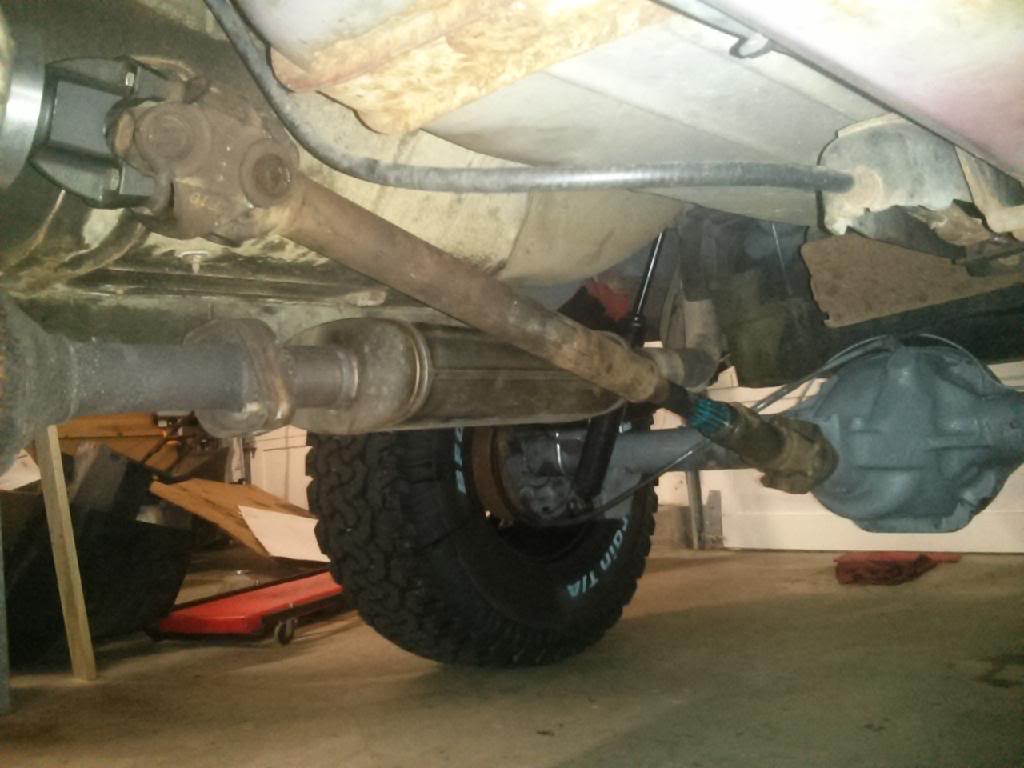

As requested! And yes, I know the splines are showing... I have a couple remedies in store for that. They will still show a little bit but the splines on the shaft I found were pretty long... There is at least 3" engagement in the picture shown.
PN:
PN:
12-16-2013, 09:24 PM
#15
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Cool! That looks similar to the ZJ shaft I picked up, either a 52098707 or 52099260 (no label). Same mysterious blue grease in the splines.
What happened to the rubber boot?
What happened to the rubber boot?
