Lower conrol arms for a 5.5" lift
#1
Newbie
Thread Starter
Join Date: May 2011
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Lower conrol arms for a 5.5" lift
I have 4.5" coils with a spacer for about 5.5" lift on stock LCA's.

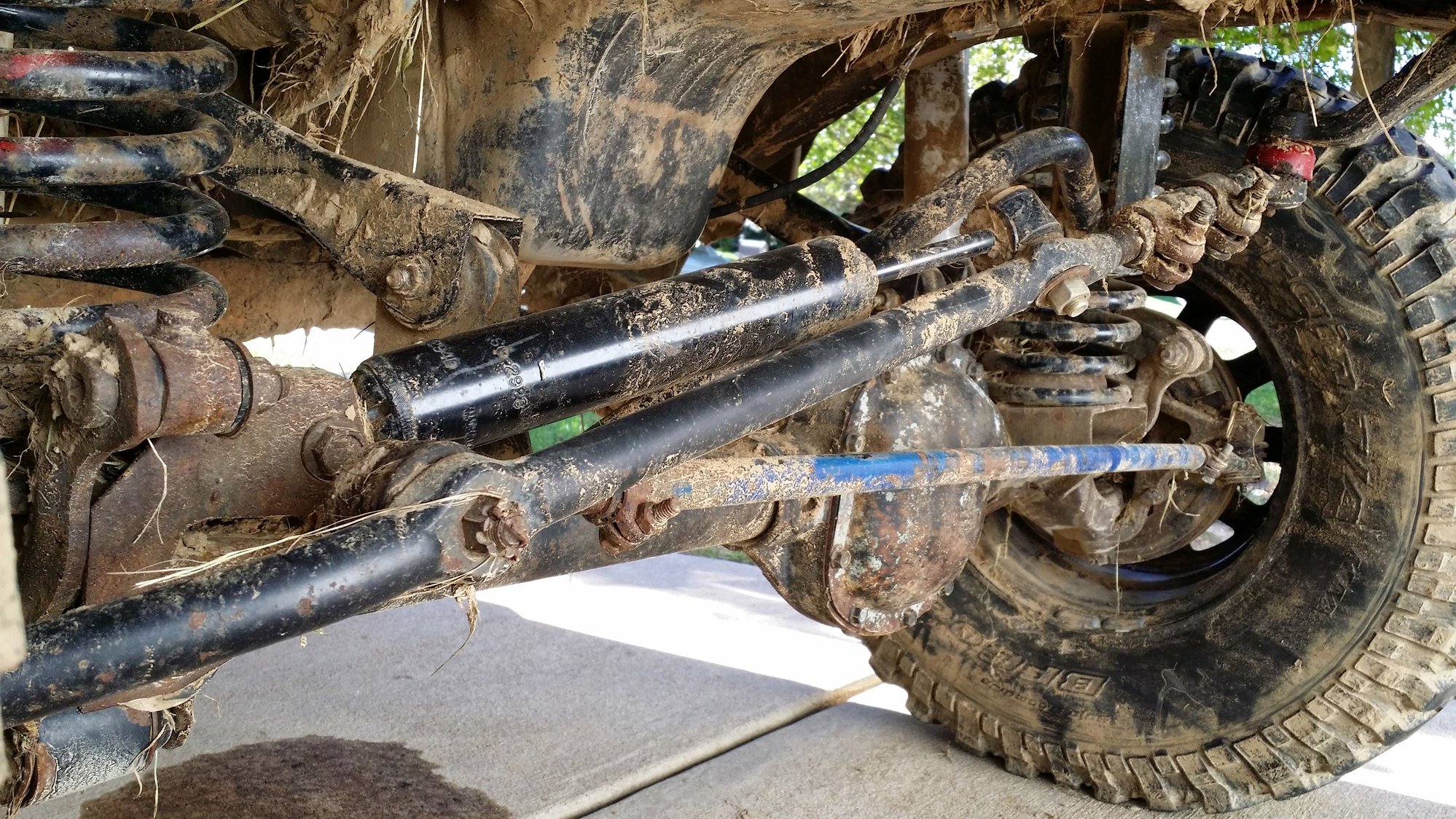

As you can see, the coils are bowed due to the LCA's being too short.
It actually appears to ride and perform just fine but I know I can make the geometry much better.
My question is, are the stock ZJ's arms longer? If they are, is the difference enough to be worthwhile? Or would I be better of just buying some custom arms?
#2
CF Veteran
Join Date: Dec 2011
Location: IE (SoCal)
Posts: 1,080
Likes: 0
Received 6 Likes
on
5 Posts
Year: 1994 SE
Model: Cherokee
Engine: 4.0
At 5.5" you should really have new uppers and lowers. Just get some that are made for your size lift, or adjustables.
Last edited by jay_sco; 02-24-2016 at 02:06 PM.
#3
CF Veteran
you really need drop brackets at that height if you are planning to stay with short arms.
you can use stock arms with drop brackets but something beefy would be better. get stock length fixed, or adjustable.
you can use stock arms with drop brackets but something beefy would be better. get stock length fixed, or adjustable.
#5
CF Veteran
i wheeled with RE drop brackets on 5.5 inch and it wheeled great, drove great and was very reliable. never got hung up on the drop brackets ever and our terrain is full of roots, rocks and fallen logs.
but when i went to long arms, it really felt the same, even flexed pretty much the same, just better to have long arms.
but when i went to long arms, it really felt the same, even flexed pretty much the same, just better to have long arms.
#6
Old School CF Moderator
Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes
on
3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
i wheeled with RE drop brackets on 5.5 inch and it wheeled great, drove great and was very reliable. never got hung up on the drop brackets ever and our terrain is full of roots, rocks and fallen logs. but when i went to long arms, it really felt the same, even flexed pretty much the same, just better to have long arms.
Never again
Drug over every rock there was
#7
Newbie
Thread Starter
Join Date: May 2011
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Well, I've had this jeep for quite a while and I've never gotten hung up. I don't wheel too hard because I have to drive it home but long or drop, either will be an improvement.
I believe Iron Rock makes custom length fixed arms for a good price.
What is the best bang for the buck in the long arm choices?
I believe Iron Rock makes custom length fixed arms for a good price.
What is the best bang for the buck in the long arm choices?
Trending Topics
#11
Member
Join Date: Dec 2014
Location: Virginia
Posts: 204
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0l
I am at the same lift height and I have the iron Rock offroad uppers and lowers and it works pretty well. I have not notice and down sides to them but I would like to add drop brackets one day.
#13
Junior Member
Join Date: Sep 2009
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
i wheeled with RE drop brackets on 5.5 inch and it wheeled great, drove great and was very reliable. never got hung up on the drop brackets ever and our terrain is full of roots, rocks and fallen logs.
but when i went to long arms, it really felt the same, even flexed pretty much the same, just better to have long arms.
but when i went to long arms, it really felt the same, even flexed pretty much the same, just better to have long arms.
#14
::CF Administrator::
Clearance.
Long arms move the mount point back giving a better angle, and thusly, better geometry. Drops just move it lower, for a comparable effect, but at the sacrifice of clearance.
Long arms move the mount point back giving a better angle, and thusly, better geometry. Drops just move it lower, for a comparable effect, but at the sacrifice of clearance.
#15
Newbie
Thread Starter
Join Date: May 2011
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Our Jeeps have similar specs but mine look a lot bigger. I guess thats because I have cut fenders?!?
