Loose Steering
My XJ has always really had some play in the steering wheel, even before the 4.5'' to 6.5'' lift. While driving, I can move my wheel left and right without turning. I have an HD tie rod and double schear track bar. Stock drag link with a possibly old steering stabilizer (PO put it on with the 4.5'' lift). I think it's the steering box. I was planning on the Durango steering box upgrade anyway, since I run 33s. I'm going to look at a JY and see if I find anything, but if for some reason I can't, is this the one I need?

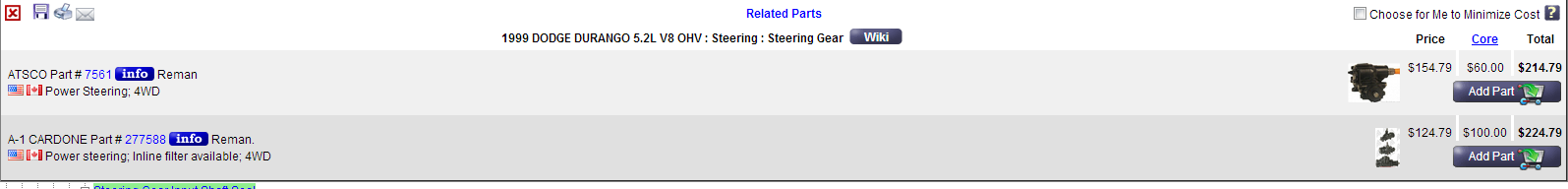

"Power steering; 4WD" 1999 Durango 5.2L OHV
http://www.rockauto.com/catalog/more...970&cc=1354025
Cheers
"Power steering; 4WD" 1999 Durango 5.2L OHV
http://www.rockauto.com/catalog/more...970&cc=1354025
Cheers
#5
CF Veteran
Thread Starter
Join Date: Jun 2011
Location: Colorado
Posts: 2,448
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
#6
CF Veteran
Join Date: Oct 2011
Location: Summerville, South Carolina
Posts: 2,613
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
Originally Posted by pickles
Brand new, or Reman?
Originally Posted by 92XJGuy
$150 would be for brand new, I believe. Since it's from RockAuto.
#7
CF Veteran
Join Date: Dec 2010
Location: S.Jersey
Posts: 1,700
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
sub. in the same boat as the OP. was wondering if braceing would be a good starting point.
i'm at 4.5 with 33's. sorry op not trying to jack here. just wondering if you really need a new box for 33'sor just some add bracing like what IRO sells.
thankyou.
i'm at 4.5 with 33's. sorry op not trying to jack here. just wondering if you really need a new box for 33'sor just some add bracing like what IRO sells.
thankyou.
Last edited by OEJ; 12-11-2012 at 05:48 AM.
Trending Topics
#8
CF Veteran
Thread Starter
Join Date: Jun 2011
Location: Colorado
Posts: 2,448
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
RockAuto's is reman? Is that a high price for one?
No problem, bud!
No problem, bud!
#9
Seasoned Member
yes with a core exchange and a reman box, i paid 160'ish for stock box I put in mine when I redid it. new without core is 300+. I would expect durango box to be very close to those numbers. Try a JY if you want something cheaper
A brace would probably help, but if you've got a dead spot in the wheel its prolly the box
A brace would probably help, but if you've got a dead spot in the wheel its prolly the box
#10
CF Veteran
Thread Starter
Join Date: Jun 2011
Location: Colorado
Posts: 2,448
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
yes with a core exchange and a reman box, i paid 160'ish for stock box I put in mine when I redid it. new without core is 300+. I would expect durango box to be very close to those numbers. Try a JY if you want something cheaper
A brace would probably help, but if you've got a dead spot in the wheel its prolly the box
A brace would probably help, but if you've got a dead spot in the wheel its prolly the box
(click picture to view bigger size)
#12
CF Veteran
Join Date: Jun 2011
Location: Plainfield Illinois
Posts: 1,672
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L Straight 6
#13
Member
Join Date: Mar 2012
Location: vermont
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
junk tre's? id start there before i swapped boxes (a couple worn tre's can really take a toll on ur steerin and make it feel rly loose
#14
Seasoned Member
Join Date: Sep 2012
Location: charlotte
Posts: 461
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.6L stroker
Box sounds like the culprit. Make sure to get under there and look for slop or play in the components while someone is turning the wheel back n forth. Just recently went through the same issues. Ended up replacing EVERYTHING. good luck
