Green Wire on Adjustable Fan Control to AC Clutch Wire
09-04-2012, 11:31 AM
#1
Junior Member
Thread Starter
Join Date: Aug 2012
Location: Southwestern Pa
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4L, inline 6 cylinder
Green Wire on Adjustable Fan Control to AC Clutch Wire
Newbie note: Searched write ups and forum and have a specific question I have not seen. If I have inaprropriately posted or the answer is listed and I missed it please advise.
Written on mobile phone, Photos to be added via computer.
Vehicle : 2000 stock jeep Cherokee XJ, 4L, inline 6 cyl
Situation: Installed new e-fan. I am in the process of installing an Imperial (Hayden) adjustable fan control so the new fan will kick on at a lower temperature, especially at idle in traffic.
Problem: Which AC clutch wire do I connect the green fan control wire to.

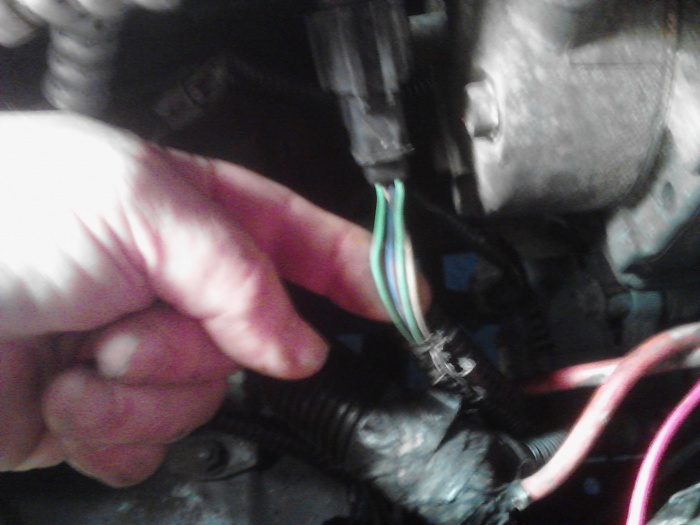

Instructions state to "attach green fan control wire to AC clutch wire". I see 7 wires on the AC clutch. 3 in the front and 4 on the side . I have also found 4 wires on the underside of the AC Clutch Relay in the fuse box of the engine compartment. Does anyone no which wire is the AC clutch wire or positive wire I need to connect to?
Written on mobile phone, Photos to be added via computer.
Vehicle : 2000 stock jeep Cherokee XJ, 4L, inline 6 cyl
Situation: Installed new e-fan. I am in the process of installing an Imperial (Hayden) adjustable fan control so the new fan will kick on at a lower temperature, especially at idle in traffic.
Problem: Which AC clutch wire do I connect the green fan control wire to.
Instructions state to "attach green fan control wire to AC clutch wire". I see 7 wires on the AC clutch. 3 in the front and 4 on the side . I have also found 4 wires on the underside of the AC Clutch Relay in the fuse box of the engine compartment. Does anyone no which wire is the AC clutch wire or positive wire I need to connect to?
Last edited by IRONMIKE; 09-04-2012 at 11:49 AM. Reason: misspelling
09-04-2012, 11:56 AM
#2
Junior Member
Thread Starter
Join Date: Aug 2012
Location: Southwestern Pa
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4L, inline 6 cylinder
additional photos
A/C Clutch Relay and underside of relay w/attached wires.
Last edited by IRONMIKE; 09-04-2012 at 11:57 AM. Reason: misspelling
09-04-2012, 01:06 PM
#3
Renix Super Guru
Join Date: Mar 2008
Location: In yourz postez fissin jurr spelinzs
Posts: 24,653
Likes: 0
Received 16 Likes
on
12 Posts
Year: 1990XJ/1989MJ
Model: Comanche
Engine: 4.0L Renix
Well some of your pictures are unclear but the older compressors had a one wire clutch so you may have instructions for the older compressors.
