Full Traction 4 link. Which steering?
#1
Member
Thread Starter
Join Date: Dec 2010
Location: NW FL
Posts: 229
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Full Traction 4 link. Which steering?
The previous owner installed a 6" Full Traction Jeepspeed 4 link and Rustys Steering. Bump steer is really bad with this setup. What does everybody recommend for a Steering setup that I won't also have to change the track bar? I think a stock style Steering would bring the drag link more parallel with the track bar. If that's the case, the Currie kit is probably the way to go.
What does everybody recommend for steering for the Full Traction long arns?
What does everybody recommend for steering for the Full Traction long arns?
#2
CF Veteran
Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
The problem is the track bar is mounted really low. A pretty large drop pitman arm would help. Or replace the frame side trac bar bracket. Or otk steering.
#3
Member
Thread Starter
Join Date: Dec 2010
Location: NW FL
Posts: 229
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Raising the trackbar would make it worse. OTK steering might make it better.
If I can get away with ZJ steering for the time being I will be happy. I plan on doing the WJ brake upgrade and 1 ton steering with matching trackbar in the future but first I need to take care of problem areas.
#4
CF Veteran
Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
Full Traction 4 link. Which steering?
Im asking for first hand experience with this kit.
Raising the trackbar would make it worse. OTK steering might make it better.
If I can get away with ZJ steering for the time being I will be happy. I plan on doing the WJ brake upgrade and 1 ton steering with matching trackbar in the future but first I need to take care of problem areas.
Raising the trackbar would make it worse. OTK steering might make it better.
If I can get away with ZJ steering for the time being I will be happy. I plan on doing the WJ brake upgrade and 1 ton steering with matching trackbar in the future but first I need to take care of problem areas.
Last edited by toasterknight; 11-17-2015 at 11:33 PM.
#5
CF Veteran
Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
Im asking for first hand experience with this kit.
Raising the trackbar would make it worse. OTK steering might make it better.
If I can get away with ZJ steering for the time being I will be happy. I plan on doing the WJ brake upgrade and 1 ton steering with matching trackbar in the future but first I need to take care of problem areas.
Raising the trackbar would make it worse. OTK steering might make it better.
If I can get away with ZJ steering for the time being I will be happy. I plan on doing the WJ brake upgrade and 1 ton steering with matching trackbar in the future but first I need to take care of problem areas.
Trending Topics
#9
Member
Thread Starter
Join Date: Dec 2010
Location: NW FL
Posts: 229
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee

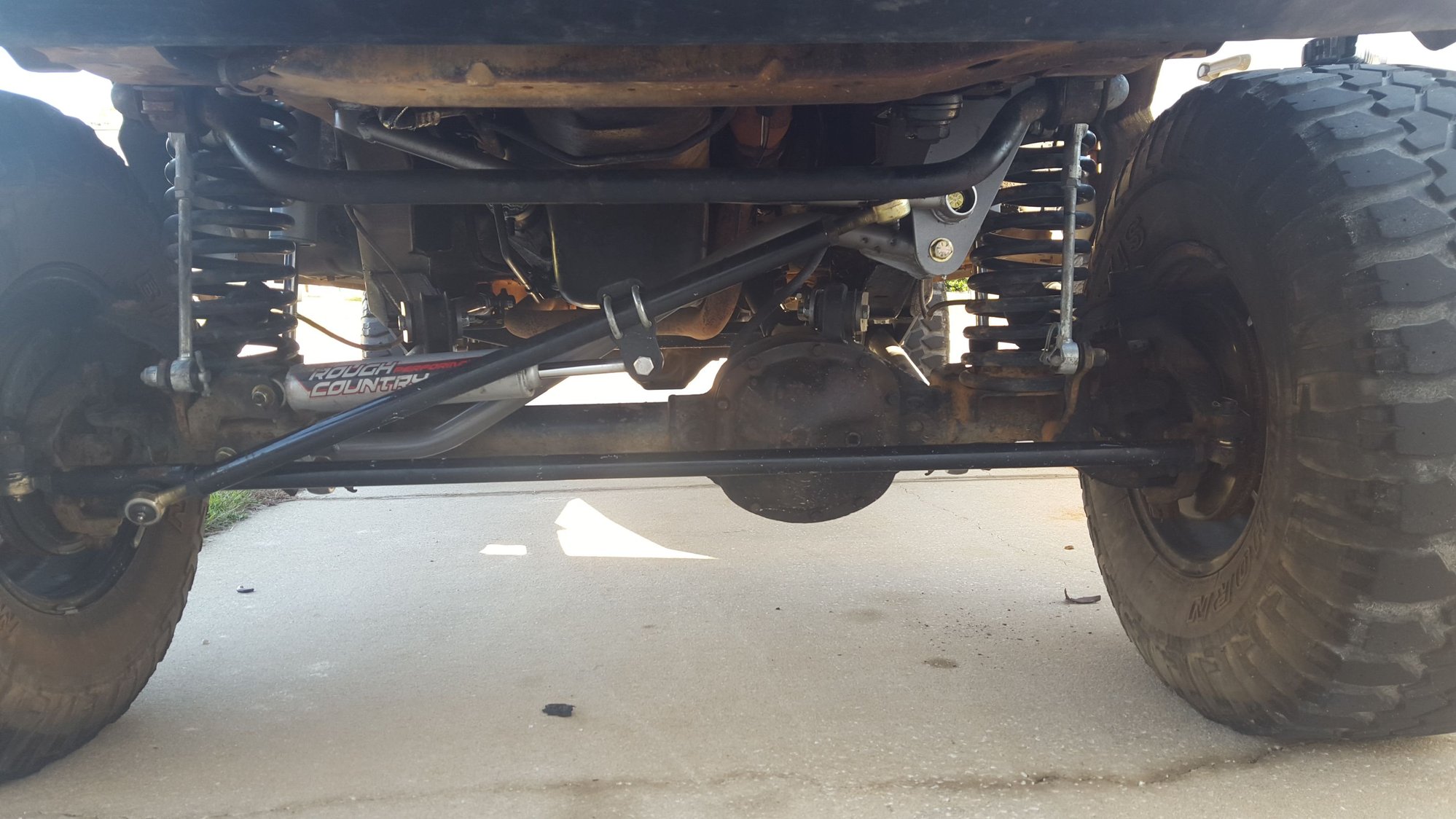

Sure looks like the steering may have been installed improperly to begin with.
Looks like the connecting tre from the drag link to tie rod should be on top.
Never the less, its getting replaced. Just havent had much time to mess with it. Dunno why someone would spend the money on a Full Traction lift kit and skimp out on steering.
Looks like the connecting tre from the drag link to tie rod should be on top.
Never the less, its getting replaced. Just havent had much time to mess with it. Dunno why someone would spend the money on a Full Traction lift kit and skimp out on steering.
#10
Senior Member
Join Date: Feb 2011
Location: orrville ohio
Posts: 822
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
i run stock steering with a right hand drive drag link flipped over the knuckle and a zj tie rod end on the driver side flipped over the knuckle i drilled the tapers and got inserts off fleebay to do it
#15
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
for reals? a $450 steering kit is the bit of information that you were waiting to hear? you sure you have bumpsteer? I'd just flip the tie rod over and run it over the knuckle. that would give you closer angles
so you don't even have to google: http://www.goferitoffroad.com/products.htm
so you don't even have to google: http://www.goferitoffroad.com/products.htm
Last edited by Atmos; 11-19-2015 at 12:16 PM.
