My 48 *****'s does not have one, guess I will replace it. I did not know about them .After nearly 30 years lock up in FT Leavenworth I missed and forgot much.The three core replacement will stay ,that was near 400 dollars.it stays. That fan Clutch would not fit on the first water pump but water pump fit the engine . I returned exchanged it . The stock electric fan will not fit
That' is where it came off . In my big green Jeep,Cherokee Service Manual from Chrysler Service Manual
on page 7 - 36 ,Fig. 49 in Cooling System , under Cooling System Fans shows Removal show FAN HUB - FAN- WATER PUMP PULLEY- WATER PUMP.
THE NEXT PAGE 7. - 36 Fig. 50 Also show the type of fan set up you have .
Jeeps XJ ARE A BOX OF CHOCOLATE S You don't know what it is until you lift the hood and read the ingredients..
That' is where it came off . In my big green Jeep,Cherokee Service Manual from Chrysler Service Manual
on page 7 - 36 ,Fig. 49 in Cooling System , under Cooling System Fans shows Removal show FAN HUB - FAN- WATER PUMP PULLEY- WATER PUMP.
THE NEXT PAGE 7. - 36 Fig. 50 Also show the type of fan set up you have .
Jeeps XJ ARE A BOX OF CHOCOLATE S You don't know what it is until you lift the hood and read the ingredients..

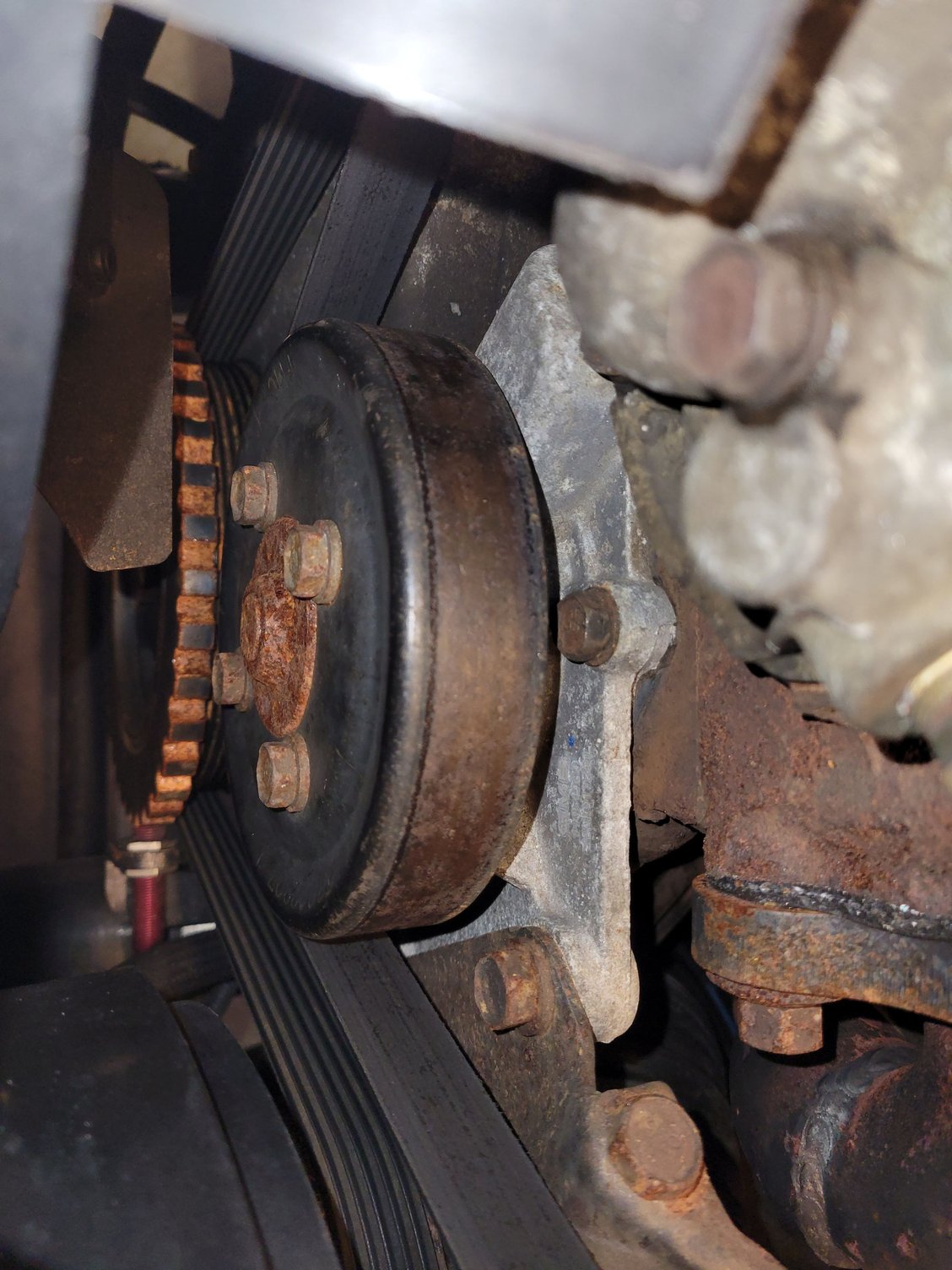

No wonder you can't get it to work then, red is the water pump, green is where the fan clutch mounts.
Like shown above, mech fan doesn't bolt onto the waterpump pulley, it has it's own pulley which is on the passenger side of the engine area. The driver side gets a small electric fan.
No wonder you can't get it to work then, red is the water pump, green is where the fan clutch mounts.
The way yours is does not work ,the fan hits the fan Clutch. My Jeep Cherokee Service Manual from Chrysler shows to different styles of cooling systems yours and mine.
I'm a little confused here. Is the 3 core radiator for an XJ or out of something else?
If for an XJ, all the stock cooling components should work fine.
Service Manual . I'm not going to prove my every move here , it's the way I bought it and ran for years.It is what it is. I can make it work as I always by myself with out the BS.. Two different cooling systems . Jeeps always had a odd something in a few vehicles, on the left is mine,where the arrow points is what you people have .. Good bye.
