CAD Brackets & 4.50/5" lift
Hello All,
I installed my RE 4.5" coils and 3.5" Leafs with 1.5" Shackles. Now the car sits about an 1 to 1.5 higher in the rear. I want to level it out. I currently have RC fixed LCA's and Rusty's UCA's. I also have RC drop brackets that I want to install.
My question is, will this combination work after I add a spacer to the coils to level out the car?
I installed my RE 4.5" coils and 3.5" Leafs with 1.5" Shackles. Now the car sits about an 1 to 1.5 higher in the rear. I want to level it out. I currently have RC fixed LCA's and Rusty's UCA's. I also have RC drop brackets that I want to install.
My question is, will this combination work after I add a spacer to the coils to level out the car?
#2
THE Admin
Join Date: Sep 2010
Location: Lantana, Fl
Posts: 34,036
Received 231 Likes
on
187 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.Slow
CAD Brackets & 4.50/5" lift
Yes, the CAD's will still work if you go up another inch in the front. its either that or if your shackles have two spring mounting holes, like RC shackles, use the inner most one.
#3
Seasoned Member
Thread Starter
Join Date: Jul 2009
Location: Los Angeles
Posts: 306
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L HO
I had the RC lift shackles, but I swapped em out to Zone grease able Boomerang Shackles.
I'm hoping the ride will be a lil better, she's my DD.
Last edited by LaredoBucket; 06-01-2015 at 01:21 PM.
#4
Seasoned Member
Join Date: Dec 2012
Location: Raleigh, NC
Posts: 368
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
I was hoping it would work. But a guy at RC said the LCA's may be too short. I don't think he understood I have drop brackets. I like height that the car is at now.
I had the RC lift shackles, but I swapped em out to Zone grease able Boomerang Shackles.
I'm hoping the ride will be a lil better, she's my DD.
I had the RC lift shackles, but I swapped em out to Zone grease able Boomerang Shackles.
I'm hoping the ride will be a lil better, she's my DD.
#5
Senior Member
Join Date: May 2013
Location: Maryland
Posts: 681
Likes: 0
Received 28 Likes
on
23 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
They will work but your axle is going to be pushed forward 3/4"+. Hope you have the brake lines, shock length and steering to accommodate the extra lift.
If you dont have those covered you may want to think about bringing the rear down. Remove a leaf or no lift relocation brackets. JMO
If you dont have those covered you may want to think about bringing the rear down. Remove a leaf or no lift relocation brackets. JMO
#6
Seasoned Member
Thread Starter
Join Date: Jul 2009
Location: Los Angeles
Posts: 306
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L HO
#7
Seasoned Member
Thread Starter
Join Date: Jul 2009
Location: Los Angeles
Posts: 306
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L HO
They will work but your axle is going to be pushed forward 3/4"+. Hope you have the brake lines, shock length and steering to accommodate the extra lift. If you dont have those covered you may want to think about bringing the rear down. Remove a leaf or no lift relocation brackets. JMO
Trending Topics
#8
Junior Member
Join Date: Oct 2012
Location: Grover Beach CA
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Sorry to hijack but didn't see the need to start another thread. I currently have a 4 1/2 inch lift and am running aftermarket RE fixed lower control arms and stock uppers. Question is, with the CAD am I ok keeping this set-up or should I make a change to the upper or lower control arms? Thanks!
#9
Seasoned Member
Join Date: Jan 2013
Location: SoCal
Posts: 447
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0
Sorry to hijack but didn't see the need to start another thread. I currently have a 4 1/2 inch lift and am running aftermarket RE fixed lower control arms and stock uppers. Question is, with the CAD am I ok keeping this set-up or should I make a change to the upper or lower control arms? Thanks!
#10
Seasoned Member
Join Date: Dec 2012
Location: Raleigh, NC
Posts: 368
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
Sorry to hijack but didn't see the need to start another thread. I currently have a 4 1/2 inch lift and am running aftermarket RE fixed lower control arms and stock uppers. Question is, with the CAD am I ok keeping this set-up or should I make a change to the upper or lower control arms? Thanks!
Last edited by jmm0122_; 06-10-2015 at 09:13 AM.
#11
Junior Member
Join Date: Oct 2012
Location: Grover Beach CA
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0

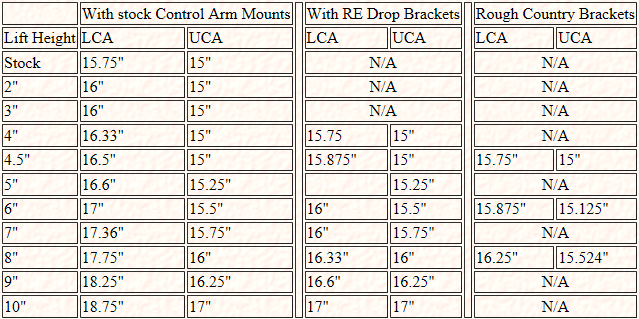

You will be fine, RE3700 control arms are only .25" longer than stock. The RE 3.5 and 4.5 short arm kits use the same control arms just different coils. I am running the RE sf 3.5 with fixed lowers and haven't had any problems. I did upgrade the uppers(since mine were bent) to adjustable ones, but they are set to stock length.
