bump stops question
#1
Member
Thread Starter
Join Date: Mar 2011
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
bump stops question
Do I need to extend the bump stops if I only have a four and ahalf inch lift and where can I buy new ones my rear ones like fell off from just bein old
#2
Member
Join Date: Jun 2010
Location: hampton va
Posts: 207
Likes: 0
Received 0 Likes
on
0 Posts
Year: 87
Model: Cherokee
Engine: 4.0
depends on shocks and tires im on 4.5 with 33/12.50's with no stops but i rub at full flex and im cut. the rear cant see y you just cant get longer bolts and something to space the factory with just my 2 cents
#5
Honorary Moderator
Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Likes: 0
Received 13 Likes
on
11 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
easiest way to find out is flex it out and see if you scrub. I recommend bump stops to keep your springs from inverting. as soon as you negative arch your springs you start decreasing the life drastically
#6
Member
Thread Starter
Join Date: Mar 2011
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Where do you get after market bump stopsthis is my first off road vehiclle I've done so I need to some real good info on how either to diself it or buy them aftermarket and what is a good length I heard you want down travell more than your up travel
#7
Member
Join Date: Jun 2010
Location: hampton va
Posts: 207
Likes: 0
Received 0 Likes
on
0 Posts
Year: 87
Model: Cherokee
Engine: 4.0
Trending Topics
#9
Member
Thread Starter
Join Date: Mar 2011
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Originally Posted by bassackwards
heres one just did a quick search
http://www.quadratec.com/products/52422_01.htm
http://www.quadratec.com/products/52422_01.htm
#10

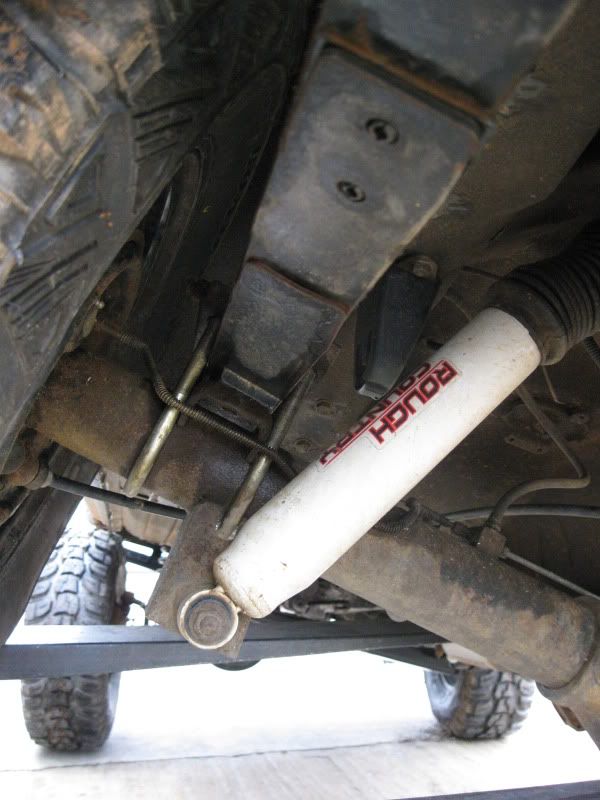

This is my set up, I'm at 4.5" with 32's with stock flares. I use an extended progressive poly bump in the rear and made these mounts to catch the axle before the spring inverts and the tire contacts the fender. The distance is misleading b/c "progressive" part allows the bump to compress a good bit before stopping travel.
Here is a picture of my extended progressive bump BEFORE I welded those kicks onto the u-bolt plate. There is over 4" between the axle and bump and my tire has already contacted the flare.
Your question has me wondering though. A lot of people ask this question but don't really have a clue why they need the bumps and how much their lift height has anything to do with rubbing. Are you wondering if you'll need them on the road? Are you trying to stuff a large tire? Are you reluctant to go up in tire size b/c you're concerned of rubbing? Are you trying to get the most flex without rubbing? Honestly I don't see why people cut fenders under 33".
Here is a picture of my 32 with the spring literately removed, and aside from some rubbing on the bumper caps (which is now cut back), the tire fits inside a standard fender opening. Don't forget that the tire tilting, due to the opposite side drooping, takes up more space so that gap above the tire isn't there when I really flex.
What size tire are you trying to fit?
Last edited by s14unimog; 03-18-2011 at 01:36 PM.
#11
Member
Thread Starter
Join Date: Mar 2011
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Originally Posted by s14unimog
This is my set up, I'm at 4.5" with 32's with stock flares. I use an extended progressive poly bump in the rear and made these mounts to catch the axle before the spring inverts and the tire contacts the fender. The distance is misleading b/c "progressive" part allows the bump to compress a good bit before stopping travel.
Here is a picture of my extended progressive bump BEFORE I welded those kicks onto the u-bolt plate. There is over 4" between the axle and bump and my tire has already contacted the flare.
Your question has me wondering though. A lot of people ask this question but don't really have a clue why they need the bumps and how much their lift height has anything to do with rubbing. Are you wondering if you'll need them on the road? Are you trying to stuff a large tire? Are you reluctant to go up in tire size b/c you're concerned of rubbing? Are you trying to get the most flex without rubbing? Honestly I don't see why people cut fenders under 33".
Here is a picture of my 32 with the spring literately removed, and aside from some rubbing on the bumper caps (which is now cut back), the tire fits inside a standard fender opening. Don't forget that the tire tilting, due to the opposite side drooping, takes up more space so that gap above the tire isn't there when I really flex.
What size tire are you trying to fit?
#12
CF Veteran
Join Date: Feb 2010
Location: Cove, OR
Posts: 2,095
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
I always jack my rigs to flex them and then measure for bump stop, brake line, and shock length as soon as I get my rig lifted and the tires on. Not doing this cost me a lot of money when I ripped some tires up and broke a shock, something I couldn't afford at the time.
