air compressor
#1
Junior Member
Thread Starter
Join Date: Jan 2013
Location: Hagerstown, MD
Posts: 101
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
air compressor
hey guys im looking at installing a air compressor in the rear seat compartment. i want to be able to bolt it down and wire it to a switch. i was wondering wat compressor i should get. i have NO idea.
#2
Beach Bum
I have one hardwired to a relay. It fills two tires at once in under 5 minutes. Coupled to an Optima yellow top, it will fill all 4 tires without engine running.
The key is air volume. High pressure is not necessary, just 30-50 pounds for tires. Check the CFM rating, Cubic Feet per Minute. The 400 is 2.5cfm.

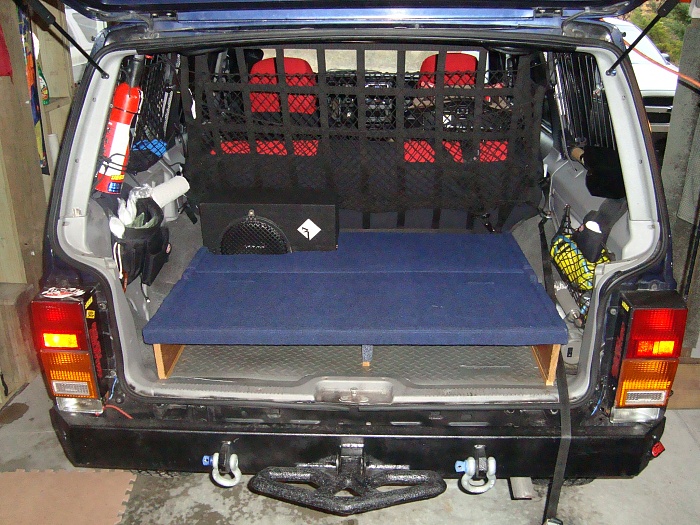

I have the compressor mounted next to the rear cubby hole and the cubby stores the air hoses.
http://www.viaircorp.com/400C.html $180
http://www.viaircorp.com/400P-rv-auto.html $100??
#3
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Yes I have the VIAIR a larger one but still small in size it will handle 150psi and fill a 35" tire in short order. I think its rated for continuous duty and came with a lot of accessories like coiled 25' air hose, air gauge/deflater, several other pieces also a very nice carrying case.
I bought it at JC Whitney and had a $40 coupon they had emailed me for purchases over $200. The # a 45043 $300 - $40 net $260 free shipping. Now I can air down when I get there and back up again when I leave and not have to wait forever with the old one from Wal-Mart.
I checked its a 450C it looks like but I really like it.
I bought it at JC Whitney and had a $40 coupon they had emailed me for purchases over $200. The # a 45043 $300 - $40 net $260 free shipping. Now I can air down when I get there and back up again when I leave and not have to wait forever with the old one from Wal-Mart.
I checked its a 450C it looks like but I really like it.
Last edited by Fred/N0AZZ; 02-21-2014 at 02:38 PM.
#4
Beach Bum
Sweet, that would be the VIAR 450. 100% duty cycle.
The 400 has the same flow rate at 33% duty cycle, can run 45 minutes continuously at pressure.
Link to the 450
http://www.jcwhitney.com/viair-450p-...?filterid=u0j1
The 400 has the same flow rate at 33% duty cycle, can run 45 minutes continuously at pressure.
Link to the 450
http://www.jcwhitney.com/viair-450p-...?filterid=u0j1
#5
Seasoned Member
Join Date: Jan 2013
Location: SoCal
Posts: 447
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0
I suggest the VIAR 400. Or the VIAR 4x4 and RV compressor kit.
I have one hardwired to a relay. It fills two tires at once in under 5 minutes. Coupled to an Optima yellow top, it will fill all 4 tires without engine running.
The key is air volume. High pressure is not necessary, just 30-50 pounds for tires. Check the CFM rating, Cubic Feet per Minute. The 400 is 2.5cfm.
I have the compressor mounted next to the rear cubby hole and the cubby stores the air hoses.
http://www.viaircorp.com/400C.html $180
http://www.viaircorp.com/400P-rv-auto.html $100??
I have one hardwired to a relay. It fills two tires at once in under 5 minutes. Coupled to an Optima yellow top, it will fill all 4 tires without engine running.
The key is air volume. High pressure is not necessary, just 30-50 pounds for tires. Check the CFM rating, Cubic Feet per Minute. The 400 is 2.5cfm.
I have the compressor mounted next to the rear cubby hole and the cubby stores the air hoses.
http://www.viaircorp.com/400C.html $180
http://www.viaircorp.com/400P-rv-auto.html $100??
When comparing the 400p and 400p-rv (which you linked) it looks like the only difference is that the rv version has really long hoses. Am I missing something?
#6
Beach Bum
The other is meant to be hard mounted and hardwired. The hose has a threaded end for a tank or airline.
Note,Any compressor that plugs into a cigarette lighter socket will take forever to fill tires.
#7
Seasoned Member
Join Date: Jan 2013
Location: SoCal
Posts: 447
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0
Sweet, that would be the VIAR 450. 100% duty cycle.
The 400 has the same flow rate at 33% duty cycle, can run 45 minutes continuously at pressure.
Link to the 450
http://www.jcwhitney.com/viair-450p-...?filterid=u0j1
The 400 has the same flow rate at 33% duty cycle, can run 45 minutes continuously at pressure.
Link to the 450
http://www.jcwhitney.com/viair-450p-...?filterid=u0j1
I may get one of these.
Trending Topics
#8
Seasoned Member
Join Date: Jan 2013
Location: SoCal
Posts: 447
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0
Correct, the compressor is the same but the RV version is meant to be portable, has a handle, quick connect air fitting, larger base, and alligator clips for battery.
The other is meant to be hard mounted and hardwired. The hose has a threaded end for a tank or airline.
Note,Any compressor that plugs into a cigarette lighter socket will take forever to fill tires.
The other is meant to be hard mounted and hardwired. The hose has a threaded end for a tank or airline.
Note,Any compressor that plugs into a cigarette lighter socket will take forever to fill tires.
#9
Beach Bum
Filling 4 tires is well within it's 33% duty cycle. Keep in mind, it gets hot.
#13
CF Veteran
Join Date: Sep 2013
Location: Eaton Co
Posts: 1,922
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
You didnt say any thing about price so 6.16 CFM http://store.arbusa.com/ARB-On-Board...-P21341C9.aspx
#15
Former Sponsor
Join Date: Mar 2012
Location: Yorba Linda
Posts: 864
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.8
I have one of these in my truck for the truck and trailer tires. Works great and Fast.
http://www.northerntool.com/shop/too...FRdsfgodUFsAYw
http://www.northerntool.com/shop/too...FRdsfgodUFsAYw
