01 XJ LTD getting 00/01 WJ LTD Seats
Does anyone have the wiring schematics for 00/01 WJ and 01 Cherokee? I have WJ Limited front seats and need to wire it to my XJ wires. I have both sides of the plug from different WJ's (basically the seat plug and the floor plug). Since the XJ has like 14 wires and the WJ has I think 6 I need to know which wire I can disable and which colored wire goes to which different colored wire.
My XJ is a Limted, so, it has all the bells and whistles including heated seats and is the non-smoking version. Airbags in front which I dont know if they get disabled when someone is sitting in the front seat(s) -- don't want them going off while driving OR not going off at all if needed.. I also would not want to come out to a dead battery because I hooked up my seats wrong and it drained it down to 0%.

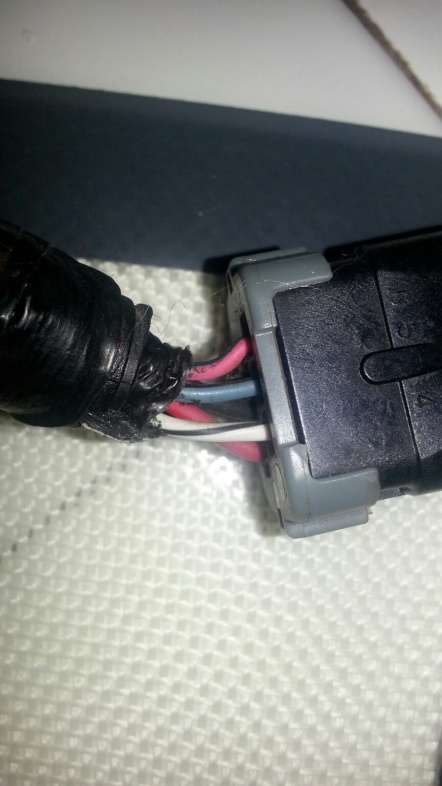

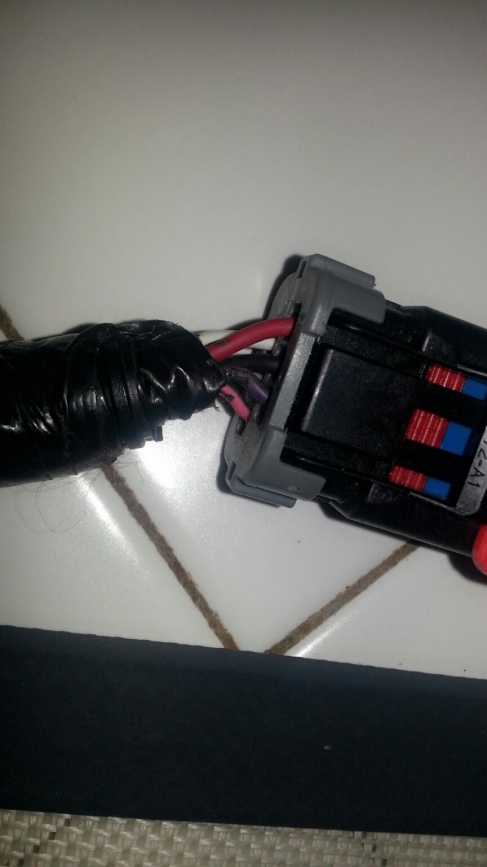

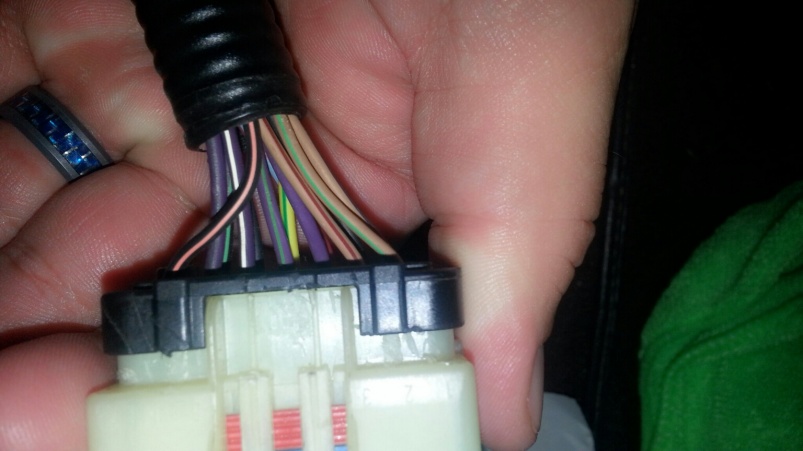

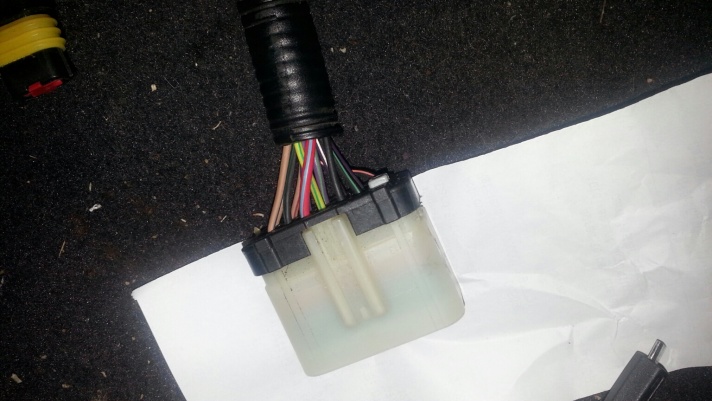

The pictues are from both my WJ and XJ seat plugs from where the harness would be on the floor.
Thanks for the advice on swapping the rails, they bolted right on to the bottom of the WJ seat from the XJ (starting with passenger side).
Also, since the WJ seats dont come with built in seat buckle receiver, how did everyone counter this without having to drill holes into the floor?
I have done some exhasutive searches for diagrams for both the WJ and XJ so I can smartly match things up and not start something on fire.. LOL
PLEASE HELP
First Cherokee 91 Limited (Jeep Heaven, had to sell)
Secnd Cherokee 92 Limited (Project Jeep)
Third Cherokee 01 Limited - Daily Driver
My XJ is a Limted, so, it has all the bells and whistles including heated seats and is the non-smoking version. Airbags in front which I dont know if they get disabled when someone is sitting in the front seat(s) -- don't want them going off while driving OR not going off at all if needed.. I also would not want to come out to a dead battery because I hooked up my seats wrong and it drained it down to 0%.
The pictues are from both my WJ and XJ seat plugs from where the harness would be on the floor.
Thanks for the advice on swapping the rails, they bolted right on to the bottom of the WJ seat from the XJ (starting with passenger side).
Also, since the WJ seats dont come with built in seat buckle receiver, how did everyone counter this without having to drill holes into the floor?
I have done some exhasutive searches for diagrams for both the WJ and XJ so I can smartly match things up and not start something on fire.. LOL
PLEASE HELP
First Cherokee 91 Limited (Jeep Heaven, had to sell)
Secnd Cherokee 92 Limited (Project Jeep)
Third Cherokee 01 Limited - Daily Driver
