Shackle relocation brackets

Thread Tools

Search this Thread

Old Mar 7, 2012 | 05:06 PM
  #1
xjmarc's Avatar
Thread Starter
CF Veteran

Joined: Feb 2010
Posts: 5,420
Likes: 0
From: Soddy Daisy TN
Year: 97
Model: Cherokee
Engine: 4.0L
Default Shackle relocation brackets

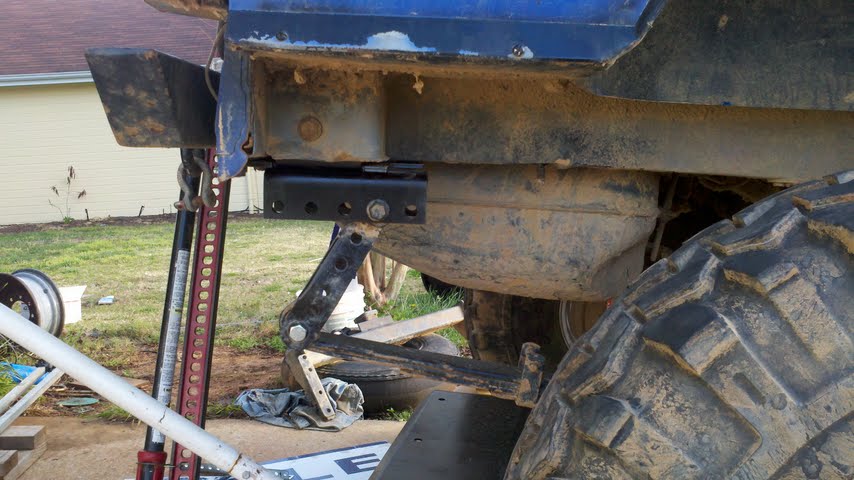

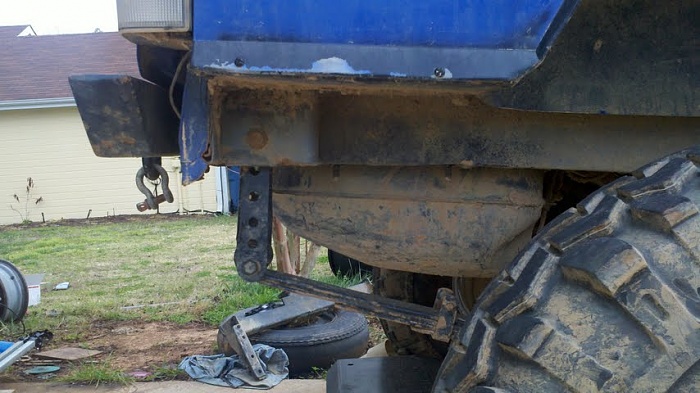

Finally got some and had to share some pics. Old angle was right at 90 and now I'm sitting at 51. I could take it even further but I got almost an inch of lift where it is and I'm taking the blocks out so it's a win win. These are the HD Offroad version and bolt to the frame rails as well as the original mount. I still have to put my hitch back on but wanted to see how they look.
Attached Thumbnails Shackle relocation brackets-relos.jpg   Shackle relocation brackets-relos1.jpg   Shackle relocation brackets-relos2.jpg
Reply
Old Mar 7, 2012 | 06:19 PM
  #2
hankthetank's Avatar
CF Veteran

Joined: Nov 2011
Posts: 2,322
Likes: 1
From: Edmonton
Year: 1990
Model: Cherokee
Engine: 4.0
Default

sweet, does it ride a little better in the back now?
Reply
Old Mar 7, 2012 | 07:06 PM
  #3
Jeepxj1234's Avatar
CF Veteran

Joined: Sep 2010
Posts: 1,843
Likes: 0
From: NC
Year: 1998
Model: Cherokee
Engine: 4.0 L
Default

Looks good. Might have to do this as well
Reply
Old Mar 7, 2012 | 08:20 PM
  #4
xjmarc's Avatar
Thread Starter
CF Veteran

Joined: Feb 2010
Posts: 5,420
Likes: 0
From: Soddy Daisy TN
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by hankthetank
sweet, does it ride a little better in the back now?
Don't know yet. I'm replacing a bad pinion bearing and broke axle in the rear so it'll be a few days before I take it out.
