My poorly XJ is nearly ready for the road

Thread Tools

Search this Thread

Old 07-06-2011, 03:09 AM
  #1
Newbie
Thread Starter

PromETHieus's Avatar

Join Date: Jul 2011
Location: FOREST OF DEAN ...UK
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.OLtr
Default My poorly XJ is nearly ready for the road

This is what I have done to my XJ in the last 3 weeks since buying it,when i picked it up i thought it may need some work,little did i know 1200 pounds later I would only then be doing the last few bits to get it Road worthy.
I absolutely love my Rockee now and can say for certain that i know every inch of it every bolt torque setting,all because all of it has been apart.
The way i look at it is that the lasy guy that had it was a doouche to let it get soo run down and also a dick because instead of trying to sort the issues,he tried to make My Rockee die a sad death,by not dealing with the issues
Radiator
Waterpump
Fan Clutch
Belt
Manifold swapped out for the uprated Flexi one
Reshaped Sump to enable easy removal
Thermostat
Front Discs and Pads
Crank Position Sensor
Cam Sensor
Dist cap and Rotor
Leads
Plugs
Oil
Coolant
Trans oil
ECU....!!!
Differential
main diff master kit
under sealed
engine sprayed up
wheel bearings on both rears
seals on both rear axels


So time for some Pictures then.

Big Blue Rockee 1996 XJ SE A 4.0 Ltr
<img src="http://dl.dropbox.com/u/7112696/JEEP/P1010452.JPG"

This is the typical wiring that was all through the Jeep,just had connectors shoved into ports and taped over!!!!

<img src="http://dl.dropbox.com/u/7112696/JEEP/P1010419.jpg"
With there being cracks in the manifold i needed to replace it and iIt took 5 hours to get it all stripped down,then a further few hours to clean it up and get ready for new gasket.
<img src="http://dl.dropbox.com/u/7112696/JEEP%20PICS/P1010435.jpg"

Cleaned and new gasket
<img src="http://dl.dropbox.com/u/7112696/JEEP%20PICS/P1010450.jpg"[/CENTER]
Old 07-06-2011, 06:09 AM
  #2
CF Veteran

xj wheeler's Avatar

Join Date: Jun 2011
Location: S.E. Tx
Posts: 1,845
Likes: 0
Received 2 Likes on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0 I6 firepower ignition, cat-back w/ magnaflow muffler, poweraid tb spacer, optima blue top
Default

Good job, glad to see an xj is in good hands now. I'm going through a ford bronco 2 i recently purchased. The previous owner didn't notice the gushing leak in the radiator and overheated the motor to the point of cracking both heads.
Old 07-06-2011, 06:20 AM
  #3
Registered Users

Quezzy's Avatar

Join Date: Jun 2011
Posts: 314
Likes: 0
Received 0 Likes on 0 Posts
Default

Here are your pics in the order you had them







Old 07-06-2011, 06:24 AM
  #4
Registered Users

Quezzy's Avatar

Join Date: Jun 2011
Posts: 314
Likes: 0
Received 0 Likes on 0 Posts
Default

You should spray both sides of the gasket.

Old 07-06-2011, 06:27 AM
  #5
CF Veteran

Morat's Avatar

Join Date: Jan 2010
Location: North Riding of Yorkshire, UK
Posts: 1,431
Received 64 Likes on 54 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default


Glad to see the poor jeep has found it's way to a good owner at last!
Jeepwave to another UK 1996 XJ
Old 07-07-2011, 01:03 AM
  #6
Newbie
Thread Starter

PromETHieus's Avatar

Join Date: Jul 2011
Location: FOREST OF DEAN ...UK
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.OLtr
Default

Here are a few more Pics

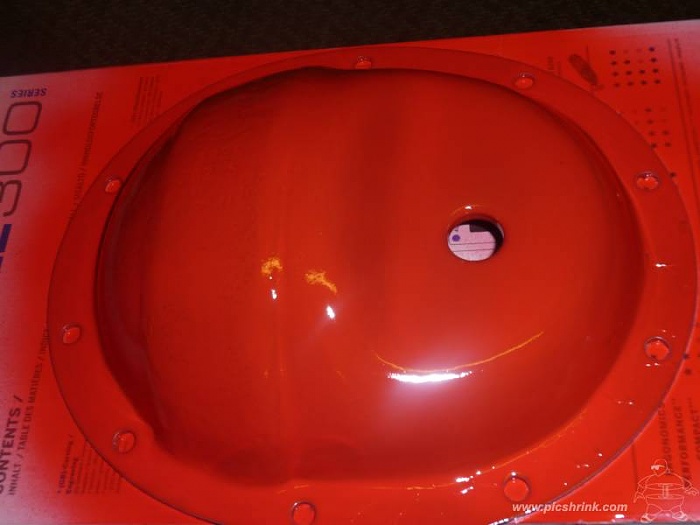

Diff pan,Diff stripped and a piccy of the engine all tidied up

My poorly XJ is nearly ready for the road-p1010497.jpg

My poorly XJ is nearly ready for the road-p1010496.jpg

My poorly XJ is nearly ready for the road-p1010475.jpg
Old 07-10-2011, 02:47 PM
  #7
Newbie
Thread Starter

PromETHieus's Avatar

Join Date: Jul 2011
Location: FOREST OF DEAN ...UK
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.OLtr
Default

Just waiting for the diff bearings,coming from the states and taking a little bit longer than expected,should be here soon,,,i hope.
As you can also see ,a new radiator.

Old 07-10-2011, 02:47 PM
  #8
Newbie
Thread Starter

PromETHieus's Avatar

Join Date: Jul 2011
Location: FOREST OF DEAN ...UK
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.OLtr
Default

Old 07-10-2011, 02:49 PM
  #9
Newbie
Thread Starter

PromETHieus's Avatar

Join Date: Jul 2011
Location: FOREST OF DEAN ...UK
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.OLtr
Default

Think it needed a new Radiator as the old one looked a little bit passed it's sell by date
Old 07-10-2011, 02:52 PM
  #10
Newbie
Thread Starter

PromETHieus's Avatar

Join Date: Jul 2011
Location: FOREST OF DEAN ...UK
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.OLtr
Default

As far as i can see the spider gears look fine,i touched up the edges as they were a little burred,also have re-set and shimmed them and now have less than 0.04 thou slack,which should be good to go
