Help with door removable mod
CF Veteran
Joined: Feb 2011
Posts: 2,450
Likes: 2
From: Dubuque IA,Libertyville IL
Year: 1992
Model: Cherokee
Engine: 4.0 HO
My passenger side ones are still in after cut my drivers side ones fell out so I made some custom pins out of a steel rod I had layin around
Thread Starter
Seasoned Member
Joined: Feb 2011
Posts: 268
Likes: 1
Model: Cherokee

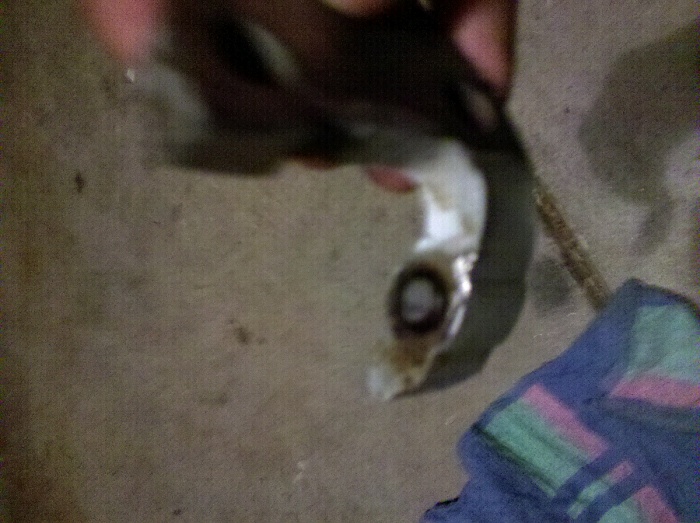

Well I just can't get the pin out of the top hinge.. tryed drilling pounding and got nothin. Maybe i should just weld another pin on the bottom
Last edited by Kyles92laredo; Jun 11, 2011 at 12:14 AM.
Seasoned Member
Joined: Jun 2011
Posts: 276
Likes: 0
From: Van Buren Arkansas, was Joplin Missouri
Year: 1990
Model: Cherokee
Engine: 4.0L
It took me one evening to do a back door to see what I had to do then 3 hrs for the other three the next night. Mine had roll pins in the hinges. So all mine but one stayed in the top half. Thank god. I was lucky.
Senior Member
Joined: May 2008
Posts: 817
Likes: 7
From: Michigan
Year: 1996
Model: Cherokee
Engine: 4.0
Read this....I found it here http://heavymetalxj.wordpress.com/2007/08/03/6/
The catch with the passenger side is, though not in all cases, the hinges were flipped at the factory, meaning, the pin in the hinge is upside down, so when you hammer off the hinge bottom like before, the pin will come with it. This is where the vice and socket come into play. The pin on mine was pressed in and splined, making it impossible to pull out by hand, so I took it inside to the vice. We put the small socket over one end, and lined it up in the vice so that the vice would press the pin out into the socket. This worked without a problem. Once its out of the hinge bottom piece, take the pin back to your door hinge on the door and hammer it in the right way. Voila, your doors are removable just like a Wrangler. Lift off, drop in. The process is the same for all 4
Cutting and rewelding the hinge IMO sounds like your asking for trouble.
Last edited by BLKXJ 96; Jun 11, 2011 at 12:39 PM.
CF Veteran
Joined: Apr 2010
Posts: 2,209
Likes: 3
From: st.george utah
Year: 1996
Model: Cherokee
Engine: l6 4.0
I dont think I would take this approch
Read this....I found it here http://heavymetalxj.wordpress.com/2007/08/03/6/
The catch with the passenger side is, though not in all cases, the hinges were flipped at the factory, meaning, the pin in the hinge is upside down, so when you hammer off the hinge bottom like before, the pin will come with it. This is where the vice and socket come into play. The pin on mine was pressed in and splined, making it impossible to pull out by hand, so I took it inside to the vice. We put the small socket over one end, and lined it up in the vice so that the vice would press the pin out into the socket. This worked without a problem. Once its out of the hinge bottom piece, take the pin back to your door hinge on the door and hammer it in the right way. Voila, your doors are removable just like a Wrangler. Lift off, drop in. The process is the same for all 4
Cutting and rewelding the hinge IMO sounds like your asking for trouble.
Read this....I found it here http://heavymetalxj.wordpress.com/2007/08/03/6/
The catch with the passenger side is, though not in all cases, the hinges were flipped at the factory, meaning, the pin in the hinge is upside down, so when you hammer off the hinge bottom like before, the pin will come with it. This is where the vice and socket come into play. The pin on mine was pressed in and splined, making it impossible to pull out by hand, so I took it inside to the vice. We put the small socket over one end, and lined it up in the vice so that the vice would press the pin out into the socket. This worked without a problem. Once its out of the hinge bottom piece, take the pin back to your door hinge on the door and hammer it in the right way. Voila, your doors are removable just like a Wrangler. Lift off, drop in. The process is the same for all 4
Cutting and rewelding the hinge IMO sounds like your asking for trouble.
well i havent had a single bit a of trouble with it yet...
