Welding thread!!!!

Reply




Old 05-08-2018, 04:16 PM
  #2551
Seasoned Member

TrailerTrash's Avatar

Join Date: Jun 2017
Location: Hangover, PA
Posts: 461
Year: 1998
Model: Cherokee(XJ)
Engine: 4.0L
Default

yummy. bird**** bubblegum welds. set that welder to extra cold/no pen
TrailerTrash is offline
Reply With Quote
Old 05-08-2018, 08:11 PM
  #2552
Senior Member

TRCM's Avatar

Join Date: Jan 2016
Location: Newport News, VA
Posts: 798
Year: 96 & 88 4 dr Cherokees
Default

Originally Posted by XJwonders View Post
Yeah. DOM tubing doubled in cost. I used to buy a stick of 20' of 1.5" DOM 1/4 wall thickness for $150. It now cost $300 per stick
Even if the tariffs are repealed, don't expect it to come back down much....gs never does......
TRCM is offline
Reply With Quote
Old 06-08-2018, 07:34 PM
  #2553
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 12,815
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

Just wanted to post an update on my Sentinal hood. Been using it daily for a while now, and I love it more and more. Since I've gotten it, I've only replaced the coverglass ONCE. There's a reason why, though.

Welding thread!!!!-20180608_163021.jpg
roninofako is offline
Reply With Quote
Old 06-08-2018, 07:38 PM
  #2554
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 12,815
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

This stuff right here....

Welding thread!!!!-20180608_163457.jpg

It's prolonged the life of my internal and external glass by a HUGE margin, removes light scratches and keeps any shop dust from building up. Highly recommend.
roninofako is offline
Reply With Quote
Old 06-08-2018, 11:06 PM
  #2555
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 11,137
Year: 1992
Engine: 4.0 HO
Default

Originally Posted by roninofako View Post
This stuff right here....

Attachment 402874

It's prolonged the life of my internal and external glass by a HUGE margin, removes light scratches and keeps any shop dust from building up. Highly recommend.
Good to know, man! I was thinking about sticking RainX on mine, but based on that reco, I'll check it out.
Basslicks is offline
Reply With Quote
Old 06-08-2018, 11:29 PM
  #2556
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 11,137
Year: 1992
Engine: 4.0 HO
Default

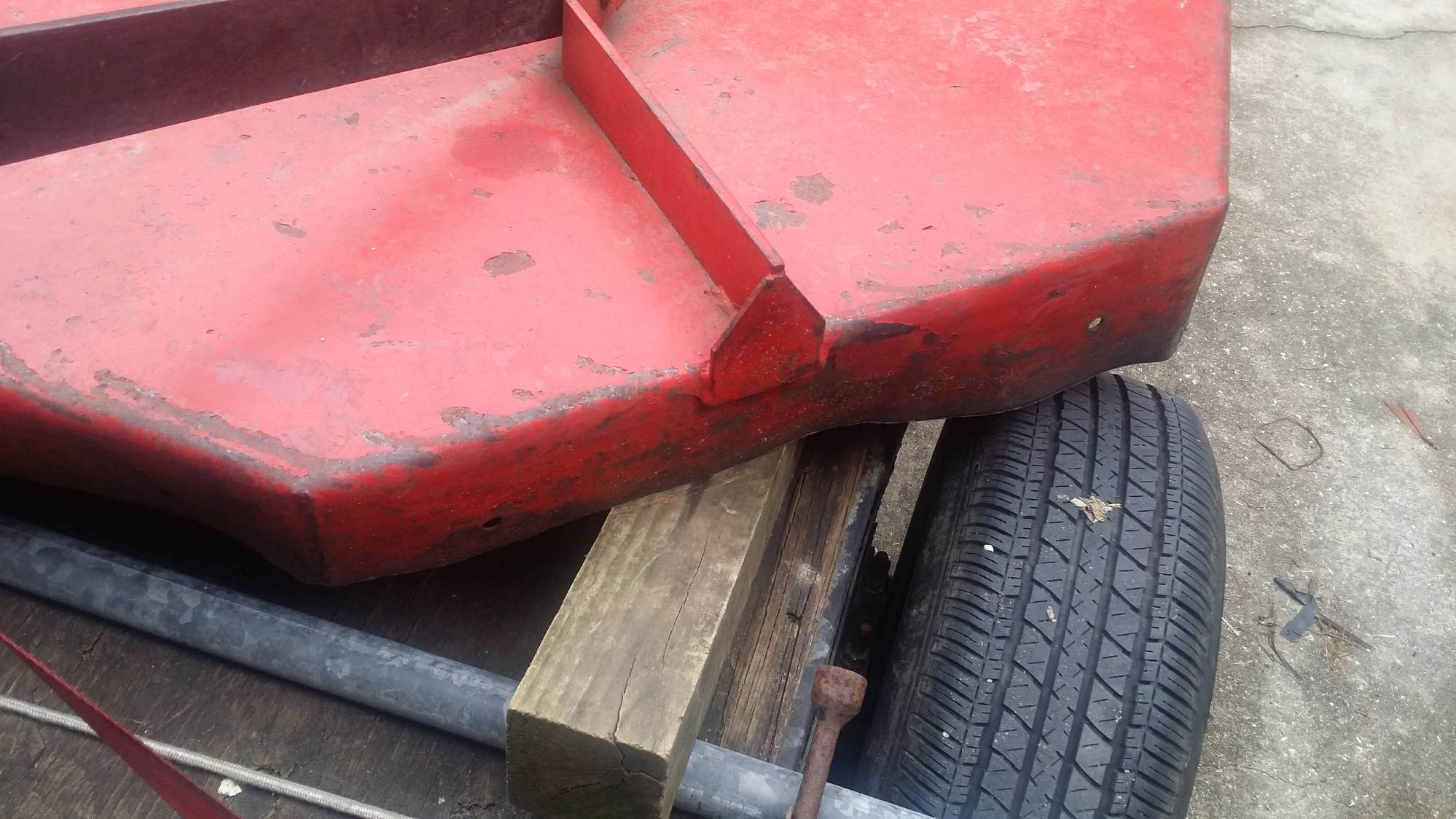

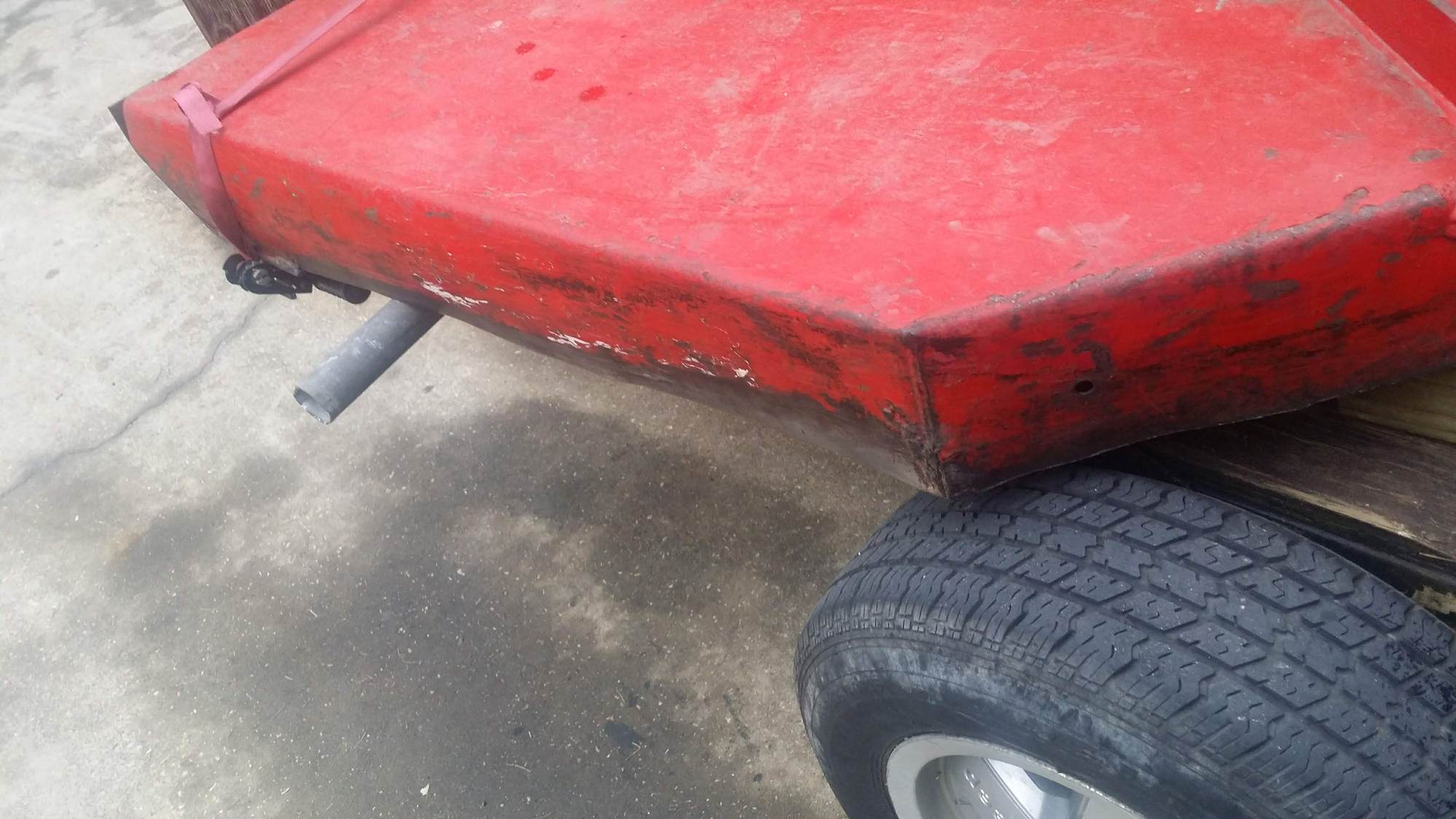

So I got this little repair job I picked up....

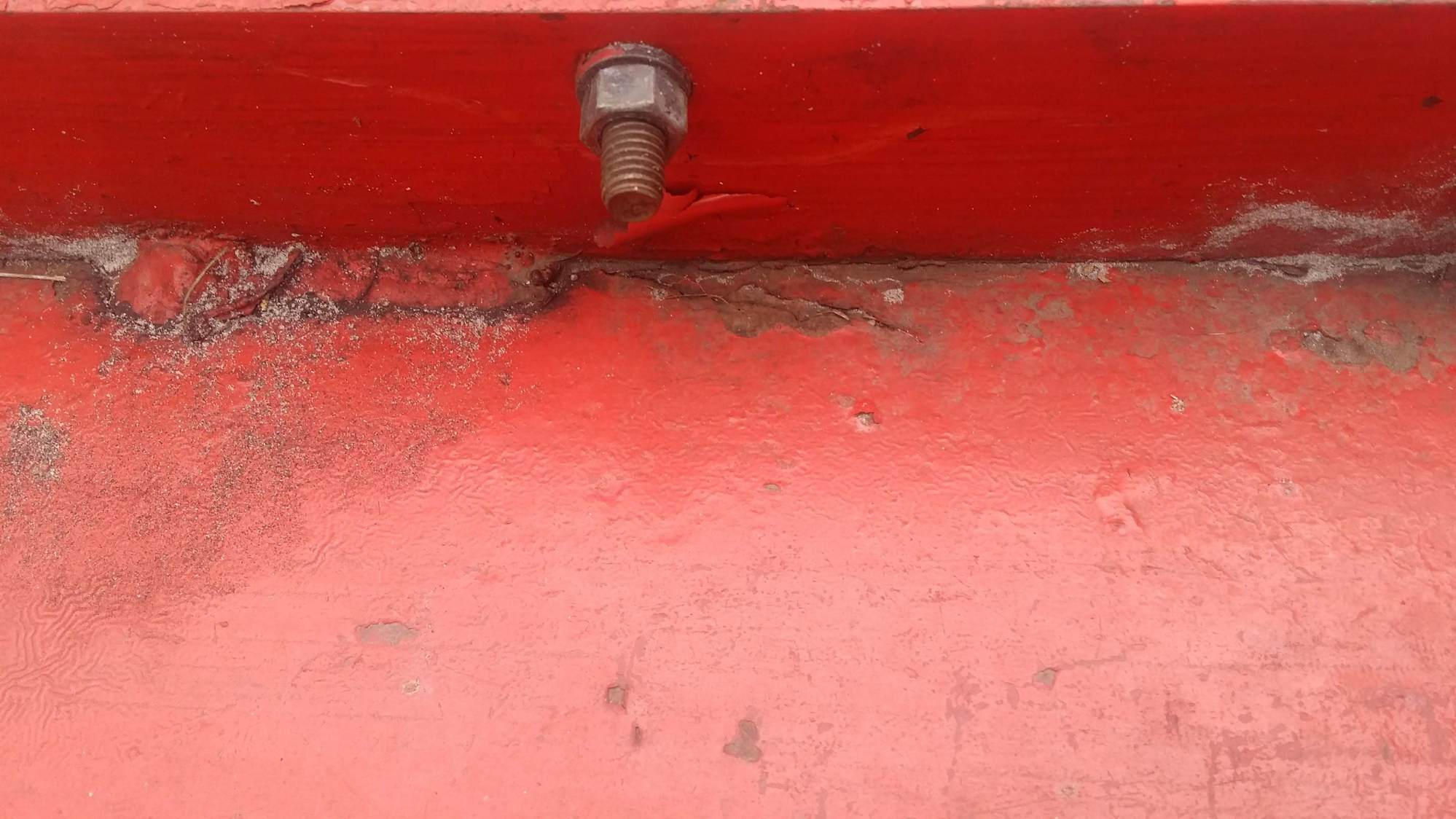

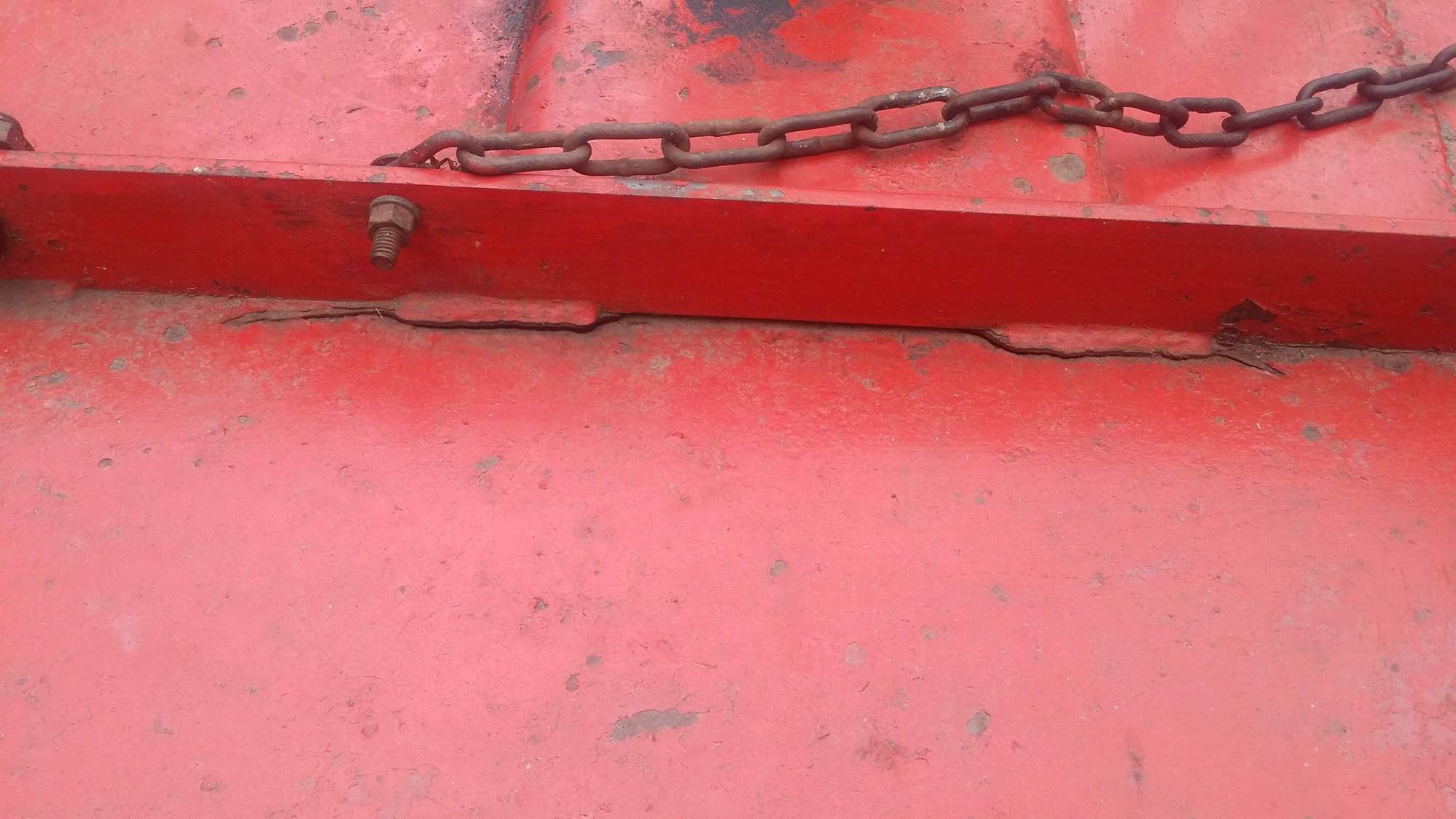

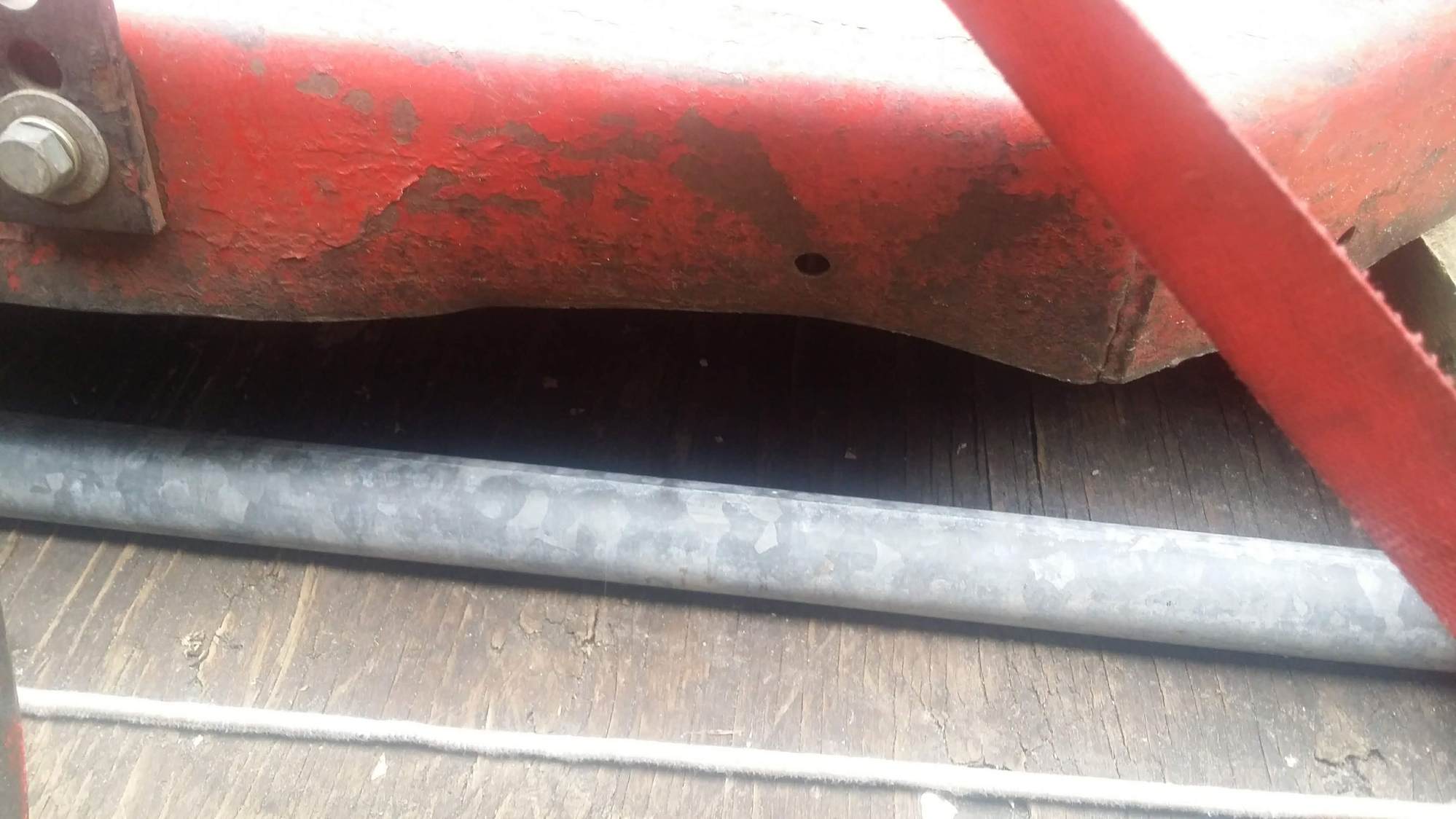

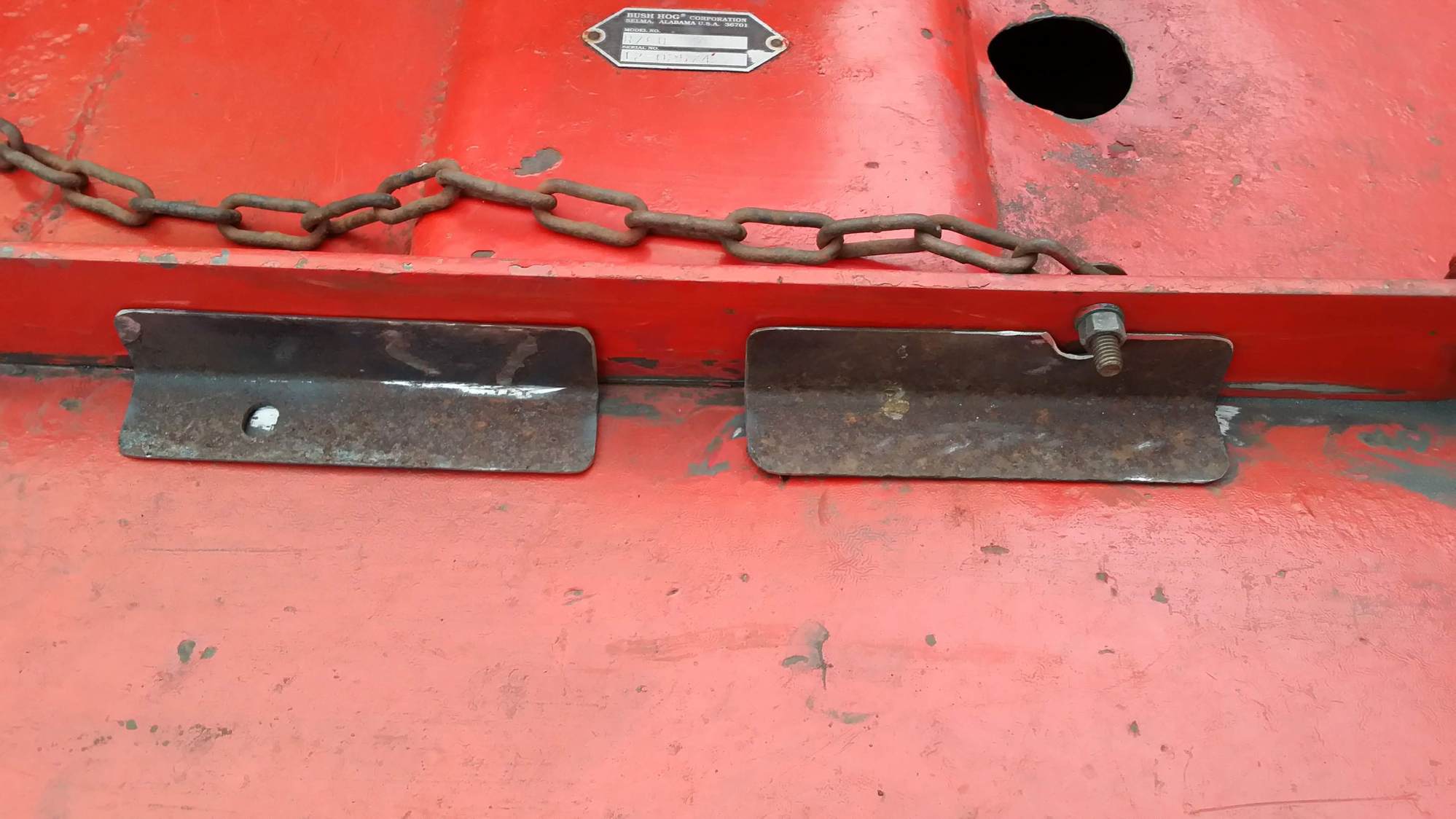

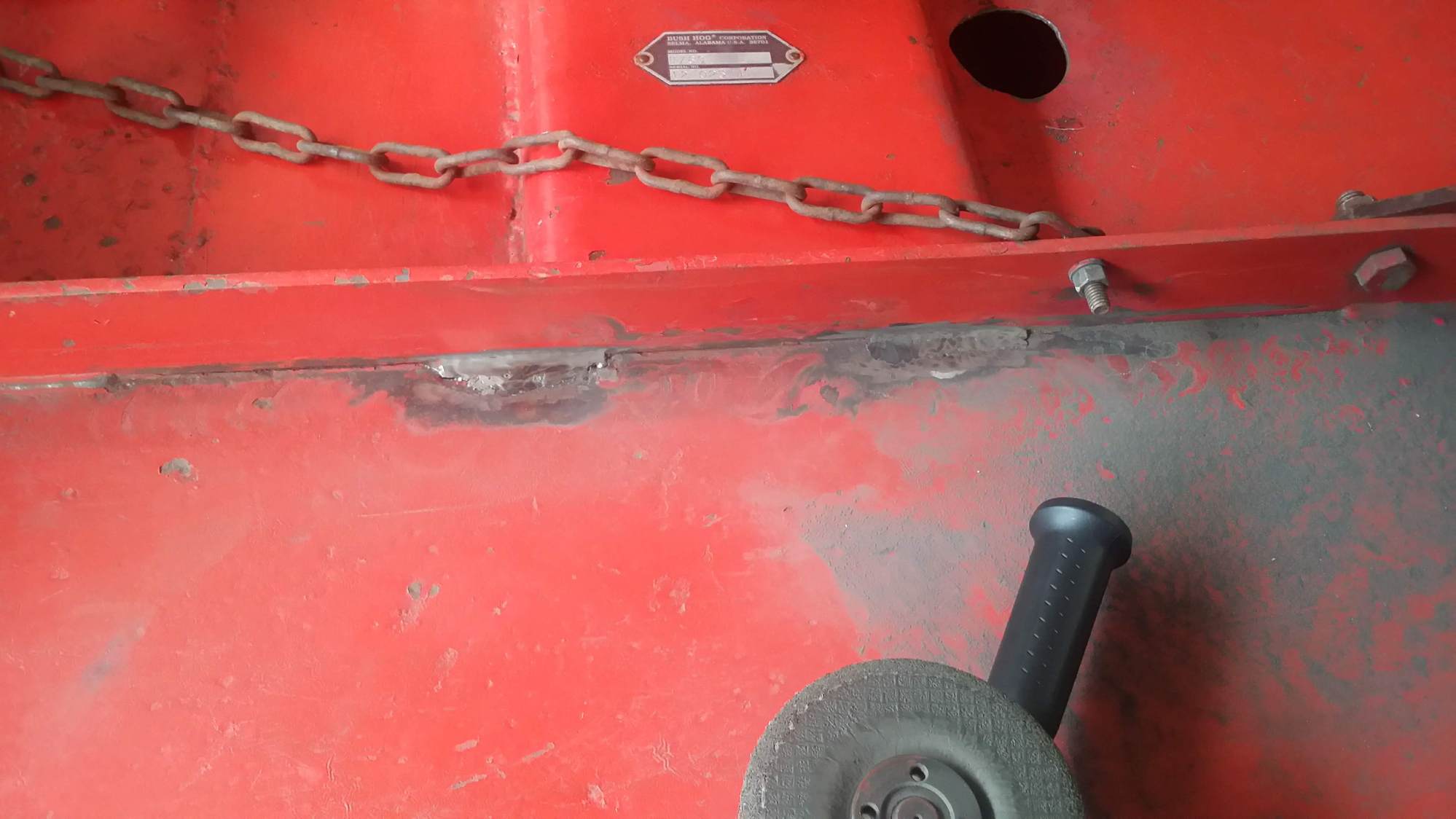

These either WEREN'T factory welds, or the nuby was working that day. Pretty sure this has been repaired before though.

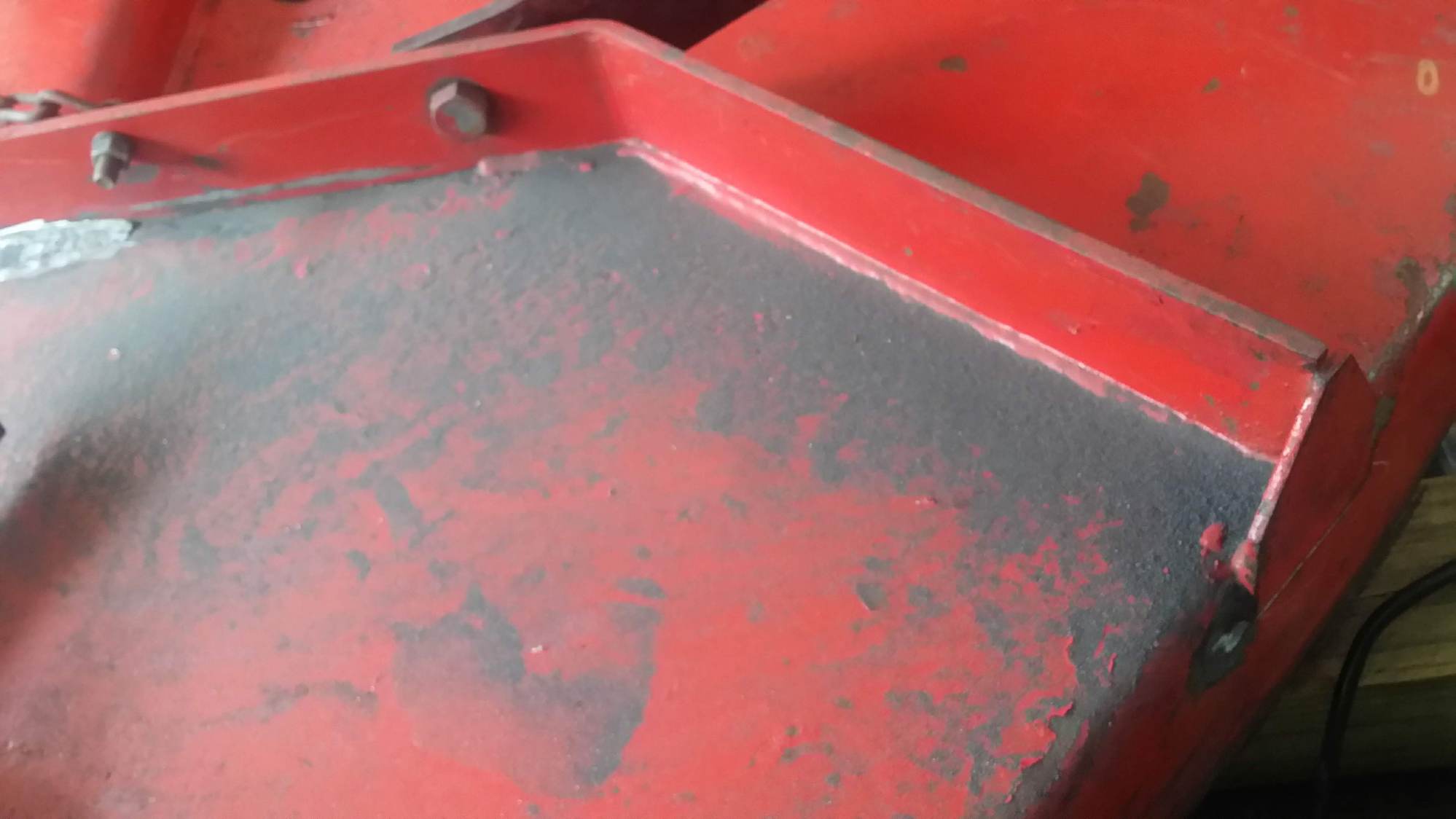

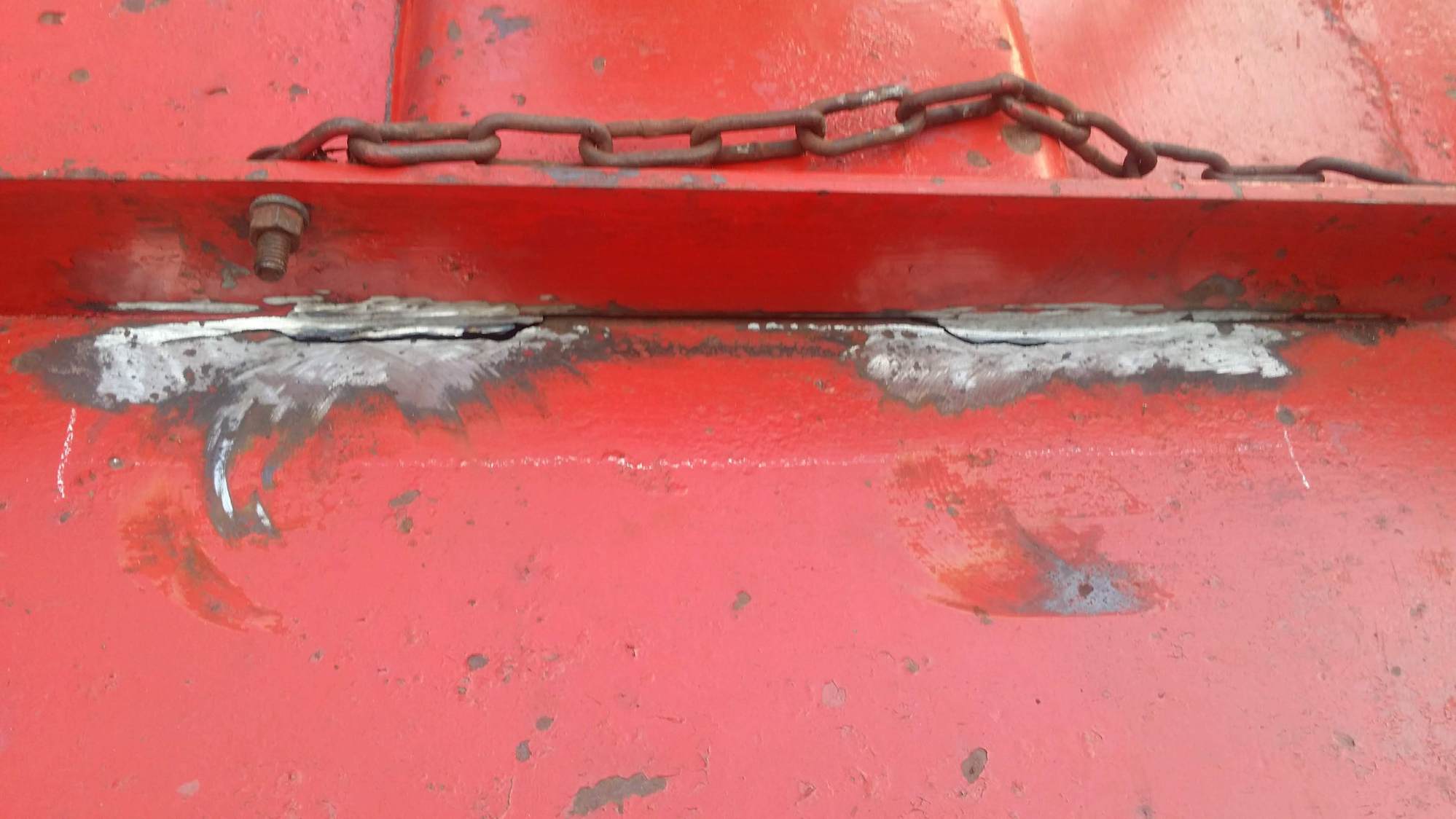

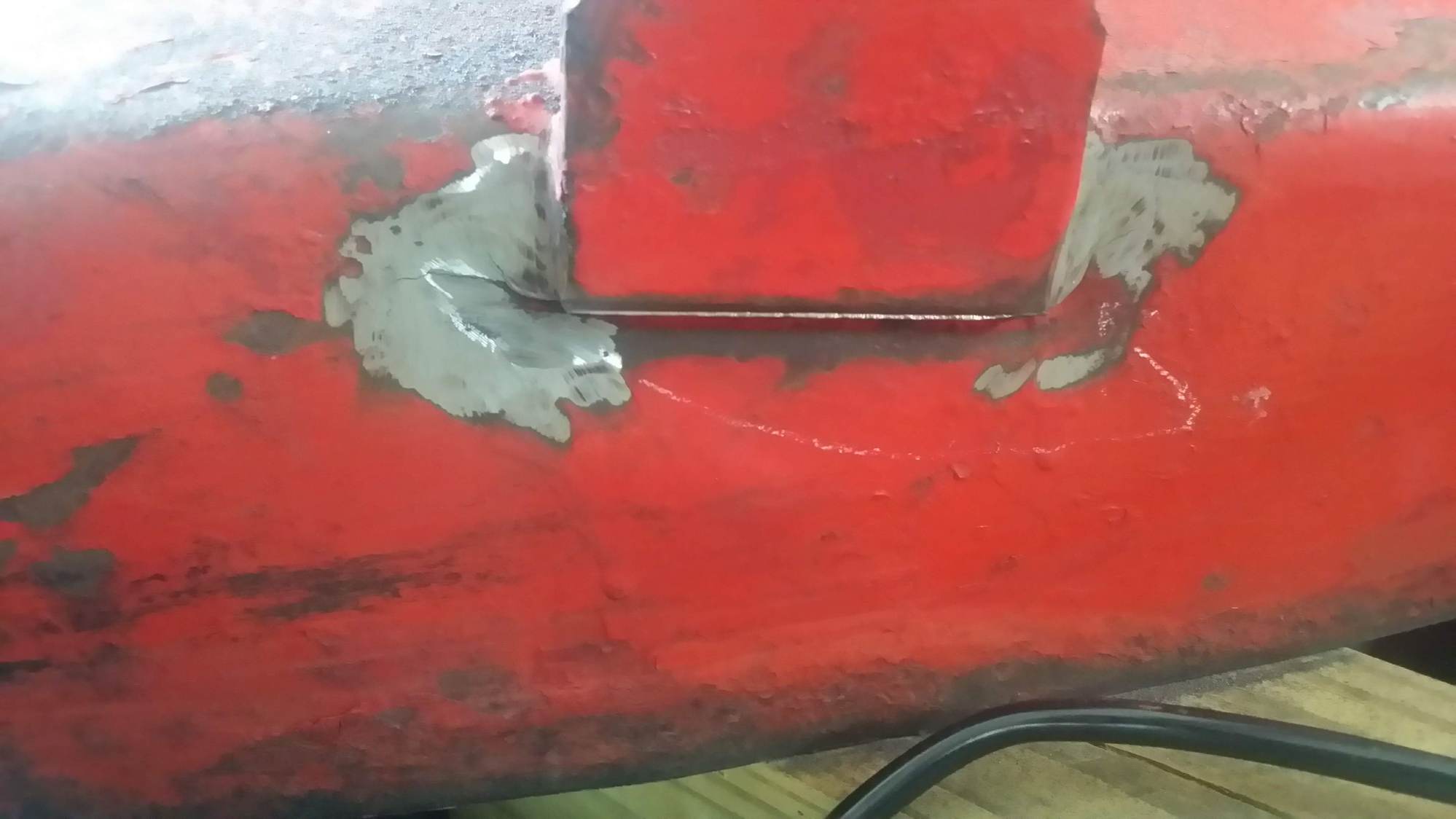

Holy grinding dust, batman...

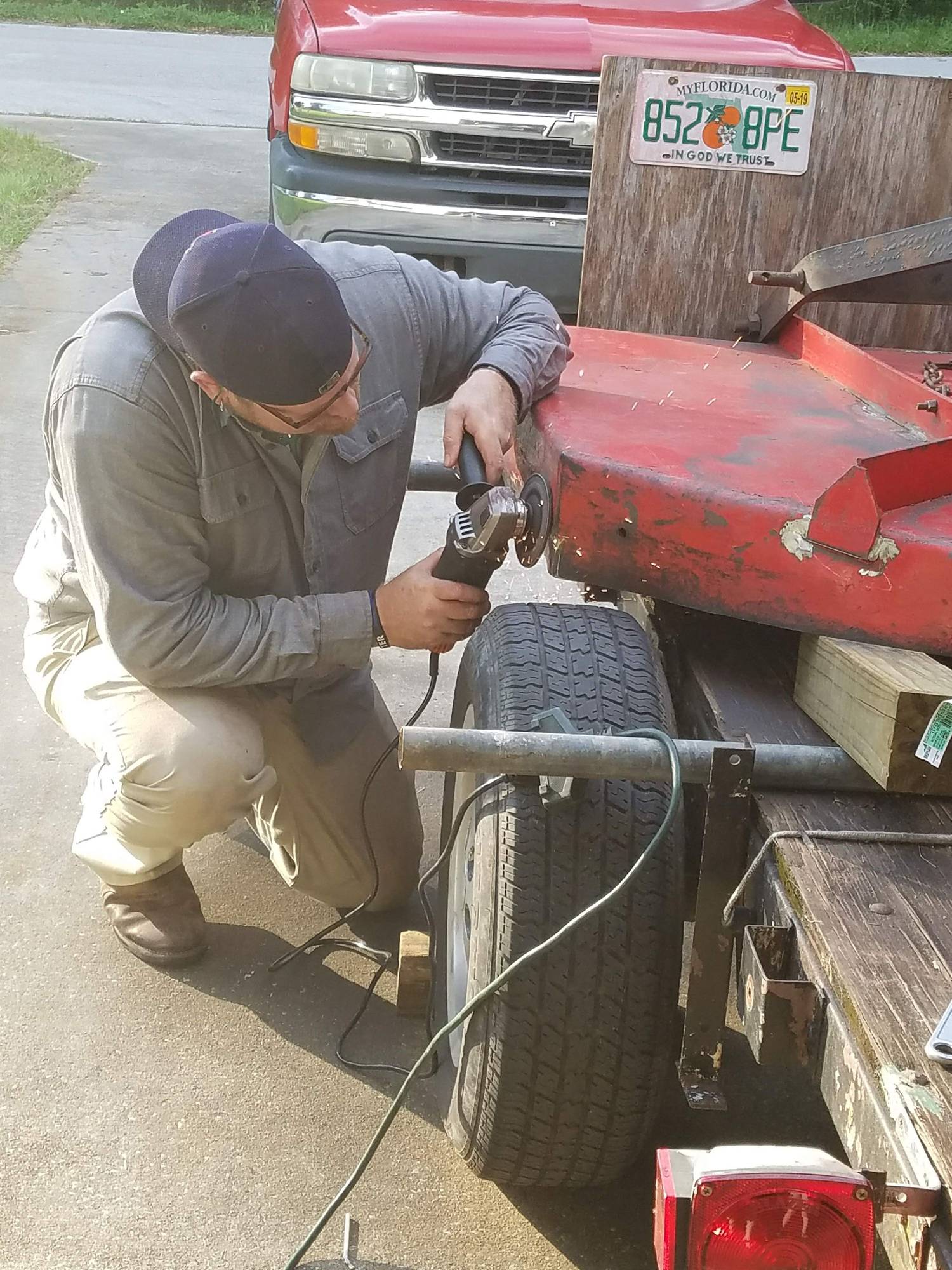

Wifey decided to sneak out and take pics....

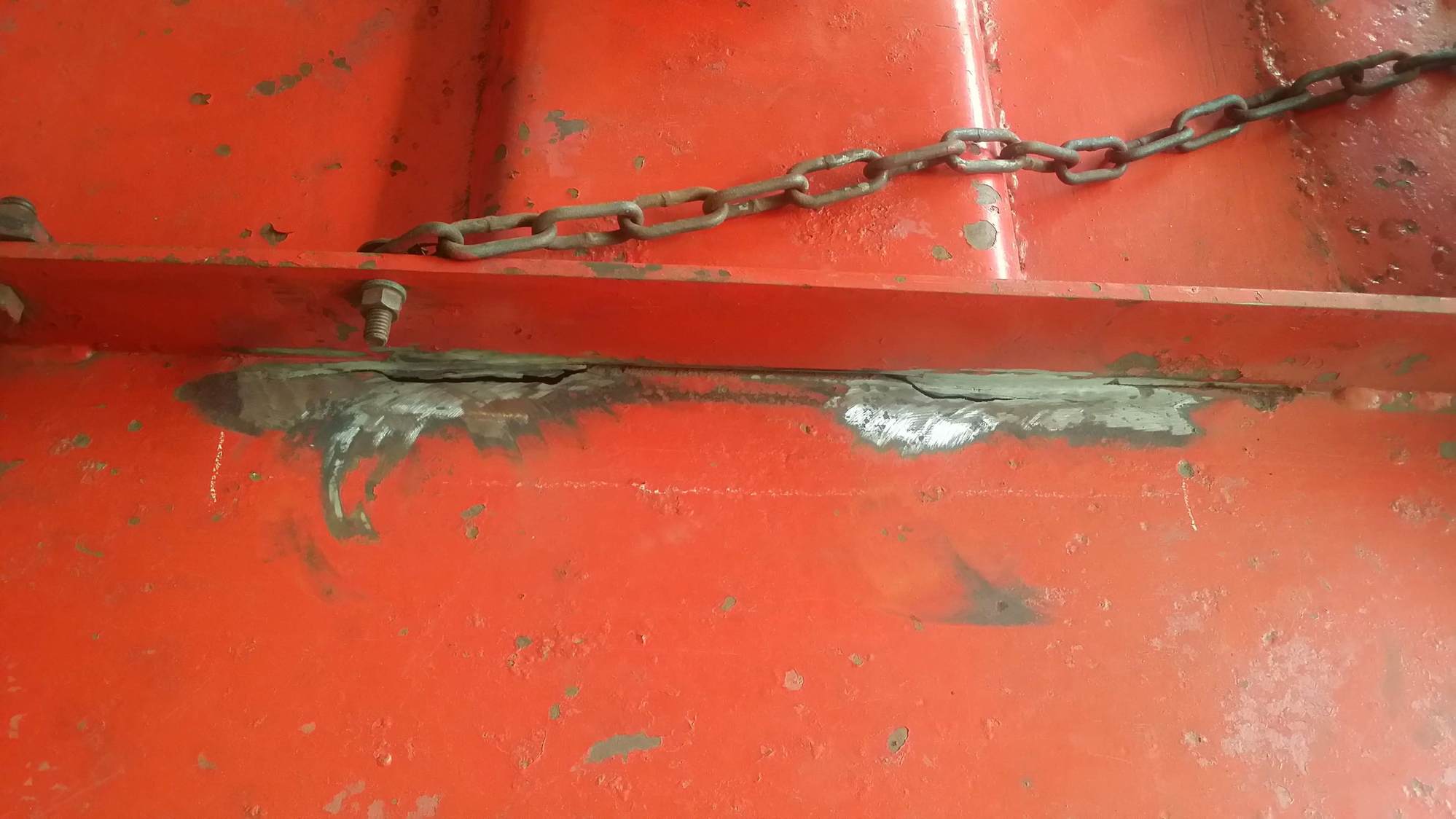

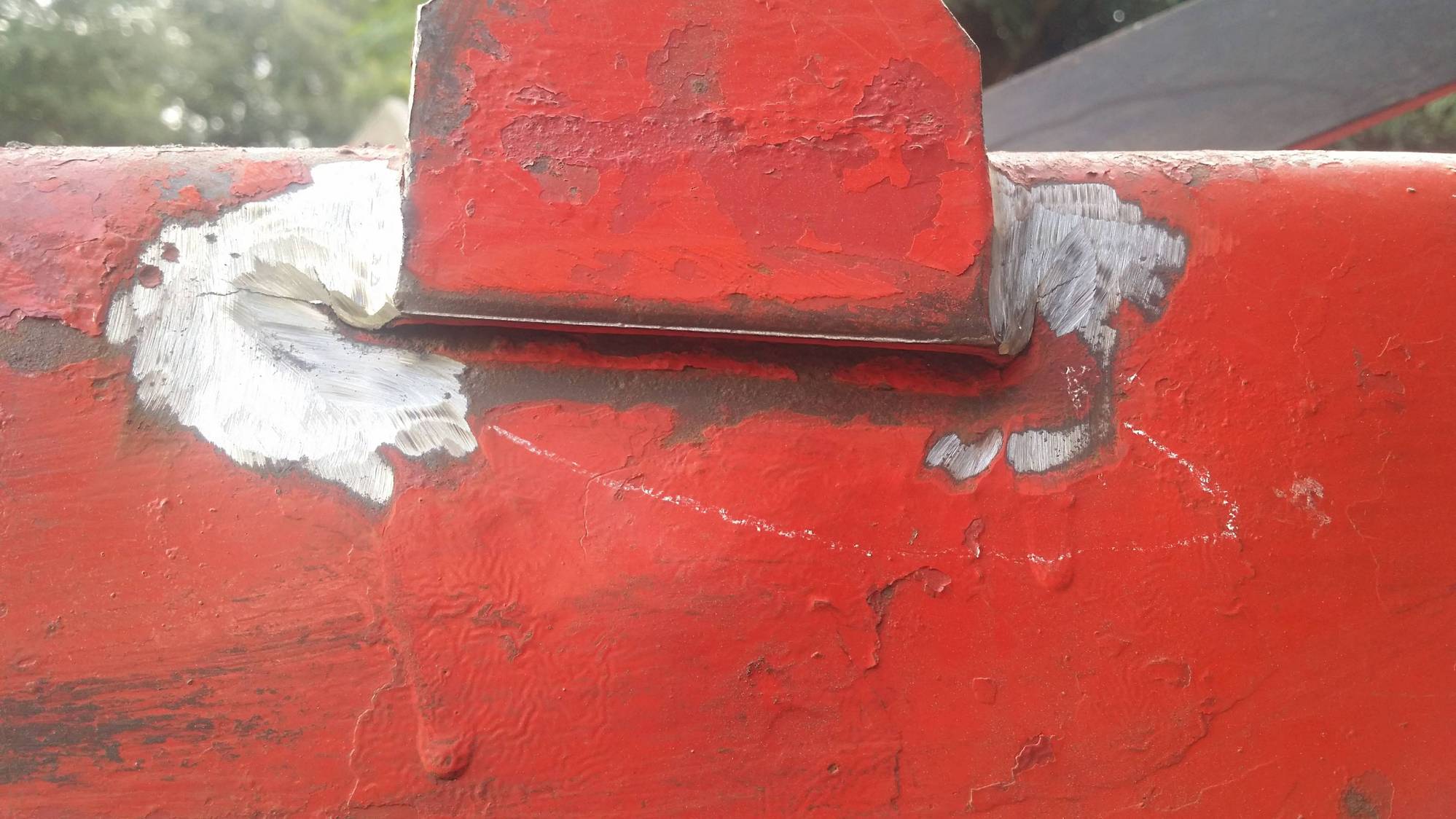

Not sure what all these booger welds were about that I had to grind down... they weren't even on a seam.





Haven't gotten around to taking pics of the welding yet... that'll have to wait until monday or tuesday though.
Basslicks is offline
Reply With Quote
Old 06-09-2018, 02:35 AM
  #2557
CF Veteran

Photojared's Avatar

Join Date: Feb 2011
Location: Henderson, NV
Posts: 1,938
Year: 1999
Engine: 4.0L
Default

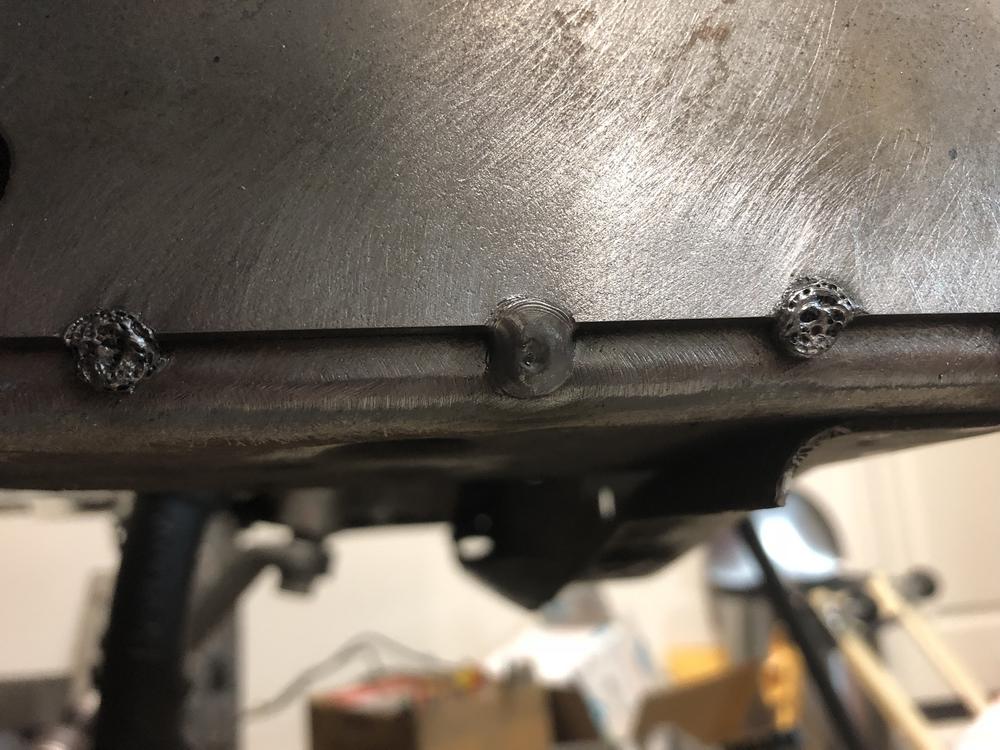

So I learned the difference between and why we use shielding gas. Took me a moment to figure out what was going wrong...


I thought this looked ok. I'm still trying to get down the cadence and movement of welding. I just need more practice.


And this just looks massively terrible...I also learned about uphill and downhill welding, and why they're a little more difficult. Especially on this stupid section.
Photojared is offline
Reply With Quote
Old 06-11-2018, 07:39 AM
  #2558
CF Veteran

Joecam18's Avatar

Join Date: Jul 2013
Posts: 1,105
Year: 2000
Model: Cherokee
Default

Originally Posted by Basslicks View Post
So I got this little repair job I picked up....








These either WEREN'T factory welds, or the nuby was working that day. Pretty sure this has been repaired before though.























Holy grinding dust, batman...



Wifey decided to sneak out and take pics....











Not sure what all these booger welds were about that I had to grind down... they weren't even on a seam.





Haven't gotten around to taking pics of the welding yet... that'll have to wait until monday or tuesday though.
you show that MFing mower!!!
Joecam18 is offline
Reply With Quote
Old 06-12-2018, 10:38 PM
  #2559
CF Veteran

Photojared's Avatar

Join Date: Feb 2011
Location: Henderson, NV
Posts: 1,938
Year: 1999
Engine: 4.0L
Default

So after my previous crappiness the passenger side is in. Most of the welds looked good. a few janky spots and i only burnt through the frame twice. For the downhill welds I turned the machine's voltage down one notch and it didnt have an issue after that.
Photojared is offline
Reply With Quote
Old 06-13-2018, 07:48 PM
  #2560
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 11,137
Year: 1992
Engine: 4.0 HO
Default

Originally Posted by Joecam18 View Post
you show that MFing mower!!!
lol.... I've got a lot more beating on it to do. Thing is bent up pretty bad. I'm going to wait until all the welds are done for that though.

Originally Posted by Photojared View Post
So after my previous crappiness the passenger side is in. Most of the welds looked good. a few janky spots and i only burnt through the frame twice. For the downhill welds I turned the machine's voltage down one notch and it didnt have an issue after that.
What machine are you using?
Basslicks is offline
Reply With Quote
Old 06-13-2018, 11:07 PM
  #2561
CF Veteran

Photojared's Avatar

Join Date: Feb 2011
Location: Henderson, NV
Posts: 1,938
Year: 1999
Engine: 4.0L
Default

Originally Posted by Basslicks View Post
What machine are you using?
Hobart 210MVP on 110v
Photojared is offline
Reply With Quote
Old 06-13-2018, 11:20 PM
  #2562
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 11,137
Year: 1992
Engine: 4.0 HO
Default

2nd try at uploading these pics...

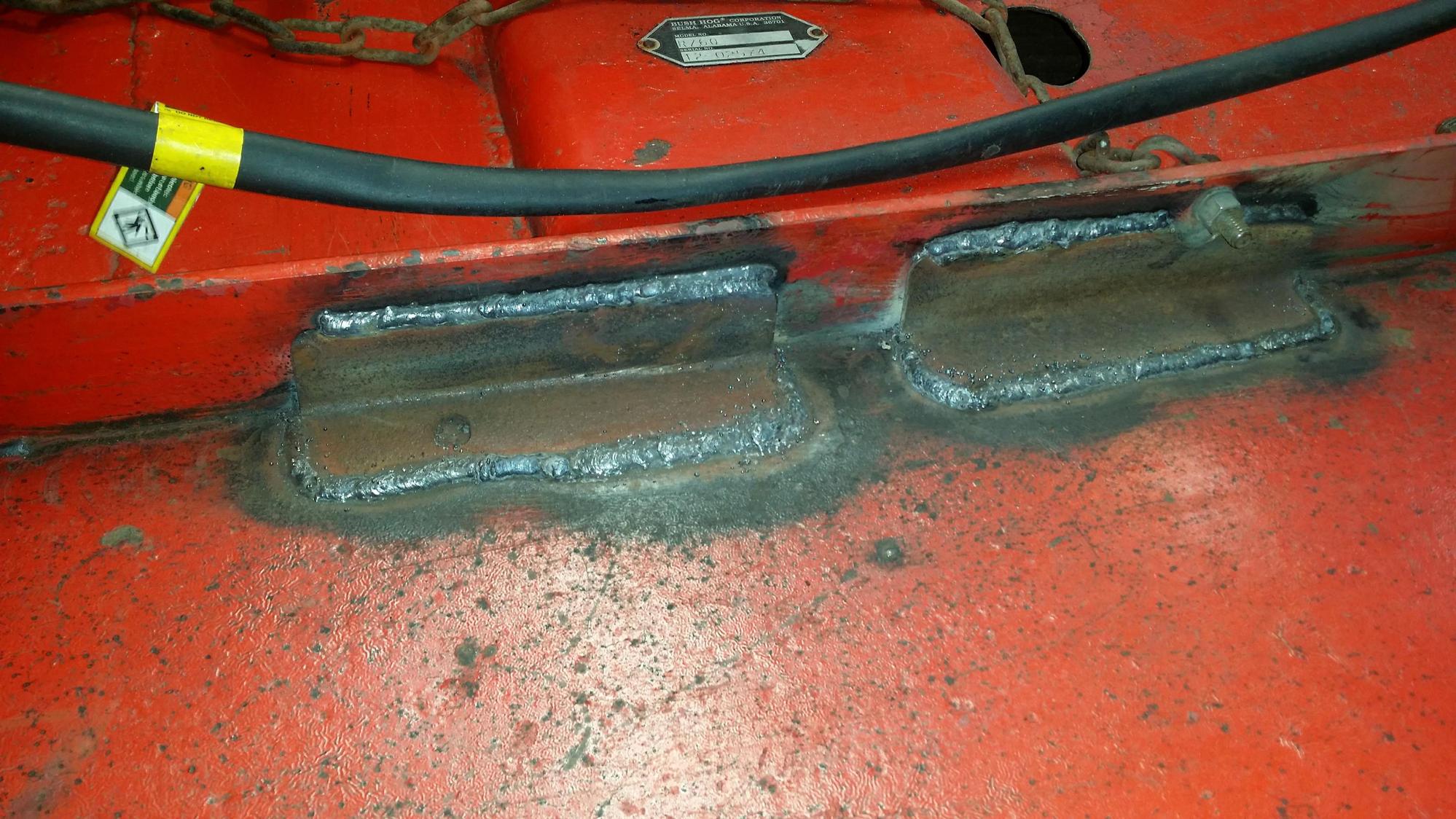

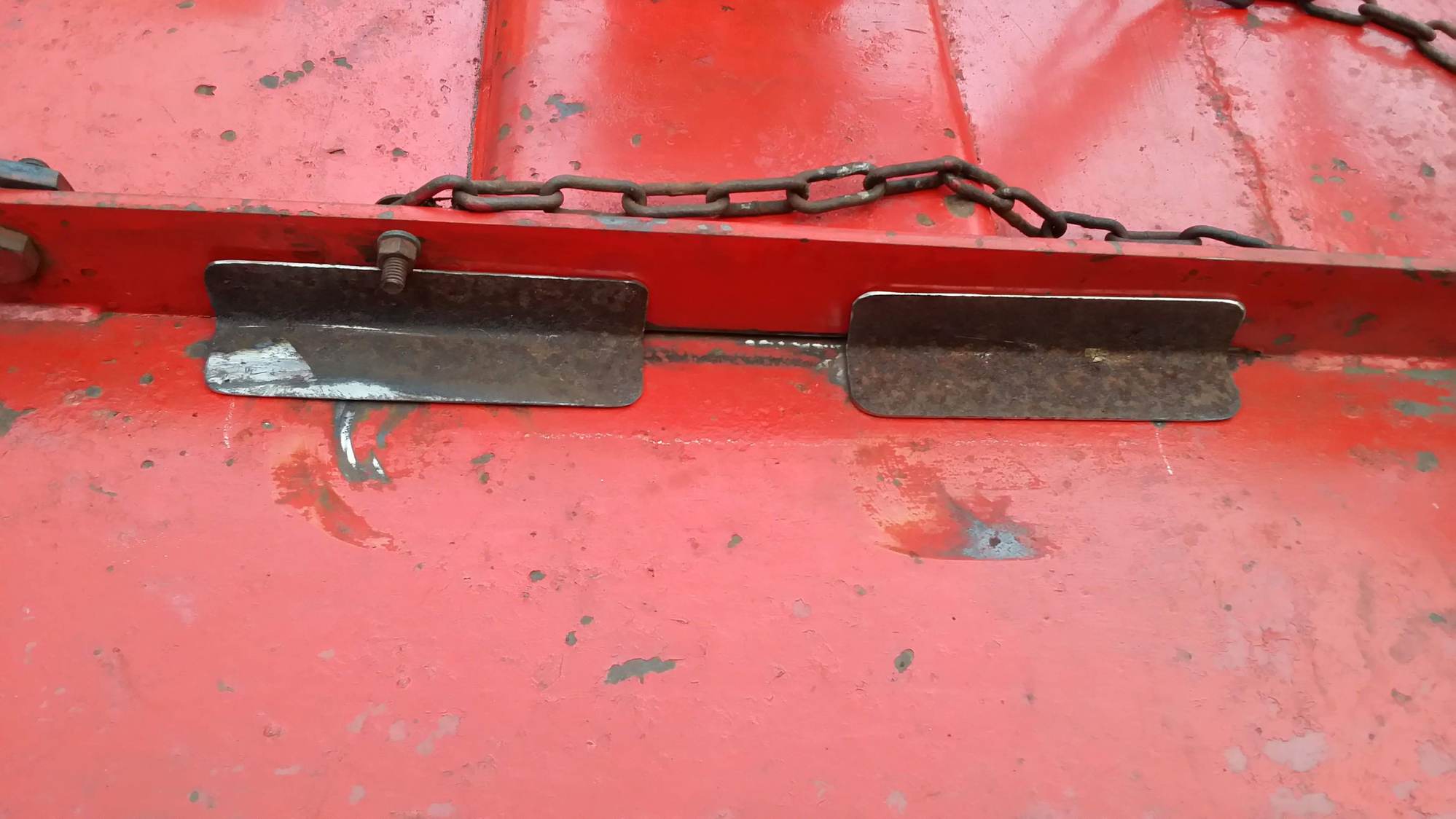

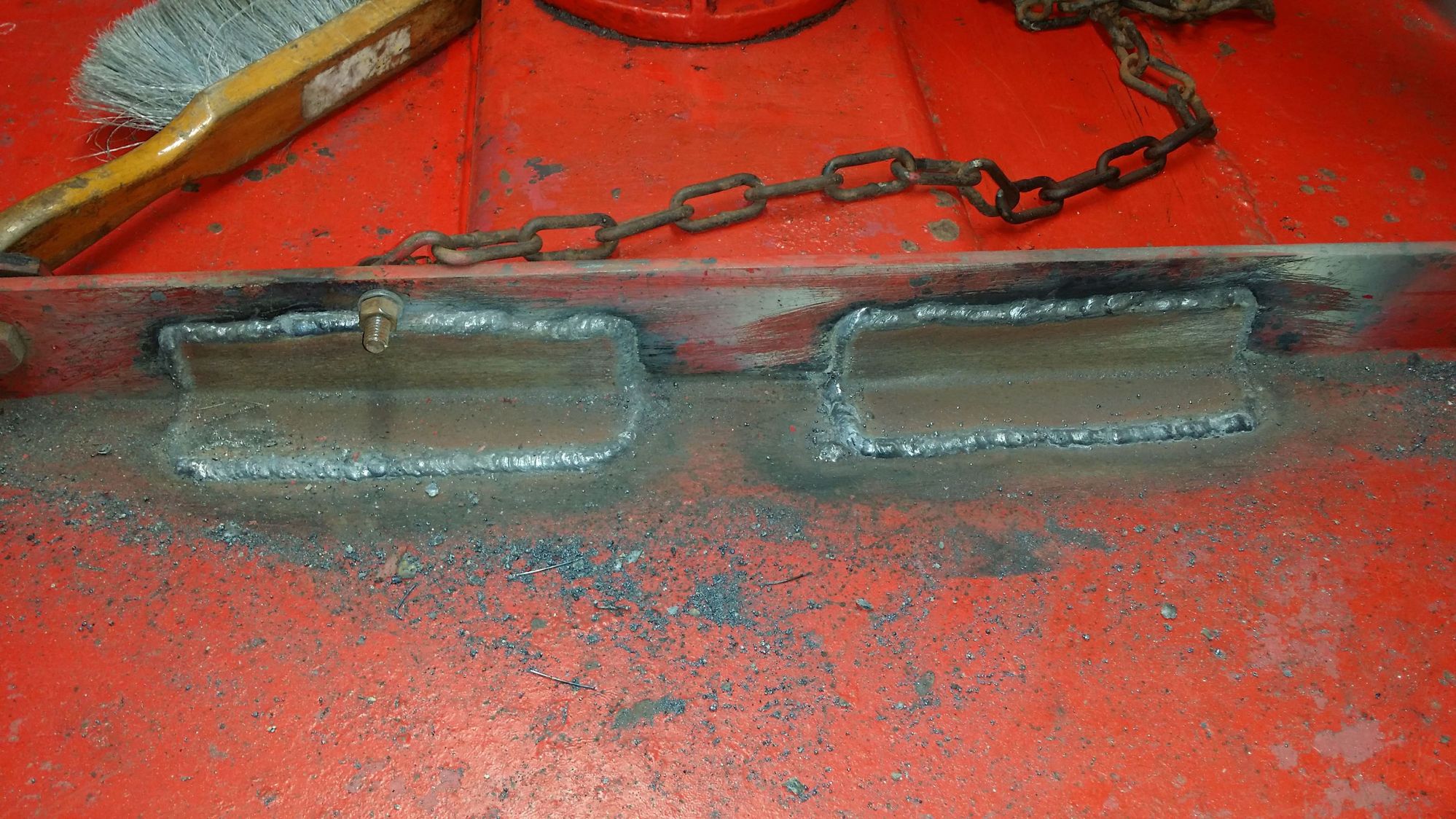

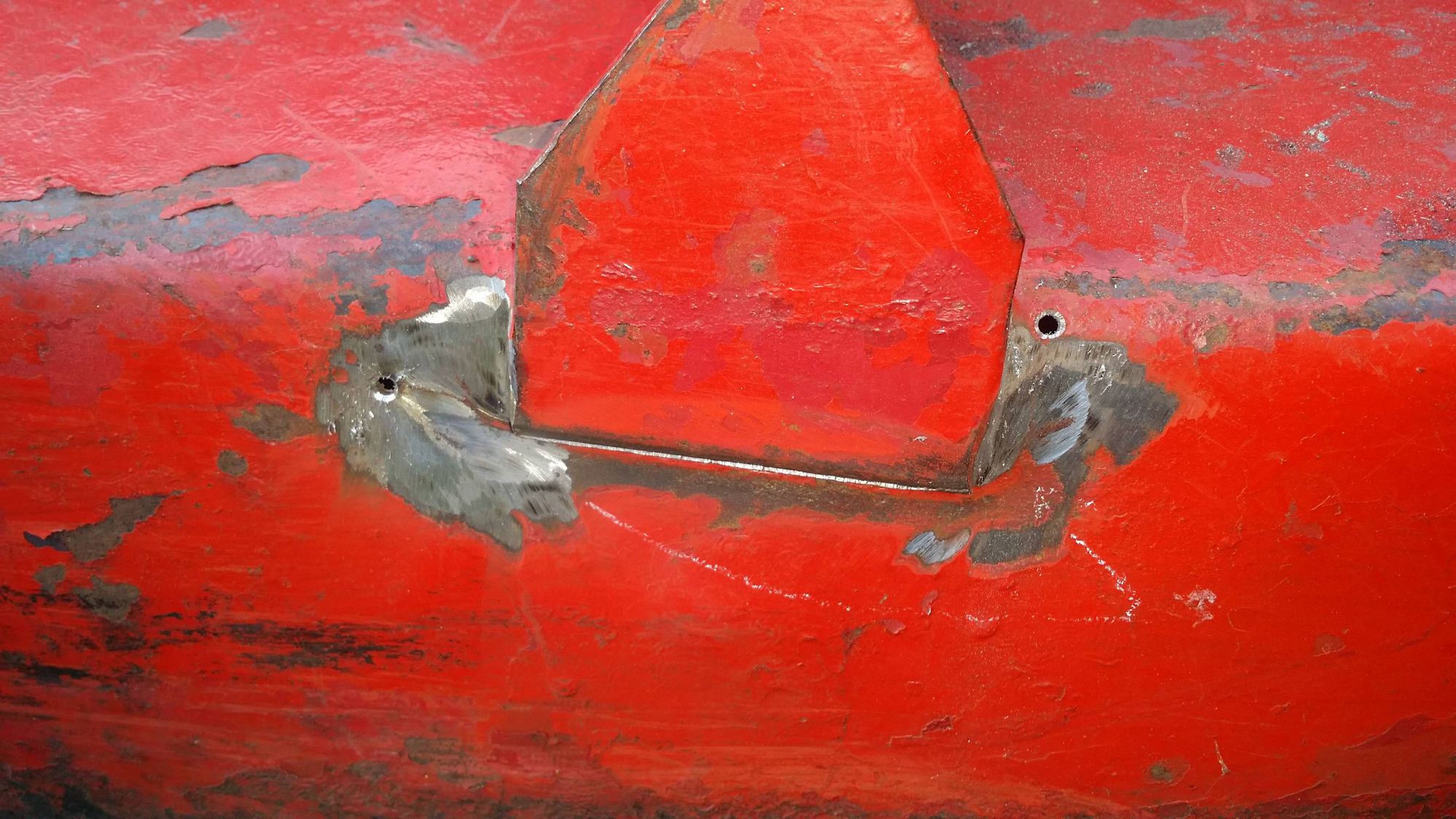

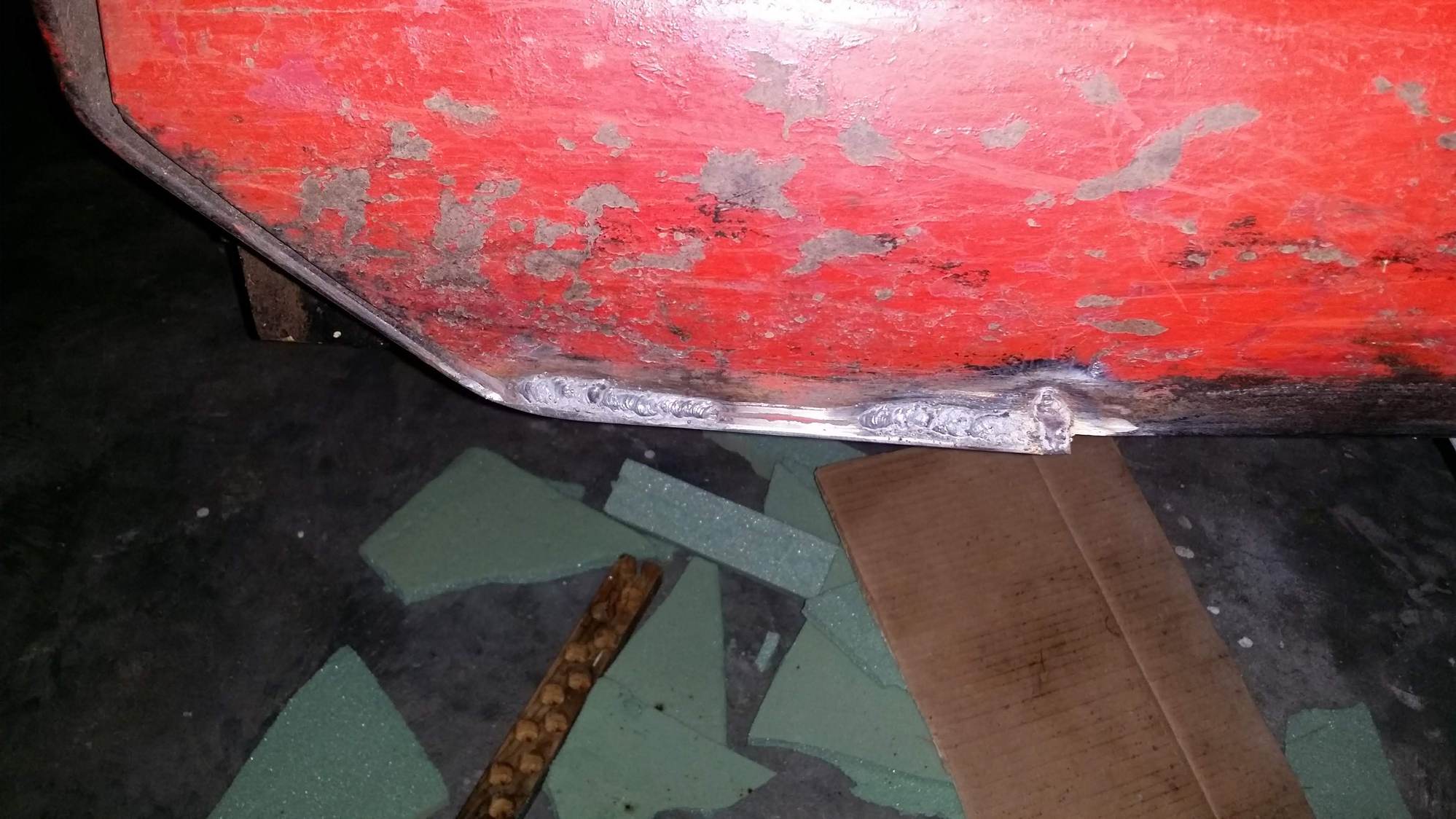

I honestly don't know why I ran a full bead around these... I know better. I'll fix 'em for him when they crack.

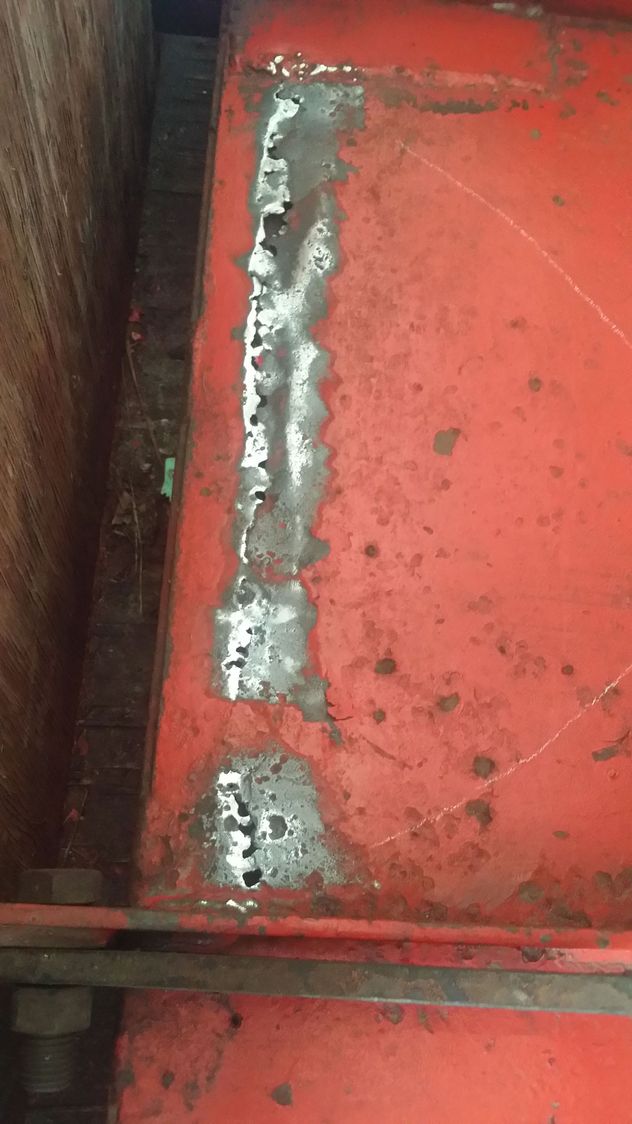

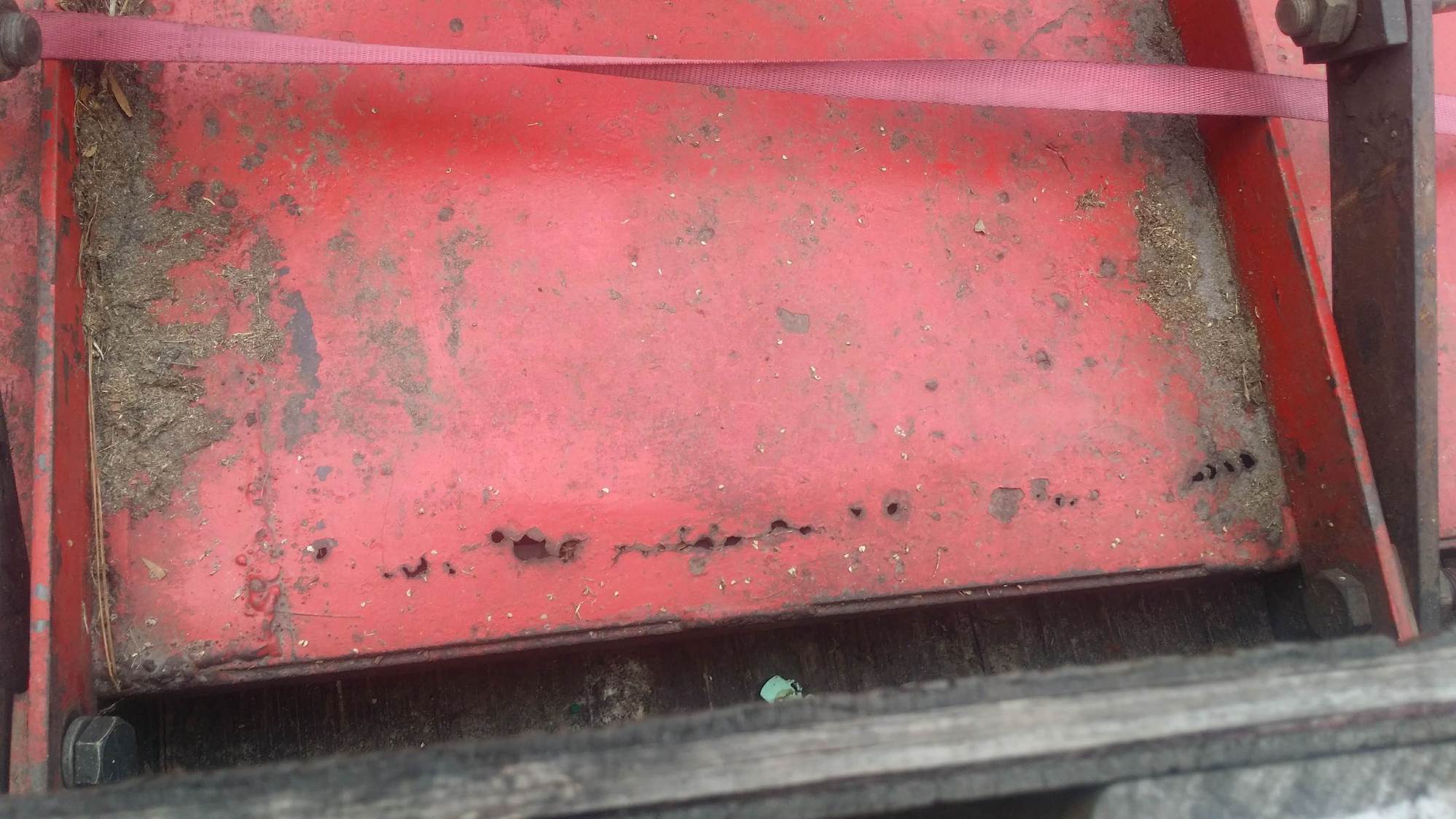

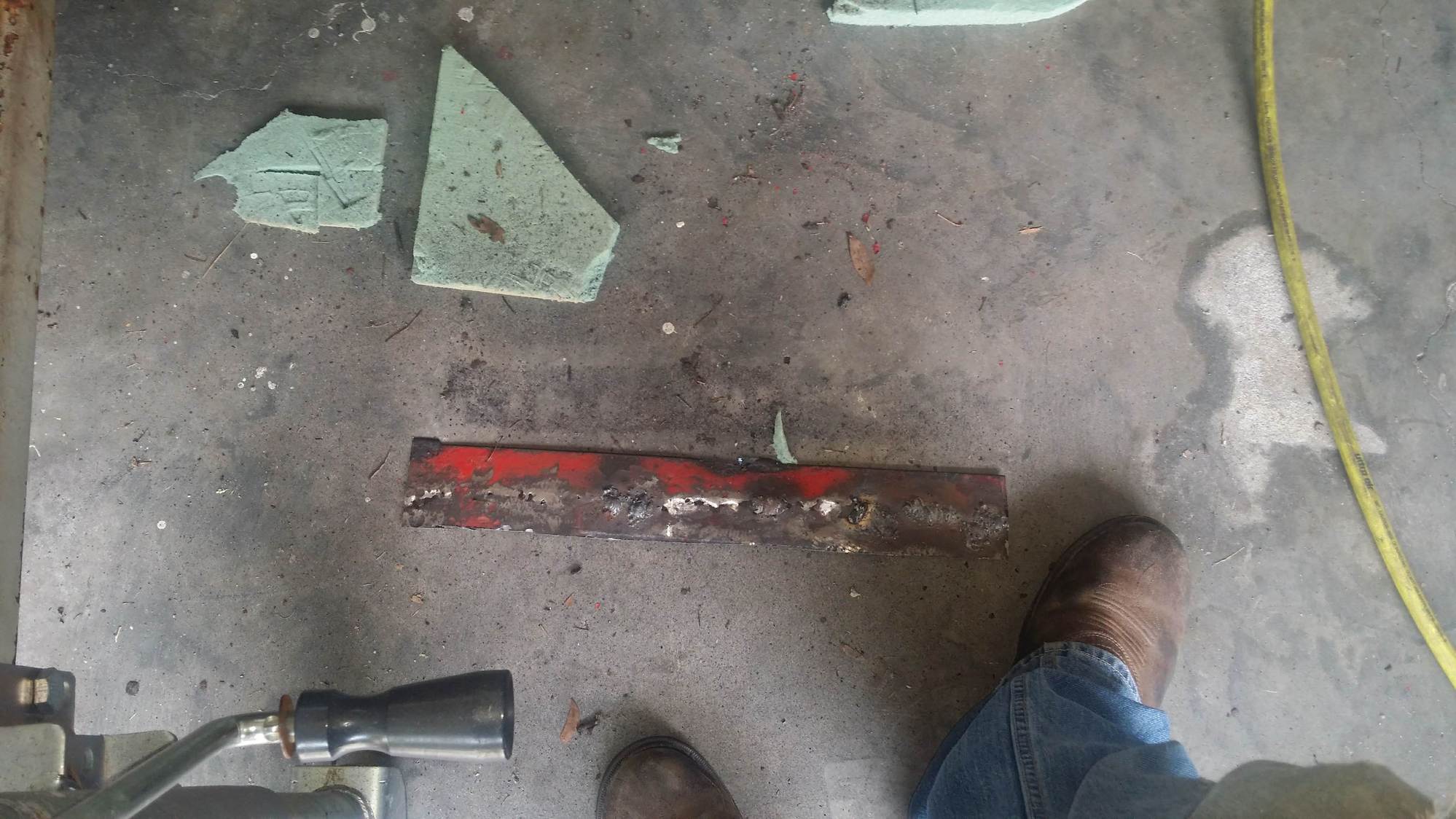

Ended up cutting out this mess at the front instead of trying to patch over each little hole.

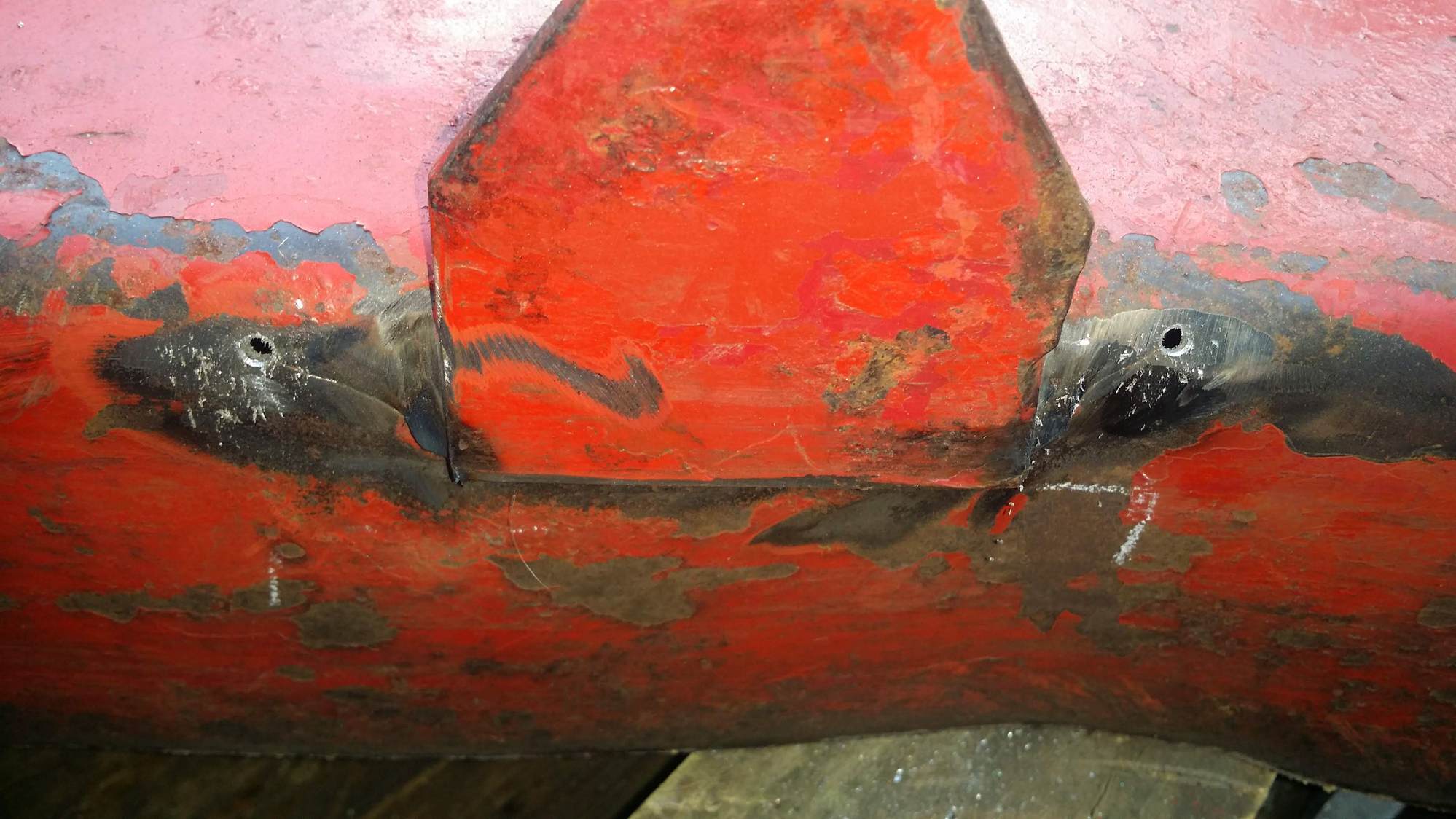

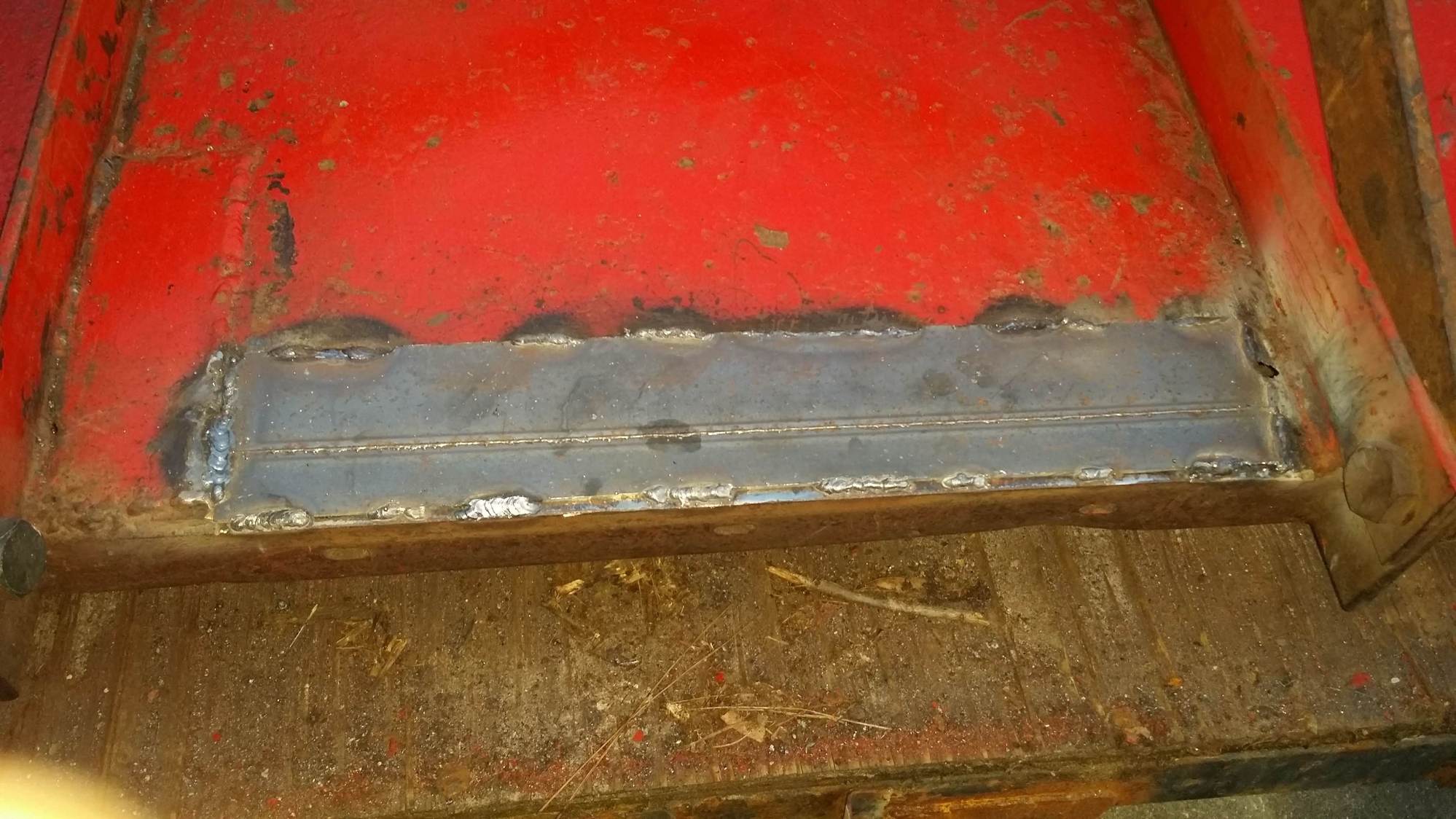

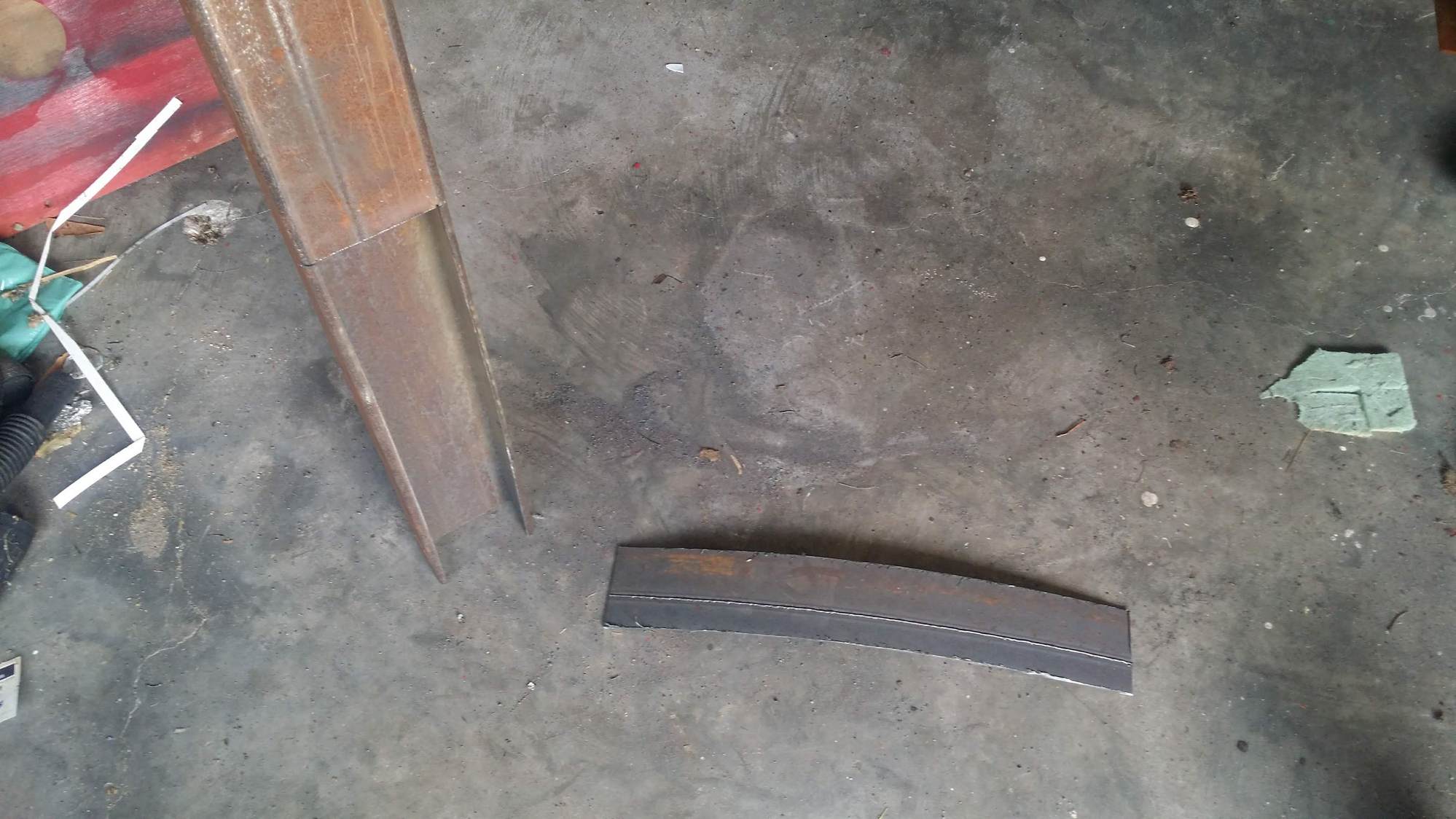

Made a patch plate out of a piece of .120 wall 2x4 tubing that I had sitting around doing nothing, and stitched it in.

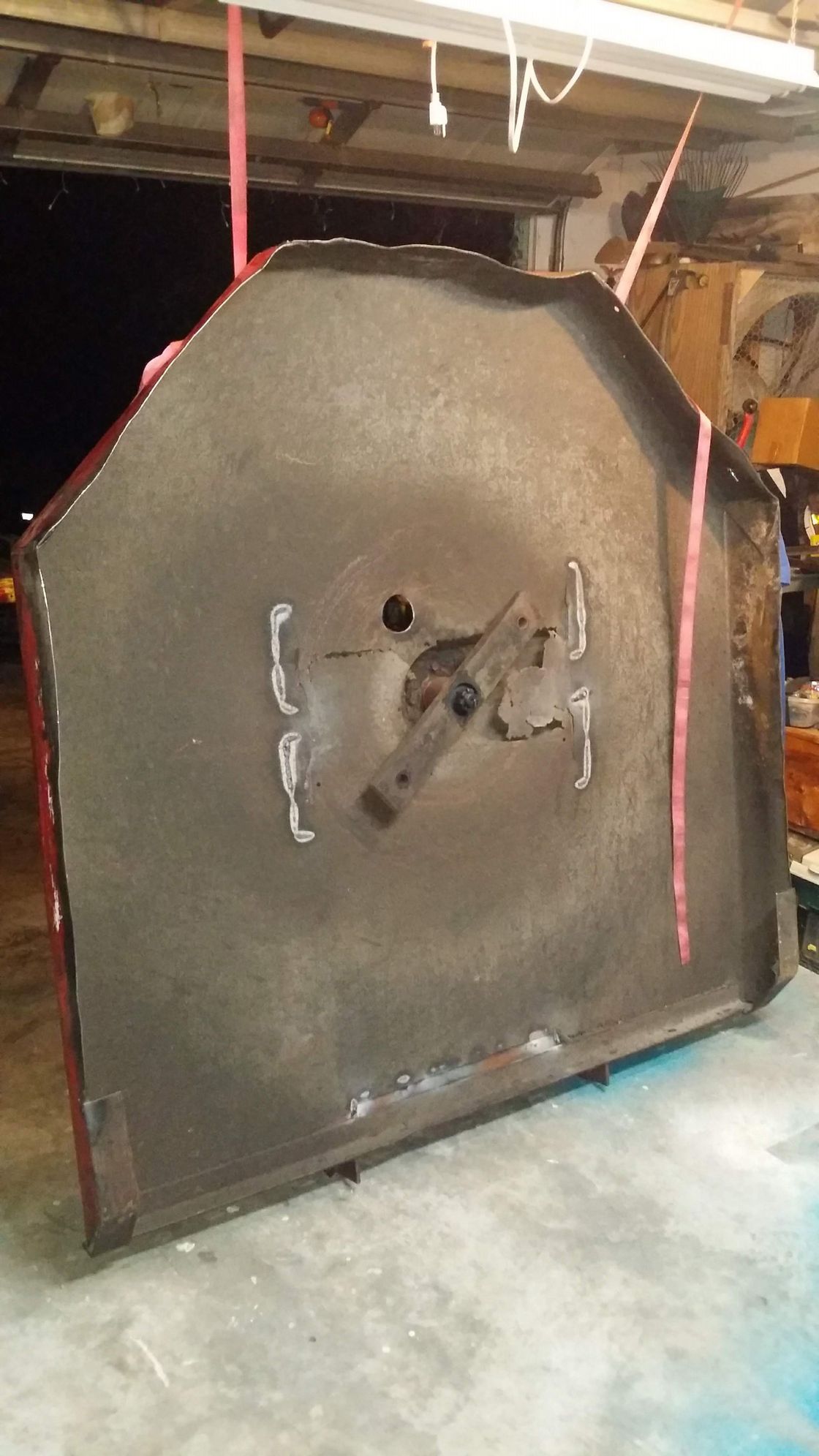

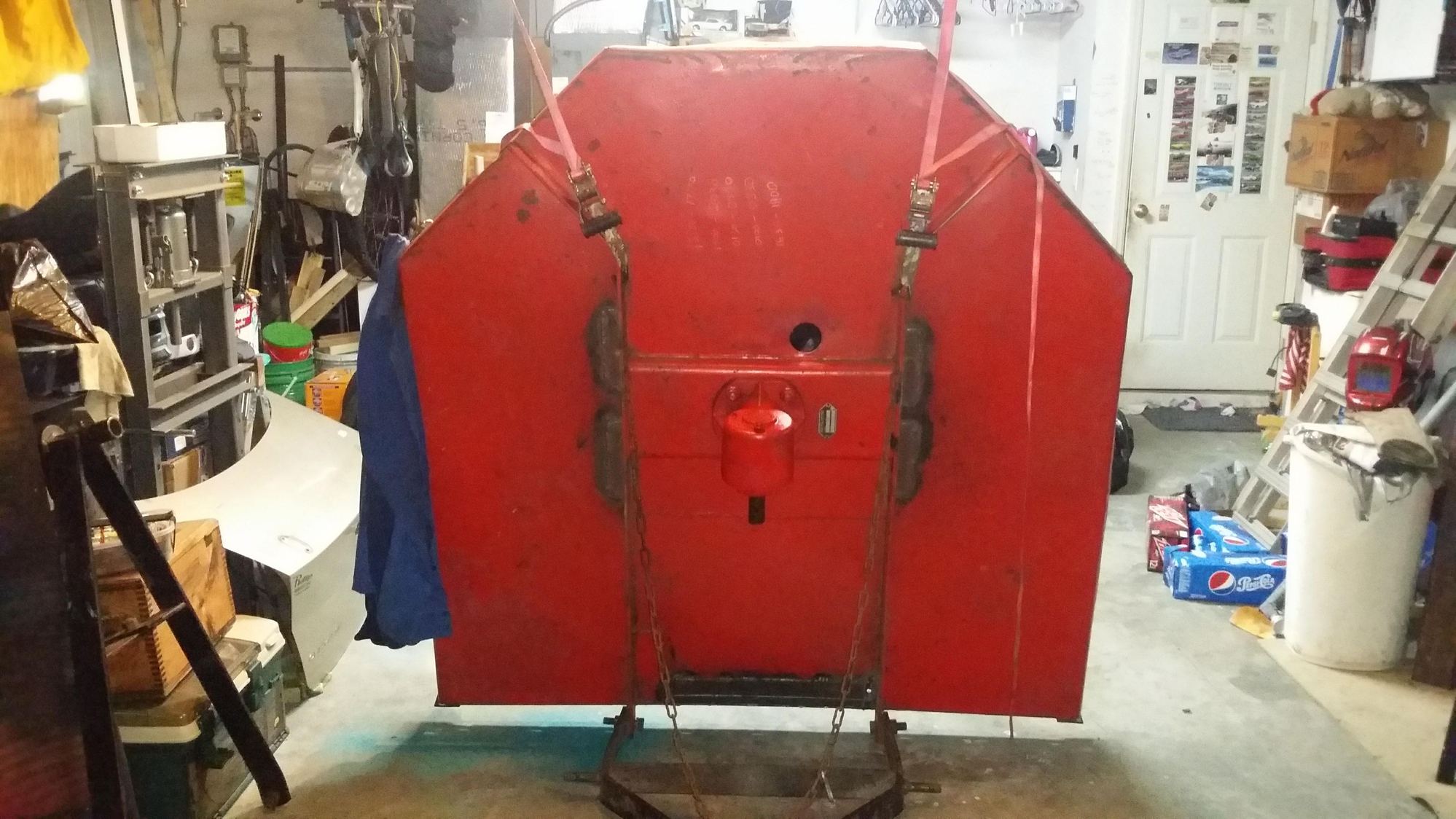

So currently, it's standing up on end with ratchet straps holding it up.

I ran out of wire and cutoff wheels... gotta wait until this weekend to get more.
Basslicks is offline
Reply With Quote
Old 06-14-2018, 05:19 PM
  #2563
Newbie

Join Date: May 2018
Posts: 27
Model: Cherokee(SJ)
Default

Originally Posted by roninofako View Post
Just wanted to post an update on my Sentinal hood. Been using it daily for a while now, and I love it more and more. Since I've gotten it, I've only replaced the coverglass ONCE. There's a reason why, though.

Attachment 402873
I need a new helmet. Thanks for the update
Tk98 is offline
Reply With Quote
Old 06-14-2018, 05:49 PM
  #2564
Seasoned Member

TrailerTrash's Avatar

Join Date: Jun 2017
Location: Hangover, PA
Posts: 461
Year: 1998
Model: Cherokee(XJ)
Engine: 4.0L
Default

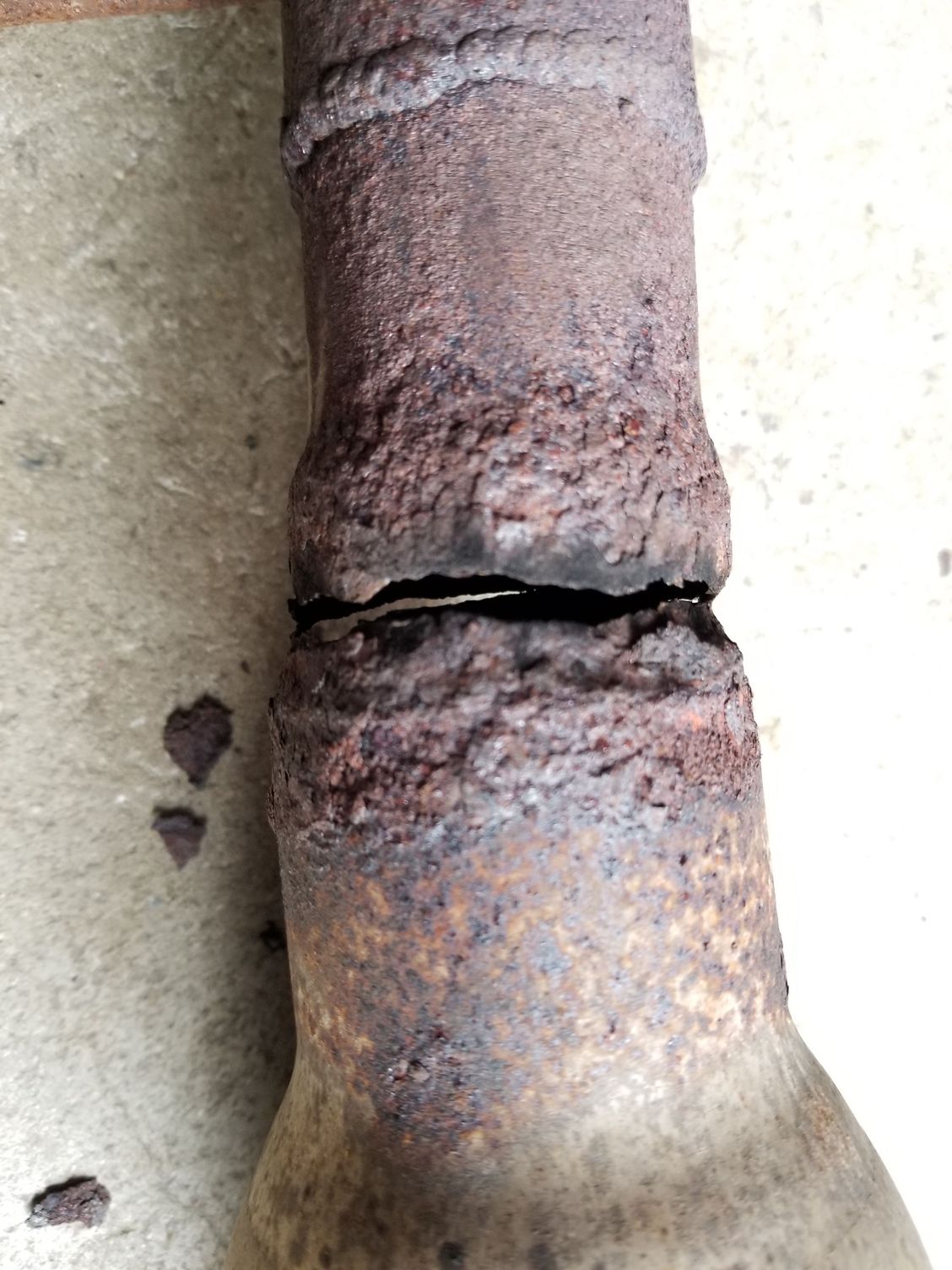

Gotta do what ya gotta do lol




front was just barely hanging on and the rear was heading that way



TrailerTrash is offline
Reply With Quote
Old 06-15-2018, 12:03 AM
  #2565
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 11,137
Year: 1992
Engine: 4.0 HO
Default

D'oh! Good job on the repair, man!
Basslicks is offline
Reply With Quote
