Rear crossmember/brace bumper build.
10-22-2015, 06:46 AM
#18
CF Veteran
Thread Starter
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0

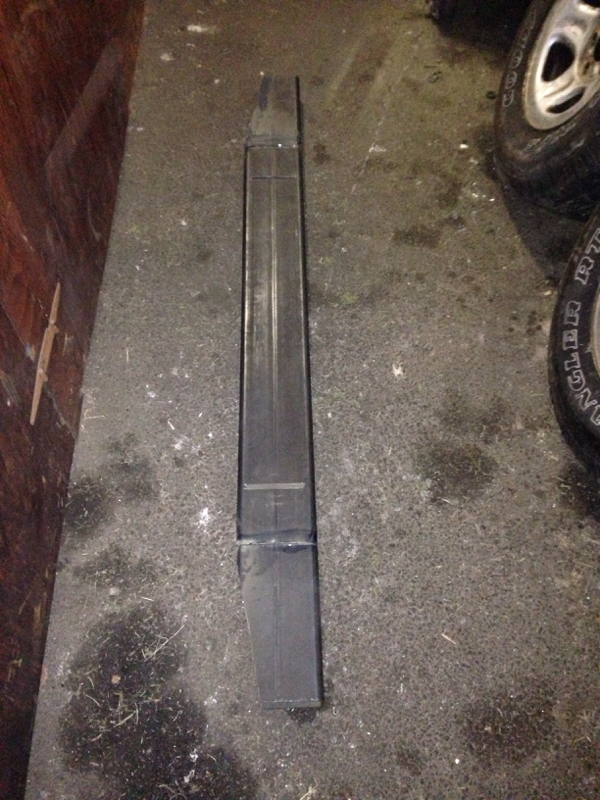

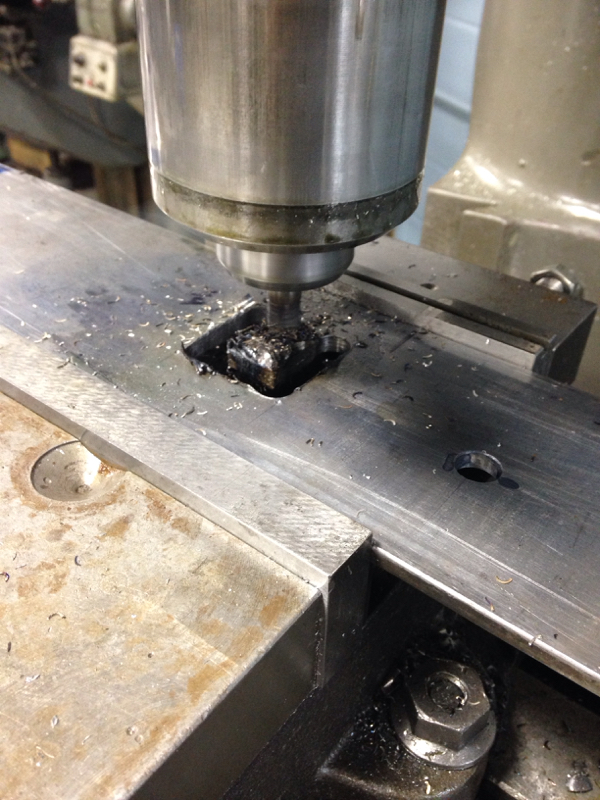

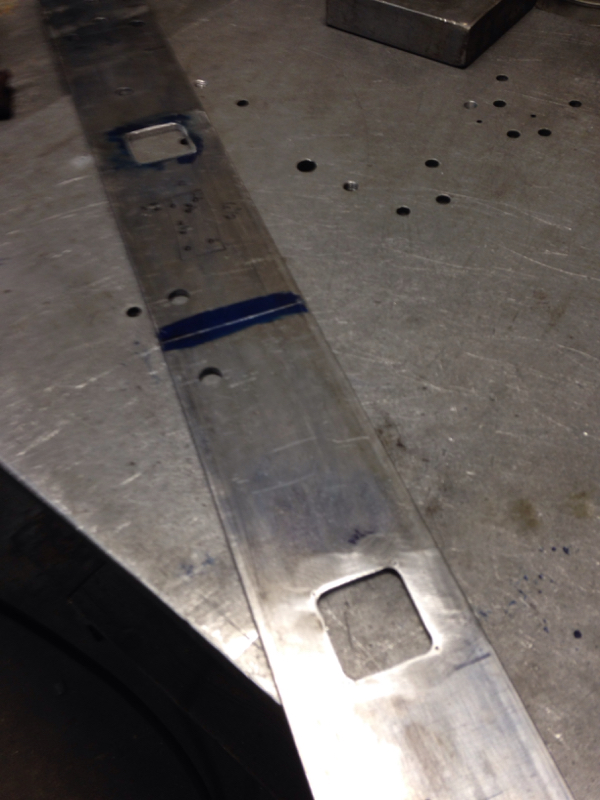

This morning I went in work early so I can use the Bridgeport to mill a couple of square holes on the brace, so it won't interfere with the gas tank straps.
Last edited by XJwonders; 10-22-2015 at 08:02 AM.
10-22-2015, 07:59 AM
#19
CF Veteran
Thread Starter
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0

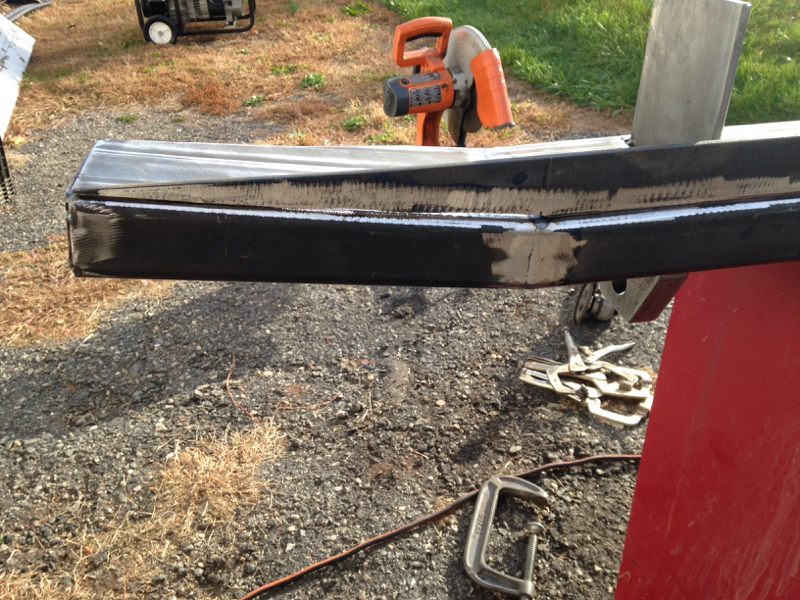

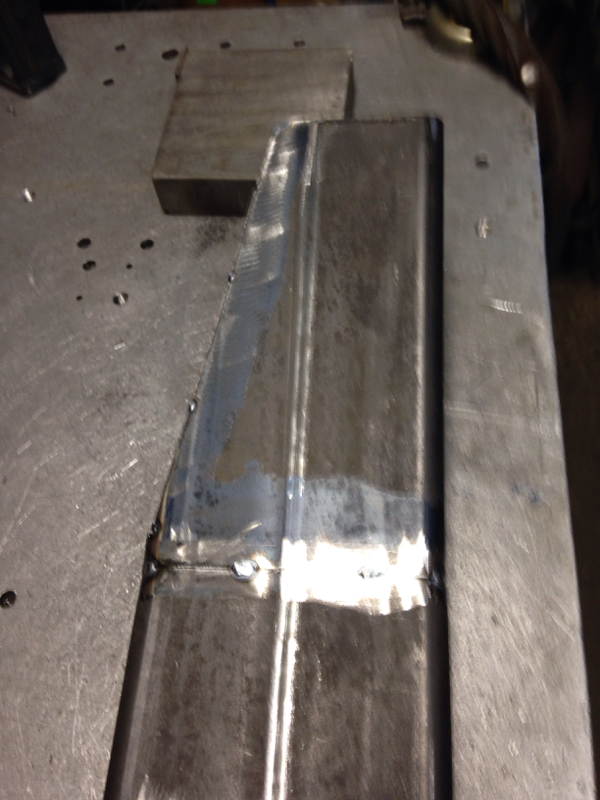

I also was able to cut the bottom corners so it would taper outwards. And notched it enough so I can bend the both ends 1.5 " backwards. Gonna have to scrounge up some 1.5" angle to weld on the top.

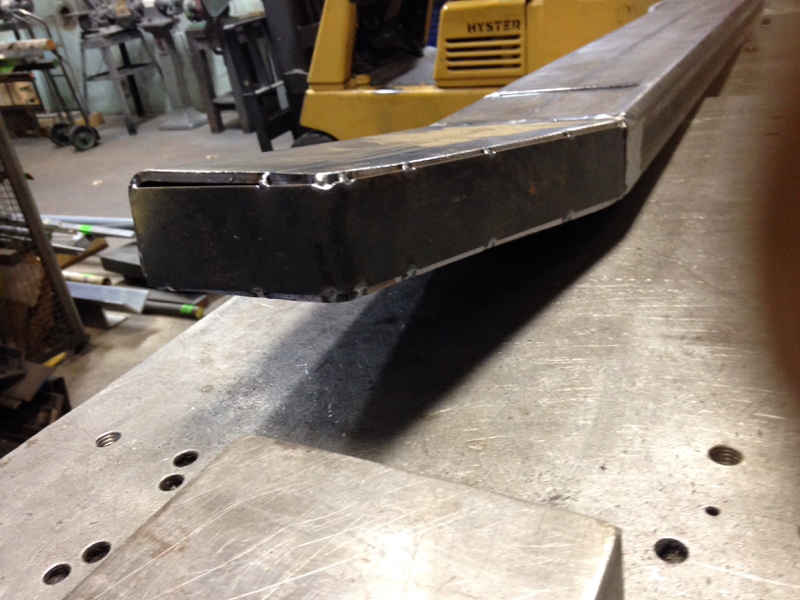

Capped both ends with bunch of tack welds.
Capped both ends with bunch of tack welds.
Last edited by XJwonders; 10-22-2015 at 08:01 AM.
10-23-2015, 08:57 AM
#22
Banned
Join Date: Oct 2014
Location: tucson
Posts: 17
Likes: 0
Received 9 Likes
on
9 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
Looking good. I tried many times to make a rear bumper and couldn't get my ideas right. What came out on paper and in my head just didn't come out in a bumper so I scrapped every design.
10-23-2015, 09:50 PM
#24
::CF Administrator::
10-24-2015, 02:48 PM
#25
CF Veteran
Thread Starter
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0

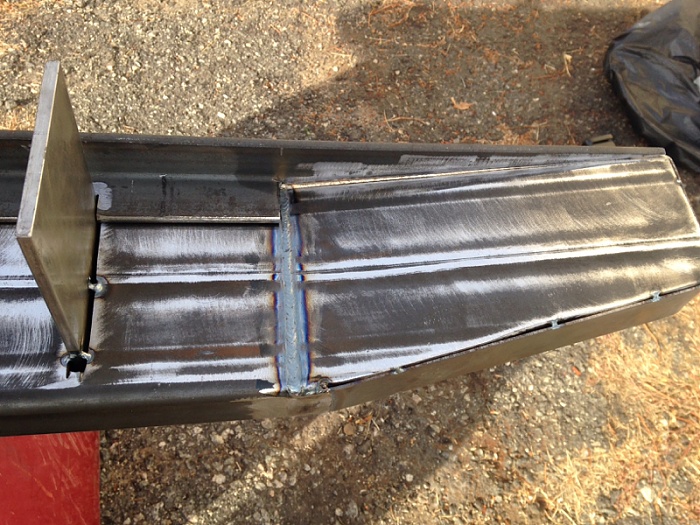

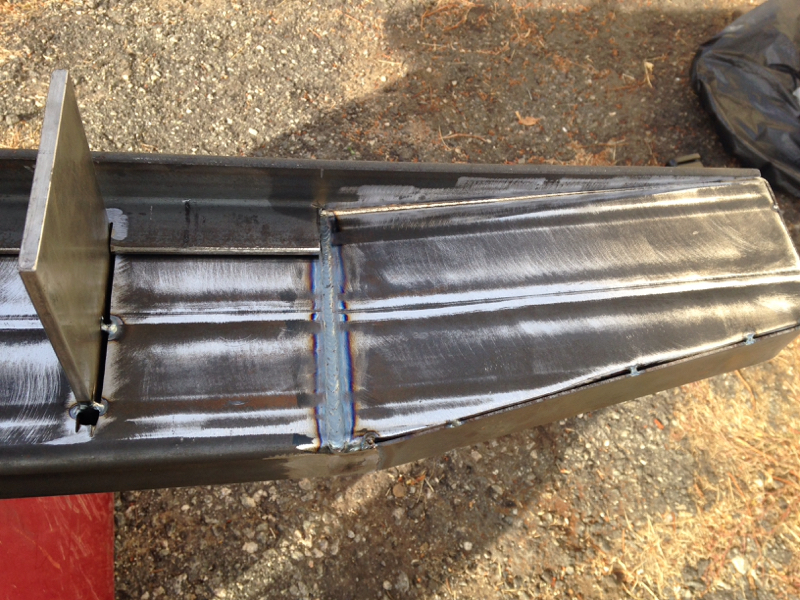

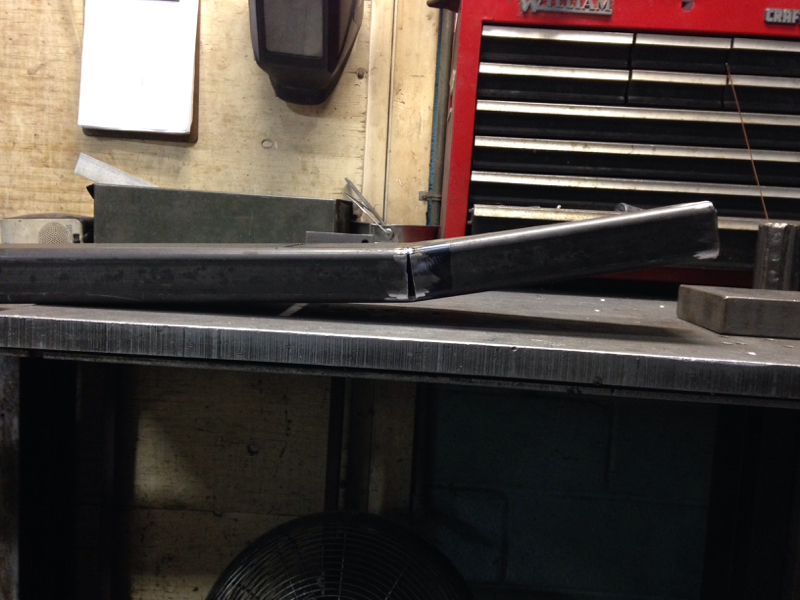

Added a 1.5" angle to the back of the bumper to tie in the bends on the ends. As well as to add overall structural integrity too. It's 1/4" thick.

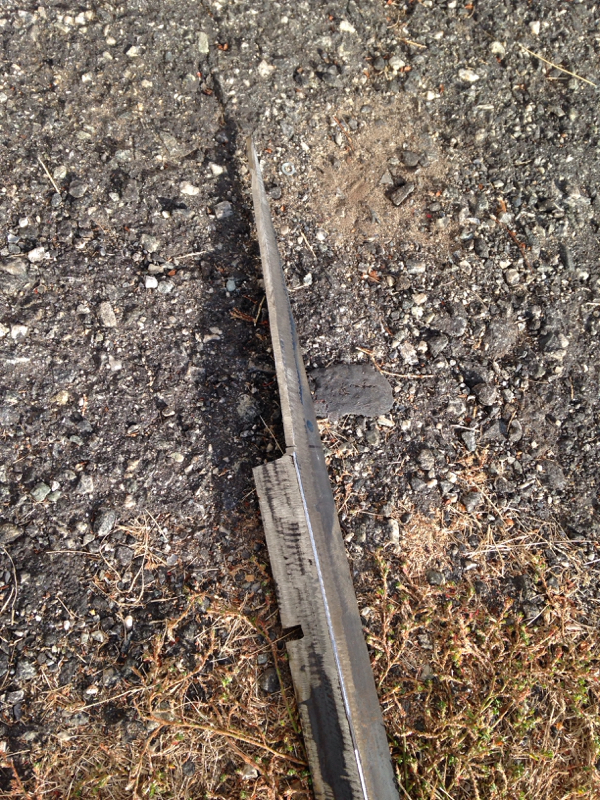

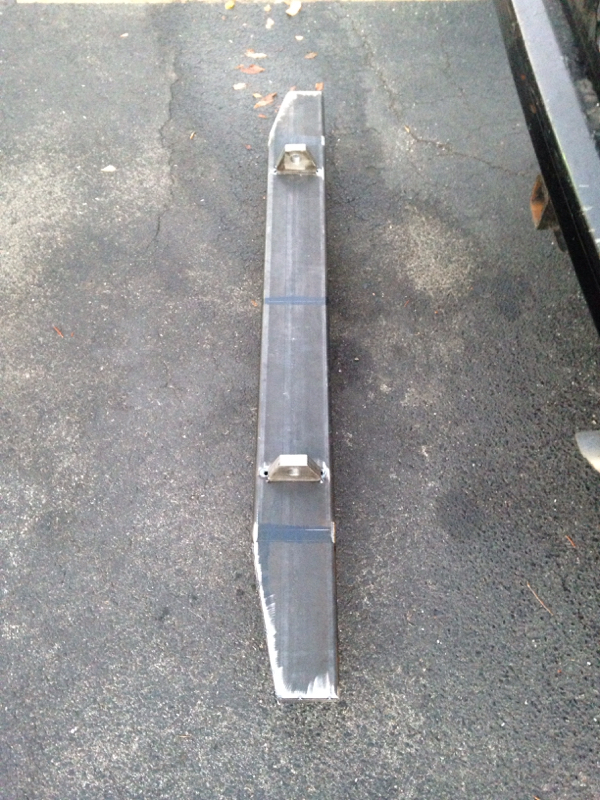

Cut diagonals on ends to match the bends.
Cut diagonals on ends to match the bends.
Last edited by XJwonders; 10-24-2015 at 02:50 PM.
10-24-2015, 02:53 PM
#27
CF Veteran
Thread Starter
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0

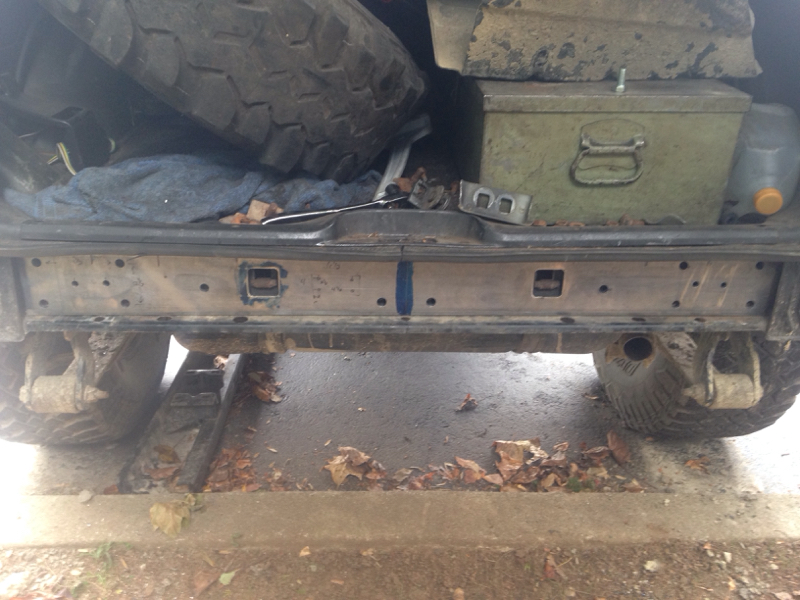

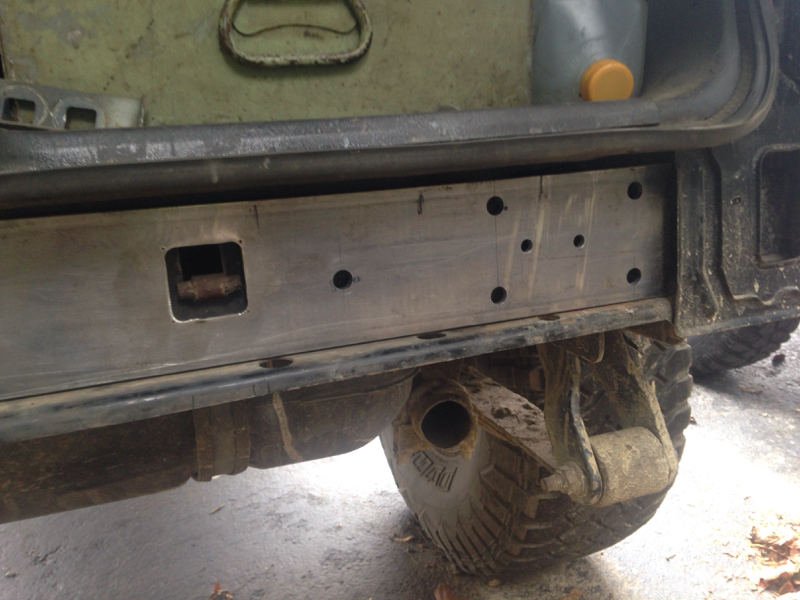

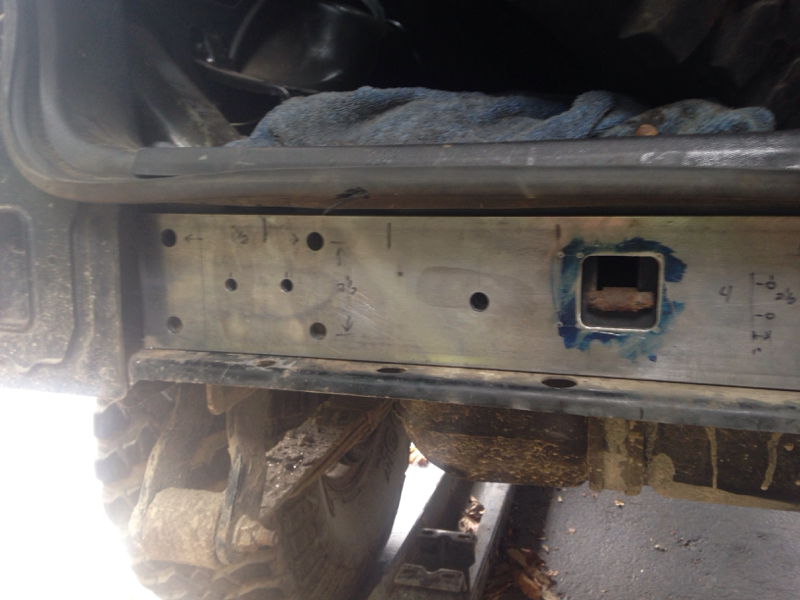

In case u were wondering why there's square holes on the brace... It's to clear the gas tank straps. It appear I need to either mill out a notch or grind some material away to clear the liftgate latch bolts. I might weld it to the brace as additional tie-in.

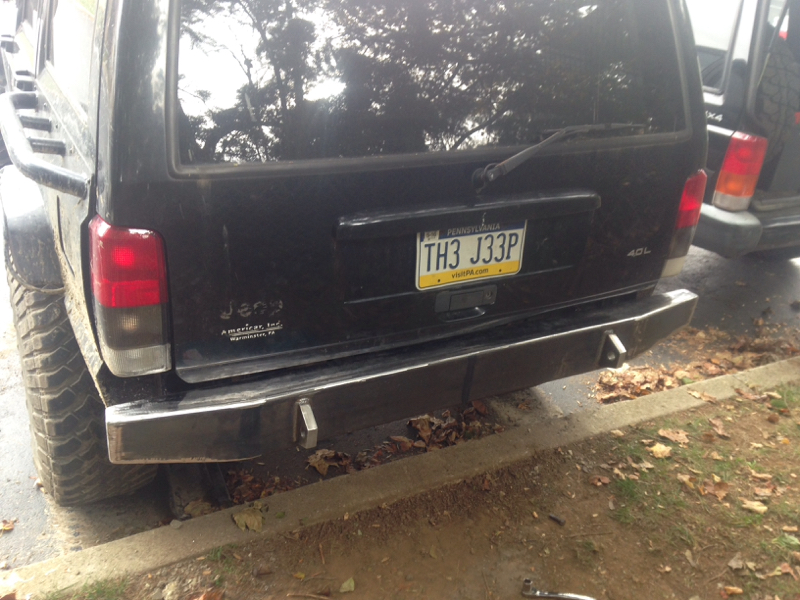

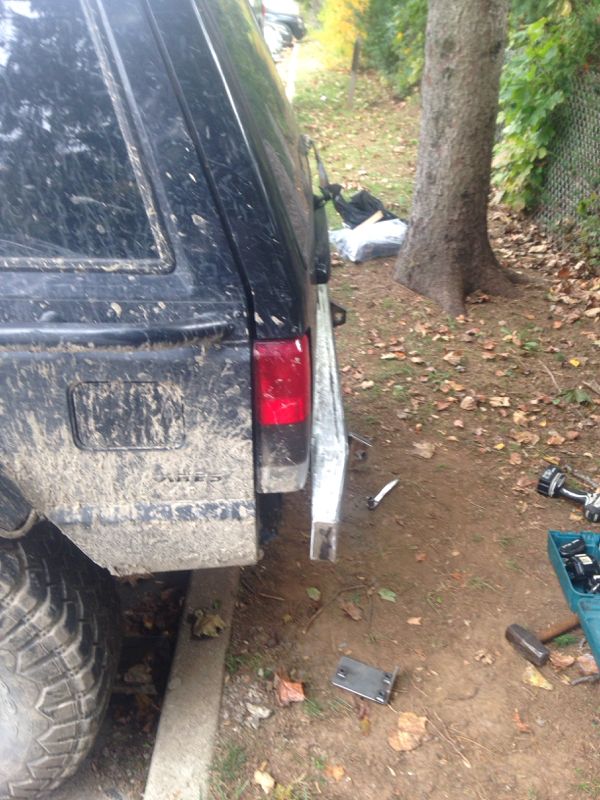

Mocked it up on the jeep. I like it. Need some tweaking.
Mocked it up on the jeep. I like it. Need some tweaking.
Last edited by XJwonders; 10-24-2015 at 02:56 PM.
