perfect fit disconnects
#1
Newbie
Thread Starter
Join Date: Jan 2011
Location: Lockport,ny
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
Year: 01
Model: Cherokee
Engine: straight 6
perfect fit disconnects

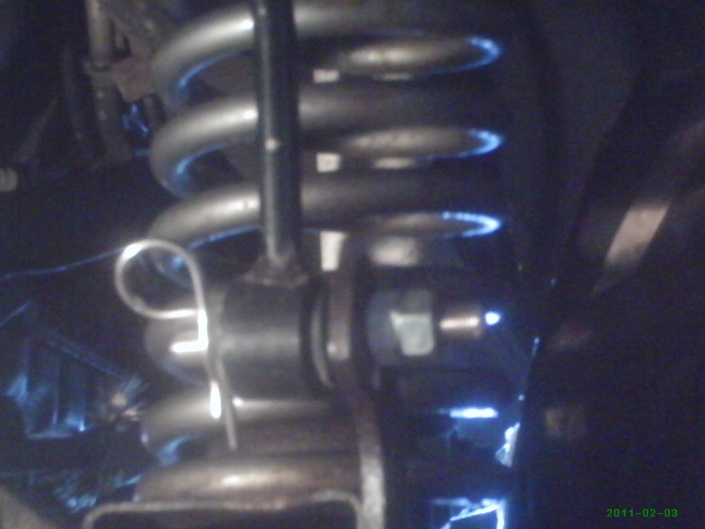

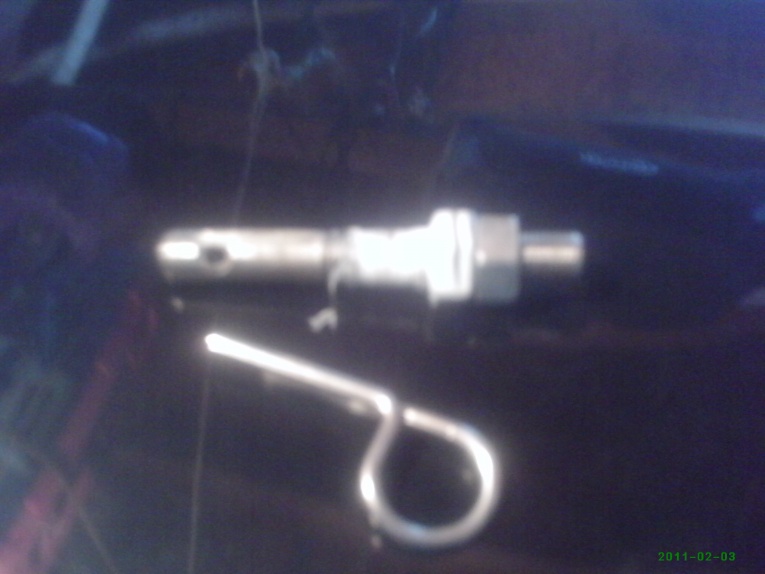

all u need is a pair of hood pins, I did this with my jeep and it works great. now what to do is remove the crush sleve in side the rubber bushing, and put the pin in the hood bolt and insert into the bushing now put two nuts on the other end (just snug it up) take the pin out and remove now grind off the threads that will be inside the bushing (from the nut towards the hole) periodically check that it will fit inside of crush sleve easily. now unscrew the nuts and put bolt in and then pin snug up again and use jam nut make sure u can remove pin easily now just in case of vibrations i used teflon plumbers tape on the threads. hope this will make things a little easier for anybody
#2
CF Veteran
Join Date: Jan 2011
Location: Littleton, CO
Posts: 2,765
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 2001 4.0L
all the hood pins i have ever used were made of crappy soft metal. i dont think those are gonna last long for ya but the idea is good. have you flexed it at all with those on?....pretty sure most of the disco pins made in the aftermarket world are hardened chromoly.
#3
Senior Member
Join Date: Nov 2010
Location: Cloquet, MN
Posts: 976
Likes: 0
Received 5 Likes
on
5 Posts
Year: 2000 Ltd.
Model: Cherokee
Engine: 4.0L I6
I was going to say the same thing. Hood pins aren't designed for high shear loads. What you could do though is replace them with some grade 8 bolts and drill a hold for the pin.
#4
Senior Member
Join Date: Jul 2010
Location: Japan
Posts: 913
Likes: 0
Received 5 Likes
on
5 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 L I6
Last edited by gvns8; 02-04-2011 at 11:55 AM.
#6
CF Veteran
Join Date: Sep 2010
Location: Cleveland, OH
Posts: 1,761
Likes: 0
Received 3 Likes
on
3 Posts
Year: 91 Limited
Model: Cherokee
Could you use pins from a plow set up that are in an L shape and not have to bolt the other end? (if they were the right size)
Other then that, I have a can of pins from a Heavy duty chain (car wash pull chain) that I will try to use on mine. They have a flat head on one side and come in different lengths so hope one is perfect.
Other then that, I have a can of pins from a Heavy duty chain (car wash pull chain) that I will try to use on mine. They have a flat head on one side and come in different lengths so hope one is perfect.
