Homemade front recovery points

Old 04-22-2016, 06:19 AM
  #1
Junior Member
Thread Starter

guesswho's Avatar

Join Date: Feb 2016
Location: So.Ga.
Posts: 62
Year: 1998
Model: Cherokee
Engine: 4.0
Default Homemade front recovery points

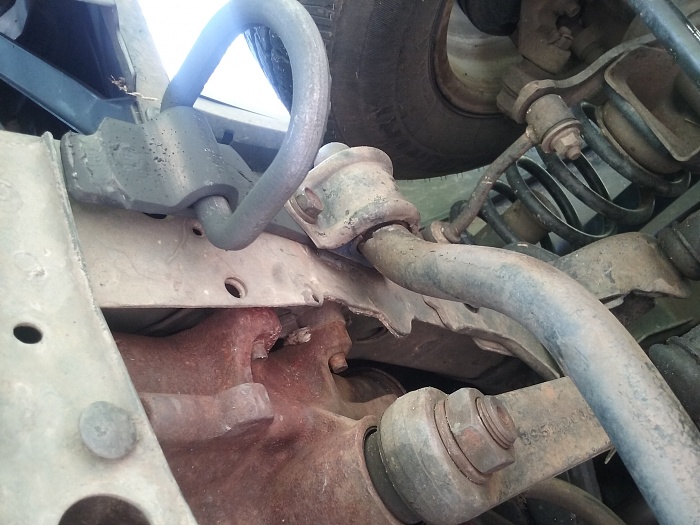

Here are some homemade brackets I made using a tow hook and tie down bracket I bought. Just used some scrap I had from other projects. I plan on upgrading the hardware to grade 8 next time I run to town.
Attached Thumbnails Homemade front recovery points-20160421_155052.jpg   Homemade front recovery points-20160421_153424.jpg   Homemade front recovery points-20160421_155035.jpg
guesswho is offline
Old 04-22-2016, 08:09 AM
  #2
Member

DEN1956's Avatar

Join Date: Apr 2015
Location: Essex-England
Posts: 102
Year: 1997
Model: Cherokee
Engine: 4.0ltr
Default

a good project,its always good to make something out of stuff you have laying around or for minimum cost...;-)
DEN1956 is offline
Old 04-22-2016, 08:31 AM
  #3
Moderator CF K9-unit

Dumajones's Avatar

Join Date: Apr 2012
Location: Alaska
Posts: 5,840
Year: 2000 sport
Model: Cherokee (XJ)
Engine: New 4.0l from s&j engines
Default

Me myself,, I wouldn't trust that hook for any real recovery . The weld didn't really penetrate into the hook at all.
Not safe

Last edited by Dumajones; 04-23-2016 at 04:08 PM.
Dumajones is offline
Old 04-22-2016, 09:41 AM
  #4
CF Veteran

odgreen's Avatar

Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Year: 1989
Model: Cherokee
Engine: 4.0
Default

For the safety of those around you..... do not use that Crap for recovery. That hook is cast. The welds are going to be brittle. It will rip off first pull and possibly injure someone. The ring is also unsafe. The metal you used is way to thin and chincy. Sorry to shoot holes in your project but it's completely unsafe and very dangerous.
odgreen is offline
Old 04-22-2016, 10:05 AM
  #5
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 13,075
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

X1000
roninofako is offline
Old 04-22-2016, 04:51 PM
  #6
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,078
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Yeah that doesn't look safe at all
XJwonders is online now
Old 04-23-2016, 02:45 AM
  #7
CF Veteran

caged's Avatar

Join Date: Nov 2008
Location: Northern Ontario, Canada
Posts: 7,495
Year: 1990, 1999, 2000
Model: Cherokee
Engine: 4.0
Default

recovery is a very serious part of off roading. many people have been badly hurt and even killed from home made recovery parts.

there is a lot of force when being yanked out of a hole. think about your friends and family. get proper recovery gear.
caged is offline
Old 04-23-2016, 12:07 PM
  #8
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Year: 1999
Model: Cherokee
Engine: 4.0
Default

I commend you for trying to make something from parts on hand but doesn't look like your welder was up to the task at hand, very poor penetration.


Some things you can get by with a failure just a broken part but this is a major safety hazard if it breaks, not to you but the person pulling you or bystanders. Now is a good time to either redo it or better yet do a setup using a D-Ring mount much safer than a hook.
Fred/N0AZZ is offline
Old 04-23-2016, 03:35 PM
  #9
CF Veteran

thatXJguy's Avatar

Join Date: Jul 2012
Location: Hudson, FL
Posts: 3,683
Year: 1999
Model: Cherokee
Engine: 4.0L Inline 6
Default

I tend to agree with all that is being said.

I know you were probably trying to save a little bit of money, but check these out instead:

Amazon.com: Rugged Ridge 11236.05 Black Front Tow Hook - Pair: Automotive Amazon.com: Rugged Ridge 11236.05 Black Front Tow Hook - Pair: Automotive
thatXJguy is offline
Old 04-23-2016, 07:34 PM
  #10
CF Veteran

Turbo X_J's Avatar

Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Year: My Jeep is a GMC
Default

Originally Posted by guesswho View Post
Here are some homemade brackets I made...
I don't mean to pile on, but just think of all the mods you could do for just the cost of the ambulance/helicopter ride, yep you're not saving anything...

Last edited by Turbo X_J; 04-23-2016 at 08:05 PM.
Turbo X_J is offline
Old 04-23-2016, 07:45 PM
  #11
Junior Member
Thread Starter

guesswho's Avatar

Join Date: Feb 2016
Location: So.Ga.
Posts: 62
Year: 1998
Model: Cherokee
Engine: 4.0
Default

I guess a struck a nerve.
guesswho is offline
Old 04-23-2016, 08:14 PM
  #12
CF Veteran

odgreen's Avatar

Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Year: 1989
Model: Cherokee
Engine: 4.0
Default

You guess you struck a nerve? No. We are just trying to prevent you from hurting people.
odgreen is offline
Old 04-24-2016, 07:47 PM
  #13
Junior Member
Thread Starter

guesswho's Avatar

Join Date: Feb 2016
Location: So.Ga.
Posts: 62
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Well after all the bad on here I will do more testing with it in a safe manner. I do not yank or ****** on vehicles when they are stuck. It is dangerous to do so no matter what you use. I also have welded more than what is shown here and I do agree that these are not my best looking. I did use a small mig with flux cored wire for better penetration instead of gas wire. I will most likely remove the hook and burn it on with a stick so as to get better penetration. However they were tested when built and did hold up to straight line pulling (not snatching).


I would like to add that I appreciate the heads up on the concern and do not intend on injuring anyone and am full aware of how things go wrong and happen.

Last edited by guesswho; 04-24-2016 at 07:52 PM.
