nmcommando

MadMike

That looks really good. I really like it.

nmcommando

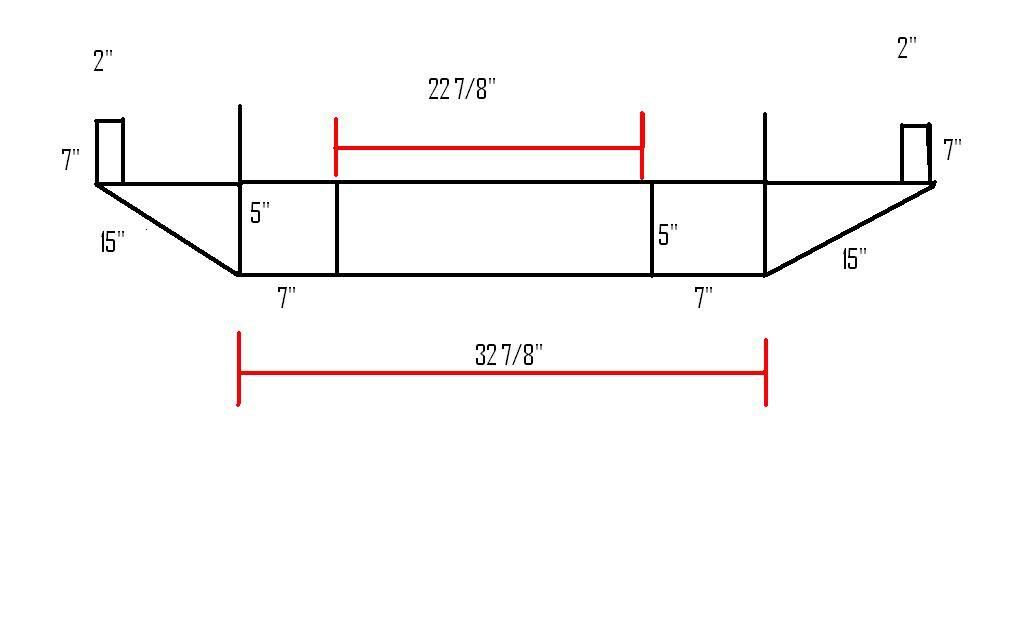

As for the write up here is the drawing i made before i started building the bumper hope this helps someone build something similar. Also the winch plate is ruff stuff brand. My dring tabs were 3/4" plate 7" x 2 1/2" with a hole big enough for my d-ring. I but a 1/4" plate across to support the winch plate and the bumper brackets are aj's. All of the finish work to pretty up the bumper was 1/8" thick metal wich seems pretty sturdy. Any more information wanted just ask.

96_xj

SICK MAN! that came out great! looks like good quality finishing work on it too!

i like it

TrevorNelson

I want a full blue print of this. This is SICKKK!!!

nmcommando

well for a blueprint I might have to charge lol What kind of more detail would you like? I can go into almost as much detail as needed. thanks for the compliments I like it overall i think it turned out great for my first real project on my own. I built a rear bumper last summer but i had a guy do all the welding and help figure measurements but this was on my own except i just learned to weld so i let a friend who is a certified mechanic weld the d-ring tabs and winch stuff figured it would suck to break loose on a pull.

nowayitstaysjeep

is the actual winch mouting plate bought or did you build that too
If bought, where did you get it i need one to start on my bumper build, if built your a bad aasss!

ZachsXJ

The 1/8" is probably too light of a material if you plan on beating the bumper at all. First tree or rock you give it a nice solid smack on will probably dent it. Other than that, its a gorgeous bumper.

ArmyGraham

pretty sure I just found the bumper idea Im going to use when I build mine, this thing looks awesome. Nice welds btw

nmcommando

I bought a winch plate off of amazon to use for the holes in the right spot and thought it would make life a little easier just search winch plate on there and you should find one or just google it and if i was you unless you want the winch plate welded to another 1/4" plate i would get one wider than the space between the brackets and cut it to size.....
yea i don't plan on going around smashing the bumper into things if it dents it dents that is what a bumper is for just right now i didn't want anything heavy and huge on the front because i drive it daily also i think with the way it is shaped hitting stuff won't be an issue because of the small surface area it has....
If there are any more questions i will do my best to get them answered..
Also I won't be able to now but a similar bumper could be made by me if you want but i wont be able to until next summer also i could possibly cut the pieces out and make a "kit".....(I am not really looking to make any but I could I also don't want to start any of those quality/arguments over my bumper because i said i could do something like this for sale, it took way to long to make this to make lots more but i know some people can't fabricate on their own and this would be for someone looking for something closer to summer time i am currently a full time college student without the time/tools to do this.)

PolarXJ

Looks good

jrw7072009

Nice bumper!

XJeepWerks

Looks good. I'd buy it actually..

nmcommando

Well if you really would like one built still next summer send me a pm....

XJeepWerks

I said I would buy one..... I didn't say I had the money to buy one... Haha.. If I could afford one, I would definitely drop you a pm though. It looks great and would match the front end conversion I'm doing very well.
