Building my rock rails

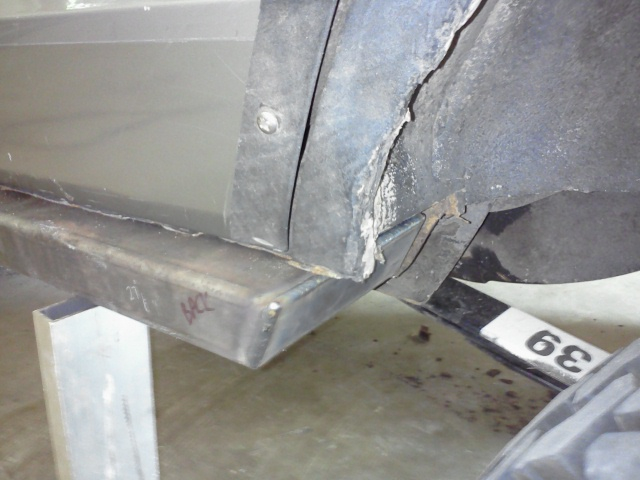

Now that I got the area all cut out and test fitted, just need to decide where and how to cut the rails. I think my plan is to just match the angle of the fender and chop both ends and cap off.... Still not sure how these are suppose to burn into old , rusty thin metal. but I guess we shall find out.
#3
Junior Member
Join Date: Dec 2010
Location: Coeur D'Alene, Idaho
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985
Model: Cherokee
Engine: 2.5 lt
cool project! I was thinking on how to make some rock rails, but I was trying to figure out how to bolt onto body.
are all rock rails for Cherokees cut into body like yours?
looking forward to how yours comes out!
are all rock rails for Cherokees cut into body like yours?
looking forward to how yours comes out!
#7
Junior Member
Join Date: Apr 2013
Location: Portage, IN
Posts: 86
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 HO
If it were me....I would cut a piece of 3/16 x 4 flat stock to run the length of your rockers, weld it to the underside flat. That will give you something to weld to. Keep the heat on the thicker material. Then weld the bottom side to your pinch weld. Might have to gusset it, will find out when you get there. That's just my opinion. Even 1/8 x 4, something to give you more to weld to.
Trending Topics
#8
Senior Member
Thread Starter
Join Date: Jul 2011
Location: Chuluota
Posts: 671
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
OP, there are a handful of threads on naxja about rocker replacement sliders.
f it were me....I would cut a piece of 3/16 x 4 flat stock to run the length of your rockers
#9
Member
Join Date: Feb 2013
Location: Kingwod,NJ
Posts: 241
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Op I had the same concerns which is why I'm holding off on mine until I come up with a better plan haha mine aren't quite so bad but it's still just thin sheet metal... I would entertain the idea of welding a plate to the rocker first like mentioned above... Possibly even some angle steel? That way it covers your bases on the pinch weld too?
#10
Junior Member
Join Date: Apr 2013
Location: Portage, IN
Posts: 86
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 HO
I wish I took more pics of my old xj. Rockers were shot. I cut them off same as you, and welded 3x3 angle in place of the rockers. How bad yours look though.....I don't think you will be able to. I think the only real option is the flat stock like I said earlier. Even if you can weld that tube on like you have it, there is no meat there. You take a decent hit to the bottom of the tube and you will never be able to open and close your doors right again.
#14
Senior Member
Thread Starter
Join Date: Jul 2011
Location: Chuluota
Posts: 671
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
I really liked the sticker or whatever, xj thing on ur fender and I was looking for one. Where did u get urs?
