ZJ Halogen Reverse Light Mod
Ever out on the trail at night and need to back up, but you can't see where you're going? Then this mod is for you!
Materials:
I used the clear lense halogen lamps from Harbor Freight because they are cheap ($9.99) and they are low profile so they dont block the turn signal.
Electrical ring connectors
Bolts for the connectors
First open your tailgate. Then locate the 3 bolts that hold in the taillight assembly, there are 2 on the side and 1 on top. Remove them and remove the tail light assembly. Remove all the lights from the tail light lense by twisting and pulling the sockets. Find the reverse light, it will have a black wire and a brown wire with green tracer.
Cut the brown wire and install ring connectors on both ends (optional to put one on the bulb socket end, I did in case I ever want to return the reverse lights to stock).
Now attach a ring connector to another piece of wire, this will go to the positive on your light.
Attach a ring connector to the ground wire from your light. I had to extend mine so I used a butt splice:
I decided to ground the lights to one of the bolts that holds the tail light on.
This is what you should have at this point:
Next, drill a hole in your bumper for the light to mount in. Make sure the tail gate can open and close with the light in this position, I had to re-drill once because I forgot this.
Depending on how your light mounts, you may have to remove the bumper cover and access the bolt from the bottom. I was able to stick a rachet in between the bumper cover and the body and tighten the bolt up.

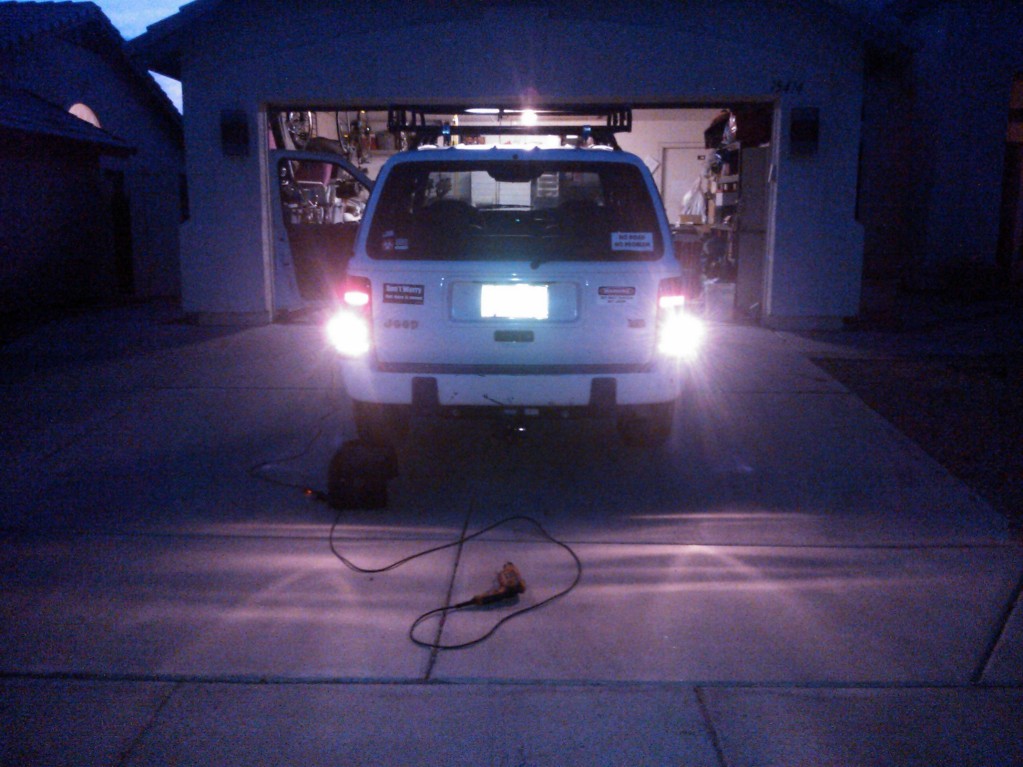

Thats it!
If you have any questions or comments, feel free to post in this thread or PM me. Happy Wrenching!
Materials:
I used the clear lense halogen lamps from Harbor Freight because they are cheap ($9.99) and they are low profile so they dont block the turn signal.
Electrical ring connectors
Bolts for the connectors
First open your tailgate. Then locate the 3 bolts that hold in the taillight assembly, there are 2 on the side and 1 on top. Remove them and remove the tail light assembly. Remove all the lights from the tail light lense by twisting and pulling the sockets. Find the reverse light, it will have a black wire and a brown wire with green tracer.
Cut the brown wire and install ring connectors on both ends (optional to put one on the bulb socket end, I did in case I ever want to return the reverse lights to stock).
Now attach a ring connector to another piece of wire, this will go to the positive on your light.
Attach a ring connector to the ground wire from your light. I had to extend mine so I used a butt splice:
I decided to ground the lights to one of the bolts that holds the tail light on.
This is what you should have at this point:
Next, drill a hole in your bumper for the light to mount in. Make sure the tail gate can open and close with the light in this position, I had to re-drill once because I forgot this.
Depending on how your light mounts, you may have to remove the bumper cover and access the bolt from the bottom. I was able to stick a rachet in between the bumper cover and the body and tighten the bolt up.
Thats it!
If you have any questions or comments, feel free to post in this thread or PM me. Happy Wrenching!
#2
Seasoned Member
Join Date: Sep 2009
Location: East Texas
Posts: 454
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Grand Cherokee
Engine: 4.0
Looks good. I would have added a switch to the new light ground wire for those situations where you may not want the extra lighting. Can't think of a situation right now but could be useful. Thanks for posting.
I have a switch on my Dodge Ram where I can turn on high beam and low beam, no fog lights, at the same time. I use it once in a while.
I have a switch on my Dodge Ram where I can turn on high beam and low beam, no fog lights, at the same time. I use it once in a while.
#3
Senior Member
Join Date: Jun 2012
Location: SC
Posts: 868
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
Would have been smarter to add in a relay and a switch...
Reasons: Not fry any expensive factory wiring/harnesses
come on automatically when put in reverse
the option of turning them on independently of reverse.
#5
Senior Member
Thread Starter
Join Date: May 2012
Location: Ahwatukee, Phoenix, AZ
Posts: 960
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
The way the new lights are wired (parallel with the original lights), when the original bulb was in, it drew too much current and blew the fuse. Also with the original light bulb in place, both lights were extremely dim, thus defeating the purpose of having the extra light.
