dogdog130

well as alot of you know my jeep got screwed over and broke a rod well i need to get my jeep on road so i need to do a swap i found a jeep grandcherokee motor with 175K for 180$ well im going to do it monday but question is it is auto is it easyer to remove the engine and trans together and should i remove the front to make room

dnuccio

Id say definately remove the front clip if you can, it will give you alot more room. I've never pulled an engine myself, but my dad has pulled hundreds, and he says its usually easier to remove the engine and tranny together because the top bolts on the bell housing can be a b**ch to get at.

dogdog130

ok thanks for the advice im not looking froward to this

ol"blue

What year is the replacement engine you plan on using?
For most people it's easier to remove them together, leaving the transfer case in the Jeep. Then separate them once they're out of the vehicle.

dogdog130

1994 is the replacement engine mine a 93

ol"blue

Okay.

jeff2285

i always remove the engine alone the 4.0 and transmission is pretty long and you need alot of room infront of the jeep to get them out together, and the top bolts arent that hard to get too

the_big_h

When I pulled the engine out of my '96, I separated engine from transmission, and left transmission in the jeep. The torque converter stays with the tranny, you need to remove the torque converter to flexplate bolts first. You can pry it back maybe 1/4" or so even with engine in place. Don't let it fall off the tranny.
The trick to the top bolts is to give yourself some room..
Remove front clip (grille, rad, crossmember, etc). I removed alternator and manifolds too, before pulling engine. Get the engine hanging on hoist, take up the weight, and remove front motor mounts (remove them completely). Then lower engine back down, way down, to give room to get to top bolts on tranny. Use long extensions (about 3-4 feet total), and 2 people - one underneath to wrench, one on top to guide the socket onto the bolthead. A universal and a wobble-drive extension help a lot.
The boltheads are often inverted torx, you need the special socket to remove them. You may wish to replace the bolts with standard bolts when you put it back together. I think 3/8" x 2", I would use grade 8. If I recall, all the bolts that thread into the engine block are inch sizes, anything that screws into the body is metric. Once they are out, lift the engine back to normal position, block up the tranny, and remove the lower bolts. I blocked up the tranny with a long 2x4 bolted up to the frame, so I could roll the jeep around.
The reason I left the tranny behind, is I couldn't think of a safe way to pick it up, then tip it way back, then lift it high enough to clear.

Thexjfiles

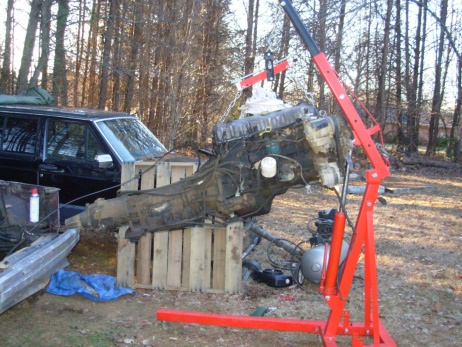

Ive pulled about 5 drivetrains on XJs recently.....and If I had not already sold the TC, Ive pulled the entire engine, trans and TC at the same time. Its not that hard and much easier to seperate when everything is on the ground in front of you.

Dirty Dawg

I just did this job about a month ago. You might be able to pull them both at the same time..but on mine the upper passenger side tranny bolt has a clamp that secures your wiring harness for tranny and TC it was the hardest to get to and to get out. So you could do them both but you still have to get that bolt and clamp loose. I left the tranny and TC in the car not too bad but you have to be really careful when you stab them back together. Good luck, it's alot of work but it' cool when you turn the key and it goes vroom vroom.

the_big_h

Not so much if you leave the Torque Converter on the tranny. Else it will be almost impossible to get the splices and the pump drive notches to fit up.

DaveD

I have done a head on a 97...right now I am doing a motor swap of a 91 longblock into a 2000 that creamated a rod at 269K...my first engine swap....and man...let me tell you....I love working on cars...but this is physically very hard...I have a bad neck and back...I credit those that do this regularly...makes me love my office job..tonight is lift out and remove everything from the stock motor...I cannot wait until its done ..alot more than I thought it would be......never been this dirty in my life working on a car...good luck my friend...

dogdog130

so the fun begins tomorrow buying the engine lift today not looking forward to this at all

DaveD

I just got it out tonight too...just the motor...if I did it over...I would pull the whole thing with trans...I left the trans in and front end on...ugh...b*tch..I feel ya man

Trooper DEDRE

Getting ready to pull my 2002 Grand Cherokee. Thanks for the information and detail. I will be reviewing this your thread.
