All zj mod's go here
10-04-2011, 06:34 PM
#1
Member
Thread Starter
Join Date: Sep 2009
Location: Southern Indiana
Posts: 195
Likes: 0
Received 3 Likes
on
2 Posts
Year: 1996
Model: Grand Cherokee
Engine: 5.2L V-8
All zj mod's go here
Been reading threads on here for about two years now and i see all kinds of mods for XJ's. My first jeep was a XJ but now i have me a ZJ and looking for some cool mods to look at and maybe use with my rig.
SO POST PICS AND DESCRIPTIONS OF ALLL THE MODS!
SO POST PICS AND DESCRIPTIONS OF ALLL THE MODS!
10-05-2011, 04:40 PM
#5
CF Veteran
Join Date: Jul 2011
Location: Elkton, Maryland
Posts: 3,235
Likes: 0
Received 2 Likes
on
1 Post
Year: 1998
Model: Grand Cherokee
Engine: 4.0
Rolled my fenders 1 1/2" and beat the hell out of my pinch seam to fit 33's on a 3.5" lift with no rub
XJ flares on a ZJ. Not spending $500 for something that is going to get ripped off on the trail. Total cost $60. Used 2 front flares and 5 rear flares. Cut everything to follow the ZJ lines as close as possible on the rear. Cut and joined to follow lines on the front. Used a heat gun to shape to ZJ lines.
Still have to sand epoxy and paint
Will be building custom front winch bumper and custom rear bumper w/a storage compartment. Will post pics when done
Mike
XJ flares on a ZJ. Not spending $500 for something that is going to get ripped off on the trail. Total cost $60. Used 2 front flares and 5 rear flares. Cut everything to follow the ZJ lines as close as possible on the rear. Cut and joined to follow lines on the front. Used a heat gun to shape to ZJ lines.
Still have to sand epoxy and paint
Will be building custom front winch bumper and custom rear bumper w/a storage compartment. Will post pics when done
Mike
Last edited by pulltabmike; 10-05-2011 at 04:41 PM. Reason: added to post
The following users liked this post:
Jeffrey LoCastro (08-28-2020)
10-06-2011, 09:00 AM
#7
Member
Thread Starter
Join Date: Sep 2009
Location: Southern Indiana
Posts: 195
Likes: 0
Received 3 Likes
on
2 Posts
Year: 1996
Model: Grand Cherokee
Engine: 5.2L V-8
Rolled my fenders 1 1/2" and beat the hell out of my pinch seam to fit 33's on a 3.5" lift with no rub
XJ flares on a ZJ. Not spending $500 for something that is going to get ripped off on the trail. Total cost $60. Used 2 front flares and 5 rear flares. Cut everything to follow the ZJ lines as close as possible on the rear. Cut and joined to follow lines on the front. Used a heat gun to shape to ZJ lines.
Still have to sand epoxy and paint
Will be building custom front winch bumper and custom rear bumper w/a storage compartment. Will post pics when done
Mike
XJ flares on a ZJ. Not spending $500 for something that is going to get ripped off on the trail. Total cost $60. Used 2 front flares and 5 rear flares. Cut everything to follow the ZJ lines as close as possible on the rear. Cut and joined to follow lines on the front. Used a heat gun to shape to ZJ lines.
Still have to sand epoxy and paint
Will be building custom front winch bumper and custom rear bumper w/a storage compartment. Will post pics when done
Mike
Trending Topics
10-06-2011, 10:18 AM
#8
Seasoned Member
Join Date: Mar 2010
Location: Ohio
Posts: 303
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: i6
We build the bumper on my current Jeep
Its a lot better than the other, it give me better clearance on trails, plus this jeep is lifted 4.5 inches
10-06-2011, 03:59 PM
#9
CF Veteran
Join Date: Jul 2011
Location: Elkton, Maryland
Posts: 3,235
Likes: 0
Received 2 Likes
on
1 Post
Year: 1998
Model: Grand Cherokee
Engine: 4.0
I cut vertical lines 1 1/2" up, and in between pinch welds. Bend up into wheel well. Used Deadblow to shape, and welded a few of the tabs for more strength.
Mike
07-02-2012, 07:13 PM
#10
Newbie
Join Date: Jul 2012
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
07-03-2012, 06:28 AM
#12
::CF Administrator::
Join Date: May 2008
Location: Okc area
Posts: 10,039
Likes: 0
Received 15 Likes
on
11 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 I6
Mo ved to tech since this is not a fabrication thread. Fabrication is something like building a bumper from scratch. Modifying your rig is not fabricating.
Sorry just educating as I move.
Enjoy!
Sorry just educating as I move.
Enjoy!
07-05-2012, 07:32 PM
#14
Seasoned Member
Join Date: Aug 2010
Location: Grand Haven, MI
Posts: 418
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Grand Cherokee
Engine: 5.2 V8

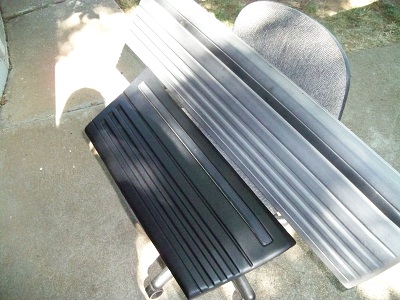

some 2x6 rockers i made a while ago, does this count as a mod or as a fab? oh well
Last edited by Jordan1996 ZJ; 07-05-2012 at 07:36 PM.
