Supercompact's Budget Build Thread - 98 XJ
#17
Junior Member
Thread Starter
Join Date: Sep 2015
Location: Knoxville, TN
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0

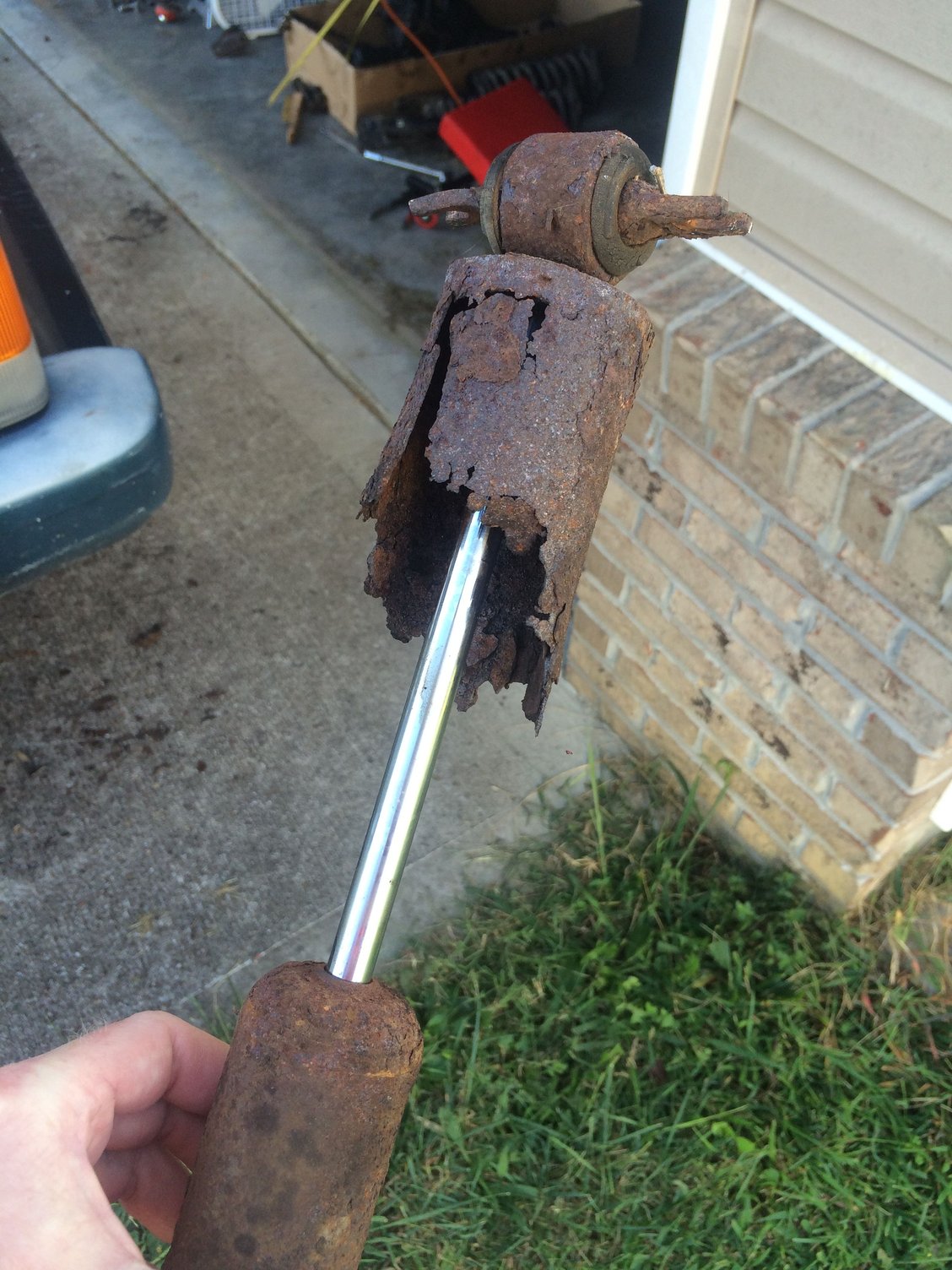

Rust everywhere! Broke a couple of bolts, so we welded on home made bar pin eliminators for the upper part of the rear shocks. Bastard pack is complete though using s10 blazer complete leaf packs with the eyelets cut off.
Got right at 4 inches of lift in the rear.
Got right at 4 inches of lift in the rear.
Last edited by supercompact; 09-27-2015 at 05:53 PM.
#19
Junior Member
Thread Starter
Join Date: Sep 2015
Location: Knoxville, TN
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0

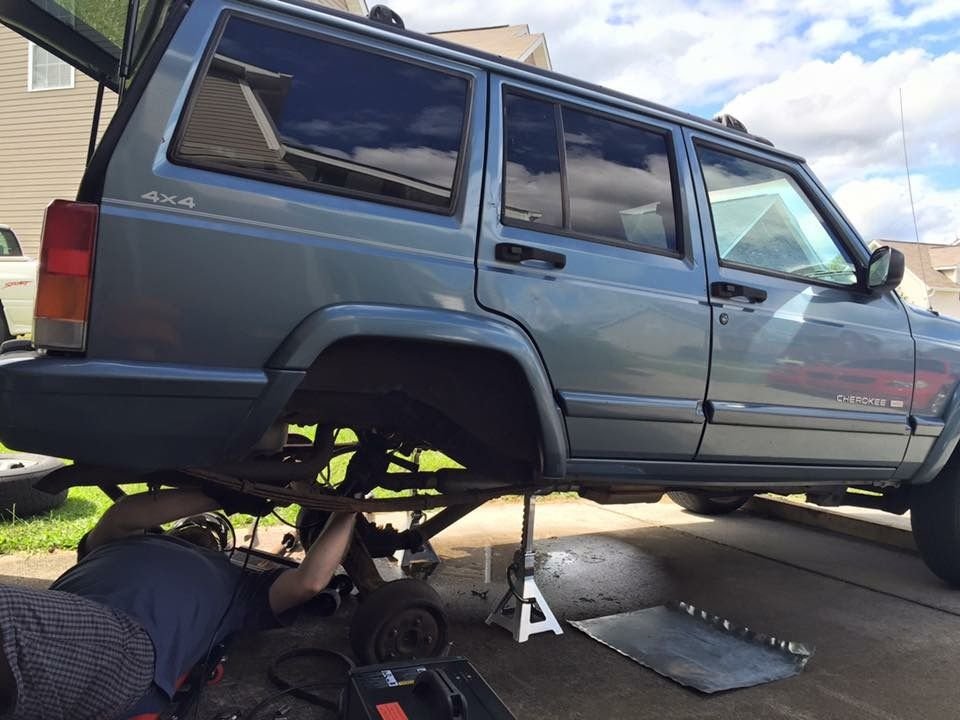

I PB Blastered mine once a few days prior and then the day of. I used the entire leaf pack with the eyelets cut off. It was four leaves and the main XJ leaf. I had to drill out the XJ leaf to accept the S10 pin and then ground the head down to fit the perches. Used Rubicon Express U bolts to clamp it all down. I still need to mount the shocks. It was an all day project for me. 93civej1 helped me out for awhile.
#21
Junior Member
Thread Starter
Join Date: Sep 2015
Location: Knoxville, TN
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
#23
Junior Member
Thread Starter
Join Date: Sep 2015
Location: Knoxville, TN
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Those were by far the worst bolts on mine. Only one of the four came out. Two of them broke and the head rounded off on the other. Unfortunately, you can't really get any PB up in there and they are so small in diameter, they just shear right off. I hope yours are better!
#24
Junior Member
Thread Starter
Join Date: Sep 2015
Location: Knoxville, TN
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0

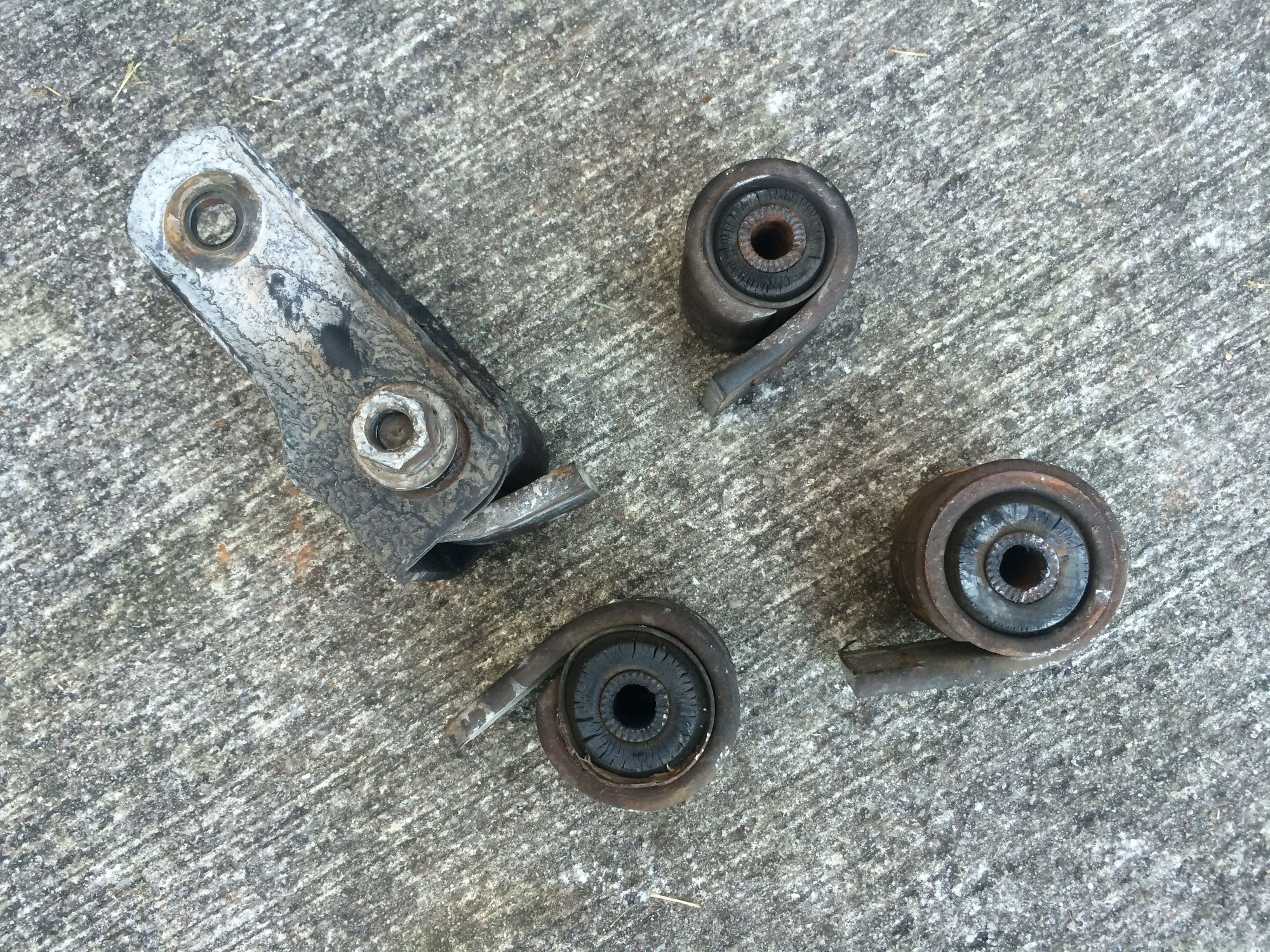

Here are the eyes that I cut off the S10 Blazer leaf packs. One side still had the shackle on it when I pulled them from the junkyard.
Picked up a set of used JK Rubicon shocks from a buddy for free. They're a little faded, but should work well.
Getting the diy bar pin eliminators welded into place.
Craigslist find this morning. Picked up a Rubicon Express steering stabilizer new in the box for $20.
Picked up a set of used JK Rubicon shocks from a buddy for free. They're a little faded, but should work well.
Getting the diy bar pin eliminators welded into place.
Craigslist find this morning. Picked up a Rubicon Express steering stabilizer new in the box for $20.
#25
Member
Join Date: Feb 2015
Location: Knoxville, TN
Posts: 112
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Here are the eyes that I cut off the S10 Blazer leaf packs. One side still had the shackle on it when I pulled them from the junkyard.
Picked up a set of used JK Rubicon shocks from a buddy for free. They're a little faded, but should work well.
Getting the diy bar pin eliminators welded into place.
Craigslist find this morning. Picked up a Rubicon Express steering stabilizer new in the box for $20.
Picked up a set of used JK Rubicon shocks from a buddy for free. They're a little faded, but should work well.
Getting the diy bar pin eliminators welded into place.
Craigslist find this morning. Picked up a Rubicon Express steering stabilizer new in the box for $20.
#26
Junior Member
Thread Starter
Join Date: Sep 2015
Location: Knoxville, TN
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Another craigslist find. $80 set of 31x10.50r15 tires. I hope to buy some D window steelies in the next few weeks to put them on.
#27
Member
Join Date: Feb 2015
Location: Knoxville, TN
Posts: 112
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
#29
CF Veteran
Join Date: May 2013
Location: Asheville, NC
Posts: 2,562
Received 250 Likes
on
168 Posts
Year: 1999
Engine: 4.0
Hey man, nice rig! It's nice to have someone else in the neighborhood. Join Titan Off Road - it's a local club. We ride at lease once a month if you're wanting to test it out in a group.
#30
Junior Member
Thread Starter
Join Date: Sep 2015
Location: Knoxville, TN
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Thanks man! I joined over there but haven't posted yet. I'd love to get together in a group when it's trail readyish
