Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

Sand Scorpion

Old 01-03-2019, 08:50 PM
  #16
Seasoned Member

RockinRonnie's Avatar

Join Date: Jul 2018
Location: Evart,Mich.
Posts: 470
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0
Default

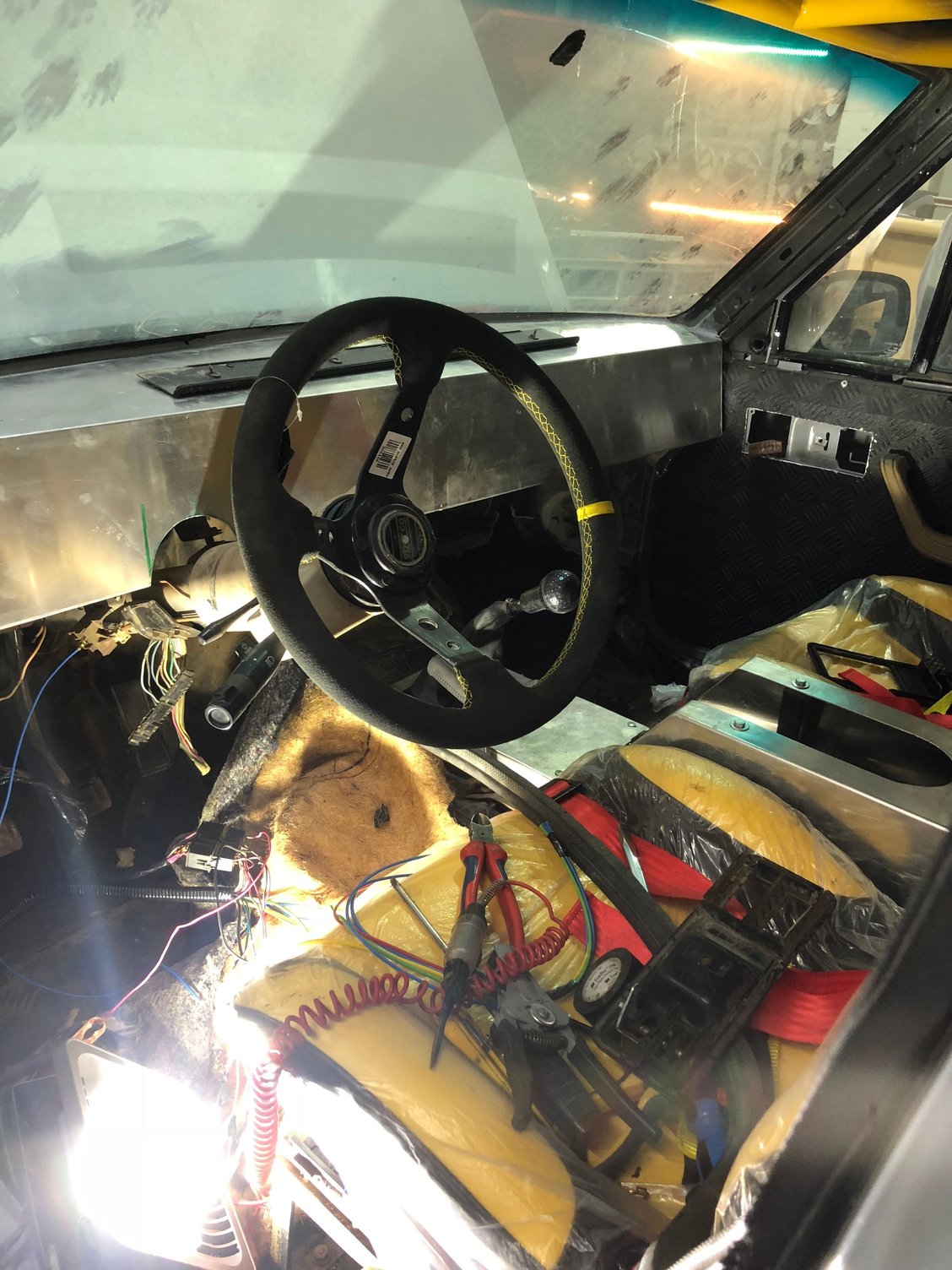

That aluminum work looks killer and the yellow really is set off with the bed liner!
RockinRonnie is offline
Old 01-08-2019, 05:52 AM
  #17
Newbie
Thread Starter

Join Date: Feb 2018
Location: Saudi Arabia
Posts: 14
Year: 1993
Model: Cherokee(XJ)
Engine: 4.0
Default



Fodiiis is offline
Old 01-08-2019, 09:05 AM
  #18
Newbie

PajeroXJ's Avatar

Join Date: Nov 2018
Location: North Carolina
Posts: 24
Year: 1999
Model: Cherokee (XJ)
Default

Man, I really respect Saudi auto culture! Cool project, keep up the solid work.
PajeroXJ is offline
Old 01-08-2019, 09:22 AM
  #19
Seasoned Member

Joshua White's Avatar

Join Date: Oct 2015
Location: Clearwater FL
Posts: 378
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0
Default

This thing is looking better and better, keep it up!
Joshua White is offline
Old 02-26-2019, 10:50 AM
  #20
Newbie
Thread Starter

Join Date: Feb 2018
Location: Saudi Arabia
Posts: 14
Year: 1993
Model: Cherokee(XJ)
Engine: 4.0
Default

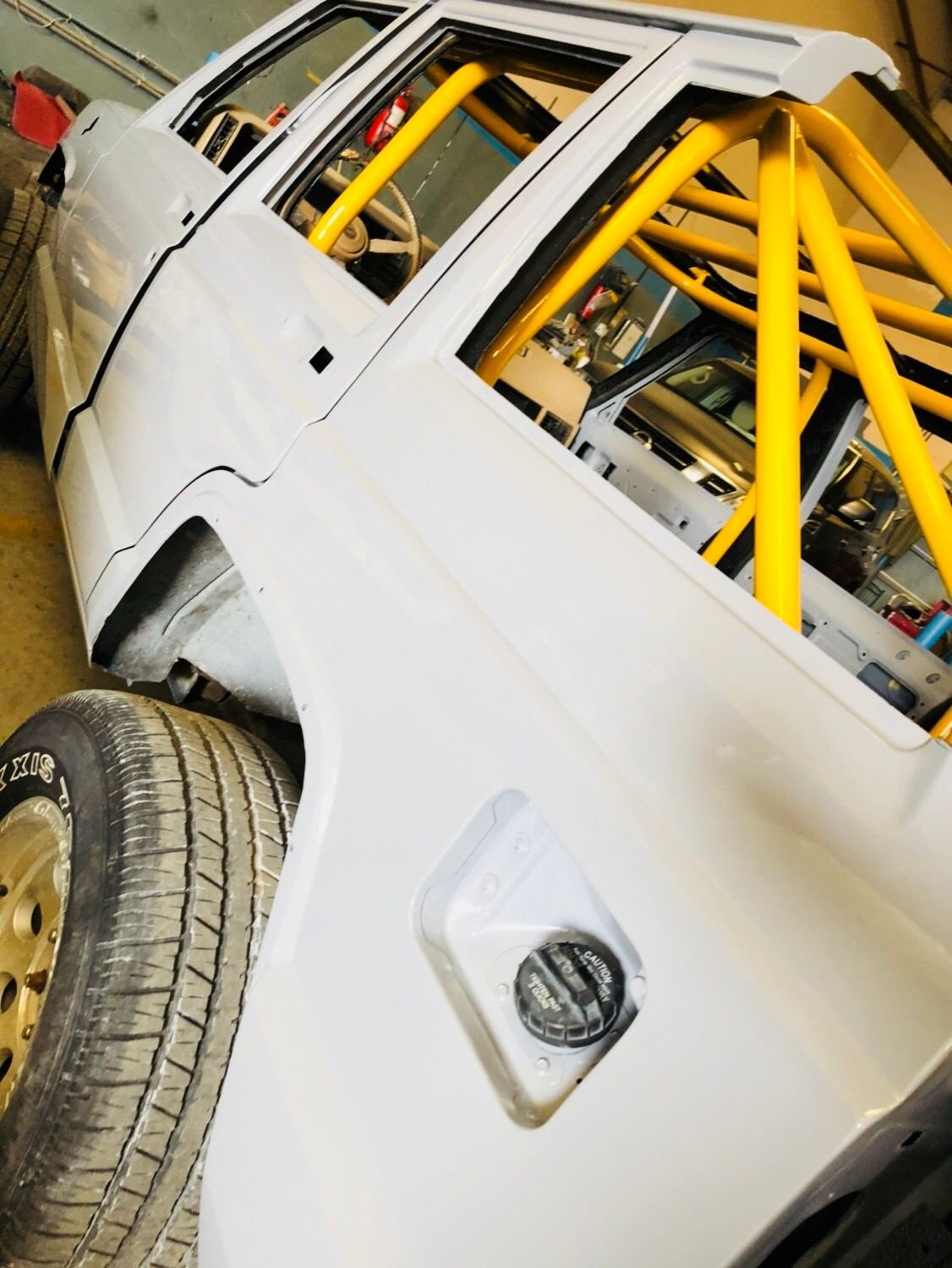

Update..







Fodiiis is offline
Old 02-26-2019, 10:59 AM
  #21
Seasoned Member

Joshua White's Avatar

Join Date: Oct 2015
Location: Clearwater FL
Posts: 378
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0
Default

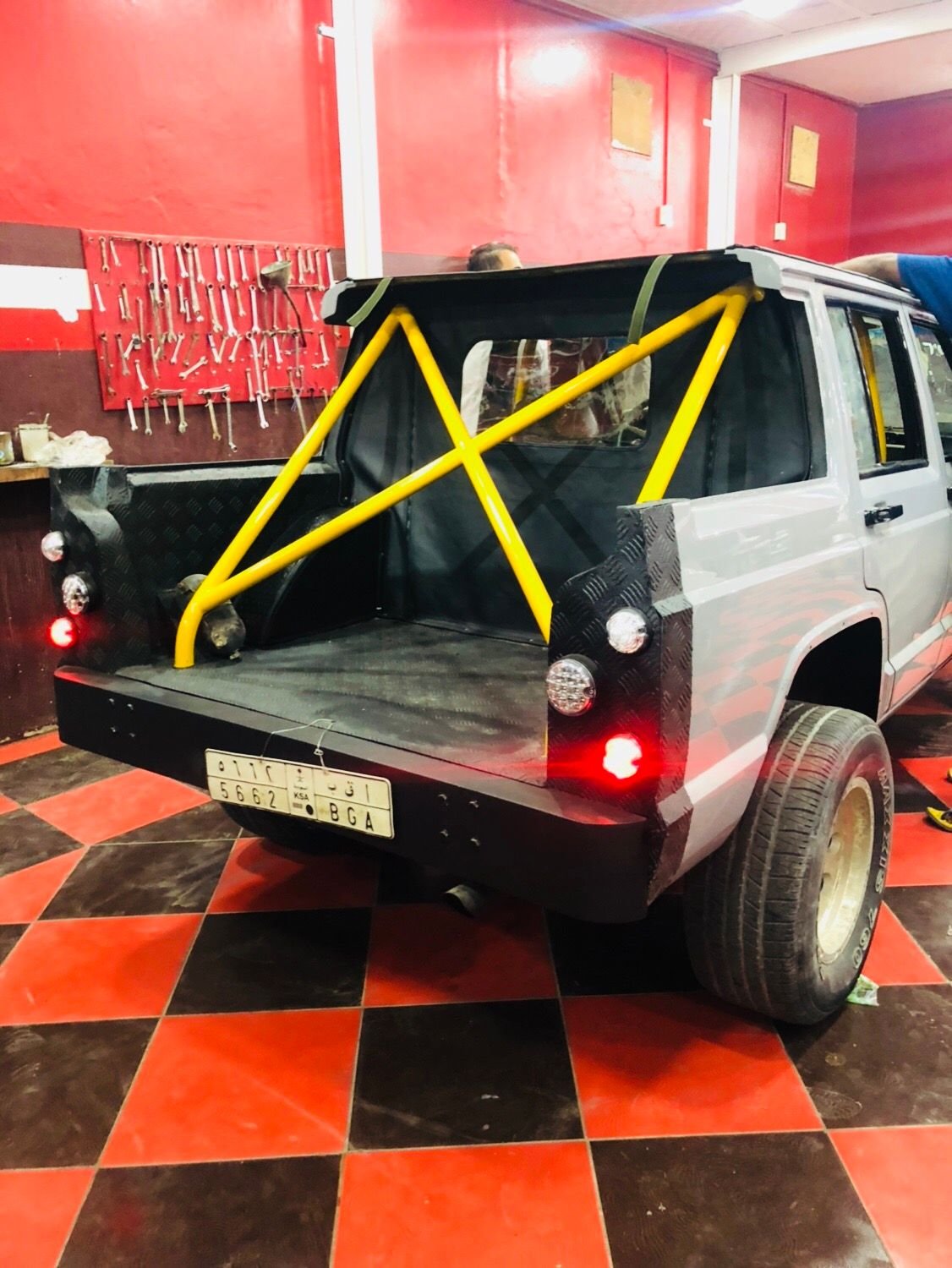

Love the top solution, such an awesome build!!
Joshua White is offline
Old 02-28-2019, 09:42 AM
  #22
Newbie
Thread Starter

Join Date: Feb 2018
Location: Saudi Arabia
Posts: 14
Year: 1993
Model: Cherokee(XJ)
Engine: 4.0
Default

getting serious


Fodiiis is offline
Old 02-28-2019, 02:13 PM
  #23
Member

Join Date: Nov 2016
Location: KTUL
Posts: 126
Year: 1996
Model: Cherokee
Engine: 4.0
Default

WTF, Leafs and coils in the rear?
mikebravo is offline
Old 03-02-2019, 11:13 AM
  #24
Newbie
Thread Starter

Join Date: Feb 2018
Location: Saudi Arabia
Posts: 14
Year: 1993
Model: Cherokee(XJ)
Engine: 4.0
Default

What is wrong on this
Fodiiis is offline
Old 03-02-2019, 08:08 PM
  #25
CF Veteran

4.3L XJ's Avatar

Join Date: Aug 2008
Location: Chico, CA
Posts: 4,349
Year: 1986
Model: Cherokee
Engine: 4.3L with headers and full 3" exhaust system
Default

What he has done is saved a ton on links. However I would caution that this axle will wrap badly under power. But he will find that out
4.3L XJ is offline
Old 03-03-2019, 04:06 AM
  #26
Newbie
Thread Starter

Join Date: Feb 2018
Location: Saudi Arabia
Posts: 14
Year: 1993
Model: Cherokee(XJ)
Engine: 4.0
Default

Should I remove it ?
Fodiiis is offline
Old 03-03-2019, 11:21 AM
  #27
CF Veteran

4.3L XJ's Avatar

Join Date: Aug 2008
Location: Chico, CA
Posts: 4,349
Year: 1986
Model: Cherokee
Engine: 4.3L with headers and full 3" exhaust system
Default

Originally Posted by Fodiiis View Post
Should I remove it ?
I would. I have done similar things in my past experiments. You can go one or the other, but not both easily. One problem is bump stopping. If you don't extend the bump stop down a lot, the coil will bottom out and give you a nice bang and eventually start taking out the uniframe. I think what I would do in your case is stick with the leaf spring and add an old school traction bar. This one eliminates axle wrap and would be a good option since ground clearance will not be an issue in your situation there

Amazon Amazon
4.3L XJ is offline
Old 03-17-2019, 07:10 AM
  #28
Newbie
Thread Starter

Join Date: Feb 2018
Location: Saudi Arabia
Posts: 14
Year: 1993
Model: Cherokee(XJ)
Engine: 4.0
Default

I will drive on sand and some times I have to jump
do you think itís safety
Fodiiis is offline
Old 03-17-2019, 10:37 AM
  #29
CF Veteran

4.3L XJ's Avatar

Join Date: Aug 2008
Location: Chico, CA
Posts: 4,349
Year: 1986
Model: Cherokee
Engine: 4.3L with headers and full 3" exhaust system
Default

I wouldn't do it with that set up. If you are going to see some air time there are a couple of things you should do. One is to have the front suspension stiffer than the rear. Too much rear spring will make the front do a nose dive and if you do it at speed then you may roll end over end. Been there and done that. I suggest you study some Trophy trucks in races like the Baja 500 and 100. Or the Mint. You will see they have moved the rear spring toward the front on a trailing arm and it is quite soft. The other thing is bump stopping properly. What you had is not bump stopped. It is that rubber thing on the frame above the axle. People that do lots of air will get air stops. It is a cylinder that bolts there that can be filled with nitrogen, but I don't know why you couldn't use air in your dry climate. It increases the resistance as it compresses and keeps most of the bang out of the axle when it meets the frame. This goes along with good shocks. Fox and Bilstein make bolt in shocks that can be tuned. It is a matter of adding or arranging different diameter and thickness of metal discs in the end of the shock rod. There is a lot of experimentation involved with this. But the good news is the folks that make these things have all the expertise you will need to start out. It all involves money and how much you want to invest



Last edited by 4.3L XJ; 03-17-2019 at 10:46 AM.
4.3L XJ is offline
